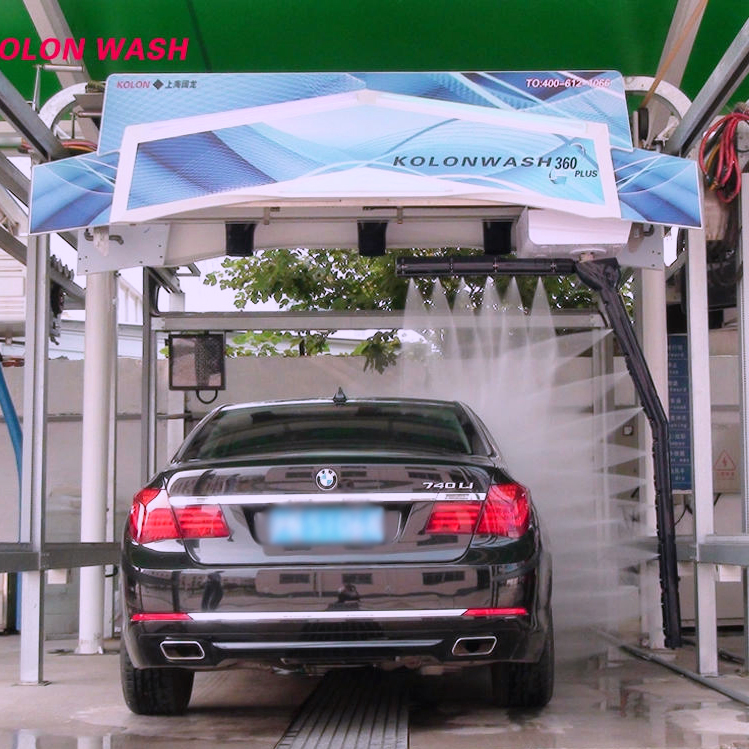

Brushless High-Voltage Fully Automatic Car Washing Robot with Air Drying System

1 / 5

Brushless High-Voltage Fully Automatic Car Washing Robot with Air Drying System

Send Inquiry

Product Description

Overview

The latest automatic car wash technology has improved the standard for non-contact car wash equipment. Focusing on increasing revenue and improving total cost of ownership, the car wash system delivers the industry's best return on investment. Smart 360 plus technology enables the car wash system to respond to dynamics in the car wash and "think about itself", increasing uptime and optimizing the car wash process.

Significantly increased cleaning speeds increase vehicle throughput, shorten production lines and satisfy your customers. Simplified machine design and lower energy and utility usage reduce operating costs, making the car wash business more profitable.

Main Features

01 Intelligent unmanned system, self-service card payment system.

02 Smart 360 plus technology.

03 Intelligent chemical mixing system.

04 Innovative suspension system with no resistance rails.

05 Unique embedded quick drying system.

06 Digital voice security alarm system.

07 Fault self-test system.

08 One-button antifreeze system.

System Functions

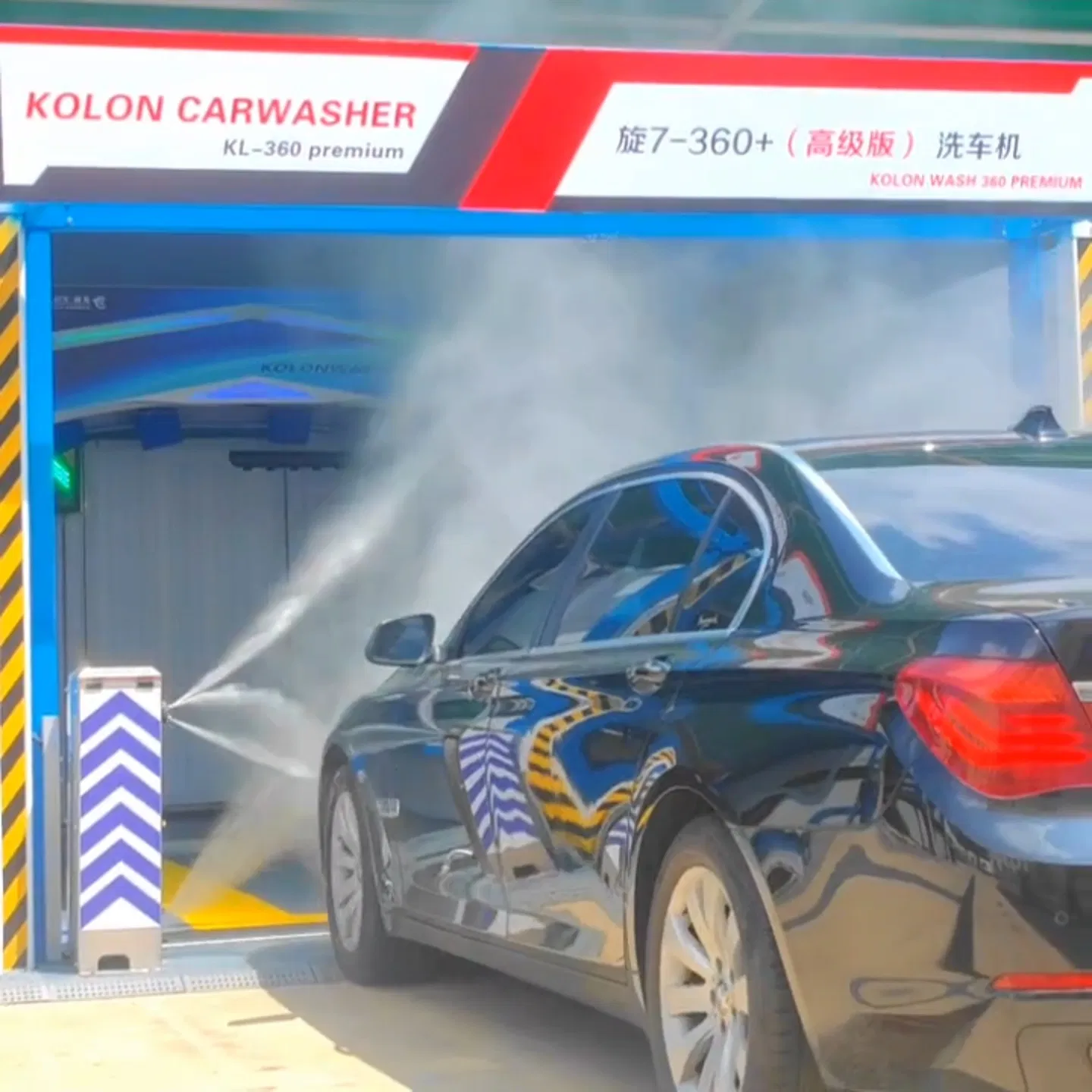

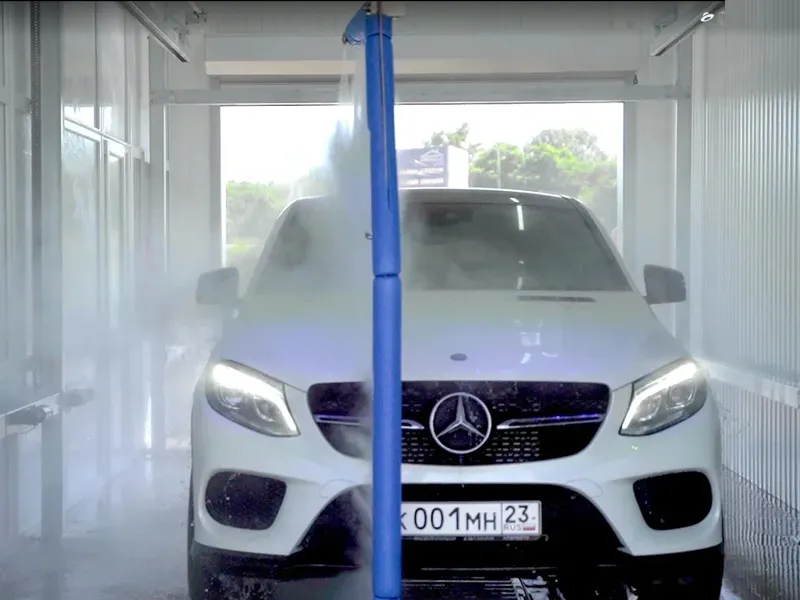

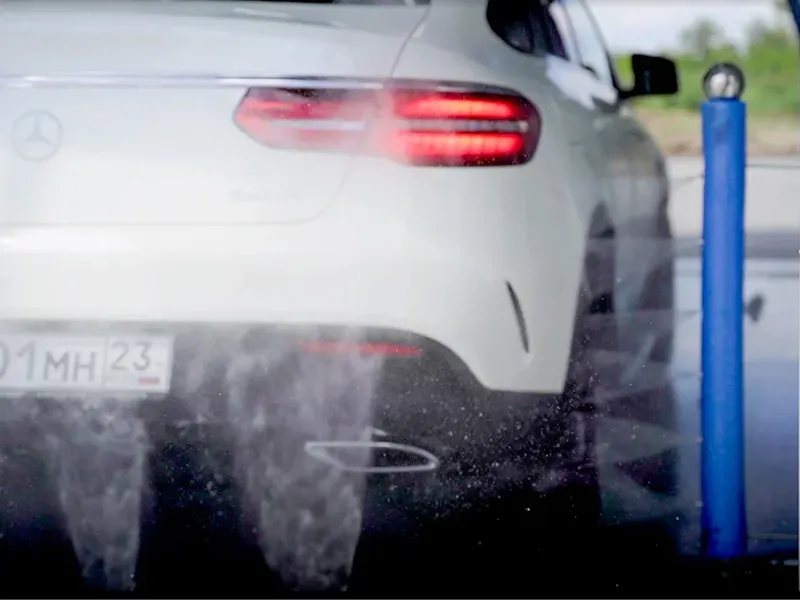

1. High pressure pre-washing of the chassis and wheels

Equipped with a unique chassis and fan hub flushing function, 80bar high pressure water can effectively remove dirt from the chassis, the side of the body and the wheels.

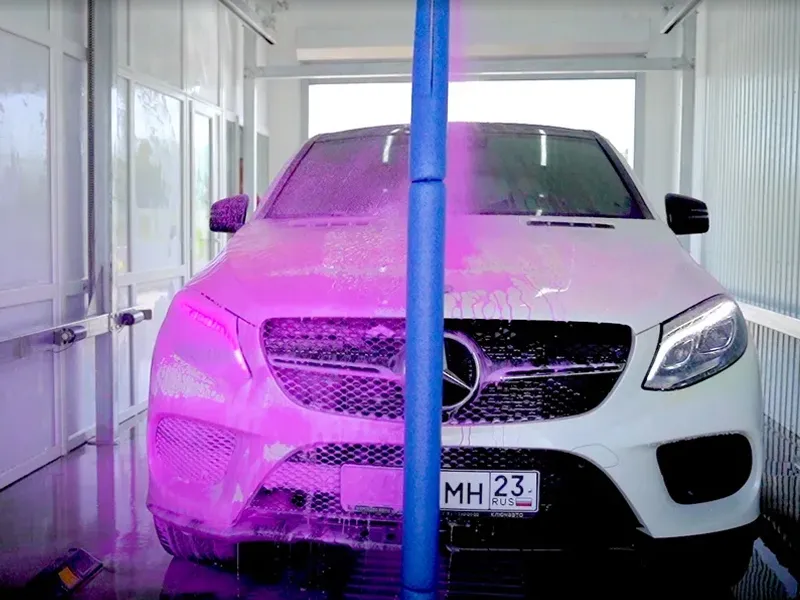

2. Intelligent 360 plus-degree rotating arm

Using high-precision batching technology to spray various washing chemicals. 100% accurate measurement with adjustable ratio. Only 20 to 50 ml of pre-soaking required, saving material and cost.

360° rotation in 28 seconds, water saving 50%, power saving 60%, automatic detection of the length and width of the vehicle, high pressure water up to 80bar.

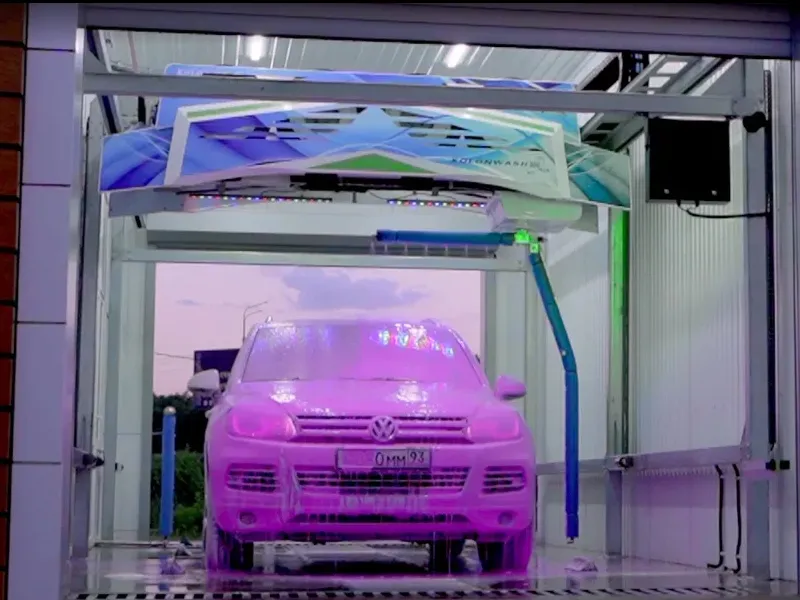

3. Magic color polishing shampoo & Colorful bubbles

Thick foam allows cleaning and maintenance components to come into full contact with dirt. Ion cleaners emulsify daily dirt and are non-corrosive to automotive paints, wheels, tires, and window glass. The bright and colorful LED system provides a unique and interesting customer experience.

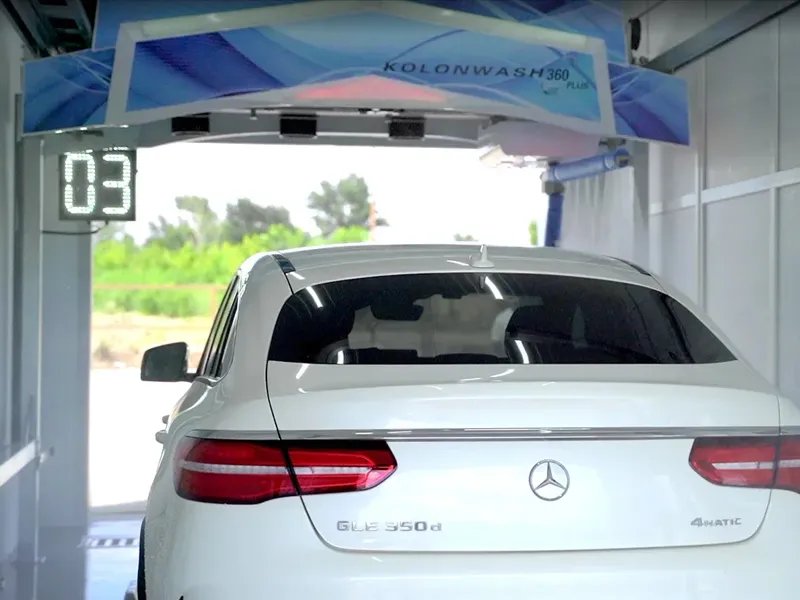

4. Soft water and crystalline wax coating

Soft water ensures shampoo and wax completely adhere to the car body, forming a multi-layered protective film. It protects against acid rain, pollution, and ultraviolet corrosion.

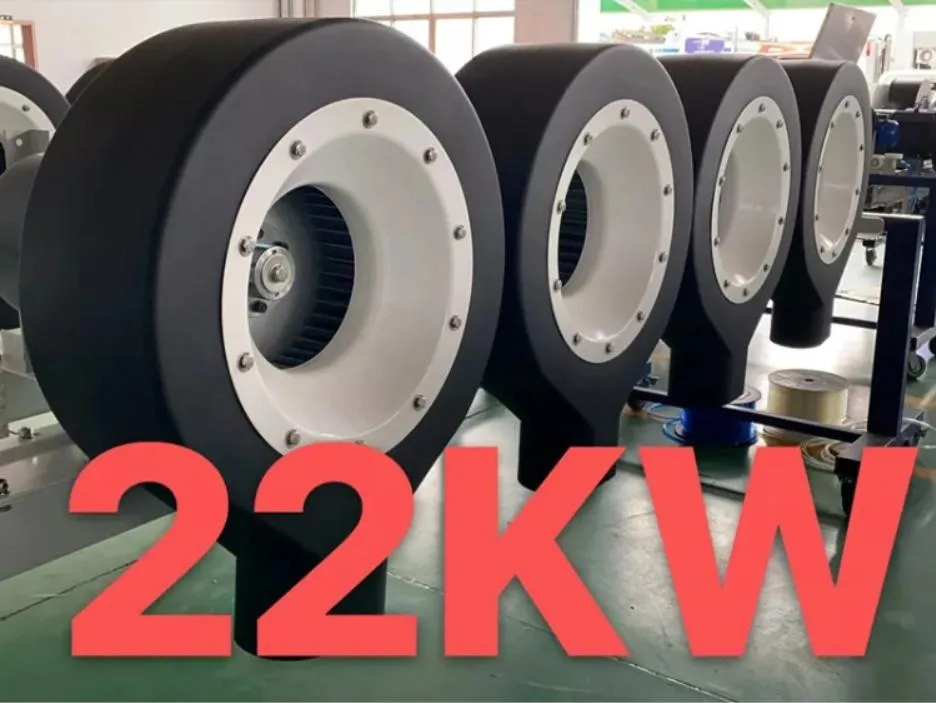

5. Unique embedded quick drying system

Equipped with four 5.5kw motors. Air flow is controlled by four cylindrical outlets. High-speed airflow is the best drying solution, optimizing wind speed characteristics to achieve maximum efficiency at the car body surface.

6. Advanced Pumping & Mixing Technology

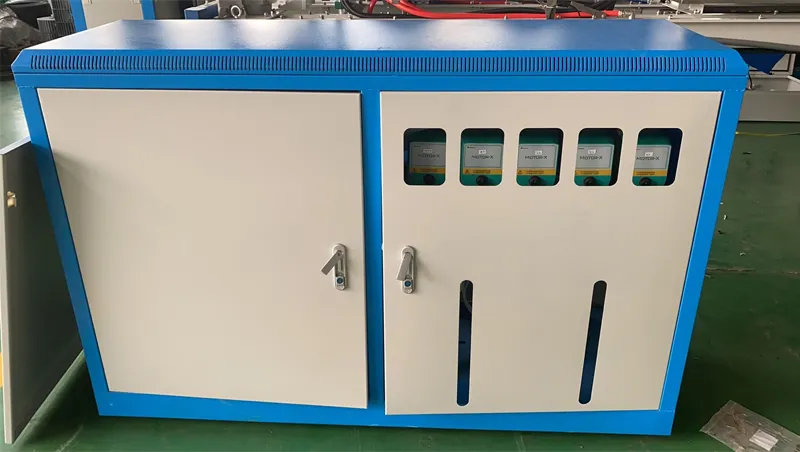

Using high-pressure piston pumps and 18.5KW motors, flushing pressure can reach 80Bar-150Bar. The integrated intelligent liquid automatic proportioning system acts like a chemical laboratory for precise control.

Technical Specifications

Machine size	3500mm* 1200mm* 900mm
Track length	7500 mm
Shipment weight/volume	2.6 tons, 11 CBM
Power Requirements	380V/22Kw, 50Hz/60Hz
Total power	24kw
Water pump motor power	11Kw
Fan motor power	12Kw / full pressure 5500Pa
Central processor	Industrial PLC embedded central processor + dual-core system
Detection system	Smart three-dimensional monitoring system
Sensing System	Ultrasound + Absolute value digital encoder
Water consumption	Standard WASH 94L/car
Electricity consumption	Standard WASH 0.52 kW·h/car

Service and Maintenance

Maintenance should be carried out by professional technicians with power cut off.

Keep main control box and touch screen in a dry environment.

Regularly clean the machine surface, sensors, and water inlet filters.

Use the one-button drainage function when temperatures are below zero to prevent freezing.

Check motor belts and timing belts every 30 days for tension and wear.

Change pump oil every 5000 units or when dirty.

Frequently Asked Questions

1. What is the required installation size for the wash workshop?

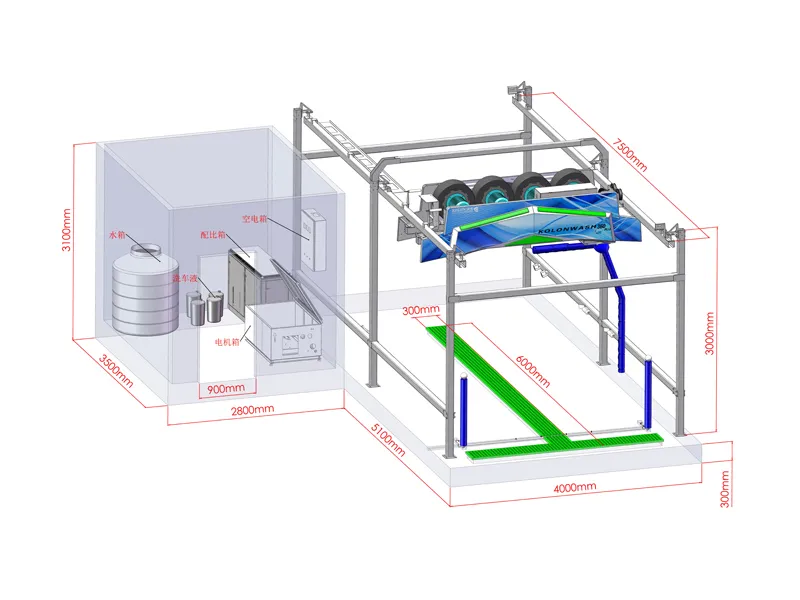

The required dimensions are approximately 7500×3800×3350mm depending on the specific model choice.

2. How long does a complete wash cycle take?

The 360-degree arm runs a circle in 28 seconds. A complete wash including high-pressure spray, wax, foam, and air drying takes about 5 minutes.

3. How effective is the air drying system?

Using fluid mechanics principles and long-distance high-pressure cylinders, the system achieves a 90% drying effect with high safety stability.

4. What is the estimated cost per car wash?

Based on average utility and chemical prices, the combined cost of water, electricity, and chemicals is approximately 0.45 USD per car.

5. What power supply is required to run the equipment?

The system requires a three-phase industrial power supply. Standard configuration is 380V/50Hz, but customization for different voltages and frequencies is available.

6. What is the warranty coverage?

We offer a 3-year extended warranty on the complete machine including spare parts. New parts are provided free of charge if failure occurs under normal operating conditions.
