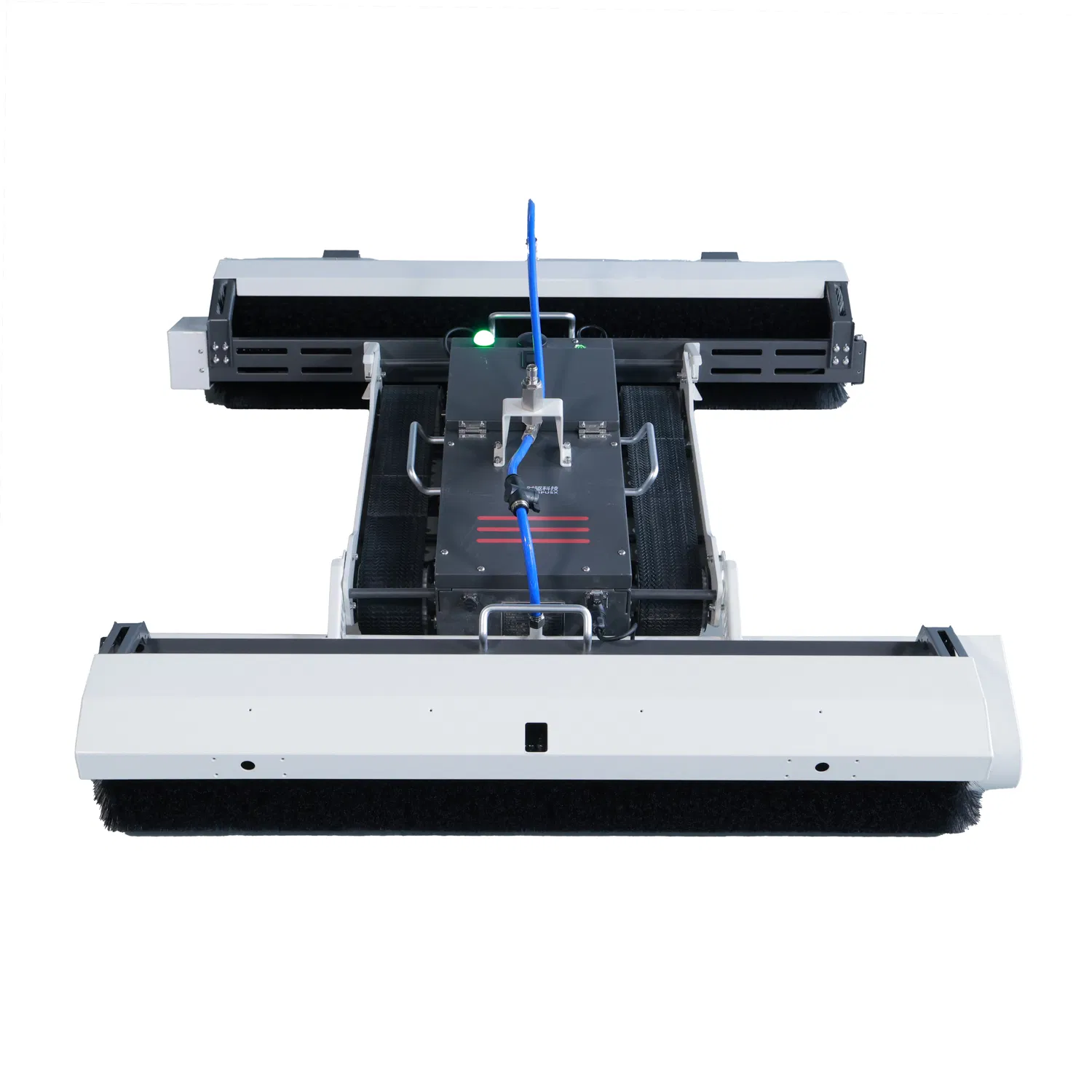

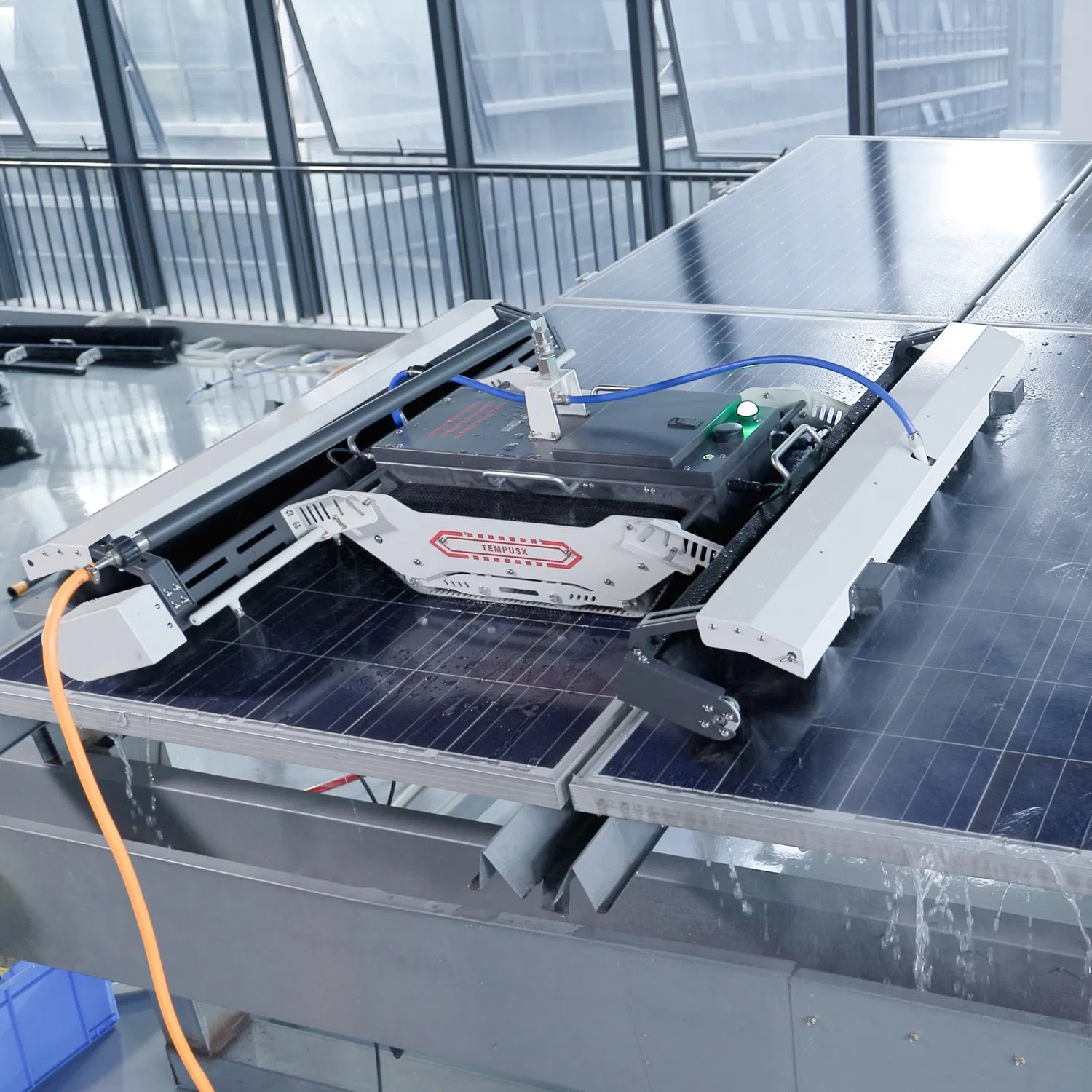

F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
1 / 5
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot
F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot

F-D1000PRO Automatic Steering Track-Type Remote Control Solar Photovoltaic Panel Cleaner Cleaning Robot

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
F-D1000Pro
Clean Type
Clean-In-Place
Cleaning Process
Dry / Water Cleaning
Control
PLC
Fuel
Electric
Style
Crawler Style
Total Weight
40kg
Brush Size
1000mm
Battery Capacity
38.4V / 15ah
Battery Life
4h
Protection Class
IP65
Running Speed
1000mm/S
Product Advantages
1

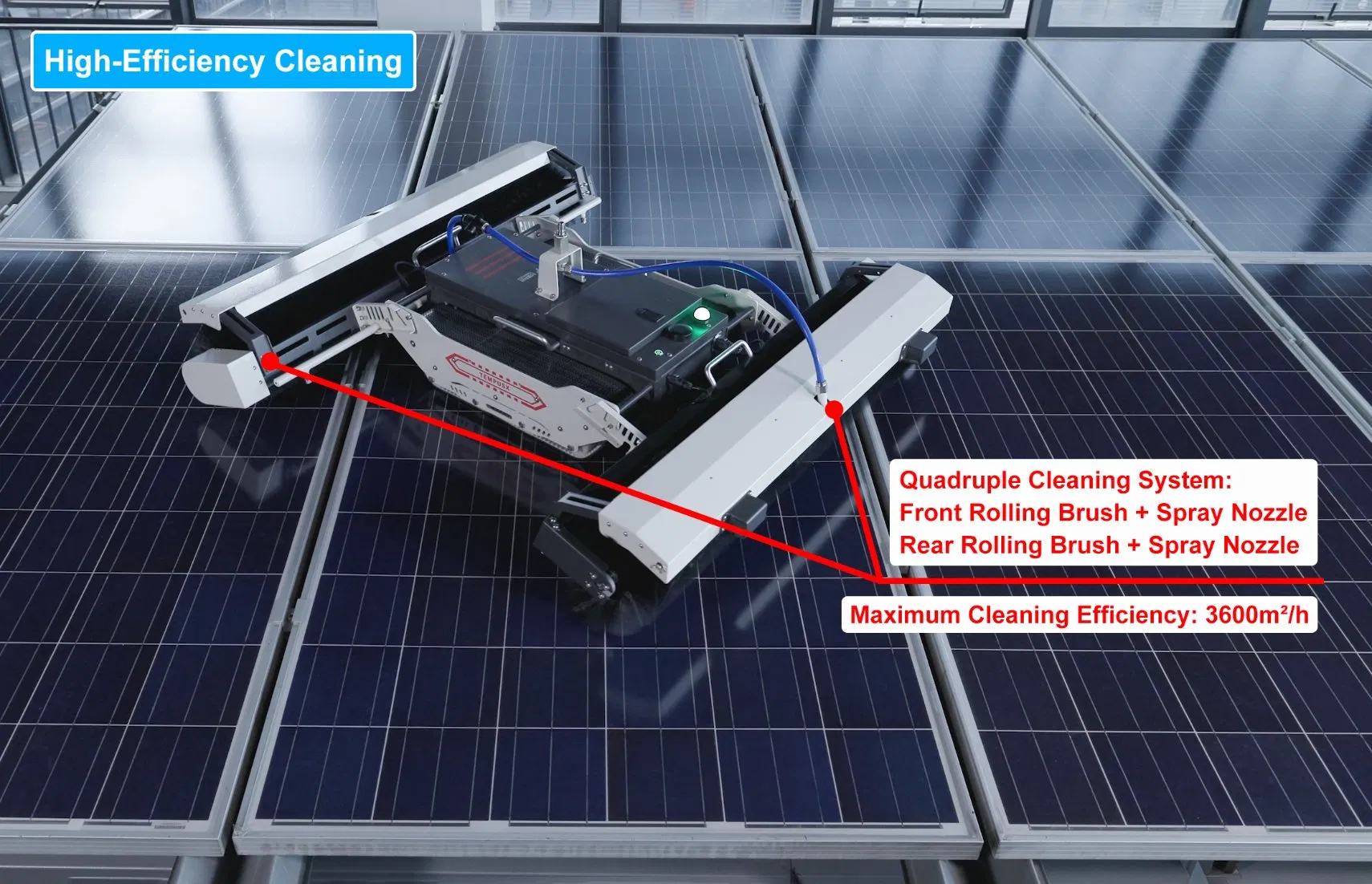

High-Efficiency Cleaning Equipped with front and rear rolling brushes and spray nozzles. Supports both dry and water cleaning. Quadruple cleaning system covers 1~2 MW daily average area.
2

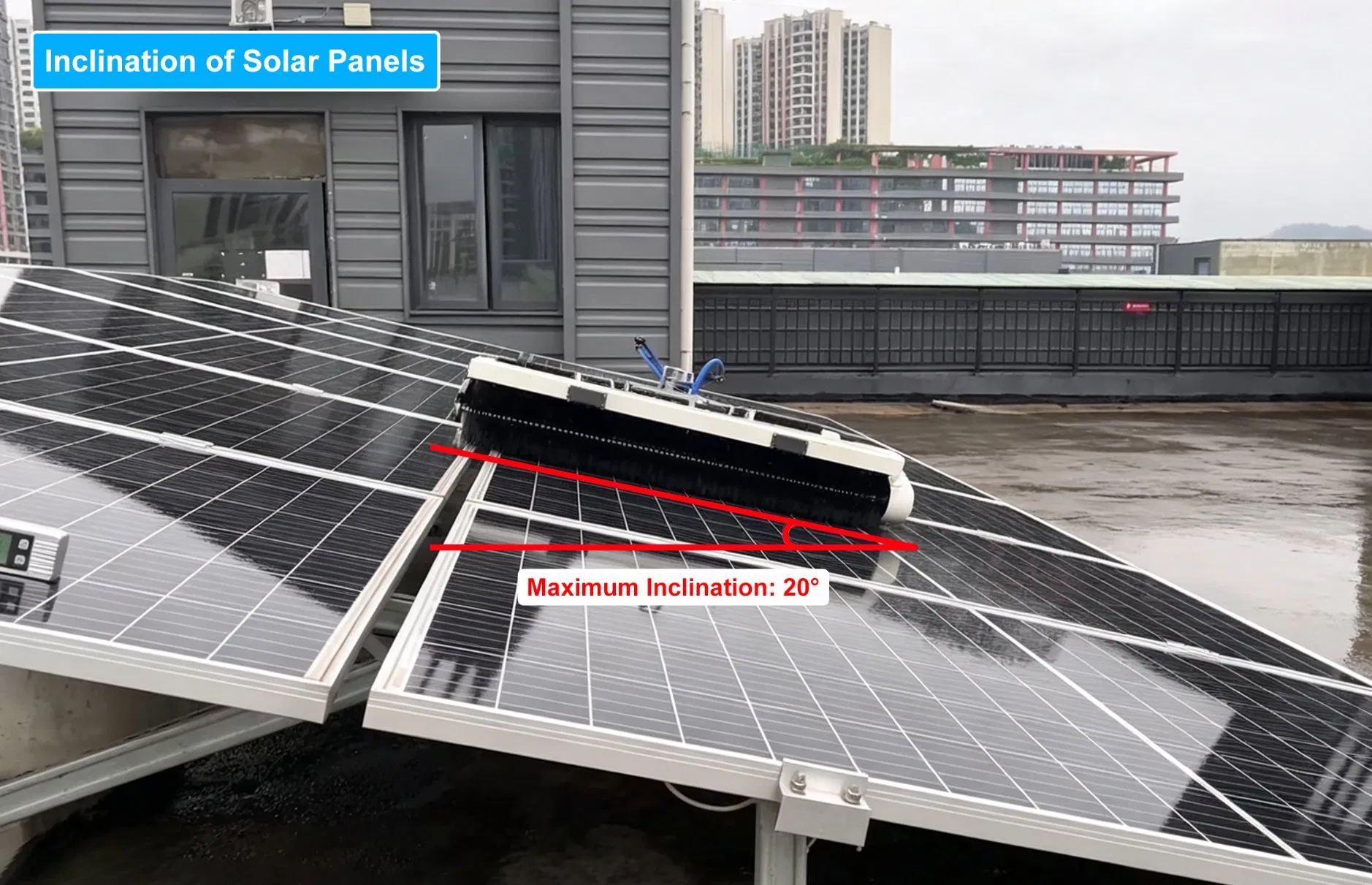

Good Obstacle-Crossing Performance Crosses gaps up to 300mm and vertical obstacles up to 40mm. Operates on panels with inclinations up to 20°.
3

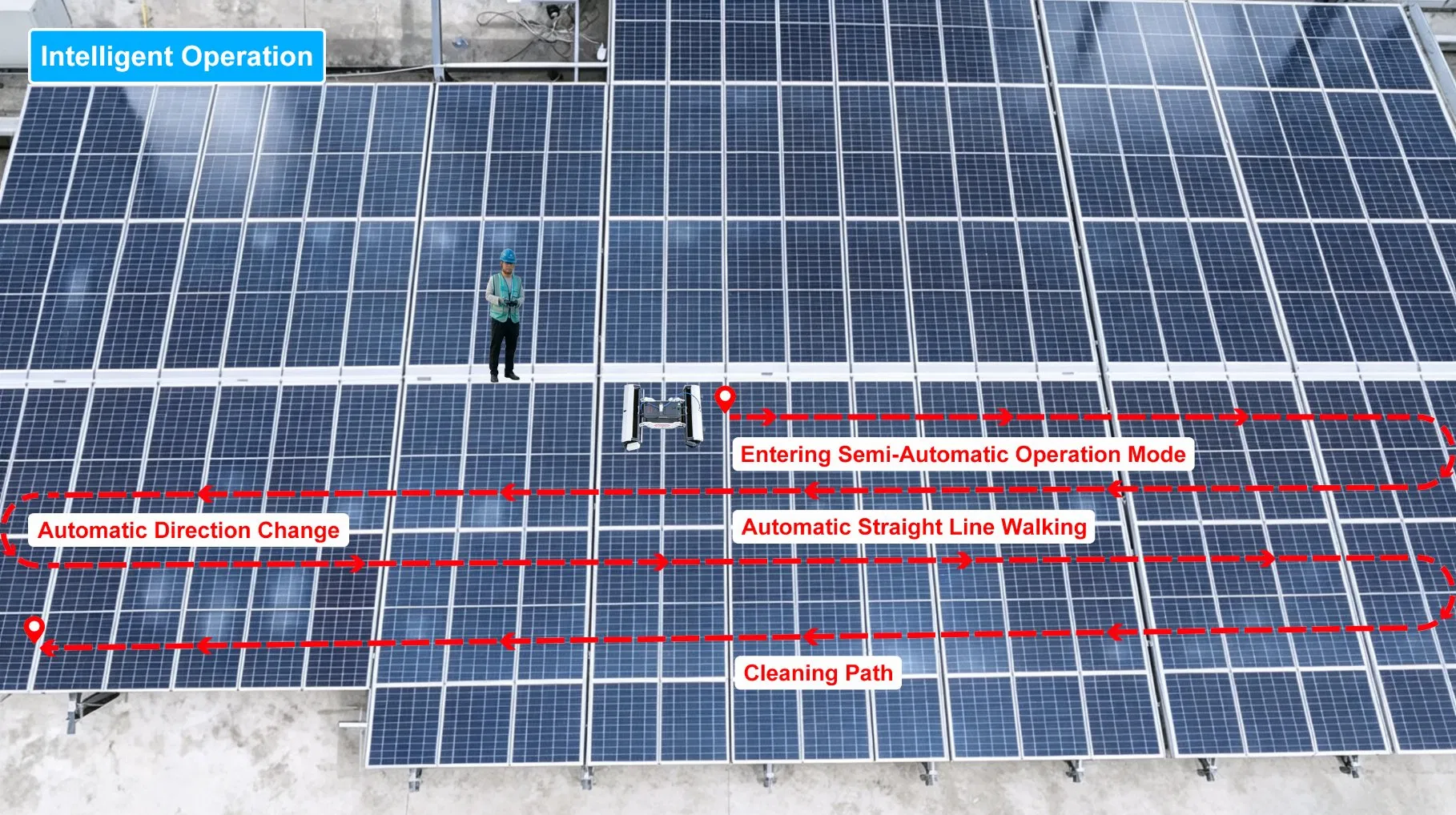

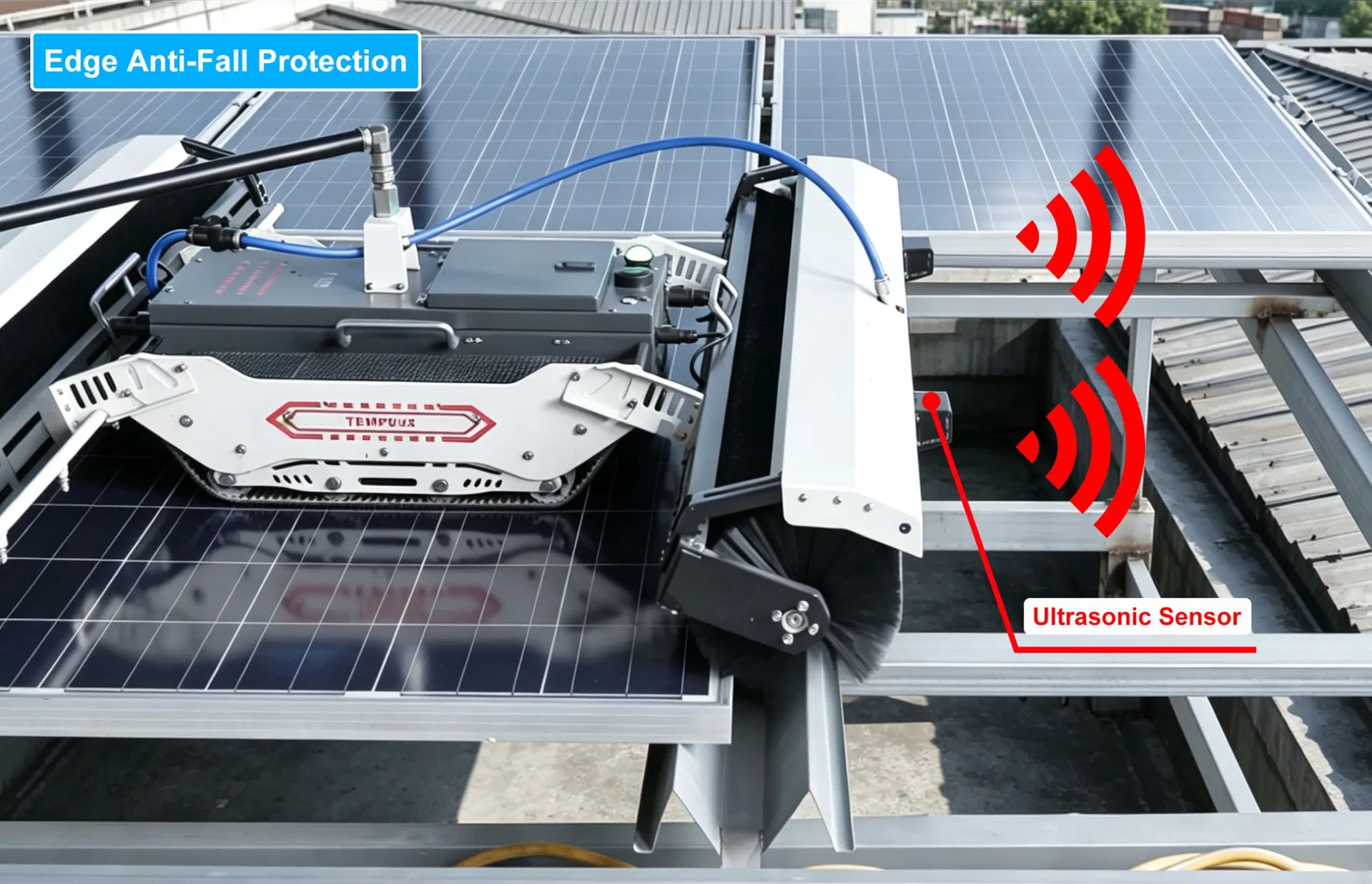

Intelligent and Safety Features edge anti-fall protection, automatic straight-line walking, and automatic direction change for smart, flexible operation.
4
High-Performance Motor Integrated joint motor module (170W, 17nm torque) with 14-bit dual encoders. Max brush speed reaches 330rpm.
5
High-Quality Battery 38.4V / 15Ah capacity with 3000+ charge cycles. 4-hour runtime with a fast 2-hour full charge.
6

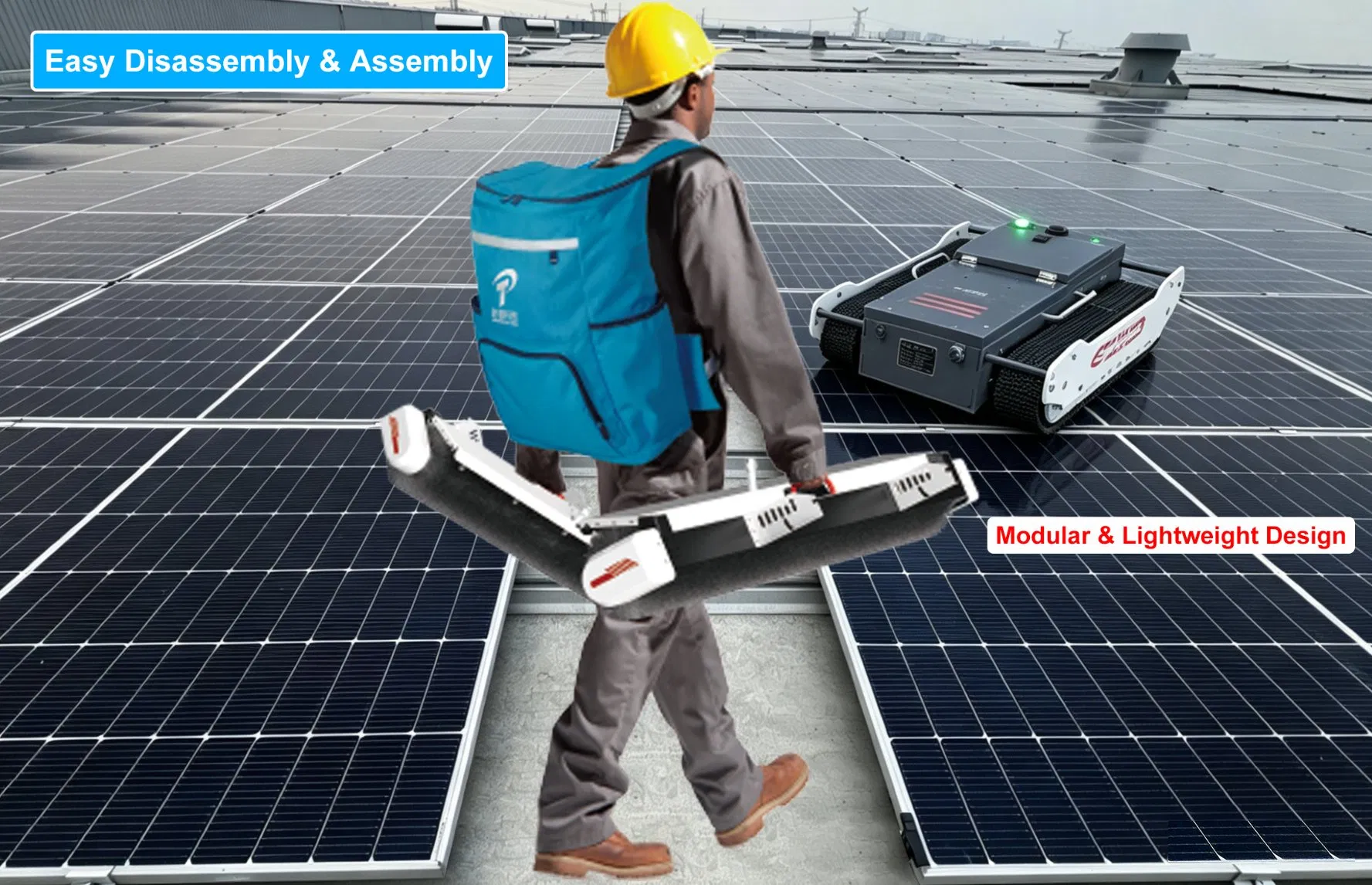

Modular & Durable Design Lightweight aviation aluminum construction (IP65 rated). Easy to disassemble, assemble, and transport.

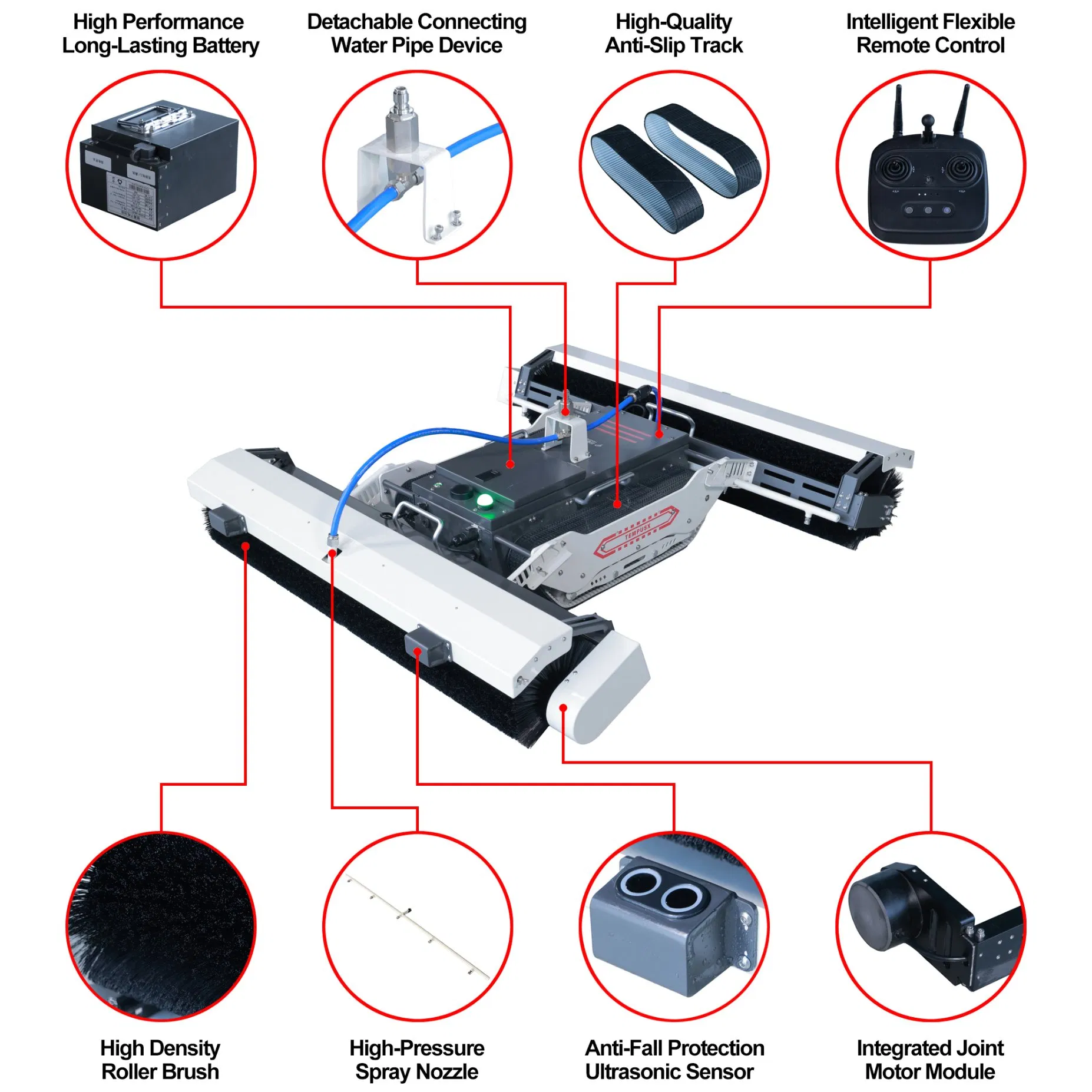

Solar Cleaning Robot Overview
Cleaning Robot Detail 1 Cleaning Robot Detail 2 Cleaning Robot Detail 3
Operation View Track Detail Application Case

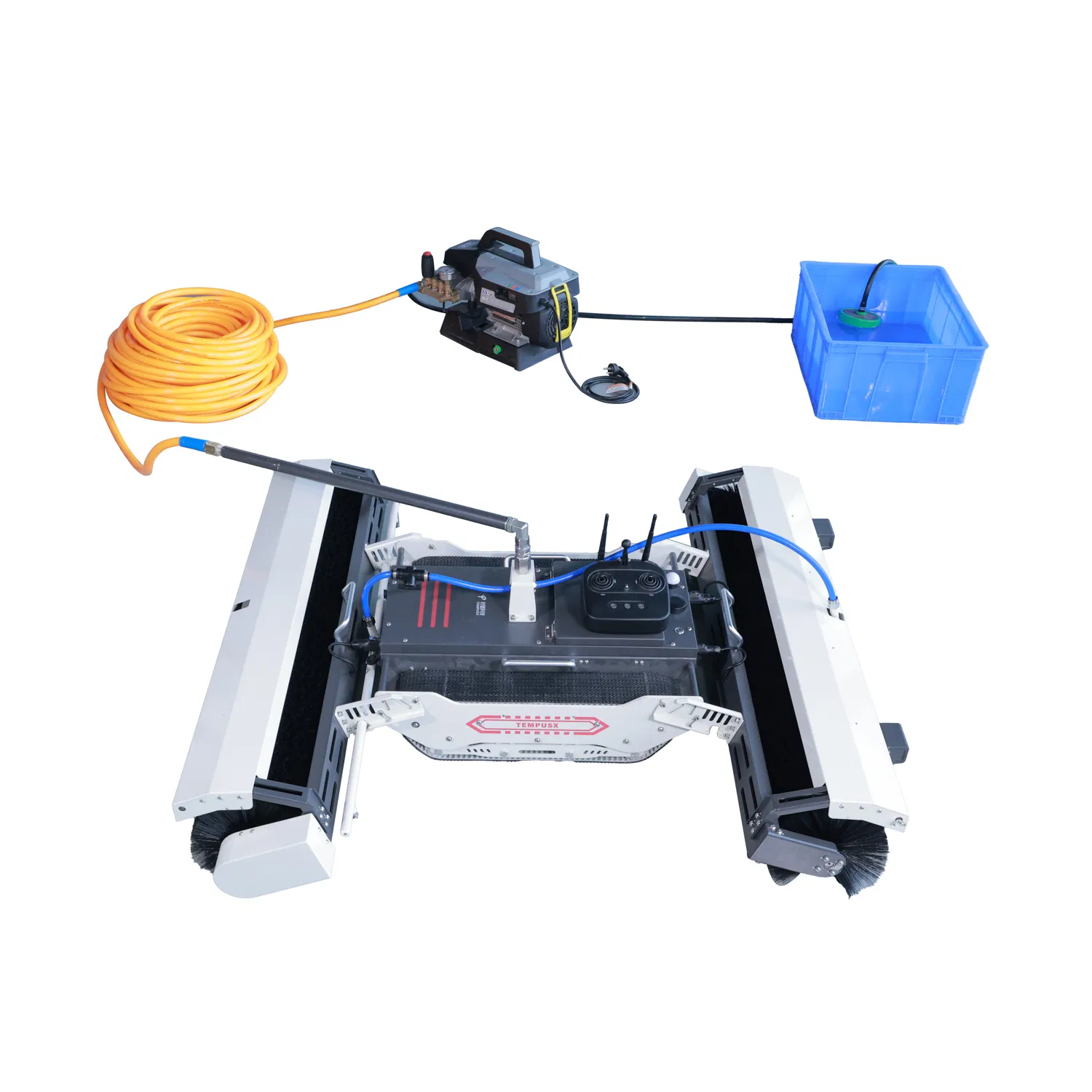

Standard Configuration List
  • ✓ Machine Body × 1
  • ✓ Front Rolling Brush and Nozzle Component × 1
  • ✓ Rear Rolling Brush and Nozzle Component × 1
  • ✓ High-Quality Battery × 1
  • ✓ Smart Charger × 1

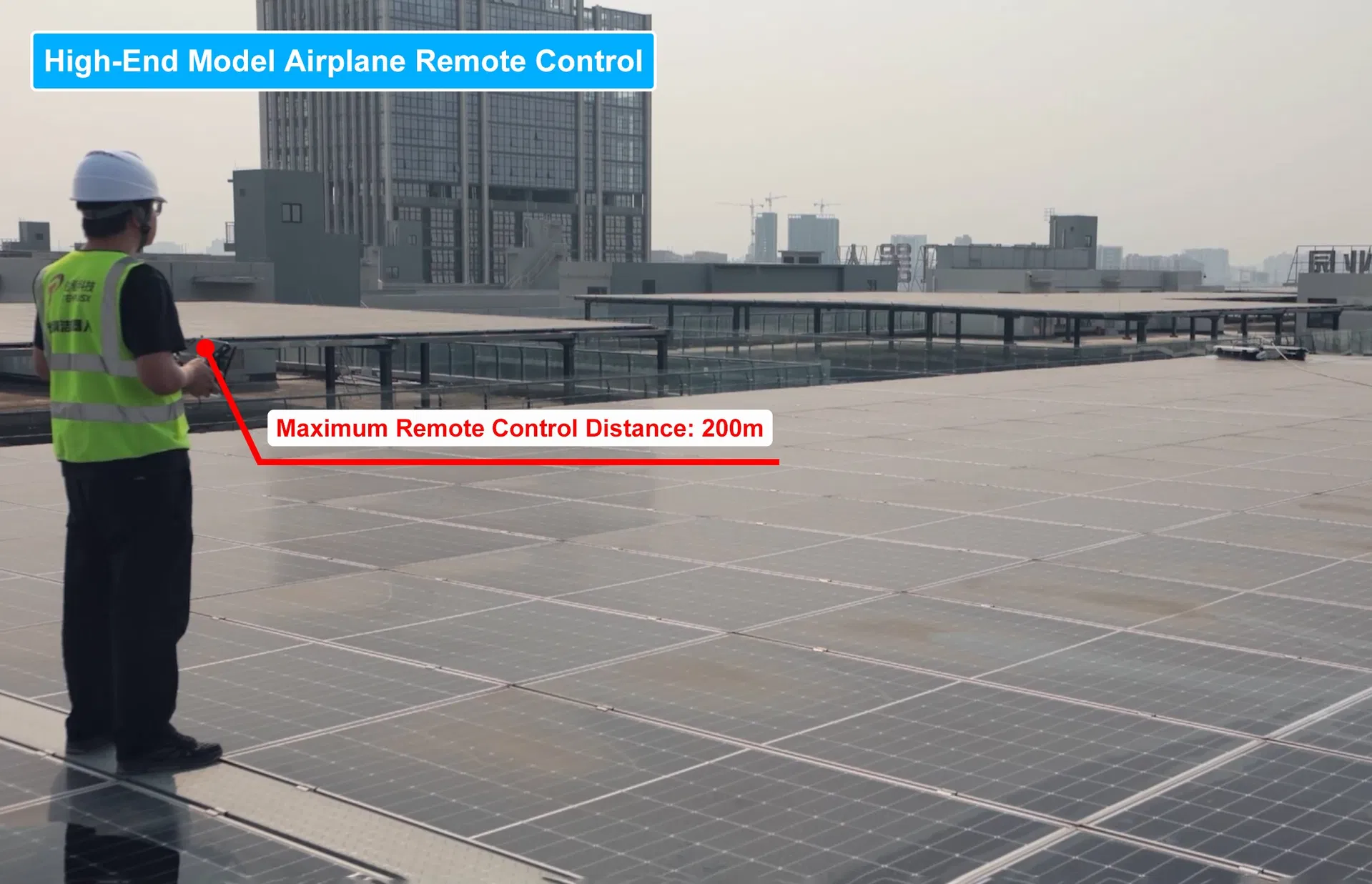

  • ✓ Remote Control and Accessories × 1
  • ✓ Rotatable Water Pipe & Connection Device × 1
  • ✓ Full Installation Tool Set × 1
Comparison Specifications
Feature F-D1000 F-D1000Pro F-D1300Pro
Body Size 600×490×220mm 600×530×220mm 600×530×220mm
Brush Size 1000mm 1000mm 1300mm
Rolling Brush Config Single Component Double Components Double Components
Total Weight 30.5kg 40kg 42kg
Battery Life 6h 4h 6h
Inclination Max ≤10° ≤20° ≤20°
Intelligent Function No Yes Yes
Product Overview & Background

Specializing in the innovation and development of photovoltaic intelligent operation and maintenance technology. We integrate top technology with practical experience in the development of special robots, creating efficient, intelligent, and safe solar PV cleaning equipment.

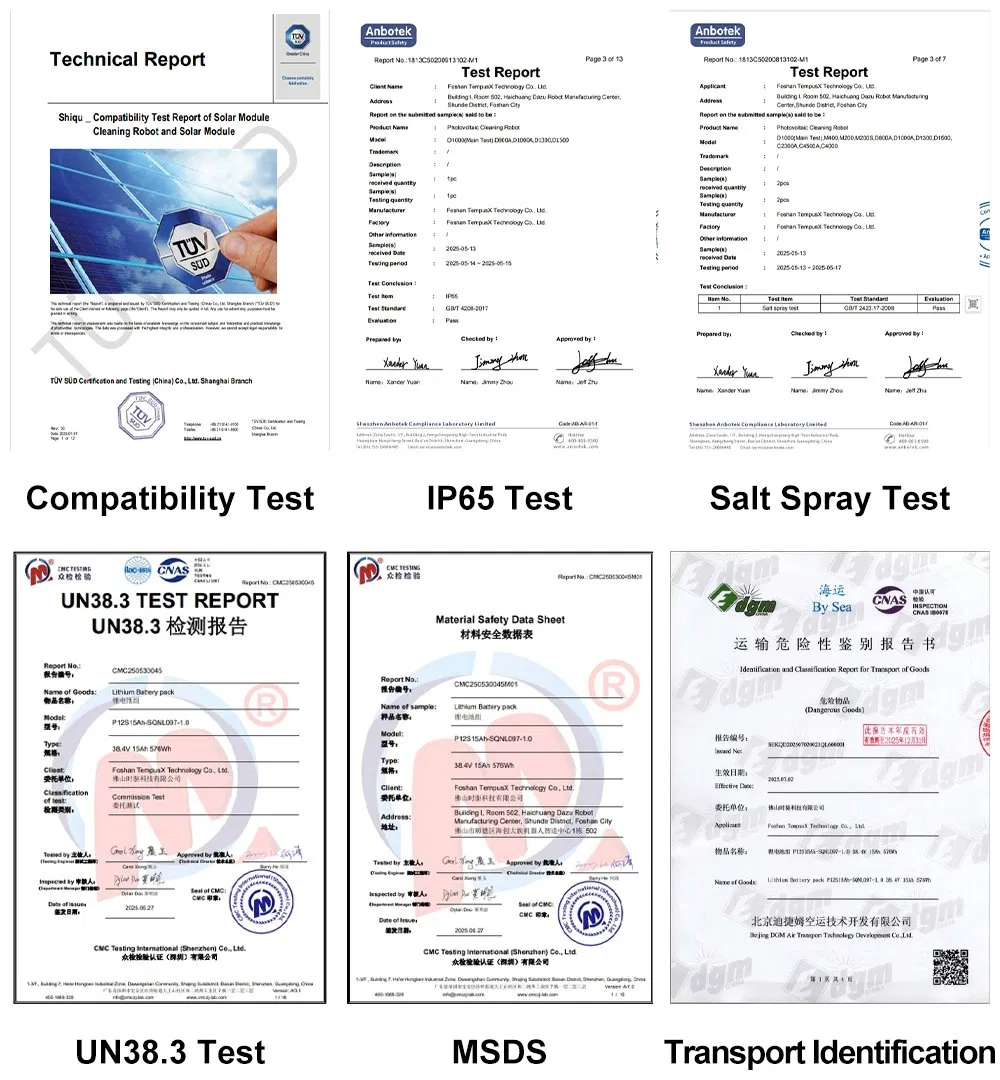

Core Technology Product Certifications
Application Cases & Packaging

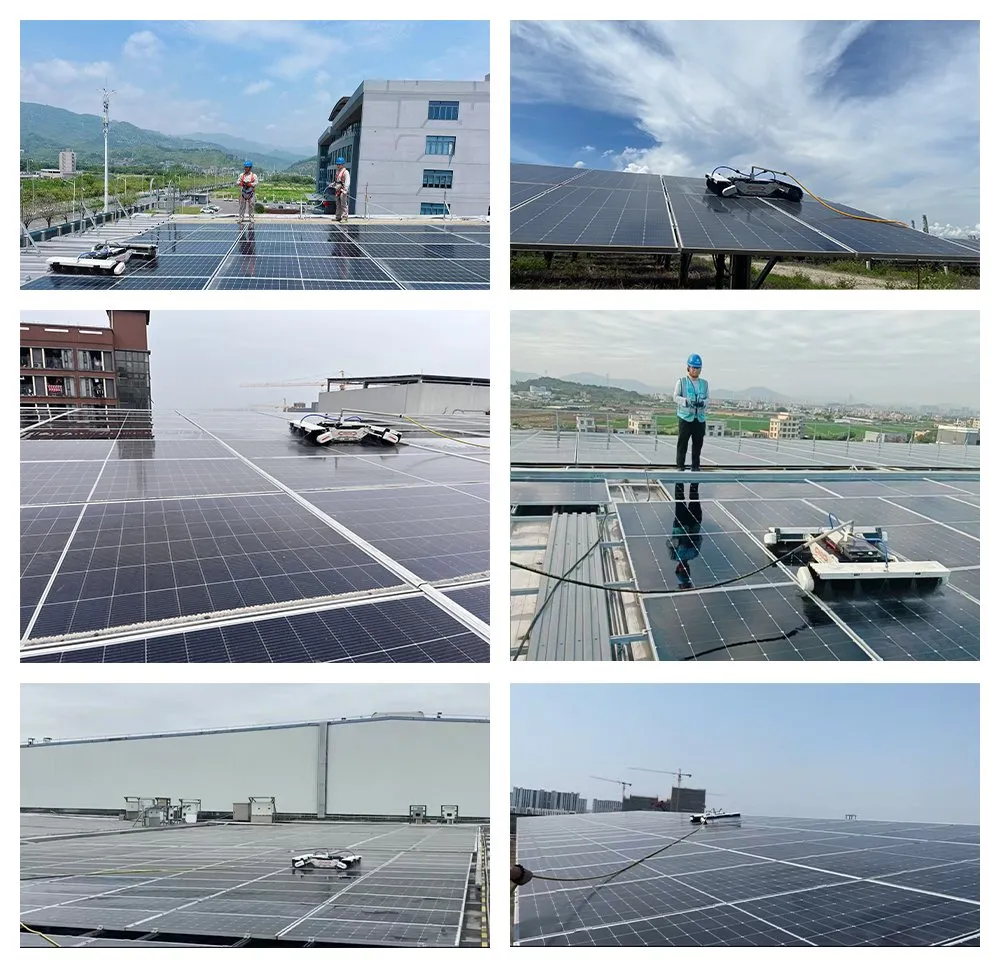

Field Application Safe Packaging
Frequently Asked Questions
What's the lead time for orders?
Generally it is 15-30 working days, depending on the order quantity.
Do you offer OEM/ODM services?
Yes, we can accept using the customer's logo and provide customized services.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
How long is the warranty period and what does it cover?
The complete machine has a one-year warranty. We provide free replacement parts (excluding brushes and tracks) for problems during this period.
What is the daily cleaning capacity of the robot?
With its quadruple cleaning system, the daily average cleaning area can cover a photovoltaic power station with a capacity of 1~2 MW.
Can the robot operate in harsh weather conditions?
Yes, the robot is built with aviation aluminum and has an IP65 protection class, effectively isolating dust and rainwater.
