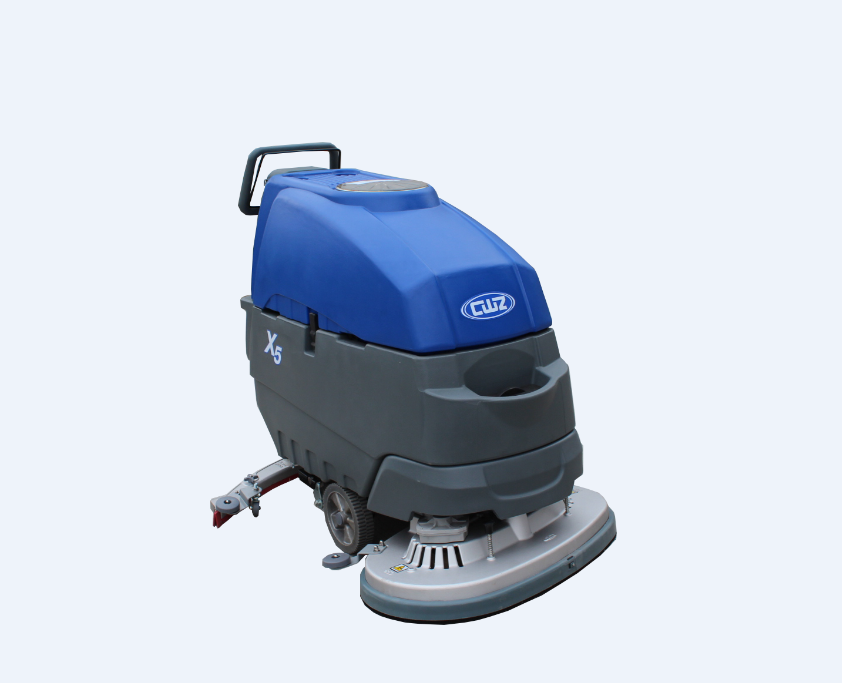

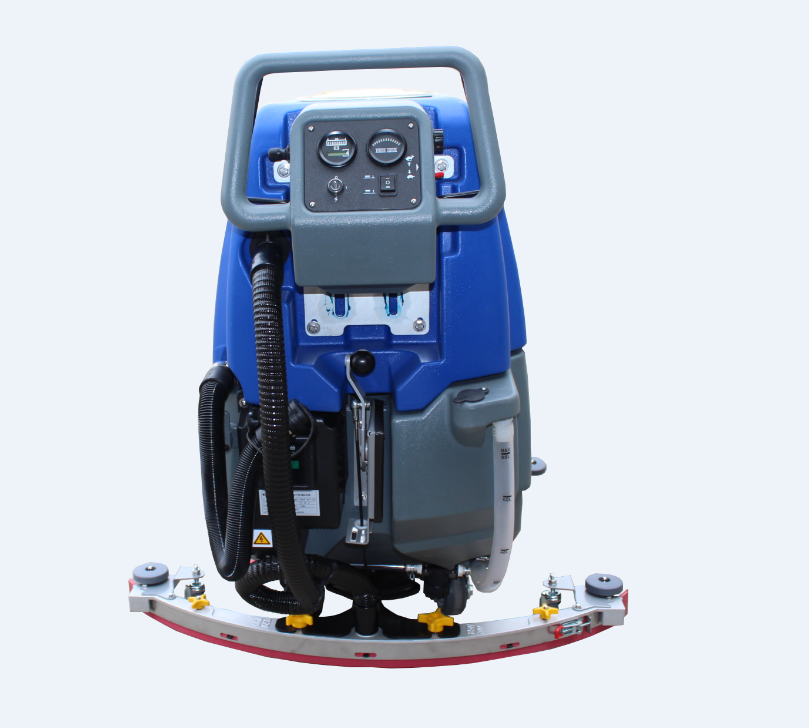

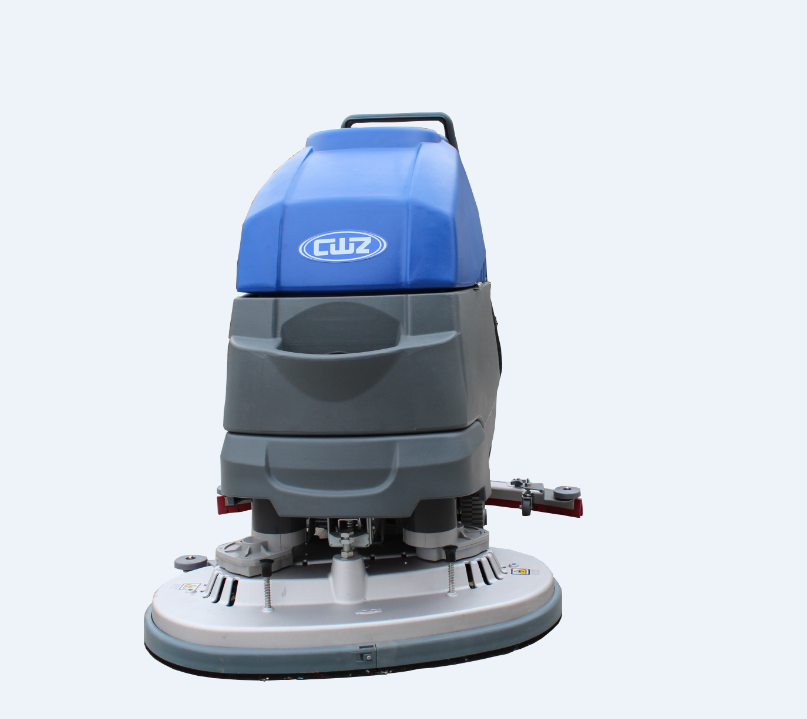

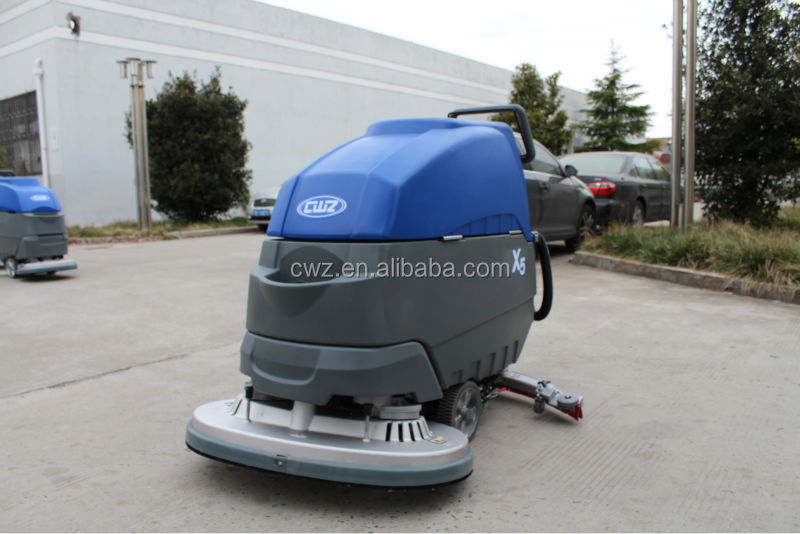

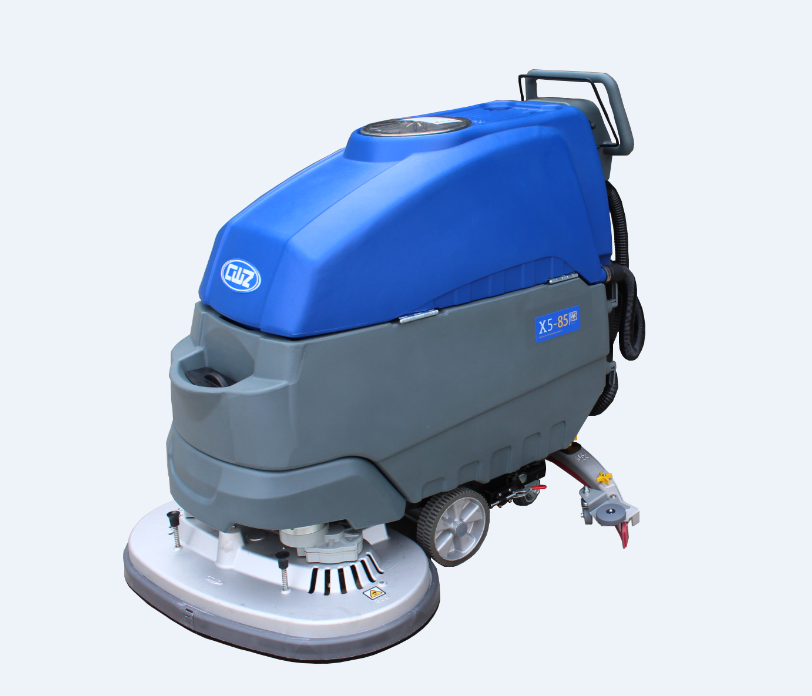

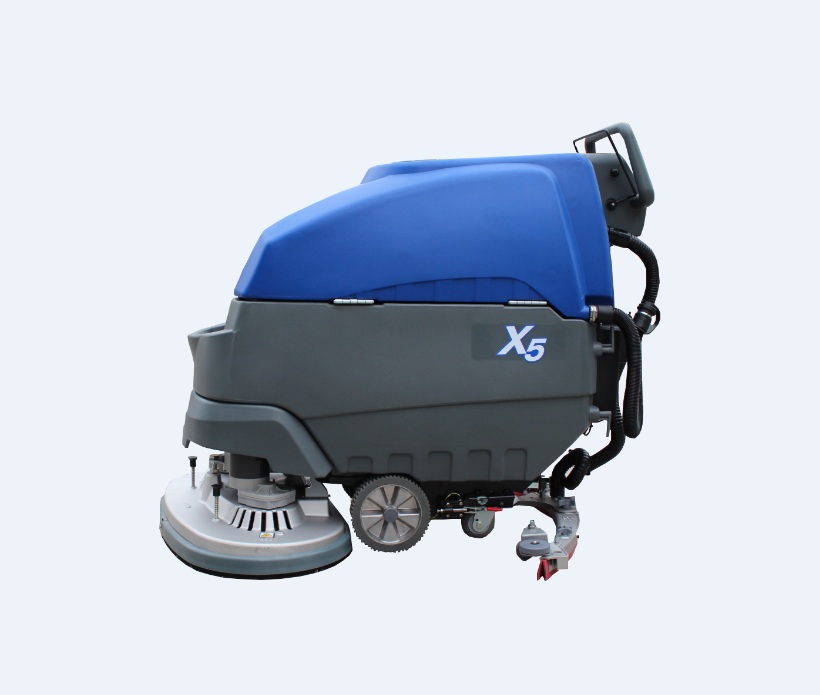

Robot Floor Scrubber, Concrete Floor Cleaning Machine
Specifications
- Disc brush and squeegee easy to operate
- Brush floating tray design
- Certified quality: CE, ISO900, QCQ
- Advanced low noise mode
Applications
The machine fits all grounds of the business environment, including paint grounds, concrete, and ceramic tile grounds. Besides, it can provide excellent cleaning performance for workshops, storage facilities, logistics centers, supermarkets, hospitals, and more.
Key Features
- The simple fuselage accords with body engineering design, ensuring normal conduct of cleaning work.
- Oversized volume of solution and recovery tanks reduces downtime, making it economic and environmental.
- Punchy double motor brush head effectively cleans the ground quickly and thoroughly.
- Equipped with environmental protection and high-volume battery with up to 5 hours of work time.

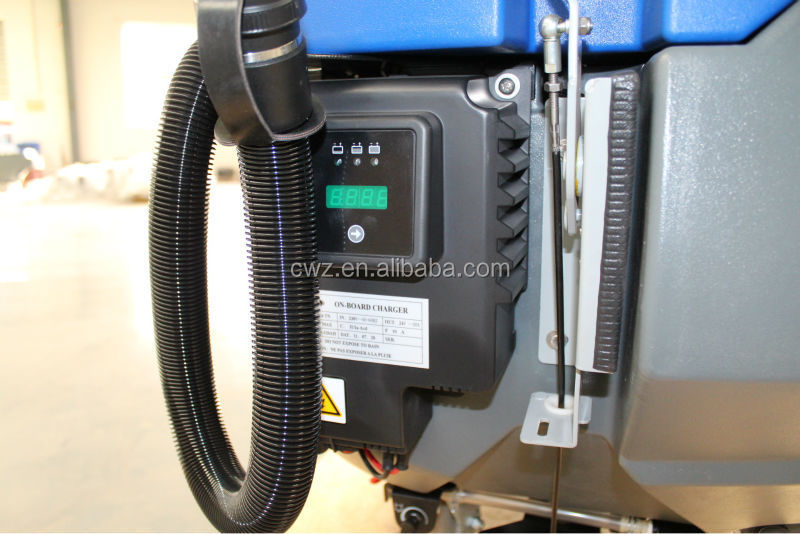

- Equipped with an on-board charger for more convenient cleaning operations.

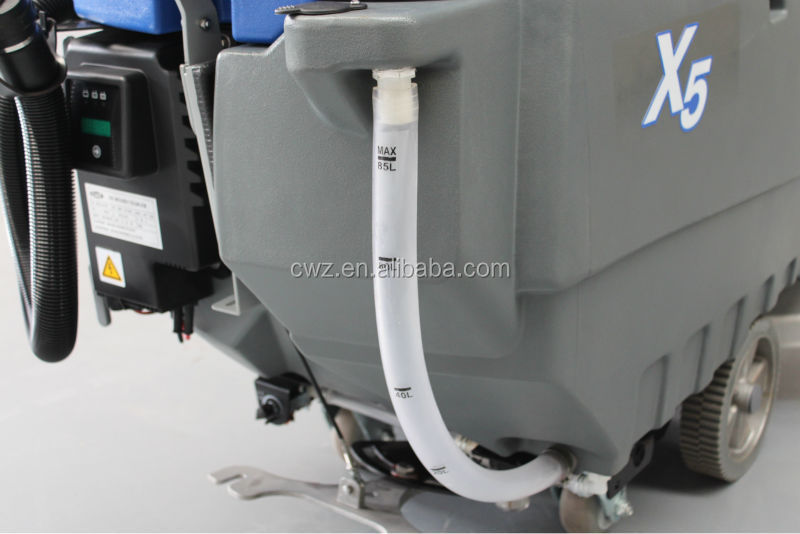

- Large open transparent window on the recovery tank allows users to observe and clean the interior easily.
- Unique brush unloading device ensures faster, simpler replacement without tools.
- Low-noise technology guarantees operator safety and health.
Technical Data
| Technical Data |
X5-700 (with drive) |
X5-850 (with drive) |
| Recovery/ Solution Tank Capacity |
105L / 85L |
105L / 85L |
| Drive System |
24VDC 450W |
24VDC 450W |
| Productivity rate |
2860m²/h |
3460m²/h |
| Cleaning path width |
700mm |
850mm |
| Brush pressure |
≥54kg |
≥54kg |
| Squeegee width |
1051mm |
1151mm |
| Brush motor |
2×0.55kw 220rpm 24VDC |
2×0.6kw 220rpm 24VDC |
| Vacuum motor |
0.64kw 24VDC |
0.64kw 24VDC |
| Batteries |
4×6v 225Ah |
4×6v 225Ah |
| Run Time Per Charge |
4.5-5 hours |
4.5-5 hours |
| Noise level |
67dba |
67dba |
| Weight |
145kg |
145kg |
| Dimensions (L x W x H) |
1408×750×1120mm |
1408×890×1120mm |

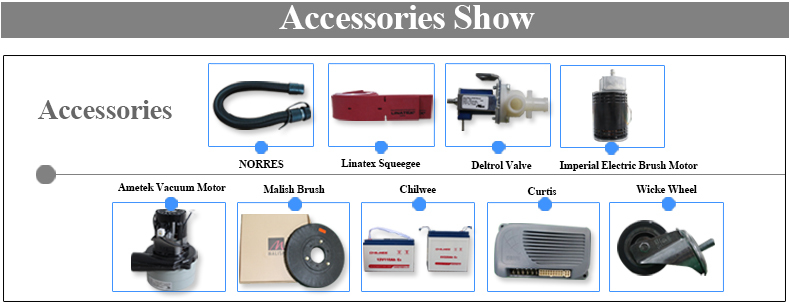

Accessories
Exhibition & Certification
Packing & Delivery
Frequently Asked Questions
Q1: How long is the continuous working time for this scrubber?
The machine is equipped with high-capacity batteries that provide a run time of approximately 4.5 to 5 hours per charge.
Q2: What types of flooring can this machine clean?
It is designed for various industrial and commercial surfaces, including concrete, paint ground, and ceramic tiles.
Q3: Is it difficult to replace the cleaning brushes?
No, the machine features a unique brush unloading device that allows for fast and simple replacement without the need for tools.
Q4: Does the machine produce much noise during operation?
The scrubber uses low-noise technology, operating at approximately 67dba, which is safe for operators and suitable for quiet environments like hospitals.
Q5: What is the benefit of the double motor brush head?
The punchy double motor brush head provides superior cleaning pressure and efficiency, ensuring the ground is cleaned thoroughly and quickly.
Q6: How easy is it to monitor and clean the recovery tank?
The recovery tank features a large transparent window, allowing users to clearly observe the water level and internal condition for quick maintenance.
