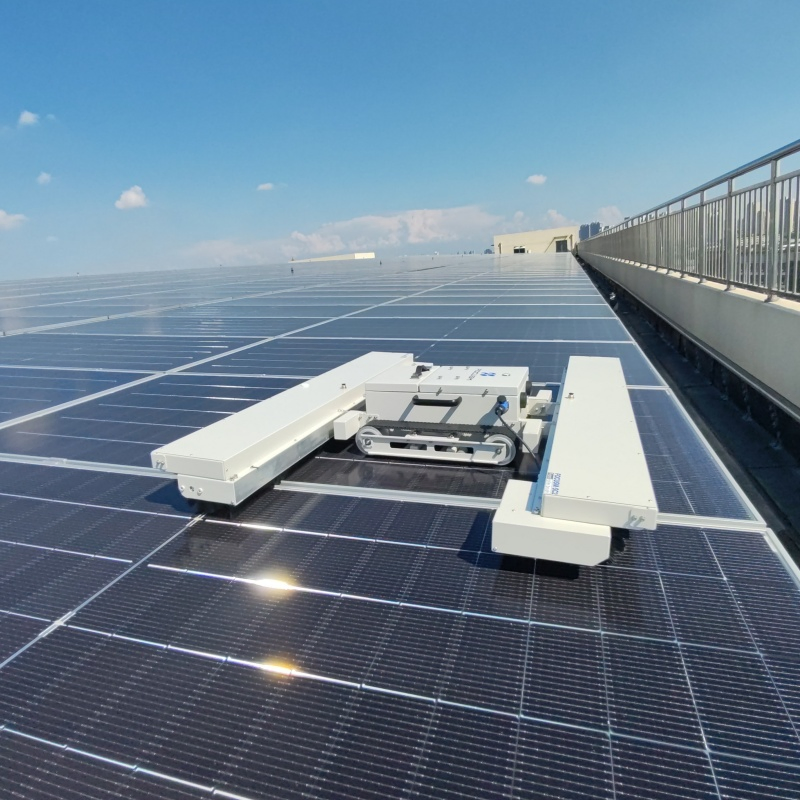

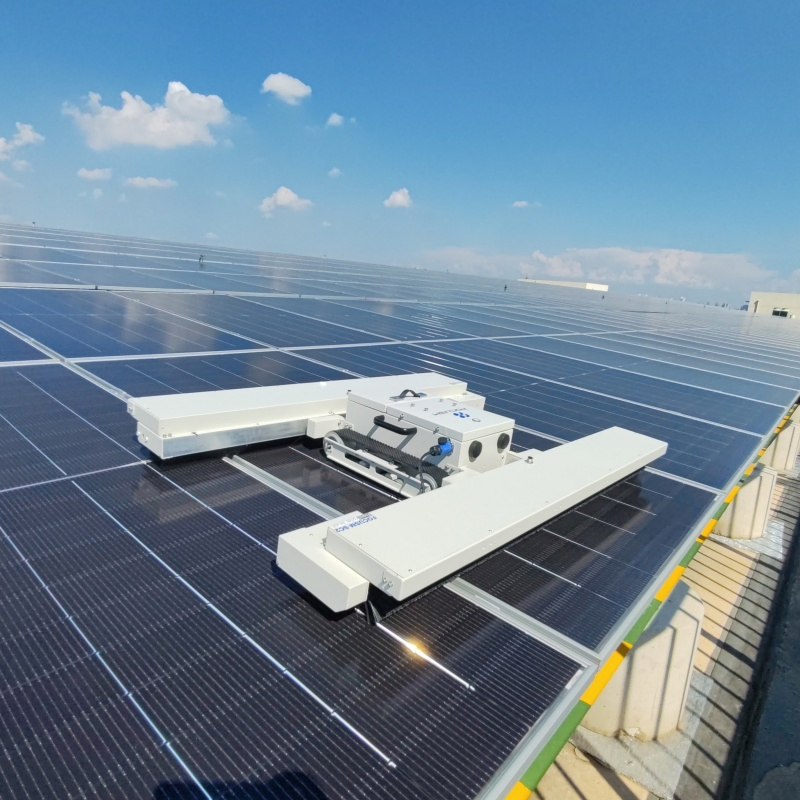

Terrain-Adaptive Solar Panel PV Trackless Cleaning Roller Brush Robot

Customization: Available
After-sales Service: 1 Year
Automation: Automatic

Product Description

Basic Specifications
Model NO.
PV Trackless Cleaning Robot
Fuel
Electric / Diesel
Principle
Physical Cleaning
Cleaning Efficiency
4MW/H
Cleaning Speed
1-2km/H
Working Hours
> 8h (Full Tank)
Max. Gradeability
≤90%
Max. Cross Slope
≤30%
Product Description

The Terrain-Adaptive Solar Panel PV Trackless Cleaning Roller Brush Robot is designed for large-scale photovoltaic power plants. It excels in harsh environments such as saline-alkali land, snow, sandy terrain, and muddy riverbeds. With high cleaning efficiency and superior obstacle-crossing capabilities, it ensures optimal energy output for PV installations.

Technical Parameters
Dimensions2255mm * 5810mm * 3355mm
Weight2200Kg
Maximum Speed4Km/h
Cleaning Width4000mm
Fuel Tank Capacity100L
Turning Radius1.46m
Max. Torque166.7 @2300NM
Temperature Range-30°C ~ 80°C
Max Altitude≤3200m
Application SitesSaline-alkali land, snow, sandy land, muddy land, riverbeds
Packaging & Shipping
Professional Solutions

A national high-tech enterprise focused on R&D, manufacturing, and service of new energy intelligent equipment. The business covers solar cell and module production lines alongside intelligent equipment for PV plant installation and maintenance. Based globally with forward-looking technology innovation, the focus remains on being a pioneer in the PV industry through advanced robotics and automated inspection systems.

FAQ
What products are offered for PV maintenance?

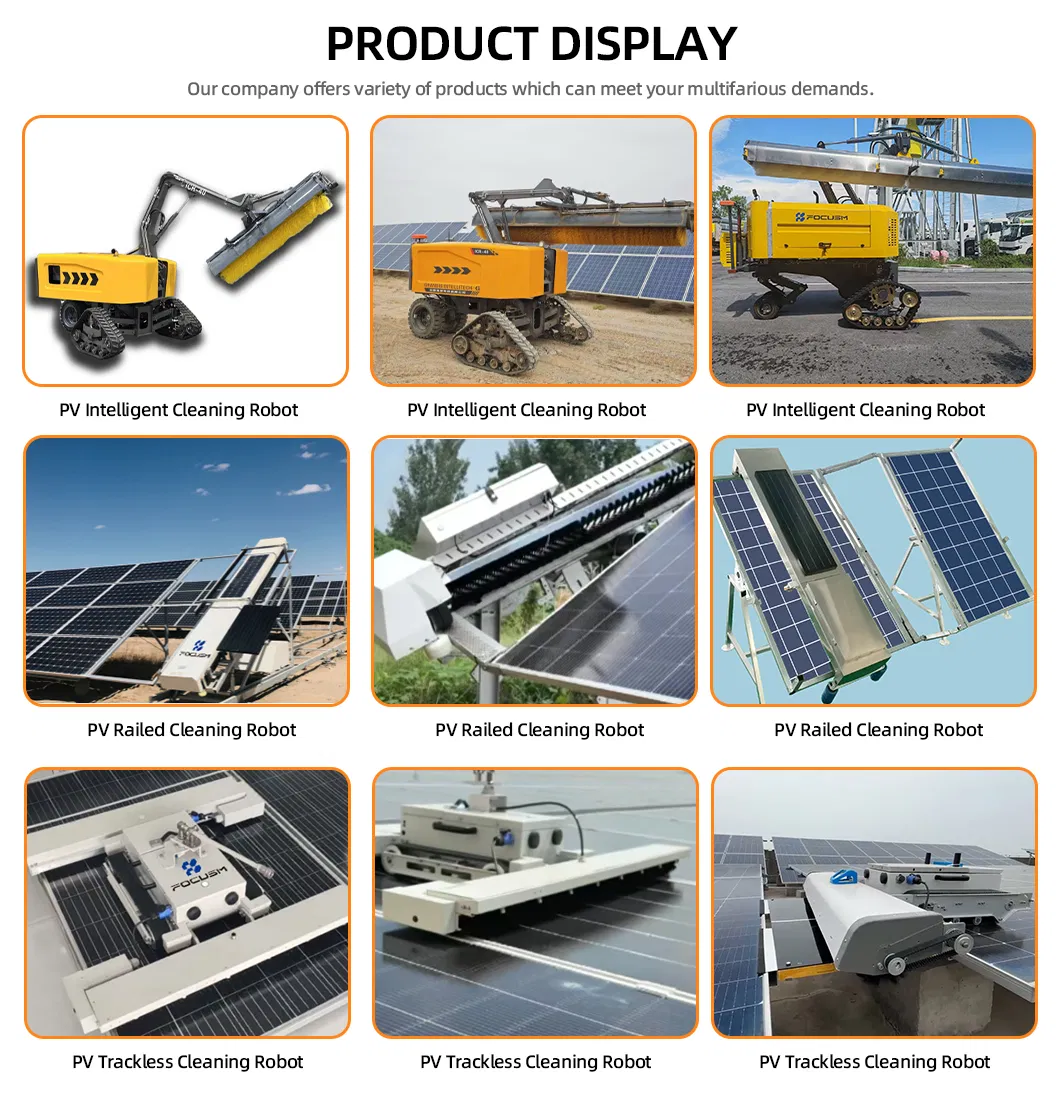

We offer five core products: Intelligent Cleaning Robots for harsh terrains, Railed Cleaning Robots for specific modules, Trackless Cleaning Robots for dry/wet modes, Intelligent Installation Robots for fast deployment, and PV Intelligent Inspection systems for defect detection.
What are the key specs of the Railed Cleaning Robot?
The railed robot features a working time of over 3h per charge, a walking speed of 12m/min, and an IP65 protection level. It can cover distances over 2000m and operates in temperatures from -20 to 60℃.

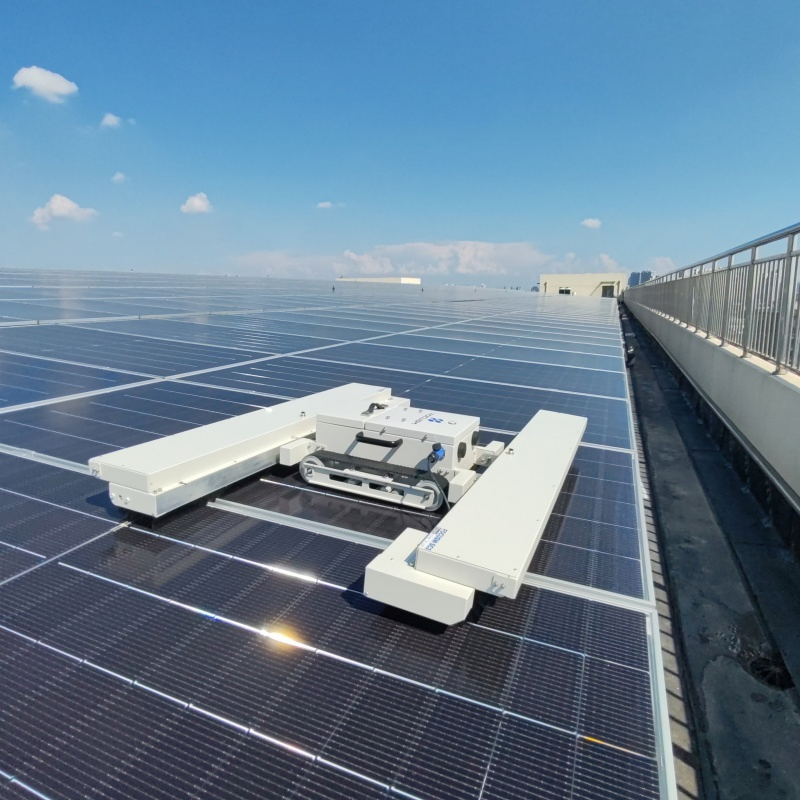

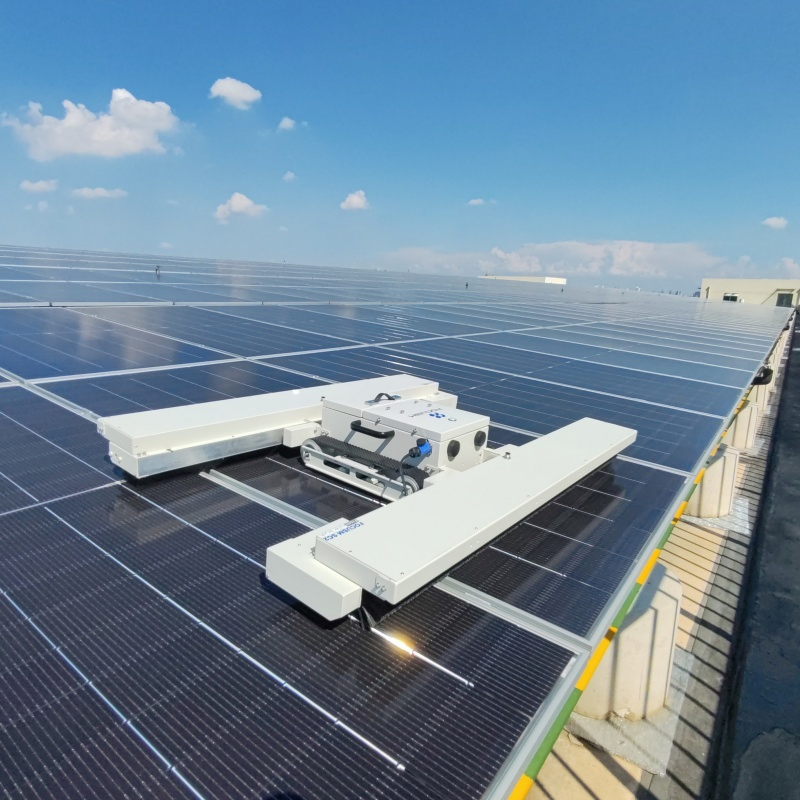

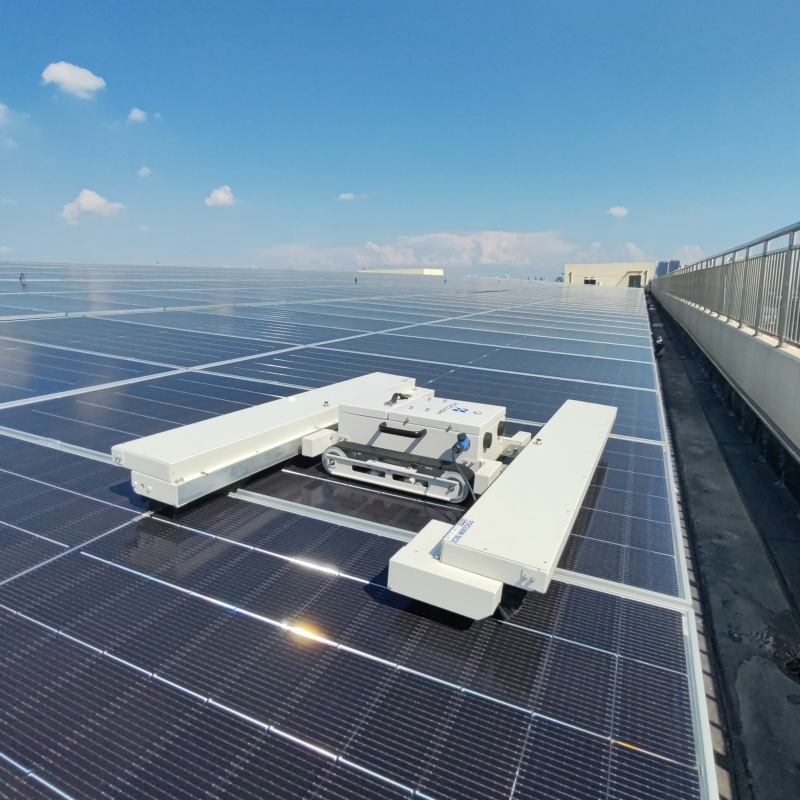

Can the Trackless Cleaning Robot handle both dry and wet cleaning?
Yes. It supports dry cleaning for modules up to a 15° incline and wet cleaning up to 18°. It is equipped with a 24V 25Ah battery, providing 5~6 hours of operation per charge.
How efficient is the Intelligent Installation Robot?
The installation robot can install a PV panel in approximately 40 seconds, which is 3 times faster than manual labor. It has a maximum load capacity of 400KG for panels.
What defects can the Intelligent Inspection system detect?
The system identifies 8 types of defects including point-like, all-red, horizontal, and vertical hot spots, as well as thick dust, shade, bird droppings, and physical module damage with over 95% accuracy.

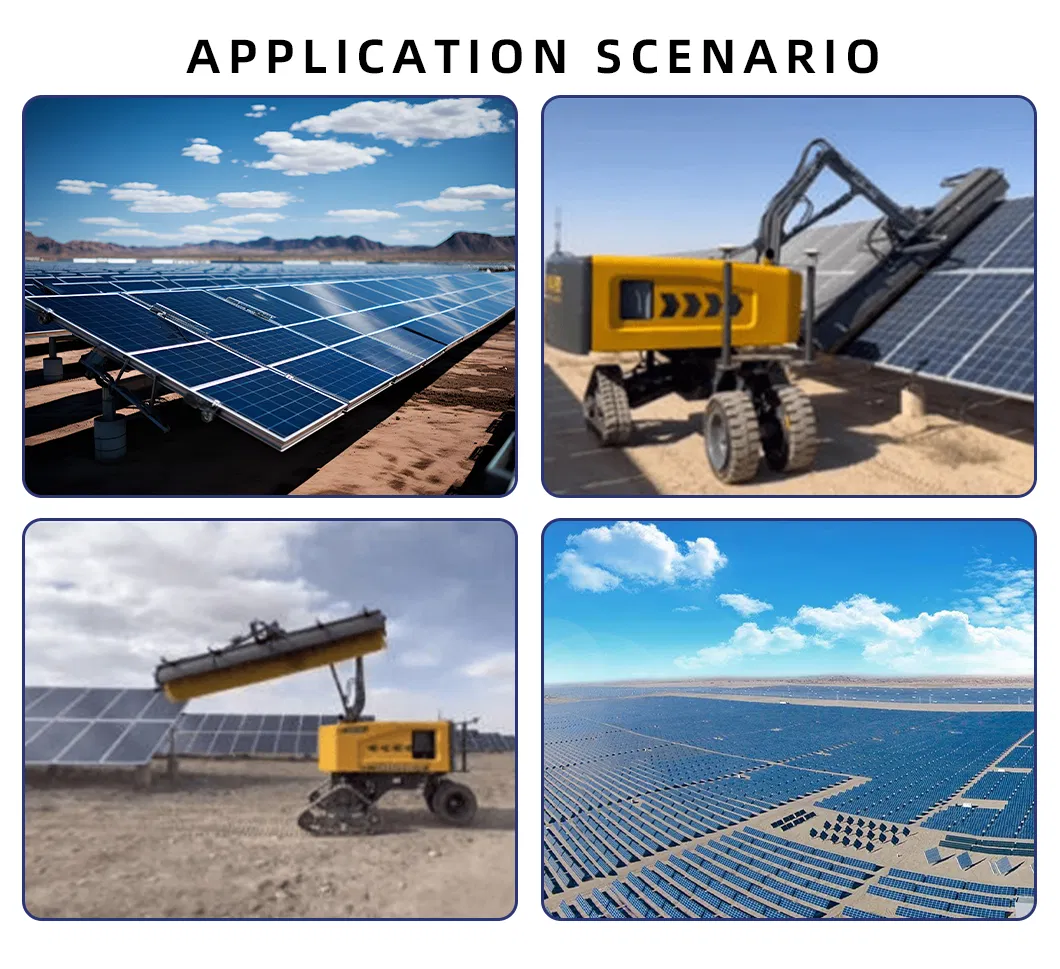

What environments is the Trackless Cleaning Robot suitable for?
It is specifically designed for challenging environments including saline-alkali land, snow-covered areas, sandy or muddy land, and even riverbeds.
