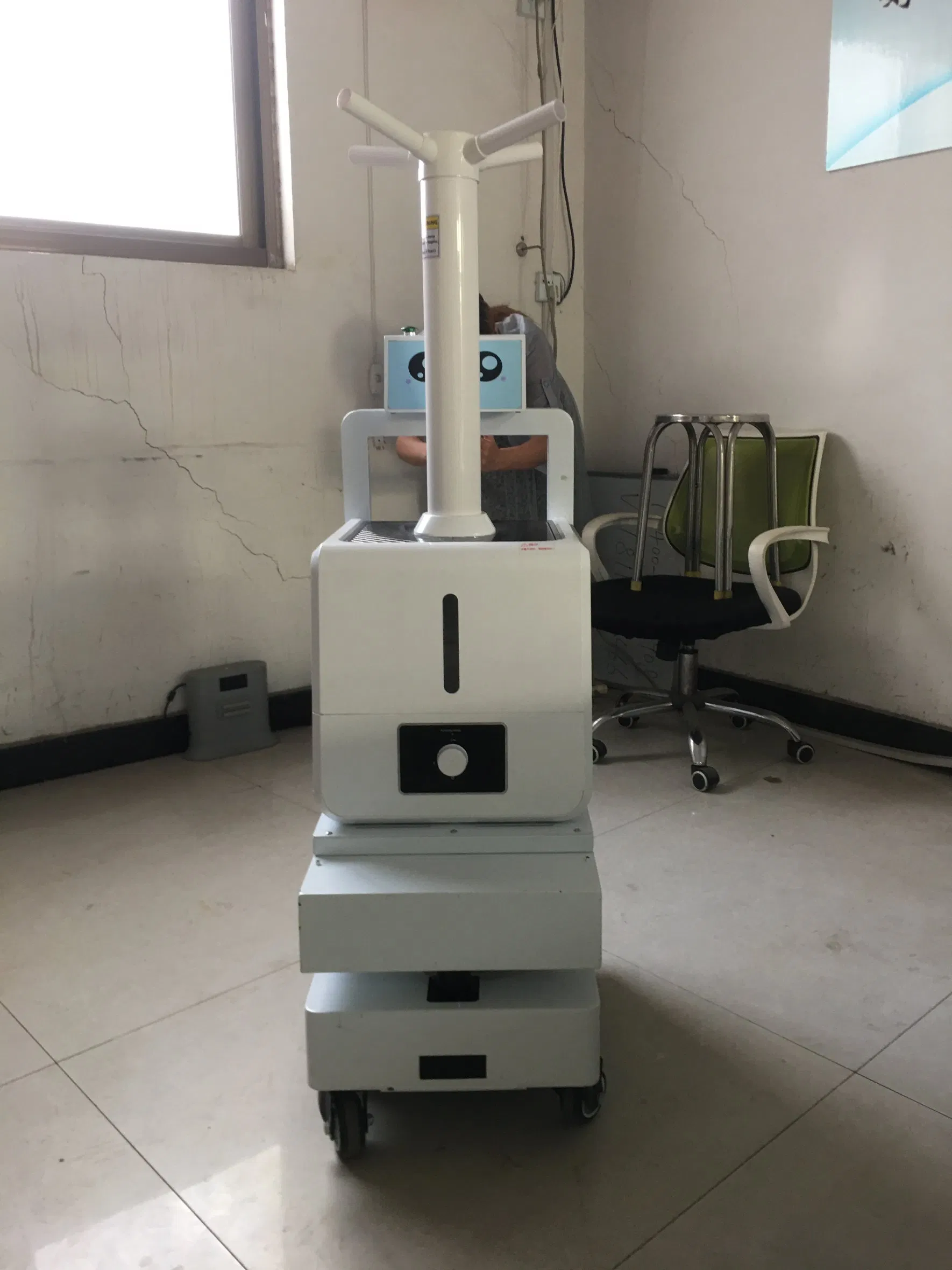

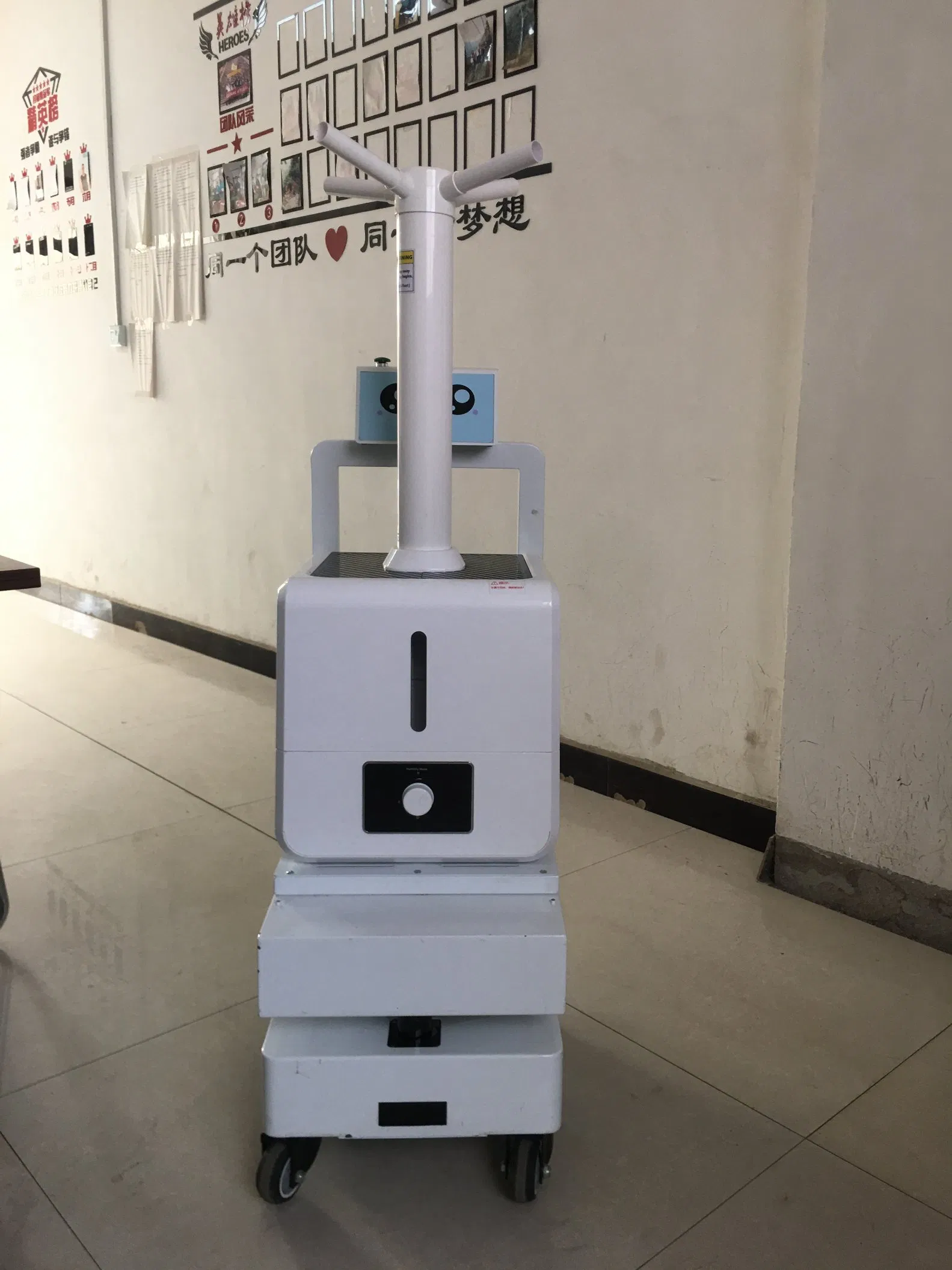

Chemical Spray Sterilization Robot Mist Spray Disinfection Robot

Send Inquiry

Product Description

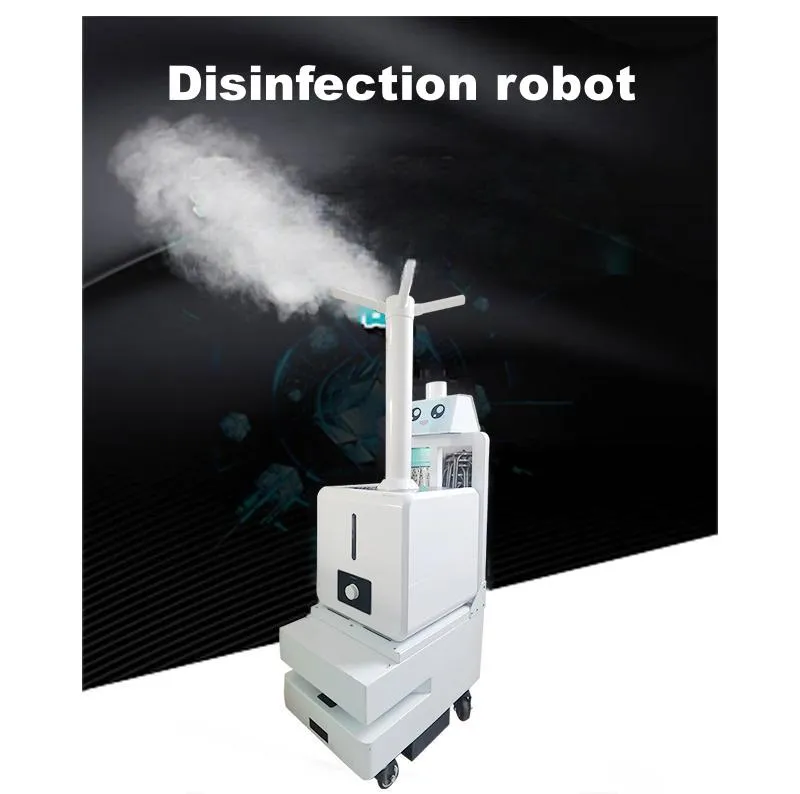

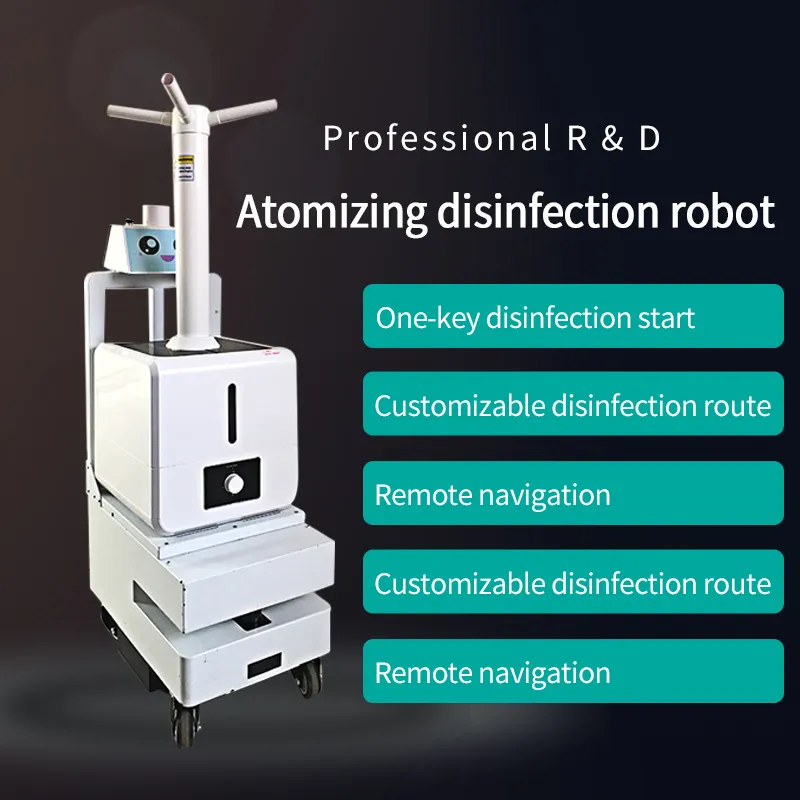

Fogging Disinfection Robot

The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

Key advantages include intelligent obstacle avoidance for safe operation in complex environments, versatile disinfectant compatibility to accommodate various sanitization protocols, and high-volume mist output for rapid, thorough coverage. Upon task completion or when battery levels are low, the unit automatically returns to its charging station, ensuring continuous operational readiness.

Technical Specifications

Parameter	Details
Model	CW-XS Robot
Operating System	Android 5.1
Supported Languages	Chinese, English and others
Processor	RK3128 (Quad-core Cortex-A7, up to 1.2GHz)
Memory	1GB LPDDR3, 8GB NAND Flash
Display	7-inch IPS screen (1024x600)
Battery	10400mAh/37V (3-4 hours operation)
Atomization Particle Size	2-5um
Atomization Output	800-3000ML/H
Water Tank Capacity	16L
Dimensions	540mm x 360mm x 1400mm
Wireless Technology	2.4GHz/5GHz WiFi, Bluetooth 4.1

Core Features

🎯 Intelligent Disinfection Mode

Equipped with smart algorithms for optimal disinfection routines and maximum efficiency.

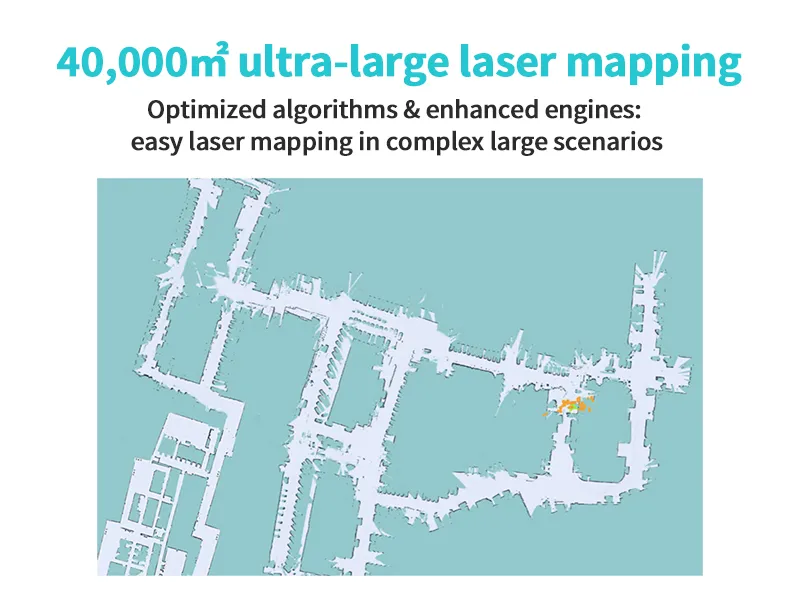

🗺️ Laser Mapping

Utilizes 40,000 square meters of laser mapping for precise navigation and coverage.

🧪 Disinfectant Compatibility

Compatible with hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.

💨 High Output Fogging

Produces up to 3000mL/h of ultra-fine fog, ensuring comprehensive coverage.

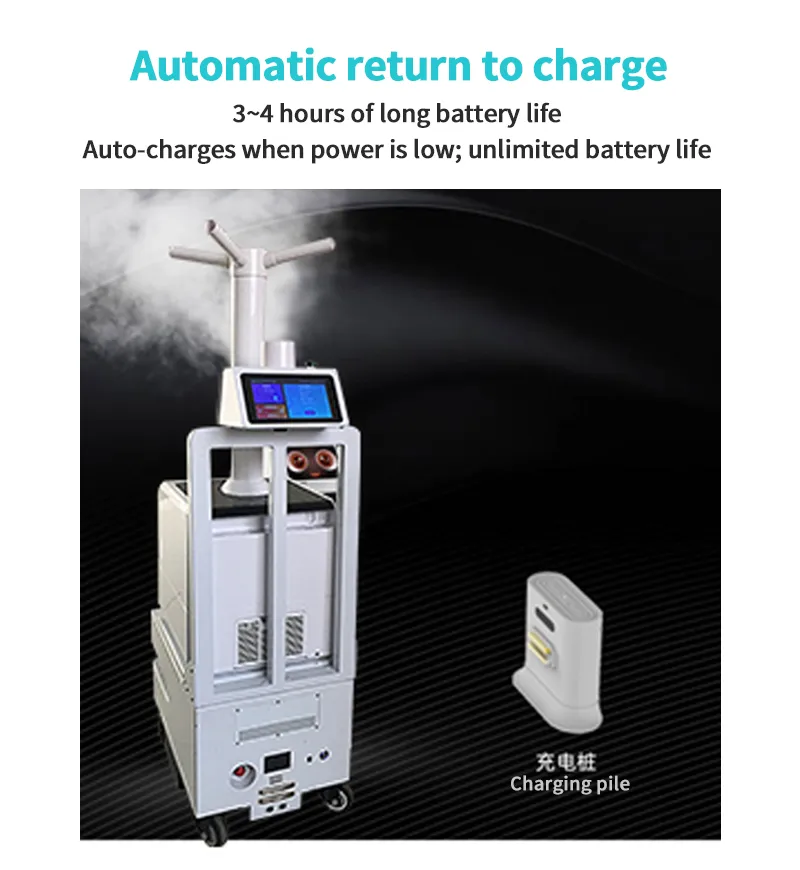

🔌 Automatic Charging

Automatically returns to its dock when the battery is low, ensuring 24/7 readiness.

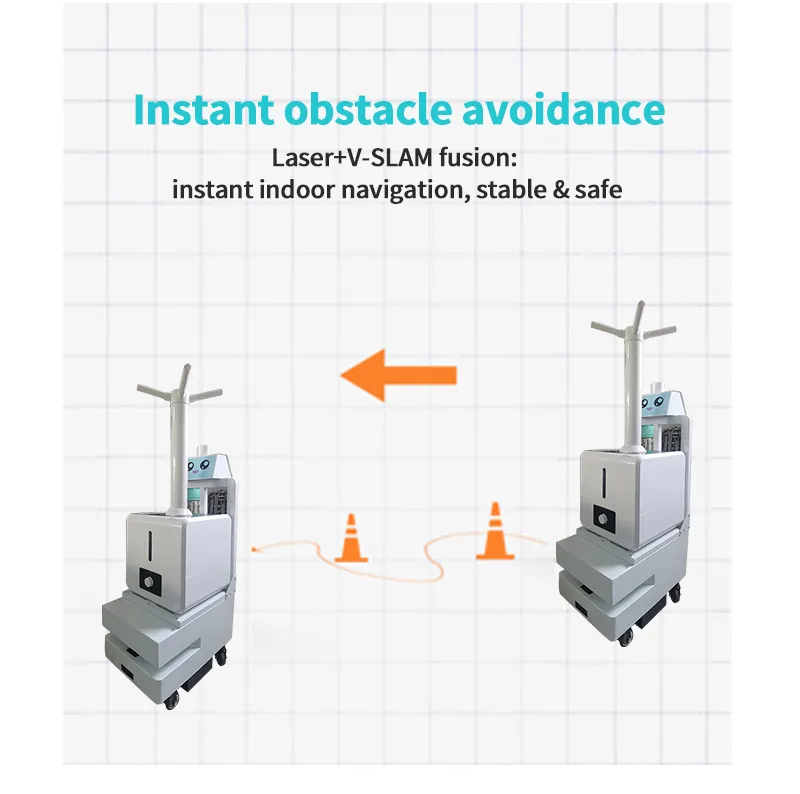

🛡️ Obstacle Avoidance

Advanced laser SLAM and V-SLAM technology for safe navigation in complex areas.

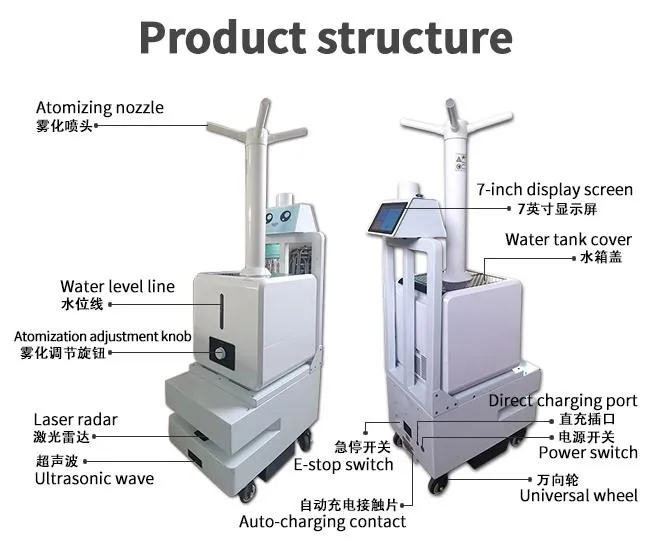

Design & Operational Details

Product Demonstration

Frequently Asked Questions

What types of disinfectants can this robot use?

The robot is highly versatile and compatible with various disinfectants, including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.

How much area can the robot cover autonomously?

The system features advanced LiDAR-based mapping that allows it to cover and navigate areas up to 40,000 square meters.

What happens when the battery runs low during operation?

The robot is equipped with an automatic return charging feature. It will identify its charging station and return to recharge itself before resuming tasks.

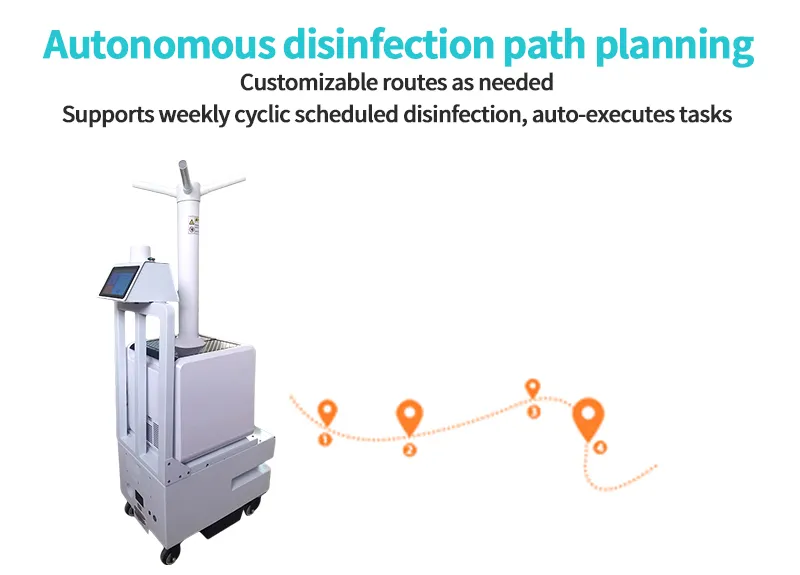

Can I set specific disinfection paths?

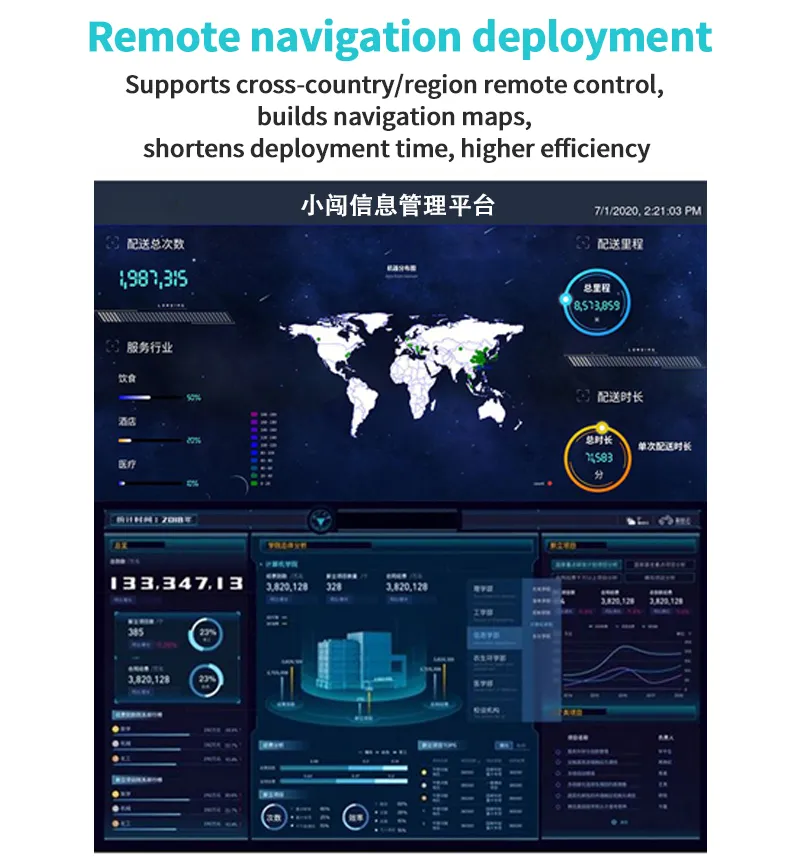

Yes, the robot supports customizable disinfection paths and remote navigation deployment, allowing users to define specific routes based on the facility's needs.

How long can it operate on a single charge?

The high-capacity 10400mAh battery provides approximately 3 to 4 hours of continuous disinfection operation.

Is it safe to use in crowded public spaces?

Absolutely. Using dual SLAM (Laser and Visual) technology, the robot performs intelligent obstacle avoidance to safely navigate through complex and high-traffic environments.
