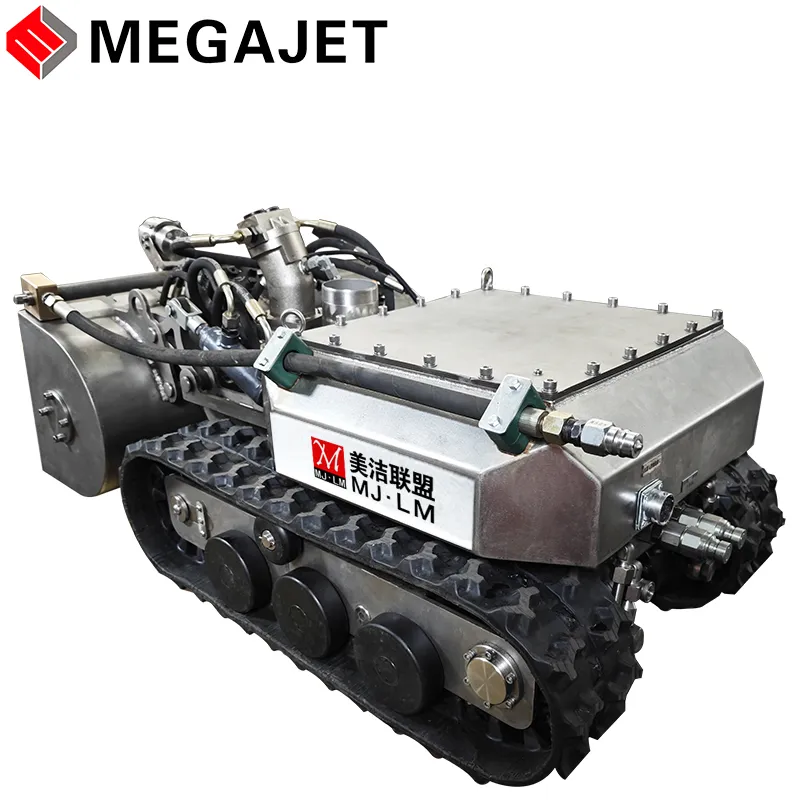

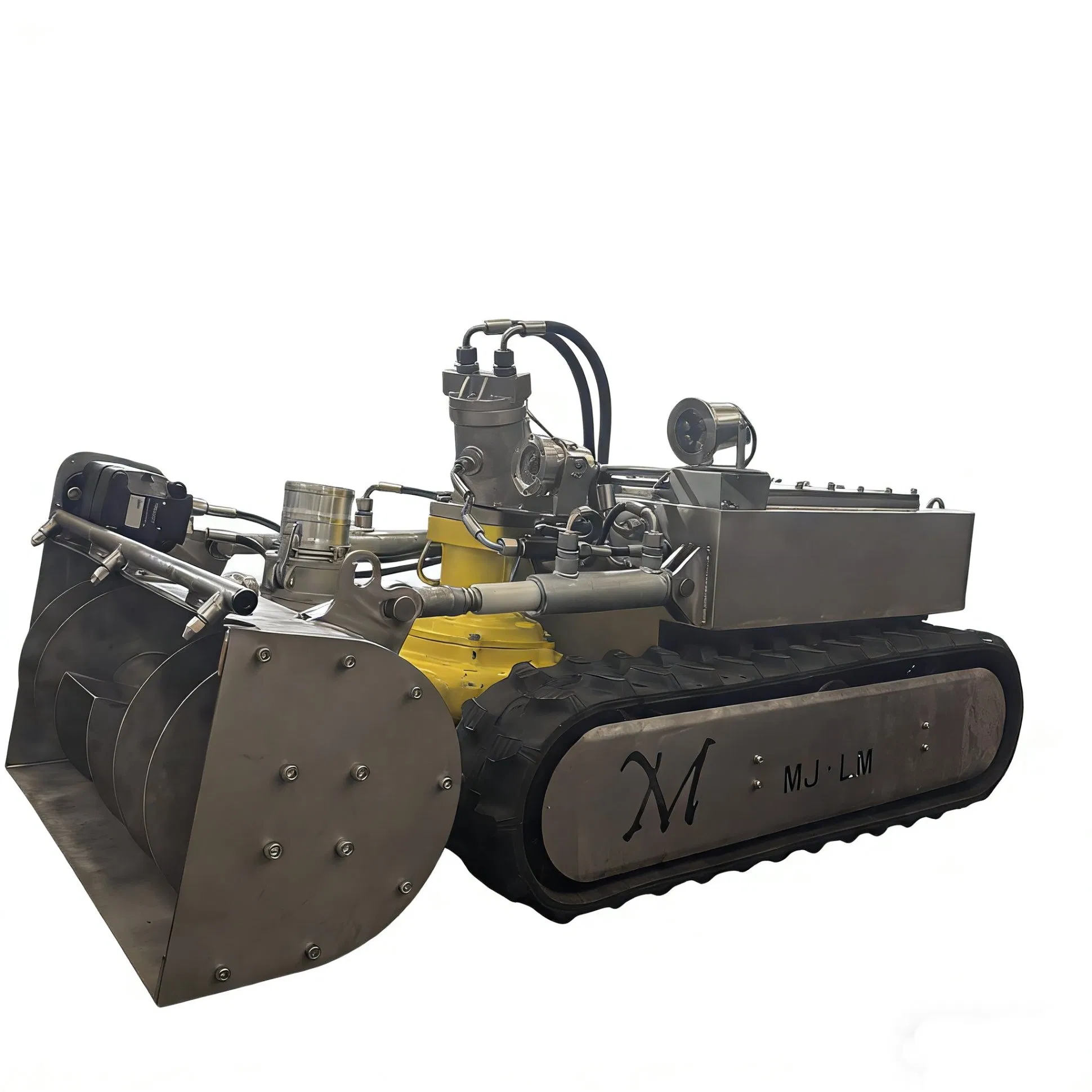

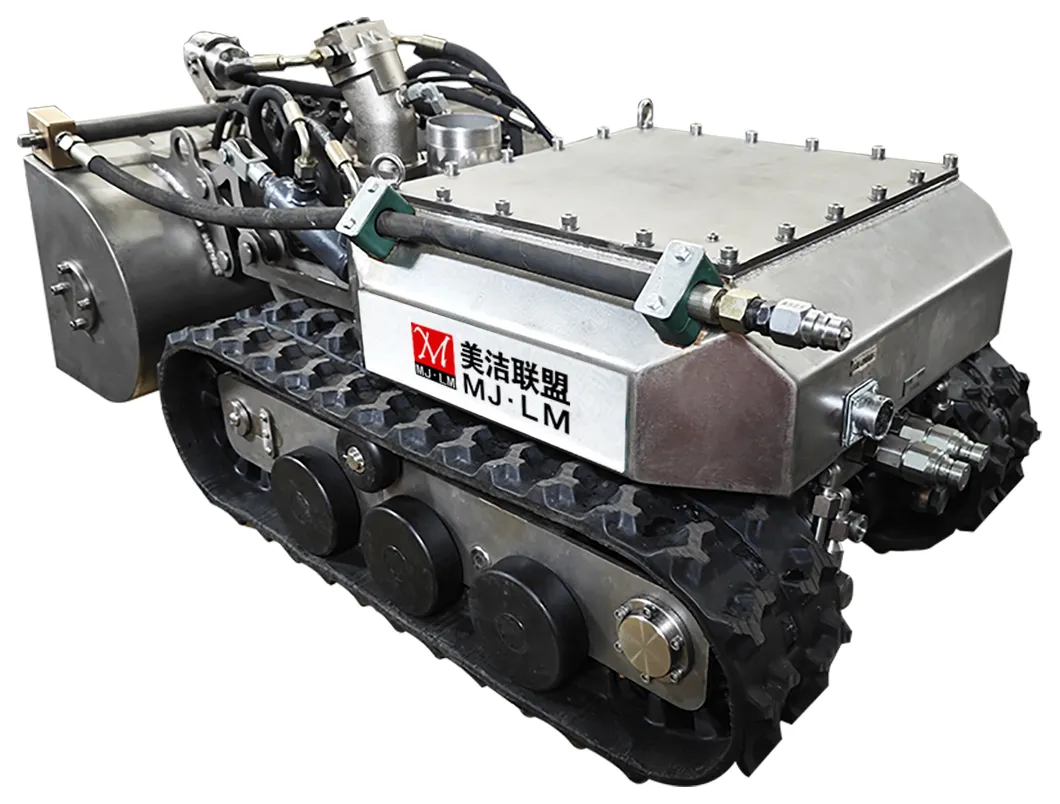

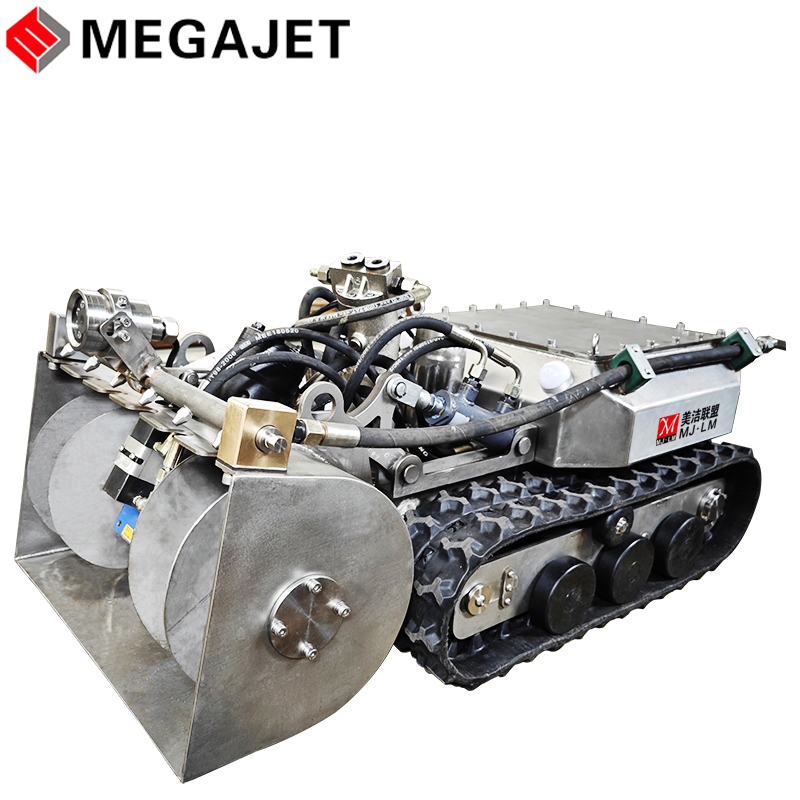

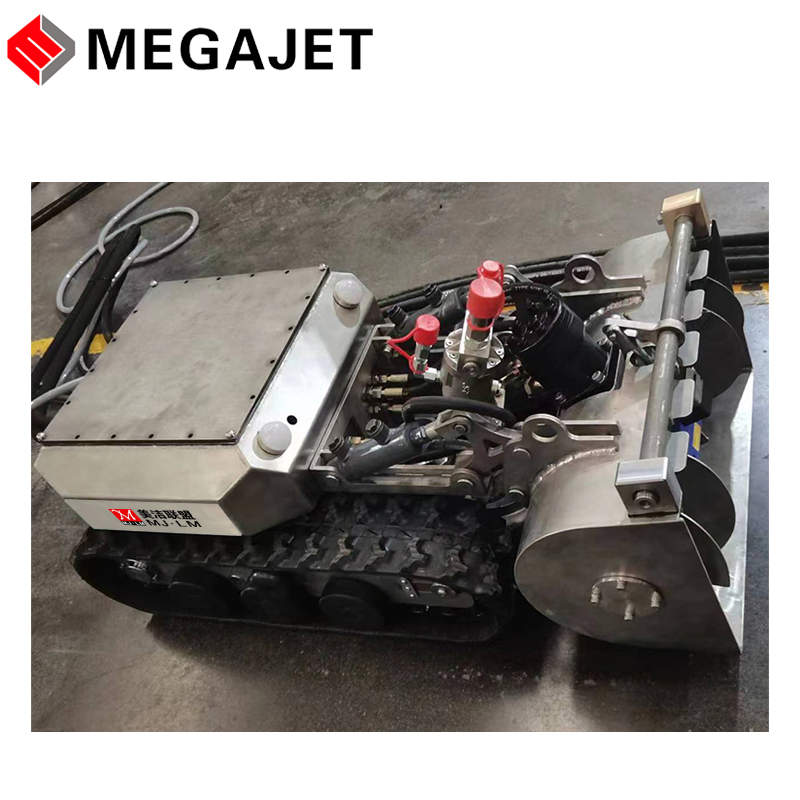

The Dredging robot DRO-100L is suitable for municipal pipe network, culvert box culvert, water purification plant, gas field pool, lagoon, drinking water reservoir, cooling tower pool and other high-risk environment detection and dredging.
It is a limited space dredging tool, minimum suitable for DN600 pipe diameter. Its compact design and small operation disturbance effectively prevent secondary pollution.
| Model | DRO-100L | Size | 1225*590*548mm |
| Weight | 400KG | Working Pressure | 25Mpa |
| Rated Power | 45KW | Climbing Ability | 25° |
| Max Running Speed | 0-40M/Min | Pump Head | 35M |
| Max Working Flow | 100L/Min | Working Voltage | 48V |
| Level Of Protection | IP55 | Driving Mode | Rubber track |

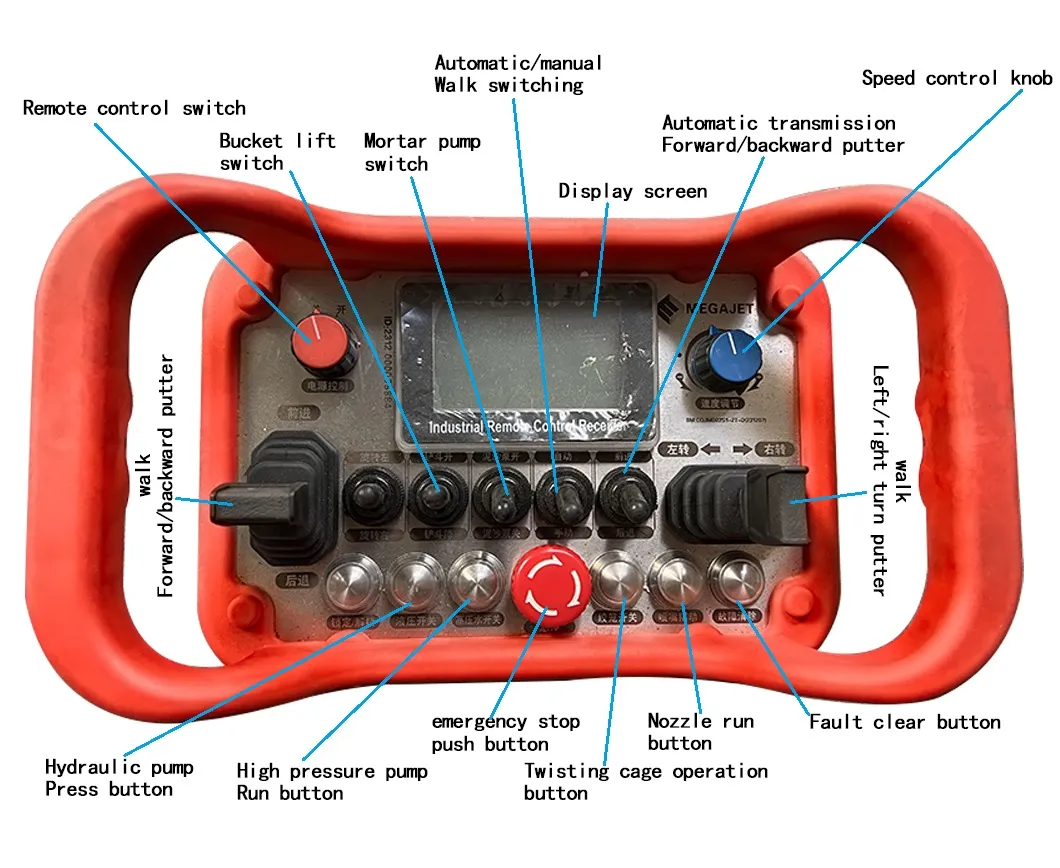

| Remote Distance | 150m | Control Mode | Remote Control |

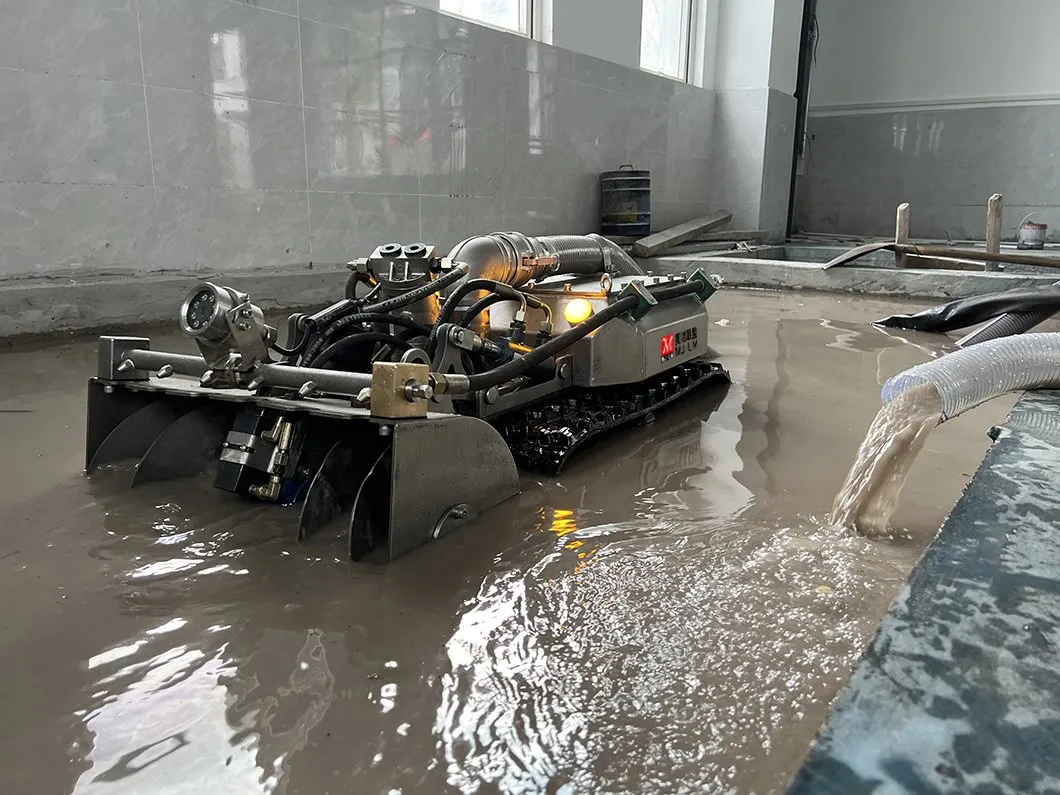

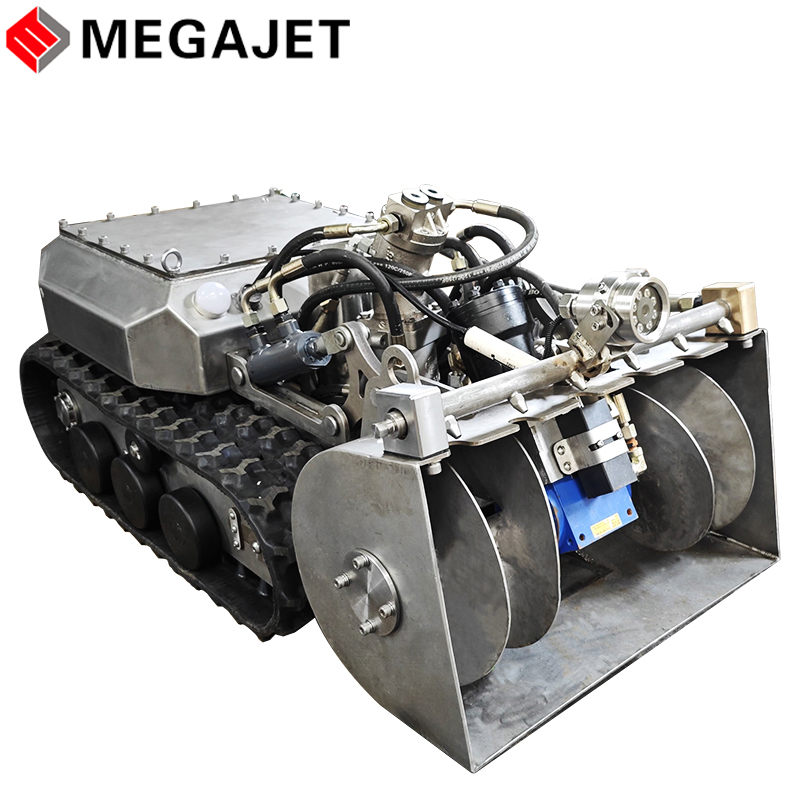

The dredging work is carried out by the DRO-100L underwater dredging robot with a silt suction pump, which is equipped with high-definition cameras and LED lights at the front end, slowly moving from one end of the pipeline, and constantly sucking mud into the pump.
The robot can be customized in size and can operate under normal flow conditions without stopping the flow, ensuring no blockage to the culvert.
The body adopts an anti-rust process, and the electrical part utilizes zero protection, making it reliable, stable, and safe from sparks.
The current traditional way of dredging (pumping water dry and using excavators) is large, cumbersome, and results in economic losses due to production downtime and high labor intensity.
