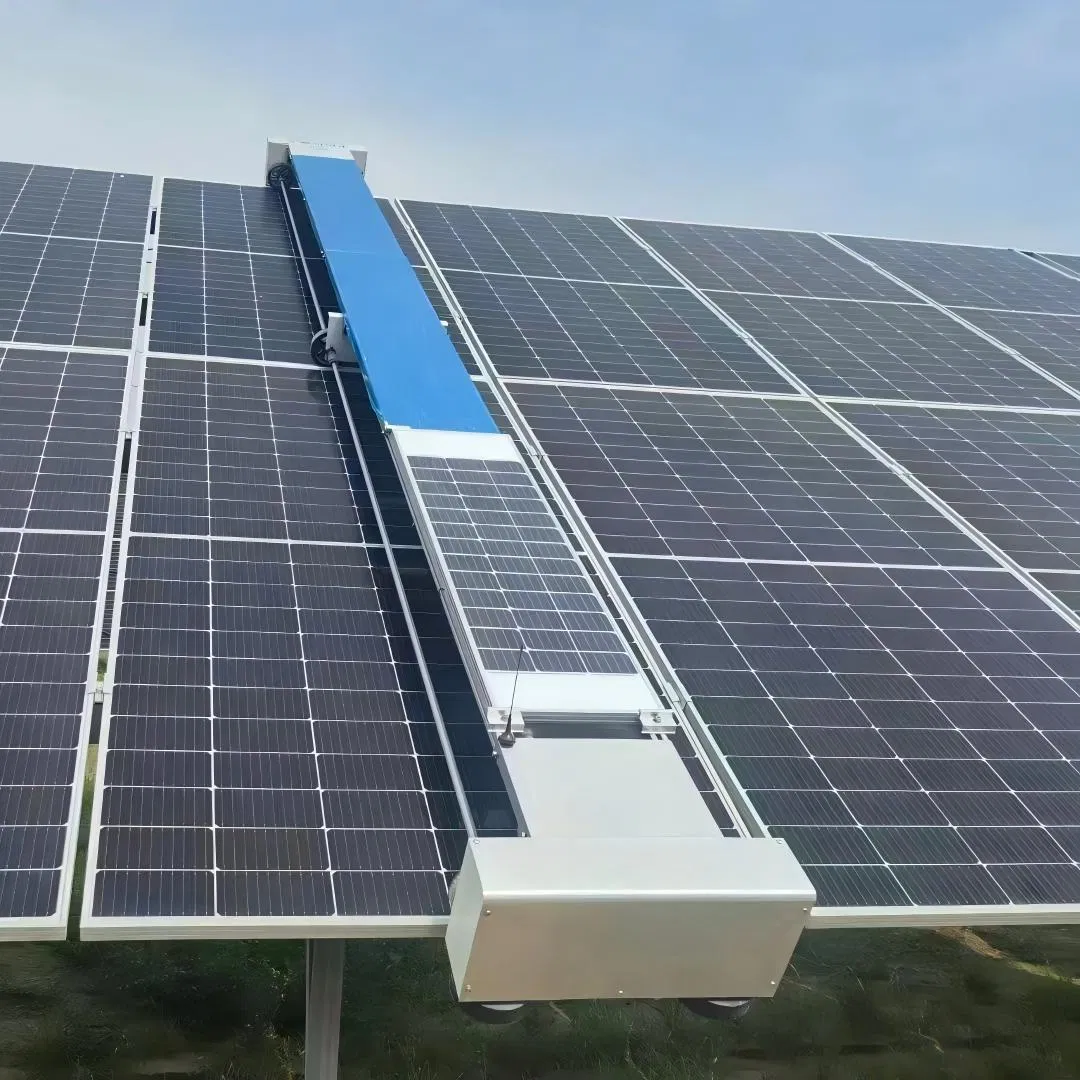

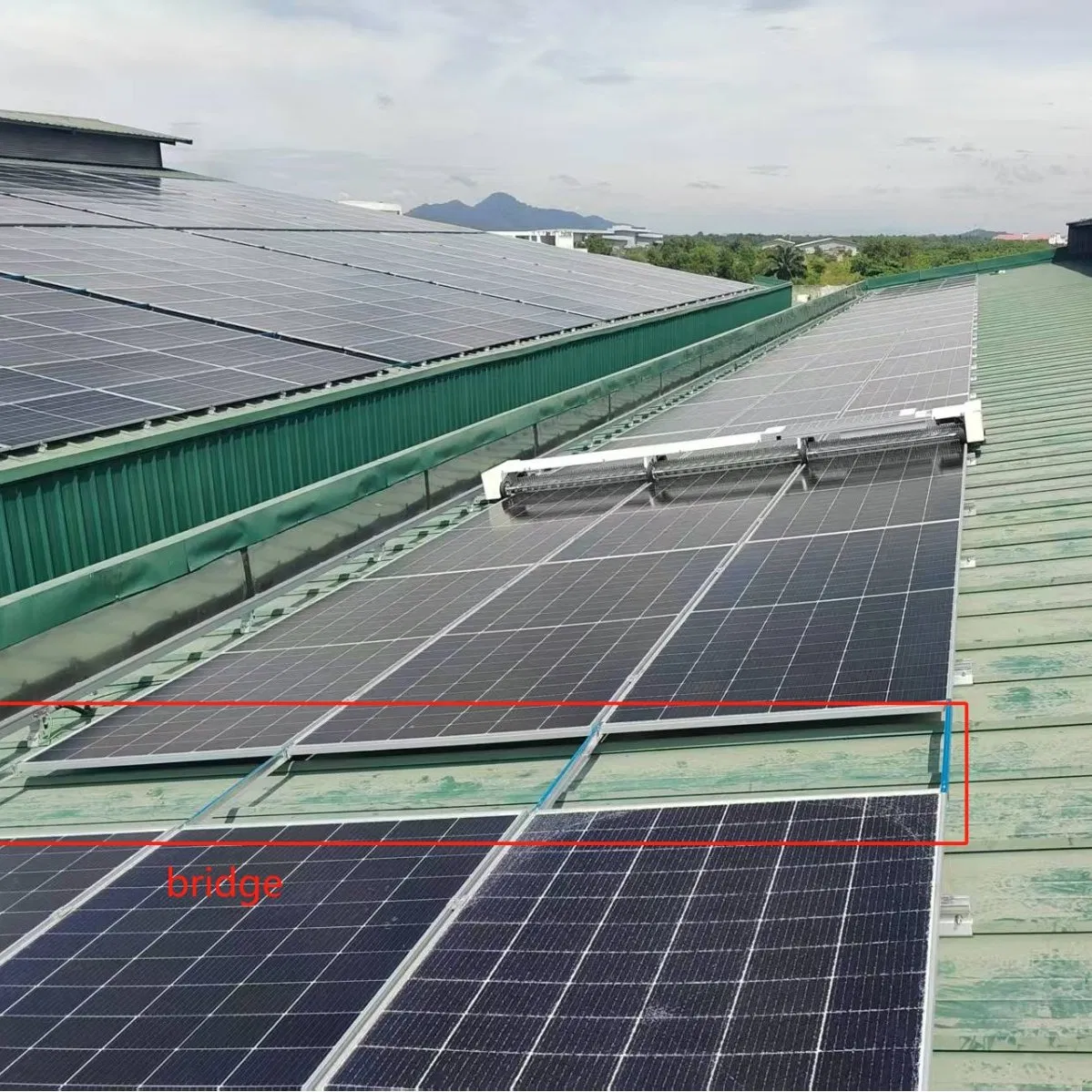

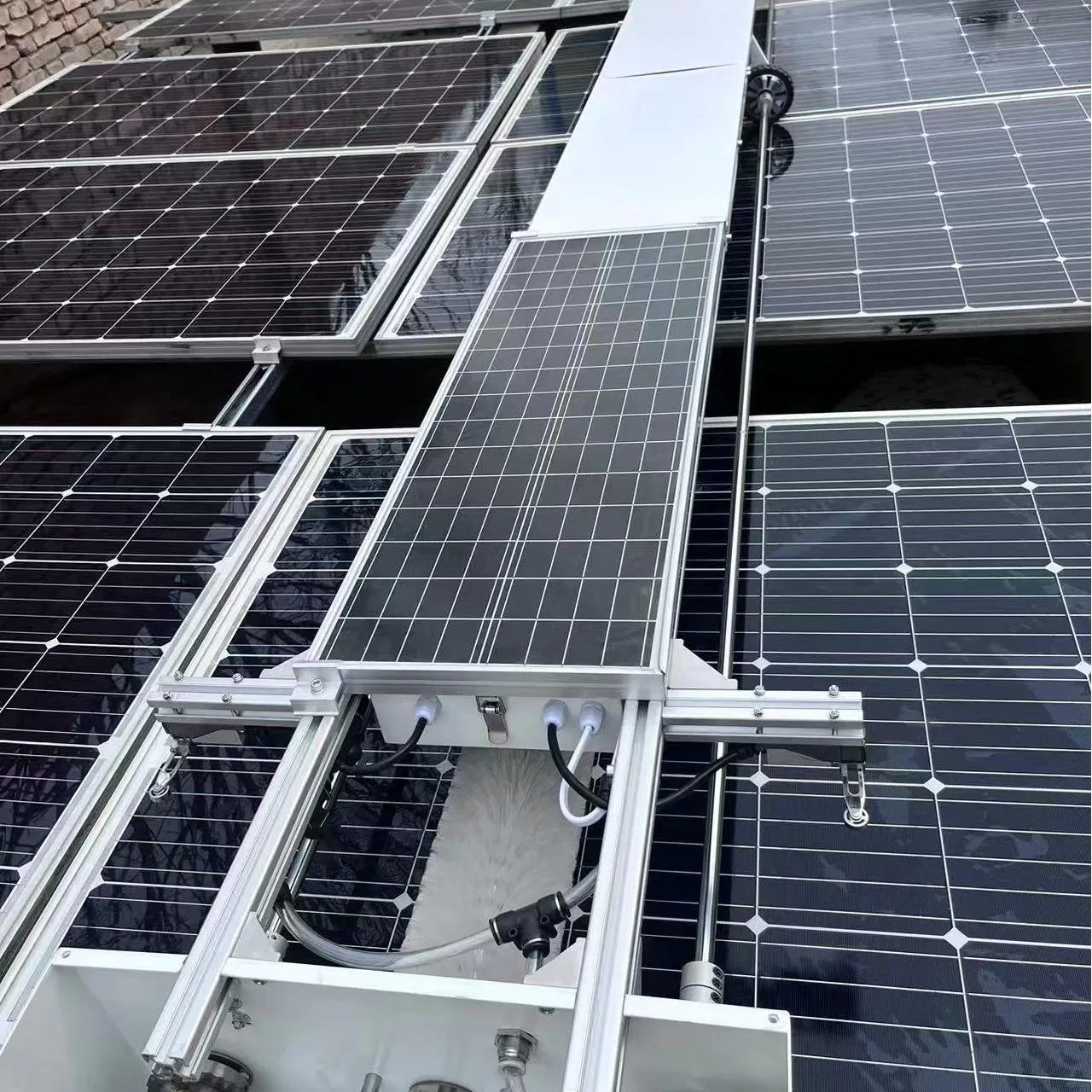

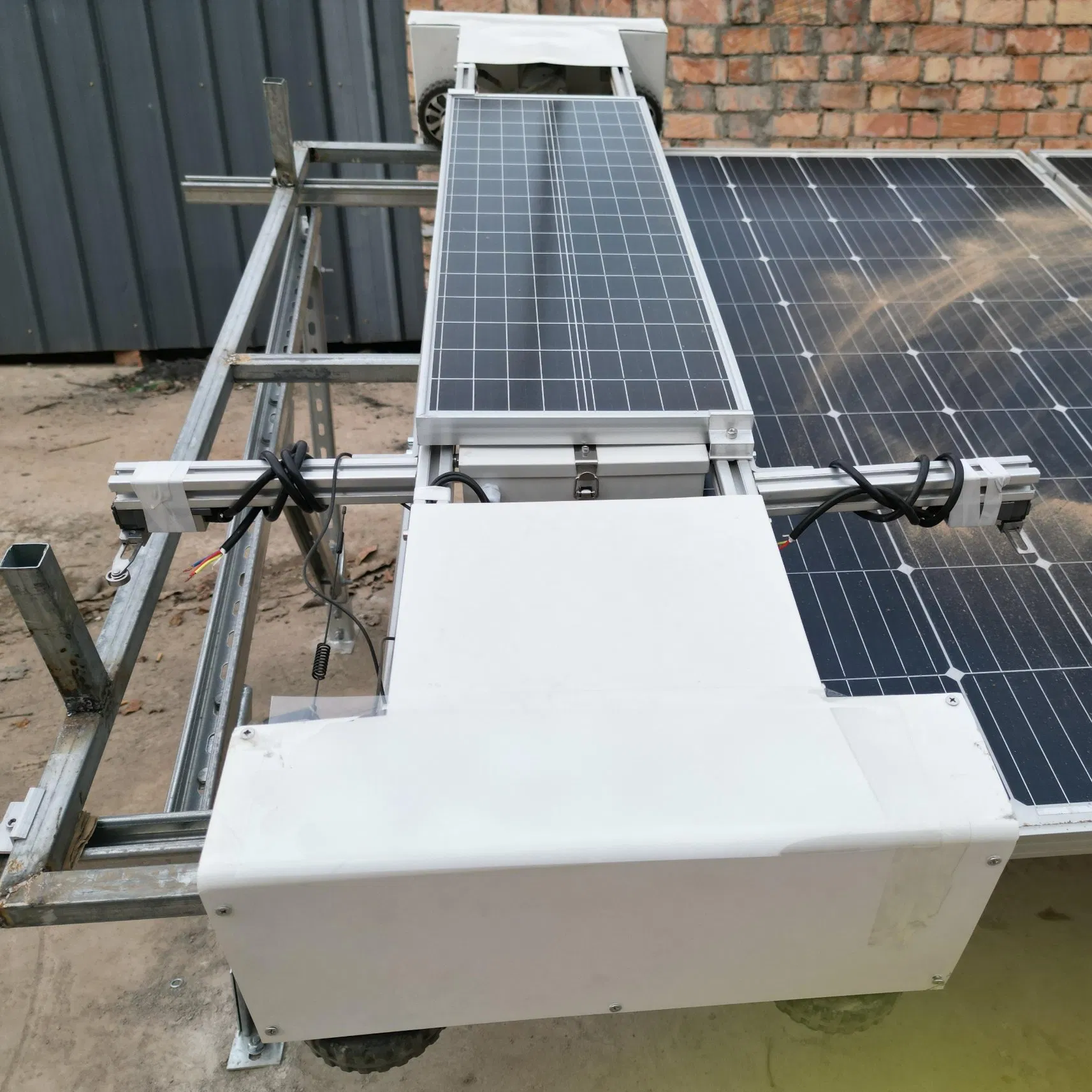

Smart Dual-Use Cleaning Robot for Wet and Dry Solar Panels

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Overview

Clean Type:High Pressure Cleaning
Cleaning Process:Cold Water Cleaning
Control:PLC
Customized:Customized
Fuel:Electric
Principle:Electronic Cleaning
Remote Control:With Remote Control
Style:Fixed Style
Crossing Ability:50cm
Brush Size:1-10m
Application:Large Power Station/Roof Plant
Transport Package:Wooden Case
HS Code:84795090
!

Product Description

This renewable Solar Panel Cleaning Machine is an intelligent stationary cleaning robot, primarily designed for the component cleaning of large and medium-sized photovoltaic power stations. It can be installed dry on the photovoltaic modules to perform automatic cleaning. Our robot features both automatic and manual control modes, with the manual mode supporting remote control. It utilizes a waterless cleaning technology that relies on the high-speed rotation of brush rolls to complete the cleaning, making it suitable for most types of pollutants.
The robot can operate independently or work collaboratively through a 4G network. Managers can remotely command and control multiple robots via software, while the robots' operational status and fault conditions can also be transmitted back to managers through wireless networks, facilitating remote management and control.

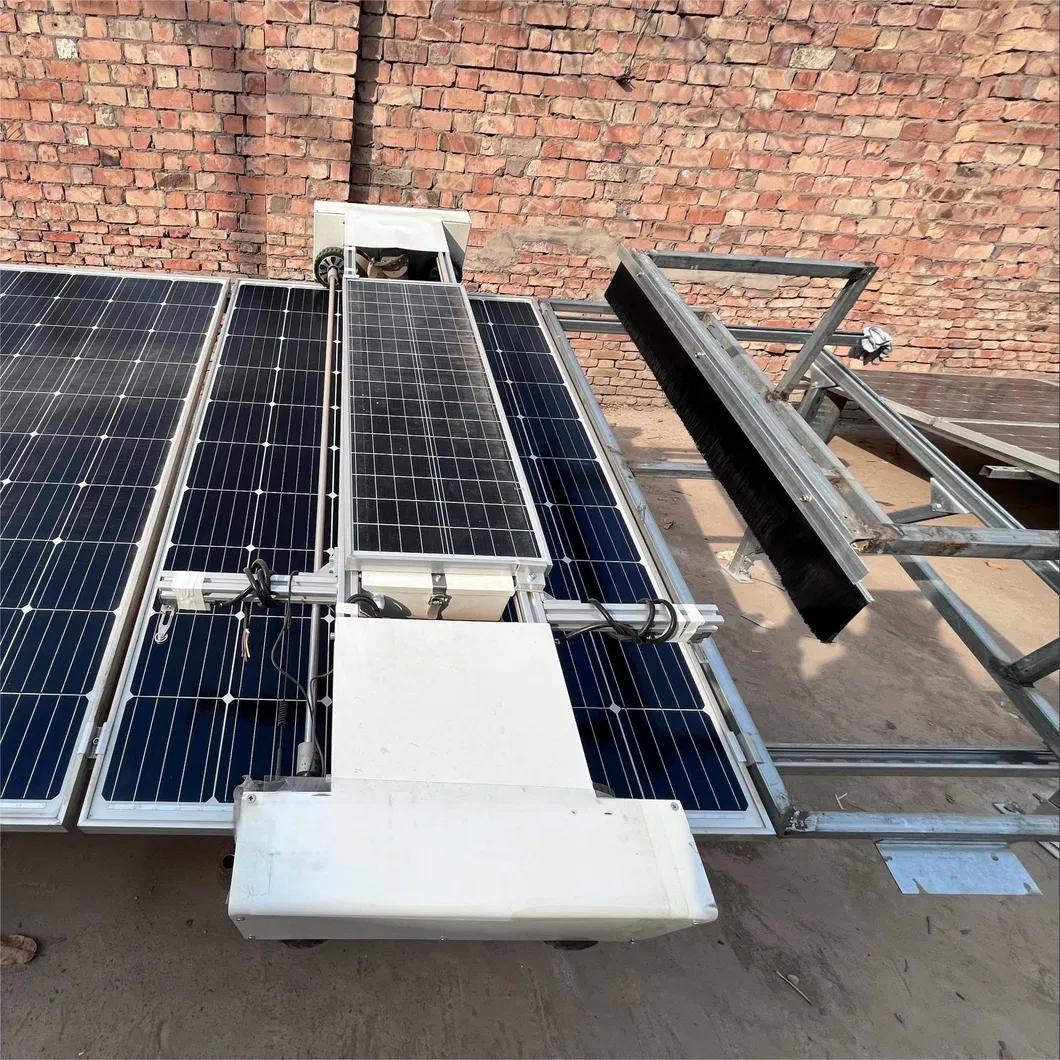

Smart Cleaning Robot 1

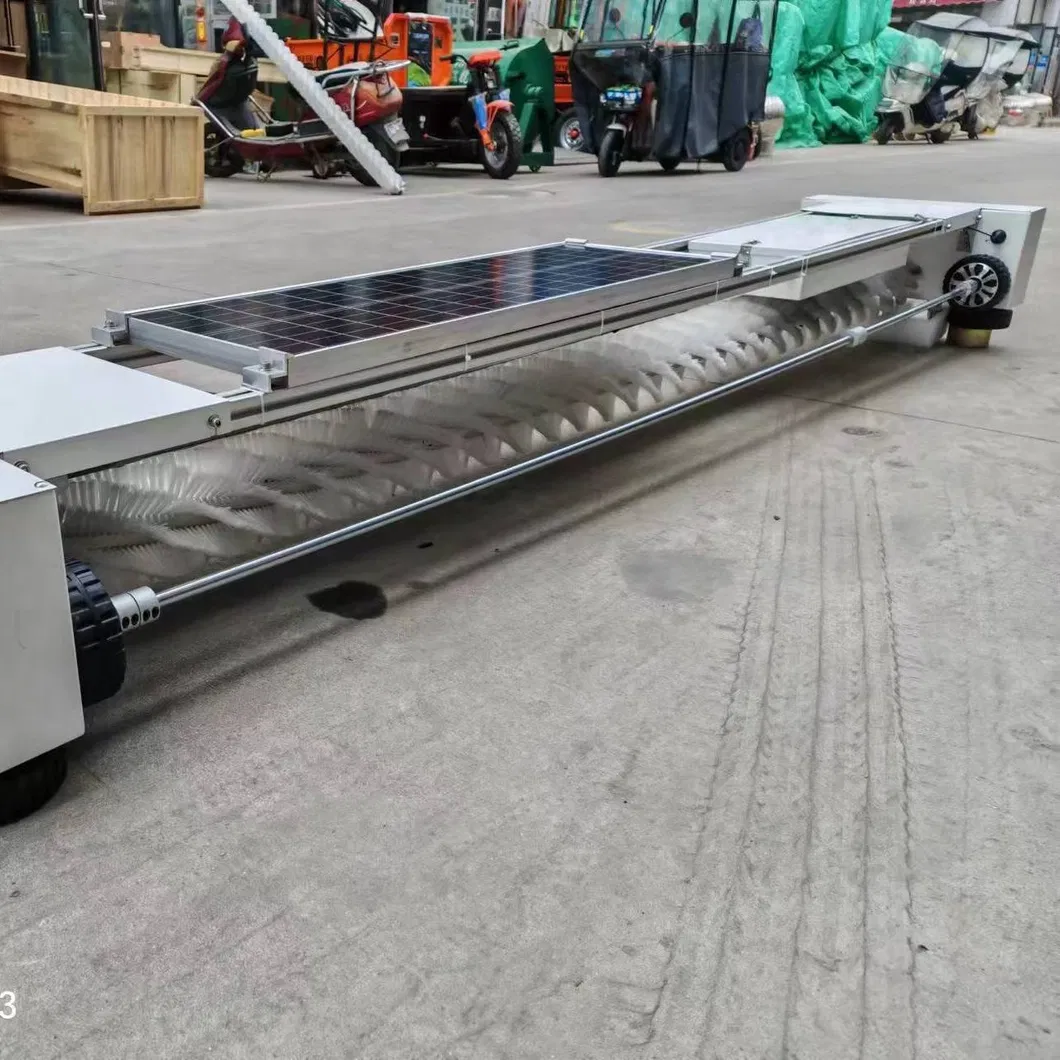

Smart Cleaning Robot 2
P

Detailed Photos

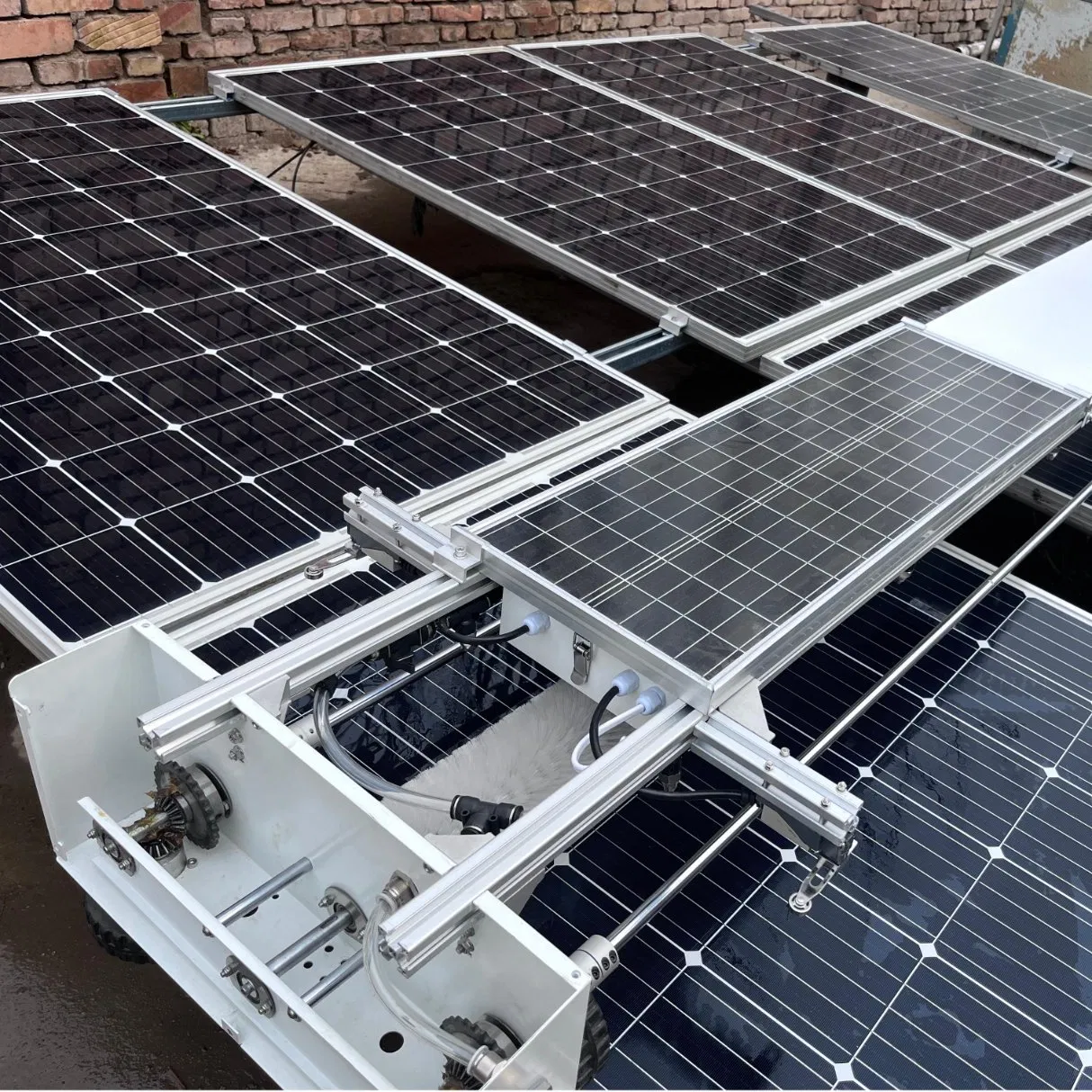

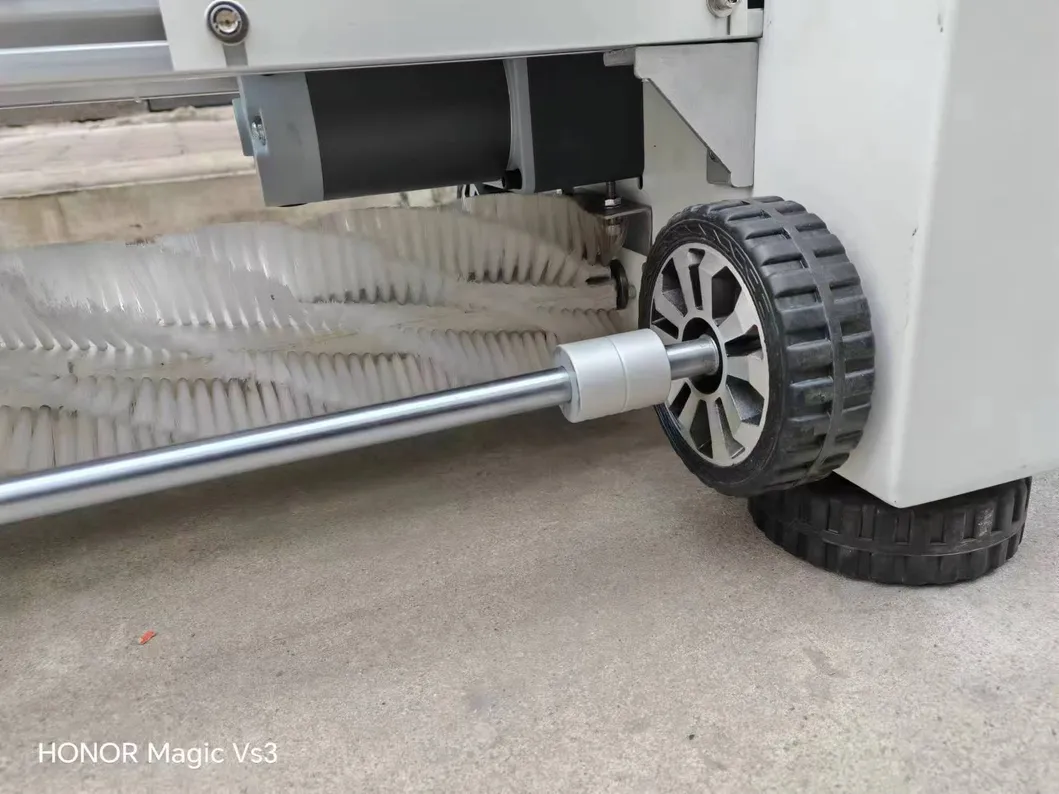

Detailed View 1

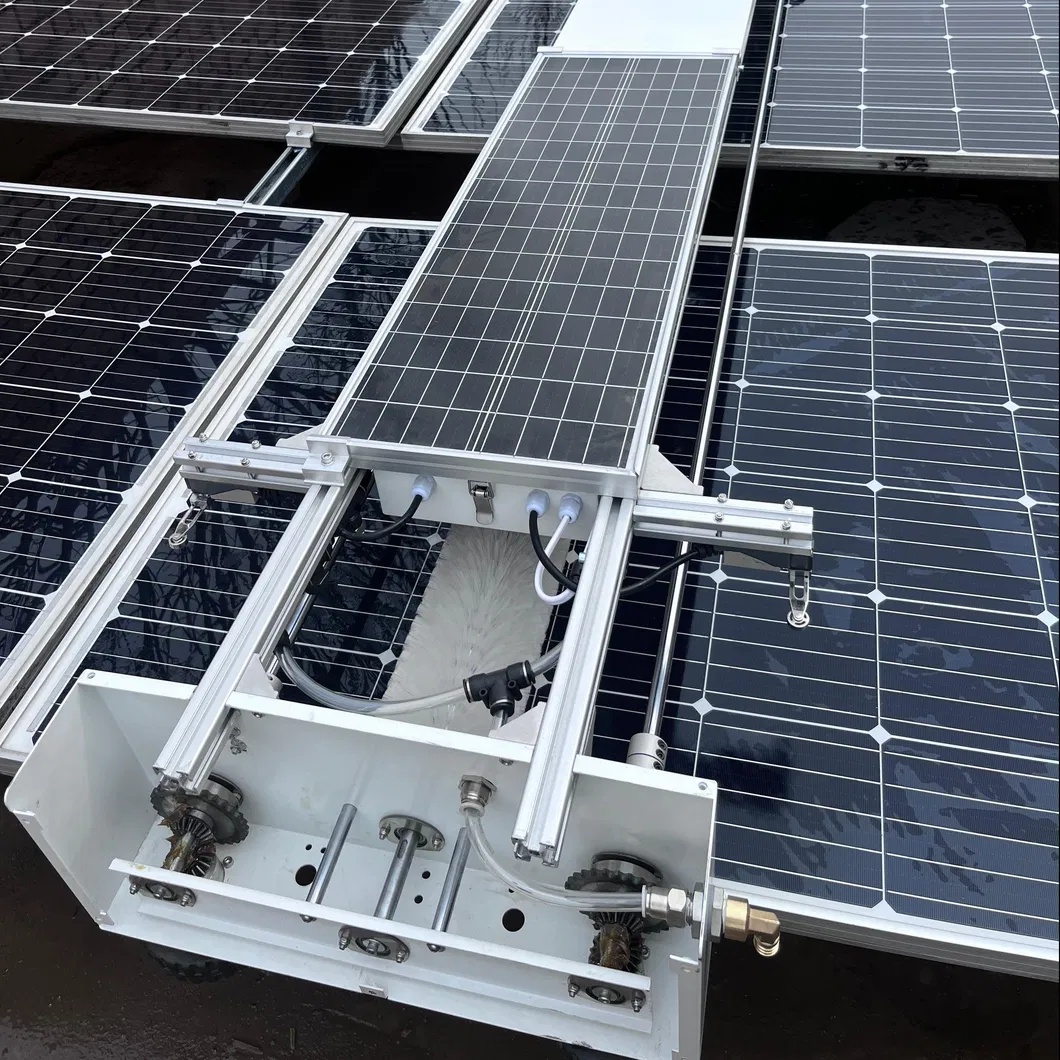

Detailed View 2
T

Product Parameters

Product ModelZTG-3310
Product NameRemote control crawler photovoltaic cleaning robot
Standard Width400 mm
Standard Height215 mm
Power ModeLithium batteries, rechargeable photovoltaic panels
Rechargeable PV Panel Power50W/24V
Battery Power24V/10A
Time to Fill Battery4 hours
Cleaning Speed14m/min
Maximum one-way Distance600 m
Working Temperature-20 ~ 80ºC
Control ModeAutomatic, manual, remote control
Control PlatformRemote service platform + mobile APP
Network Access4G
Parameter View 1
Parameter View 2

Our Advantages

  • 01. High cleaning efficiency
  • 02. High degree of intelligence
  • 03. Self-powered via solar generation, charging and storage devices (works 24/7)
  • 04. Strong adaptability for various areas and terrains
  • 05. Dual control modes: Automatic and remote manual control
  • 06. Customizable cleaning time and frequency based on region or season
  • 07. Automatic speed stabilization for optimized cleaning quality
  • 08. High-level waterproof, dustproof, and fogproof protection
  • 09. Standardized components for easy transport, installation, and maintenance

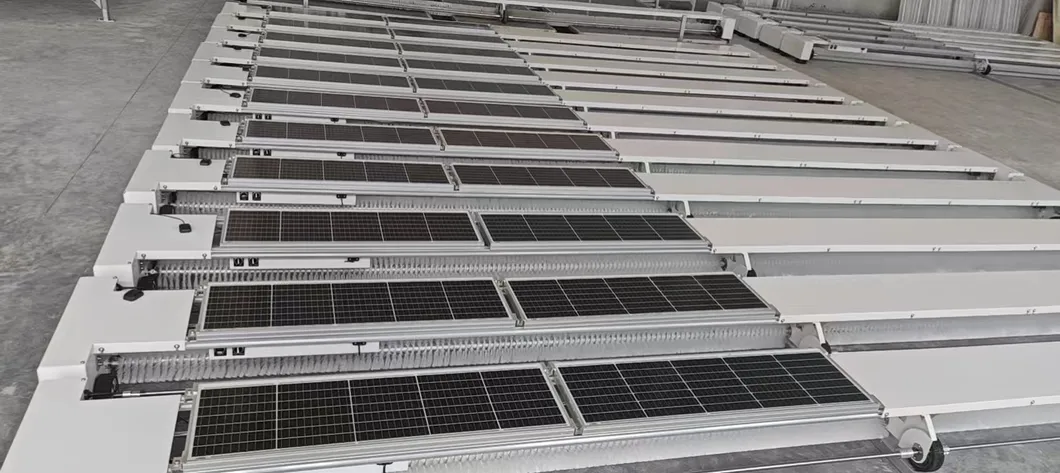

Advantages Showcase
A

Application

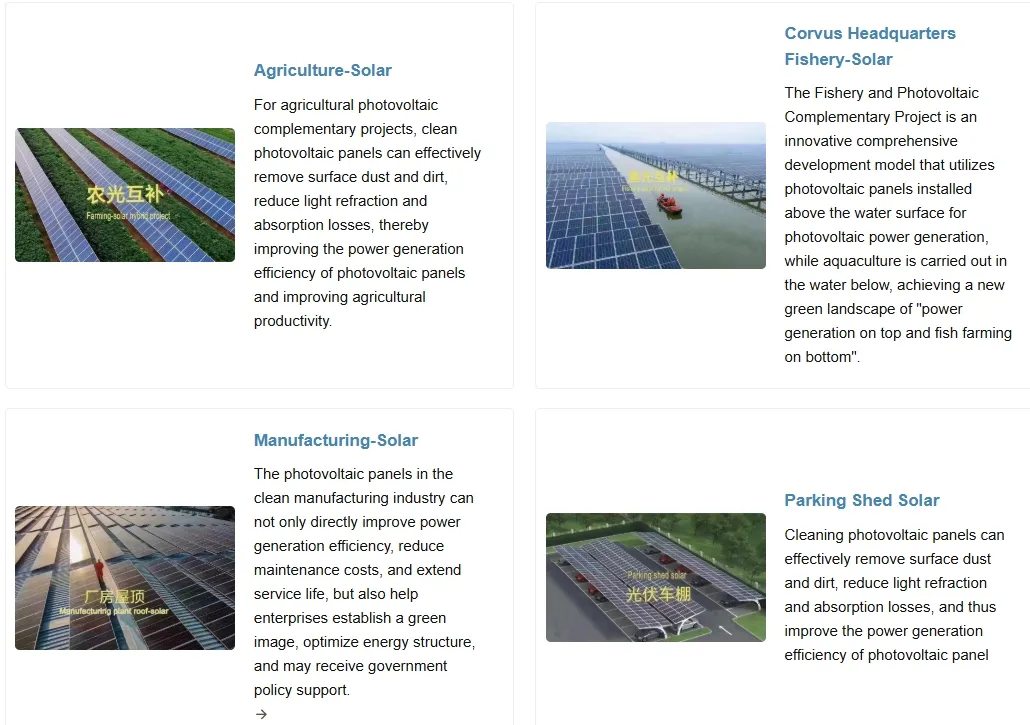

Application Scenario
C

Before and After Cleaning

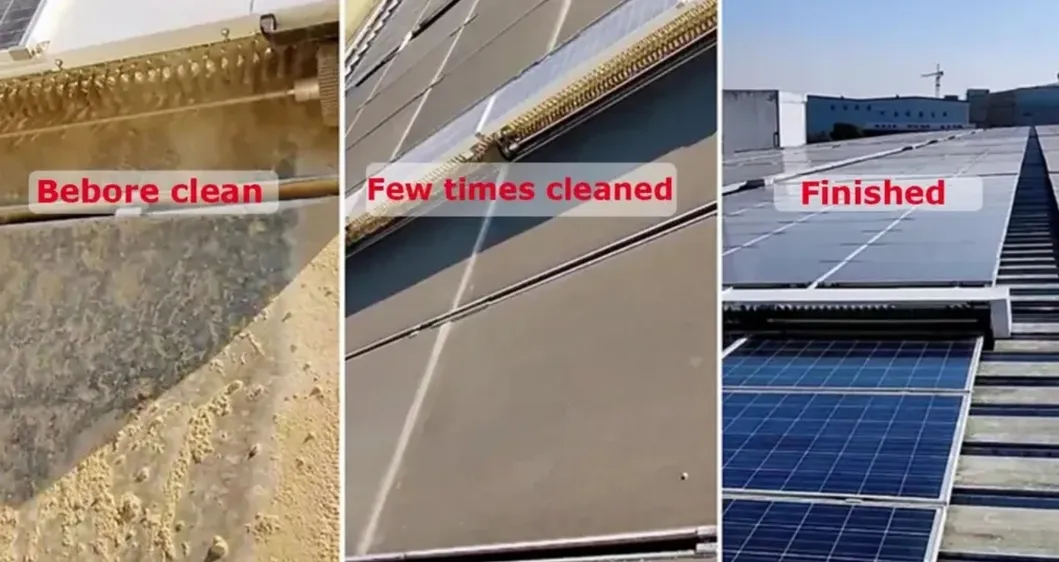

Cleaning Comparison 1

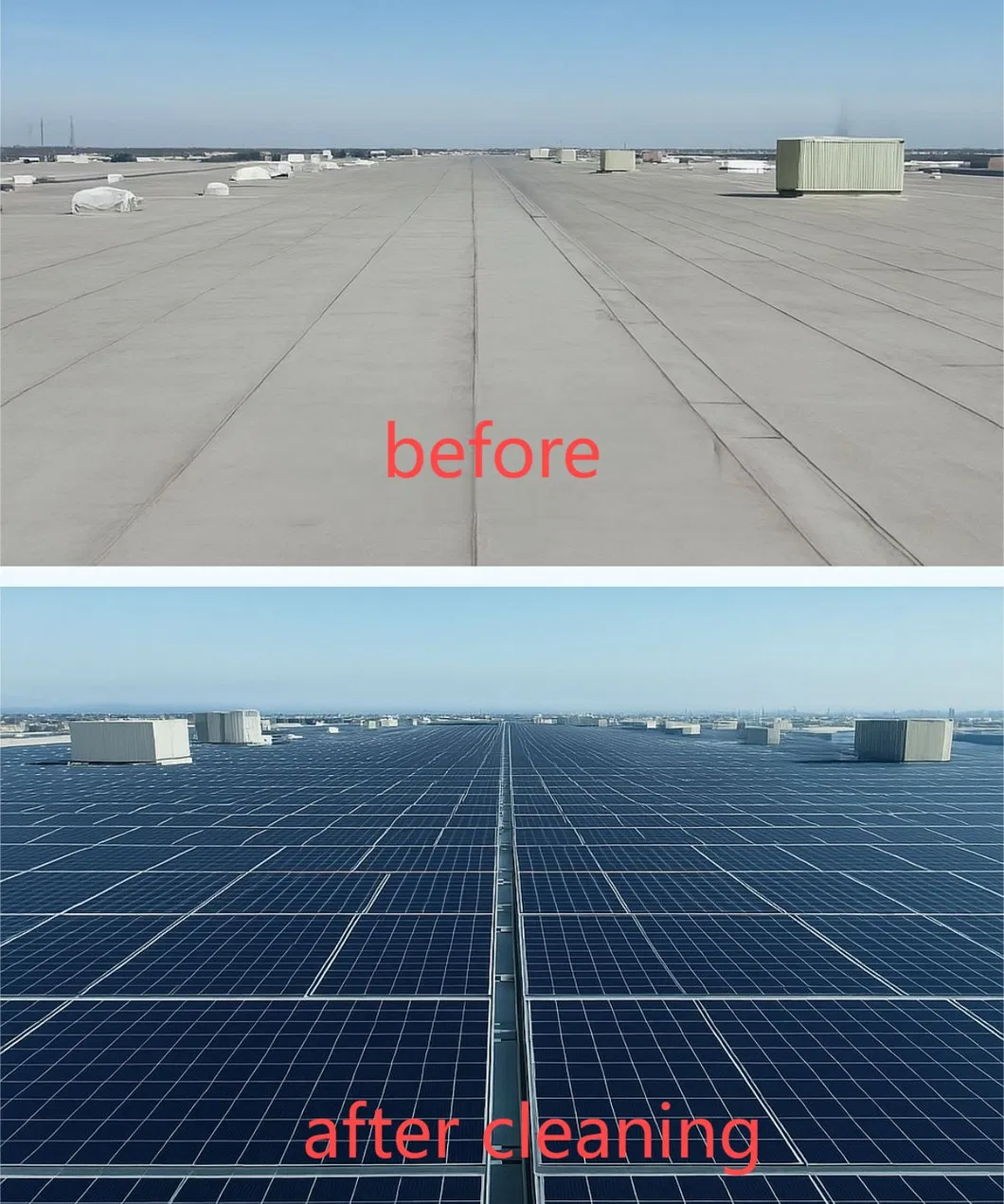

Cleaning Comparison 2
S

Packaging & Shipping

Packaging Details:
1. Outer packaging: Standard sea export bakelite box;
2. Inner packaging: Stretch film, moisture-proof plastic film;
3. Customized options available upon request.
Packaging
Shipping
?

Frequently Asked Questions

1. Will the robot hit walls or obstacles during operation?
Under normal circumstances, this will not happen. Manual operations are human-controlled, requiring basic training. Fully automatic systems are controlled by induction sensors to prevent any collisions.
2. Can it work on rainy days after rooftop installation?
Fully automatic equipment can operate on rainy days. However, human-operated equipment should not be used during rain to ensure personnel safety and prevent risks such as lightning.
3. Why use crawler tracks for these robots?
Crawler tracks are utilized because they provide high cleaning friction and superior stability, leading to a more effective cleaning result compared to other methods.
4. What are the key advantages of this equipment compared to others?
Our equipment is designed to be highly efficient, durable, and reliable, ensuring long-term performance and high ROI for photovoltaic stations.
5. Can debris like leaves be detected by power generation monitoring?
Large areas of debris can usually be identified by monitoring systems due to a drop in power generation. However, small debris may not always trigger a significant enough change to be monitored automatically.
6. How is the cleaning speed controlled?
The robot features automatic speed stabilization, where the forward movement speed is precisely matched with the brush motor speed to ensure a consistent and high-quality clean.
