Overview & Basic Info
Model NO.:MBOT201
Power Supply:Battery
Control:PLC
Automation:Automatic
Operation Type:Automatic
Type:Wafer Brushes
Brush Hardness:Medium Hardness
Brush Structure:Disc Type
Application:Warehouse
Condition:New
Navigation:Laser Slam
Weights:40kg
Power:200W
Sweeping Width:890mm
Specification:730mm*690mm*325mm
Production Cap:5000PCS/Year
⚙️
Technical Parameters
| Hardware Parameters |
Index Performance |
| Product Specifications |
| Product Size | Length 730mm * Width 690mm * Height 325 mm |
| Product Weight | 40kg |
| Product Color | Red & Black |
| Product Material | Sheet Metal |
| Environment | Storage: -15°C~55°C; Working: 0°C ~ +50°C; Humidity: 10%~90% |
| Android Specifications |
| OS | Android 5.1 |
| Processor | RK3128 |
| Memory / Flash | 1GB LPDDR3 / 8GB NAND FLASH |
| Display | 7-inch IPS (16:9), 1024X600 |
| Wireless | Dual-band 2.4&5G WIFI 802.11b/g/n, 11ac |
| ROS Navigation Specifications |
| OS | LINUX |
| Lidar | Wavelength 905 nm, working area 270° |
| Hard Disk | 128G SSD, 8G Memory stick |
| Motherboard | Intel I5 10th Generation |
| Moving Speed | 0.1 m/s - 0.5 m/s |
| Cleaning System |
| Side Brush | 500mm |
| Roller Brush | 400mm |
| Cleaning Width | 890mm |
| Cleaning Efficiency | Max 1000m²/h |
| Dust Box Volume | 30L |
| Power System |
| Battery | 25AH lithium iron phosphate, 38.4V/960W |
| Charging Method | Automatic Recharge |
| Charging Time | 4-5 Hours |
| Battery Life | 9-10 Hours |
📦
Packaging & Shipping
Package Size:95.00cm * 95.00cm * 50.00cm
Gross Weight:85.000kg
❓
Frequently Asked Questions

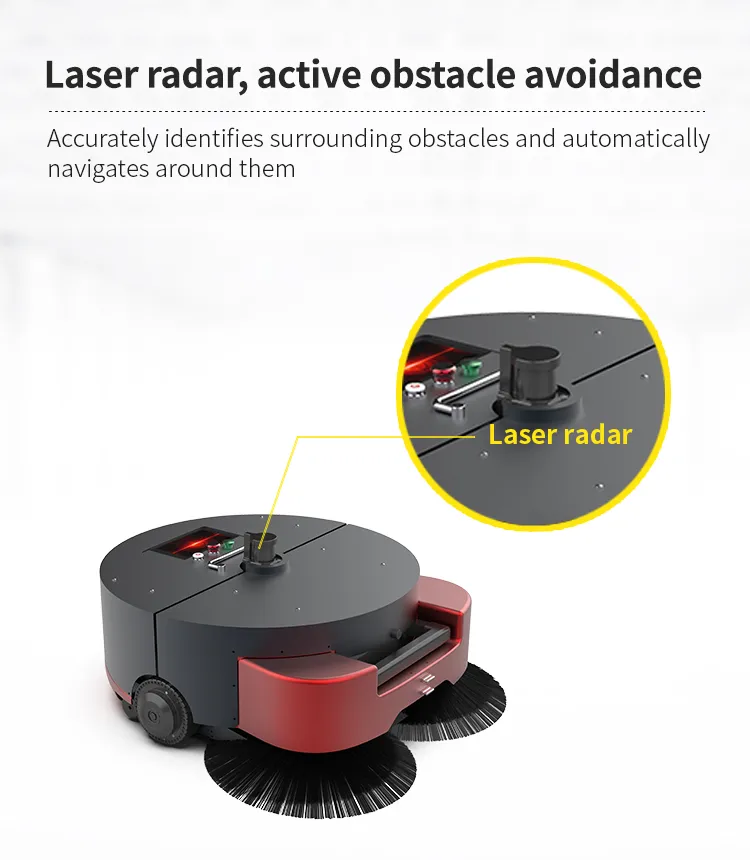

What is the navigation technology used in MBOT201?
The robot uses advanced Laser SLAM navigation with a 905nm wavelength lidar covering a 270° area for precise positioning and mapping.
How long does the battery last on a single charge?
Equipped with a 25AH lithium iron phosphate battery, the robot provides a long operation time of 9-10 hours, with a charging time of 4-5 hours.

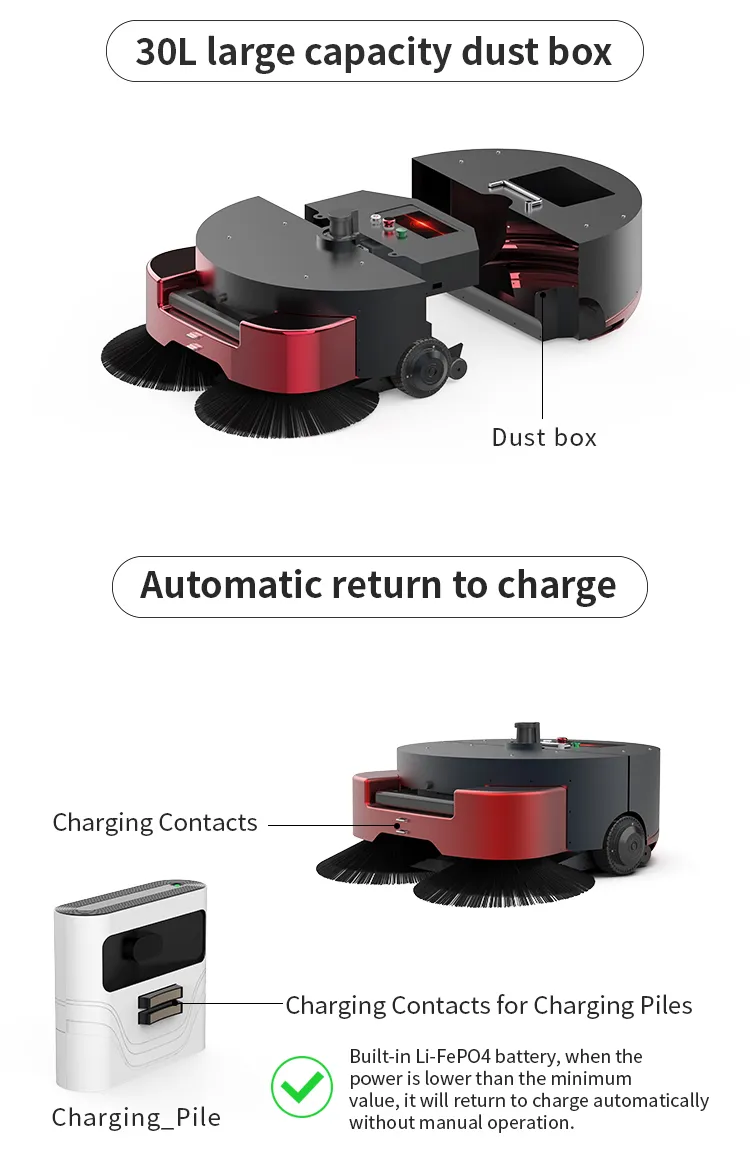

Does the robot support automatic charging?
Yes, the MBOT201 features automatic recharge capabilities, ensuring it returns to the charging pile when power is low.
What is the cleaning capacity of this machine?
The robot has a cleaning width of 890mm and can achieve a maximum cleaning efficiency of 1000m² per hour, making it ideal for warehouse environments.

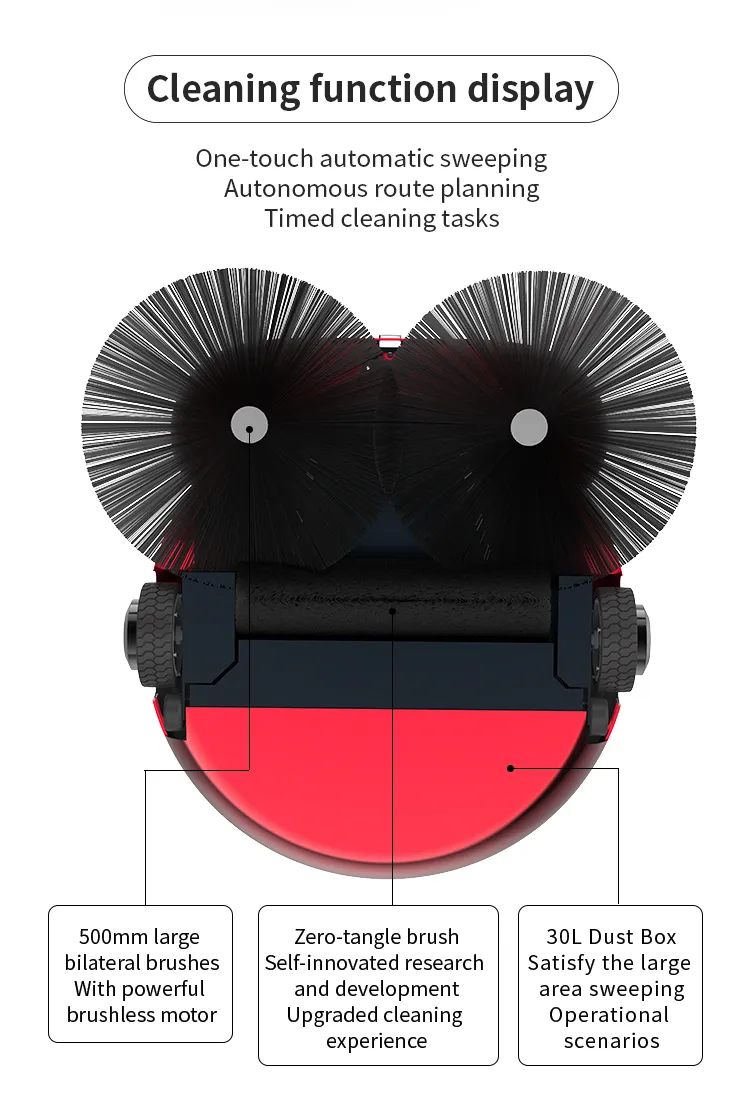

What are the main components of the cleaning system?
It features a 500mm side brush, a 400mm roller brush, and a large 30L dust box to handle significant cleaning tasks.
Is the robot's hardware powerful enough for complex tasks?
Absolutely. It is powered by an Intel I5 10th generation motherboard with 8GB of memory and a 128G SSD, running on a stable Linux-based ROS system.
