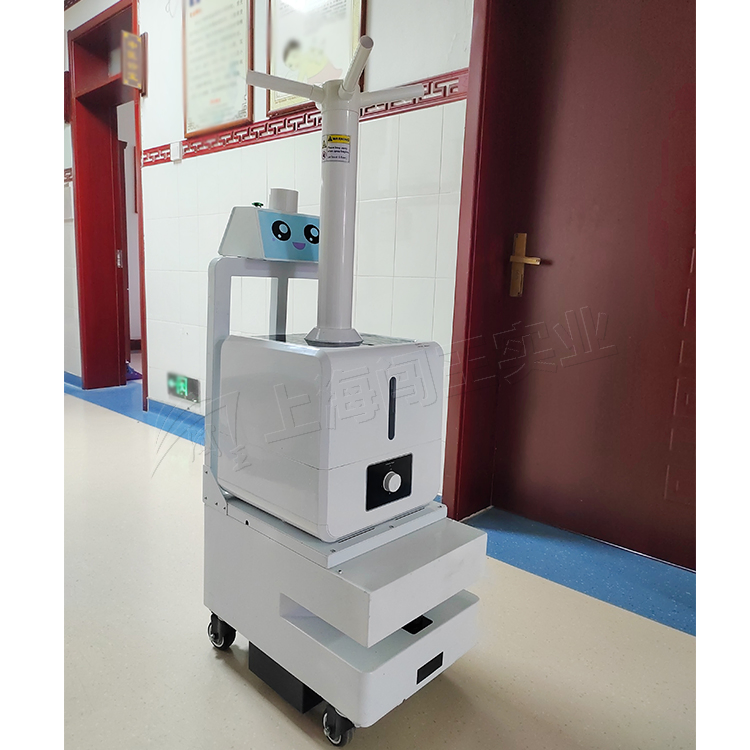

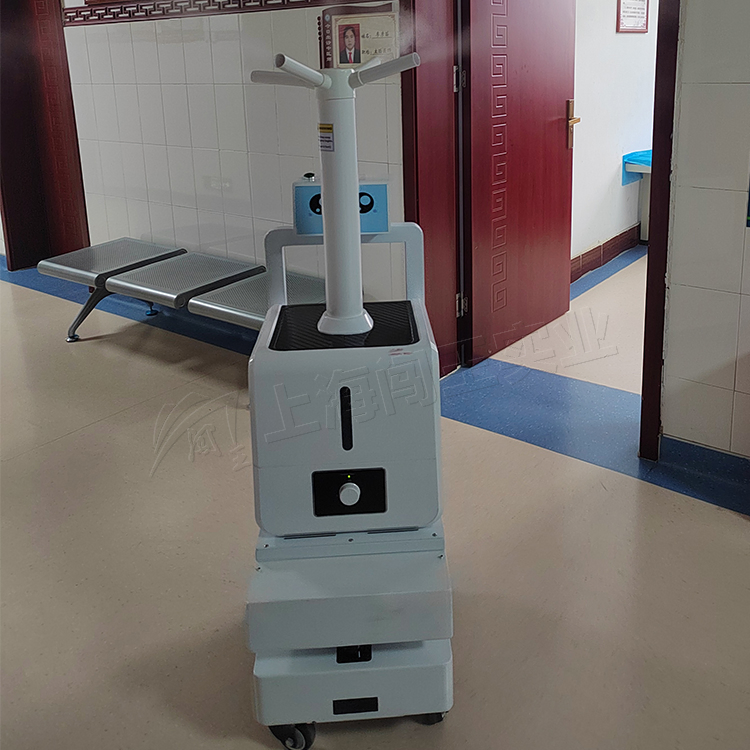

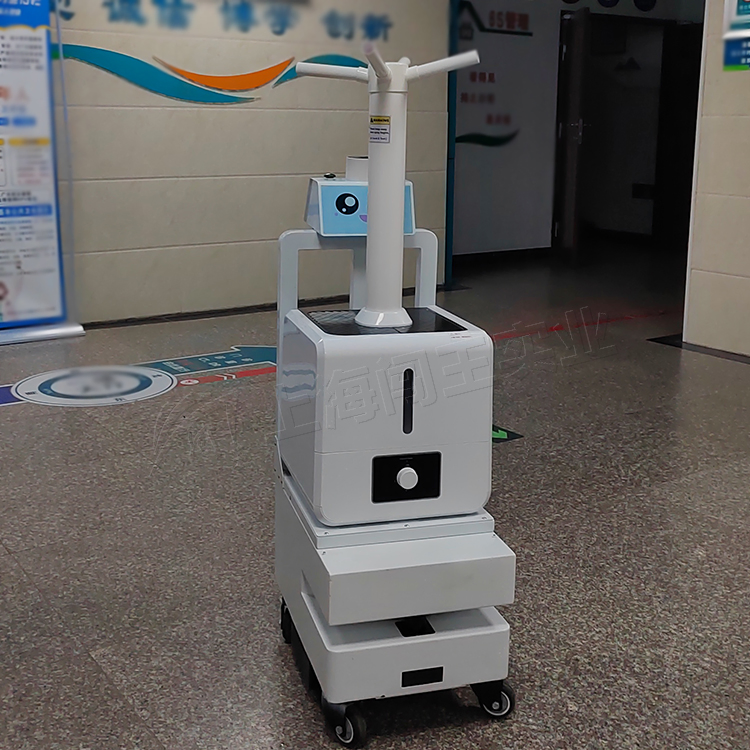

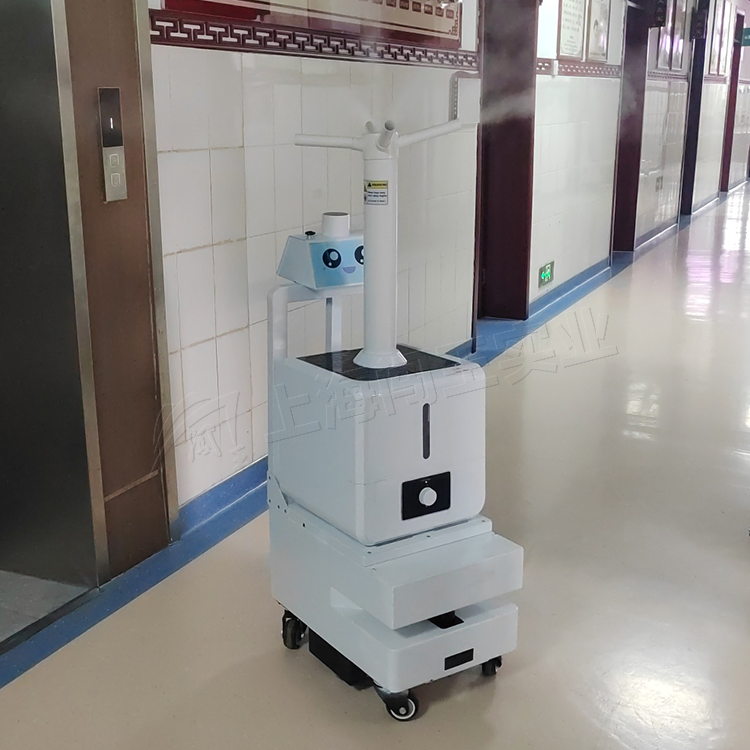

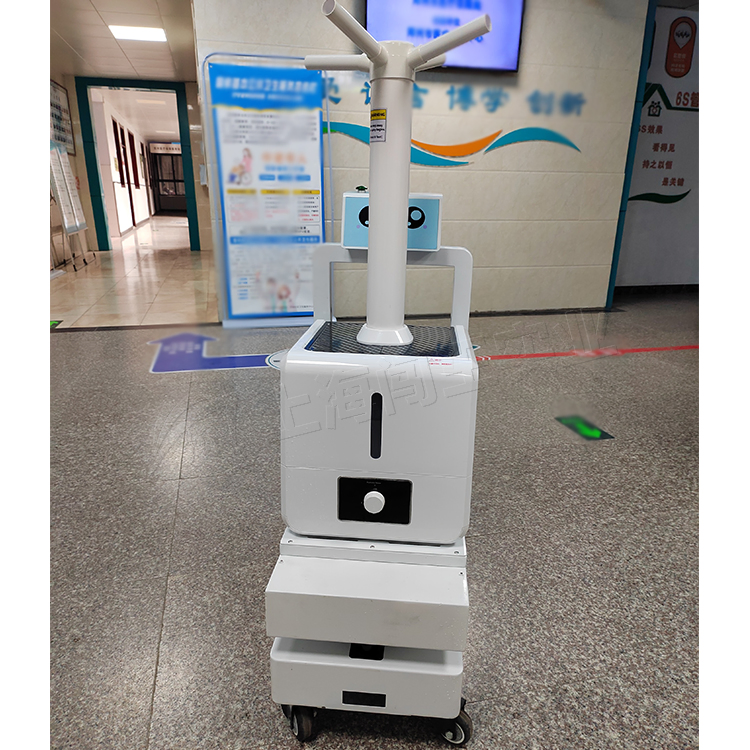

Automatic Air Disinfection Intelligent Atomizer Atomization Disinfection Robot

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.CW-XS
Interaction ModeTouch Screen
Navigation SystemLidar
Operating SystemAndroid
Service ScenariosHome Cleaning, Hospital Assistance, Hotel Room Service, Office Receptionist, Supermarket Delivery
TypeFood Delivery Robot
Delivery Time15 Working Days
Transport PackageWooden Box
Specification540mm x 360mm x 1400mm
OriginChina
HS Code8479899990
Production Capacity500,000
Product Description

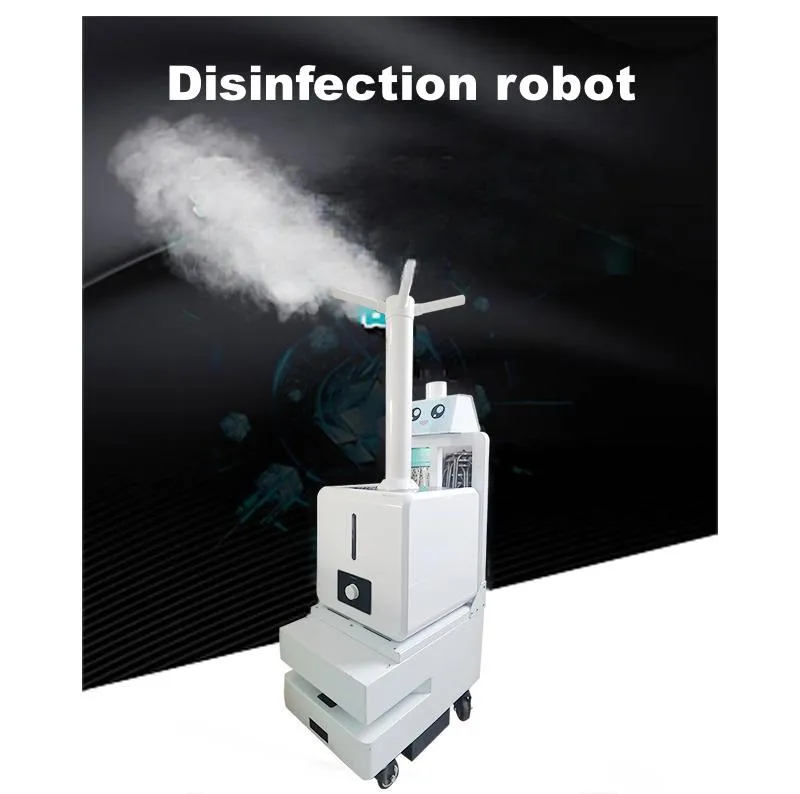

Fogging Disinfection Robot
Overview
The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.
Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

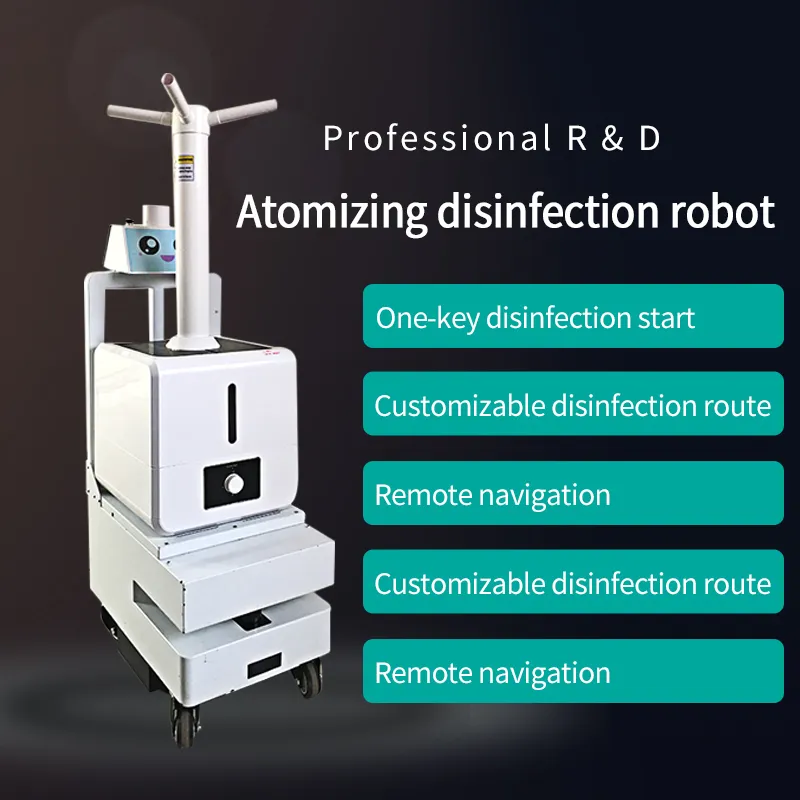

Intelligent Atomizer
Technical Specifications

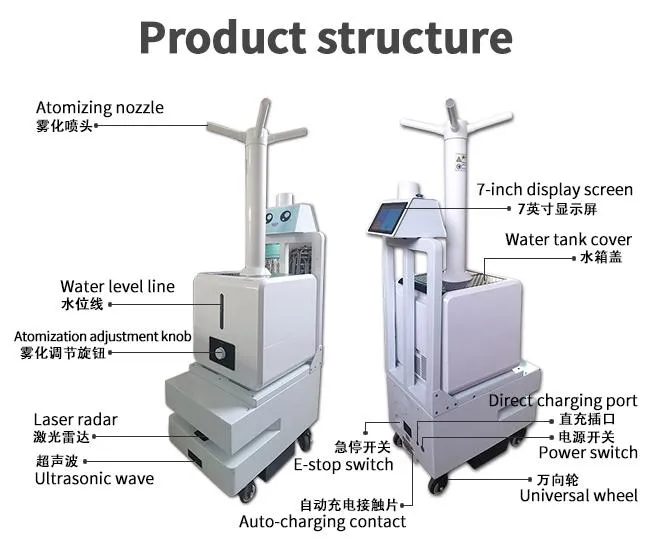

Specifications Diagram
ModelCW-XS Robot
Operating SystemAndroid 5.1
Supported LanguagesChinese, English and others
ProcessorRK3128 (Quad-core Cortex-A7, up to 1.2GHz)
Memory1GB LPDDR3, 8GB NAND Flash
Display7-inch IPS screen (1024x600)
Battery10400mAh/37V (3-4 hours operation)
Atomization Particle Size2-5um
Atomization Output800-3000ML/H
Water Tank Capacity16L
Weight43KG
Dimensions540mm x 360mm x 1400mm
Wireless Technology2.4GHz/5GHz WiFi, Bluetooth 4.1
Core Features

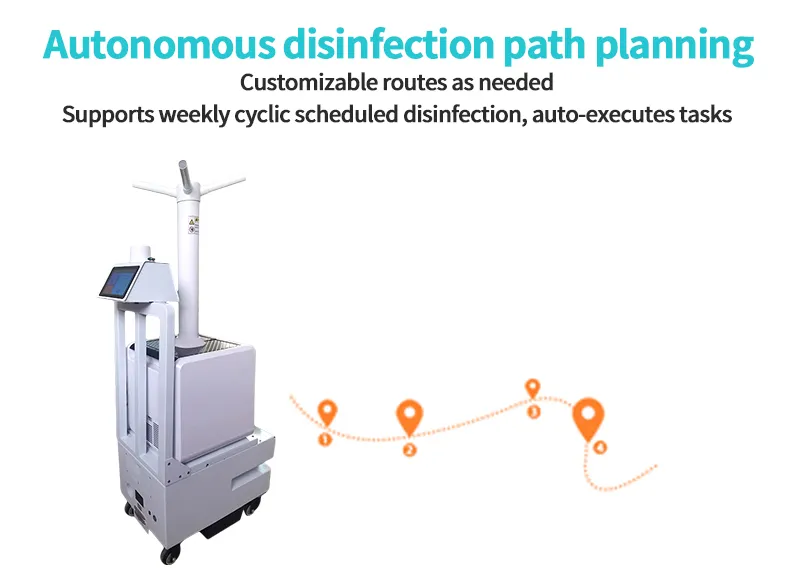

Intelligent Disinfection Mode

Equipped with smart algorithms for optimal disinfection routines.

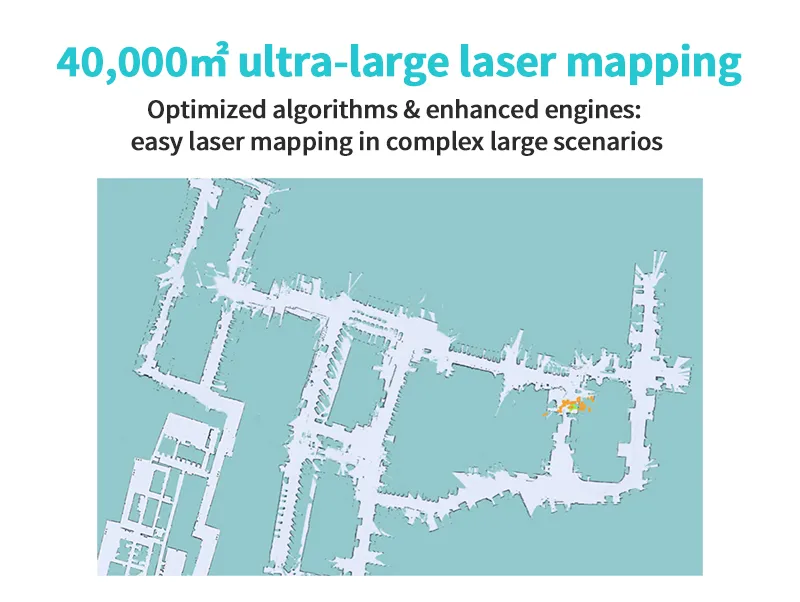

🛰 Laser Mapping

Utilizes 40,000 square meters of laser mapping for precise navigation.

🧪 Multi-Disinfectant Compatibility

Works with hypochlorous acid, sodium hypochlorite, hydrogen peroxide, etc.

💨 High Output Fogging

Produces up to 3000mL/h of fog for comprehensive air and surface treatment.

🔋 Automatic Charging

Returns to station autonomously when battery is low for 24/7 readiness.

🛡 Obstacle Avoidance

Advanced Laser SLAM and V-SLAM technology for safe navigation.

Frequently Asked Questions
Q1: What is the maximum coverage area of the robot?
The robot is equipped with advanced LiDAR technology that allows for autonomous mapping and disinfection coverage of up to 40,000 square meters.
Q2: Which disinfectants are compatible with the fogging system?
The system is highly versatile and supports various disinfectants, including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.

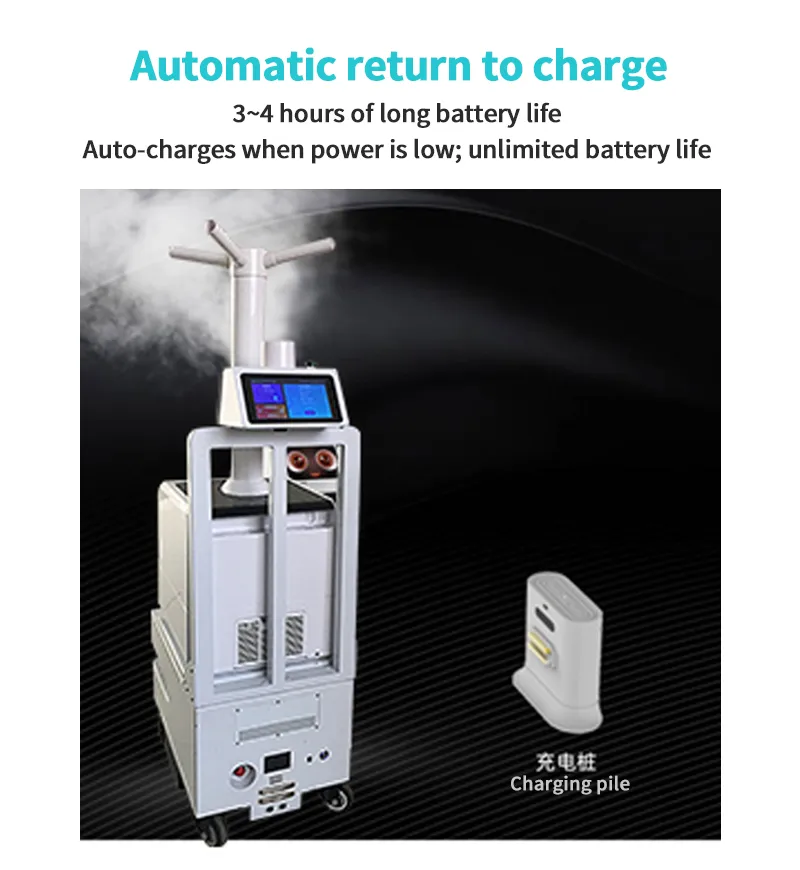

Q3: Does the robot require manual charging?
No, the robot features an automatic return-to-charge function. When the battery level is low or a task is completed, it autonomously navigates back to its charging station.

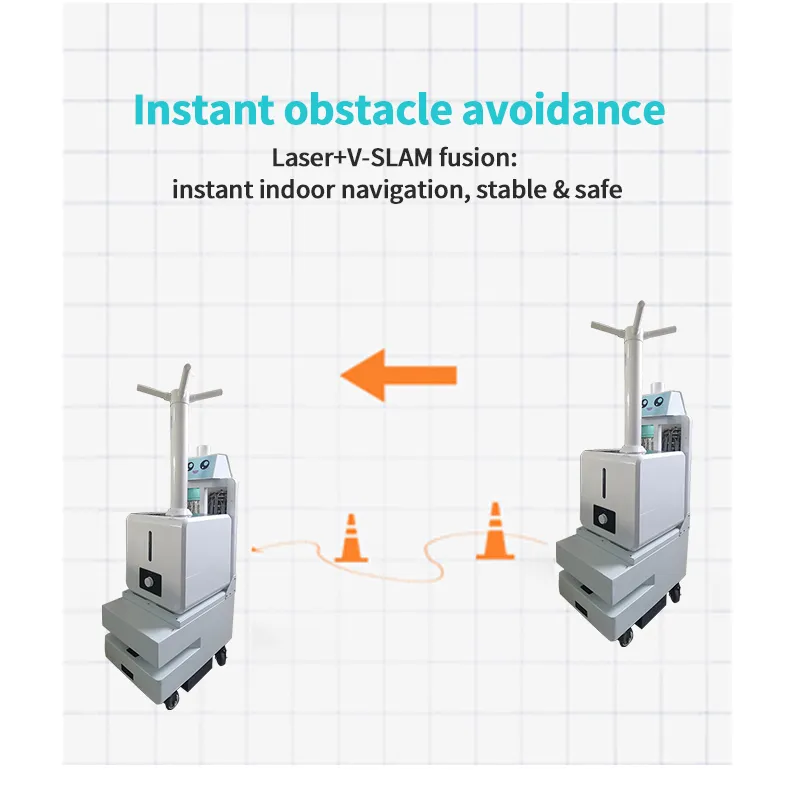

Q4: How does the robot navigate around obstacles?
It utilizes a combination of Laser SLAM and V-SLAM technology for intelligent obstacle avoidance, ensuring safe and efficient movement in complex or crowded environments.

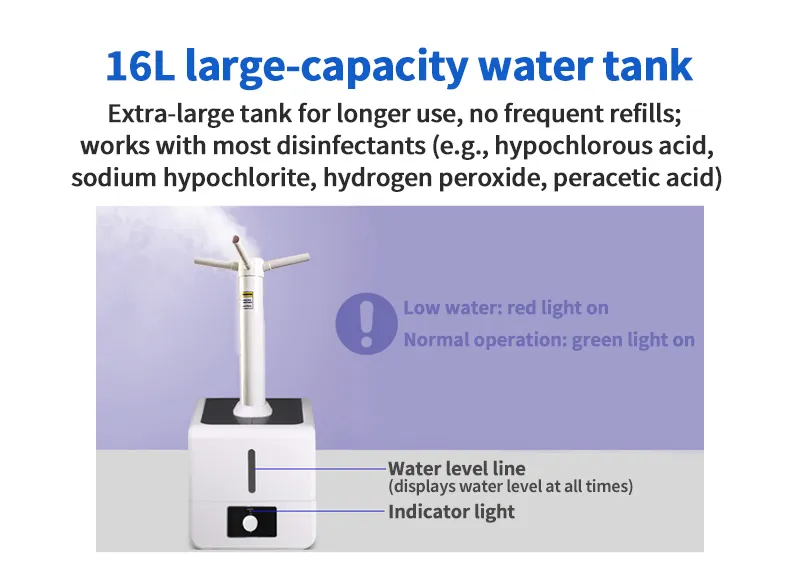

Q5: What is the capacity of the water tank?
The robot is built with a 16L large-capacity water tank, allowing for extended disinfection periods without the need for frequent refilling.

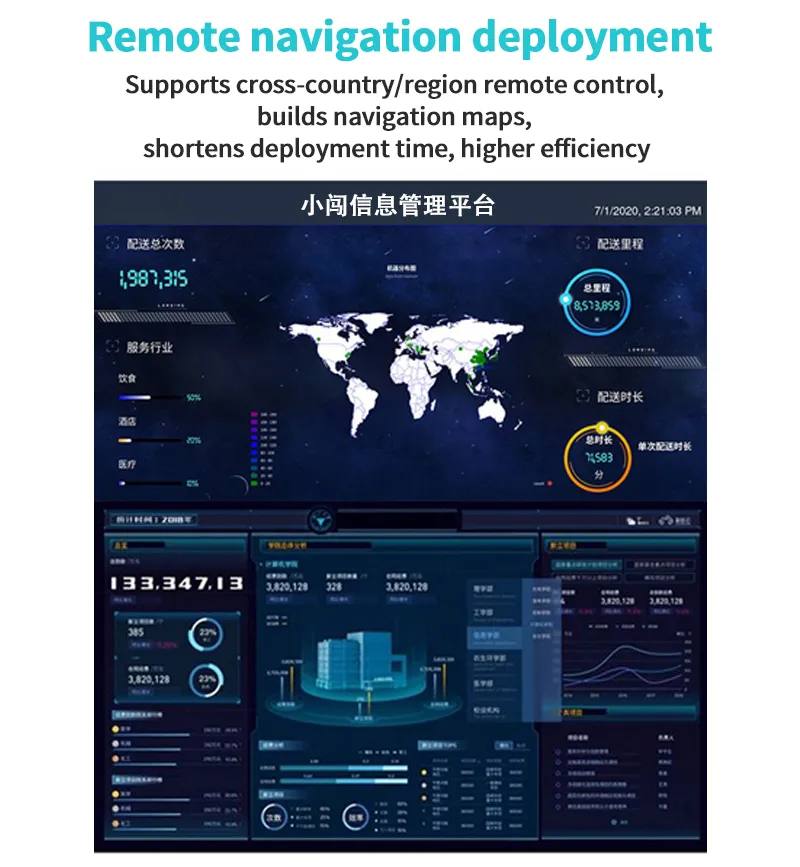

Q6: Can I monitor and control the robot remotely?
Yes, the system supports remote monitoring and navigation deployment through a cloud service management platform, providing real-time control over disinfection tasks.
