Medical Grade Sterilizer Robot with Intelligent Disinfection Features

Still deciding? Get samples of $ !
Request Sample

Product Description

🔹 Basic Specifications
Model
CW-XS
Interaction Mode
Touch Screen
Navigation
Lidar
OS
Android
Capacity
16L Water Tank
Dimensions
540mm x 360mm x 1400mm
🚀 Product Overview
The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, and other high-traffic public spaces. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

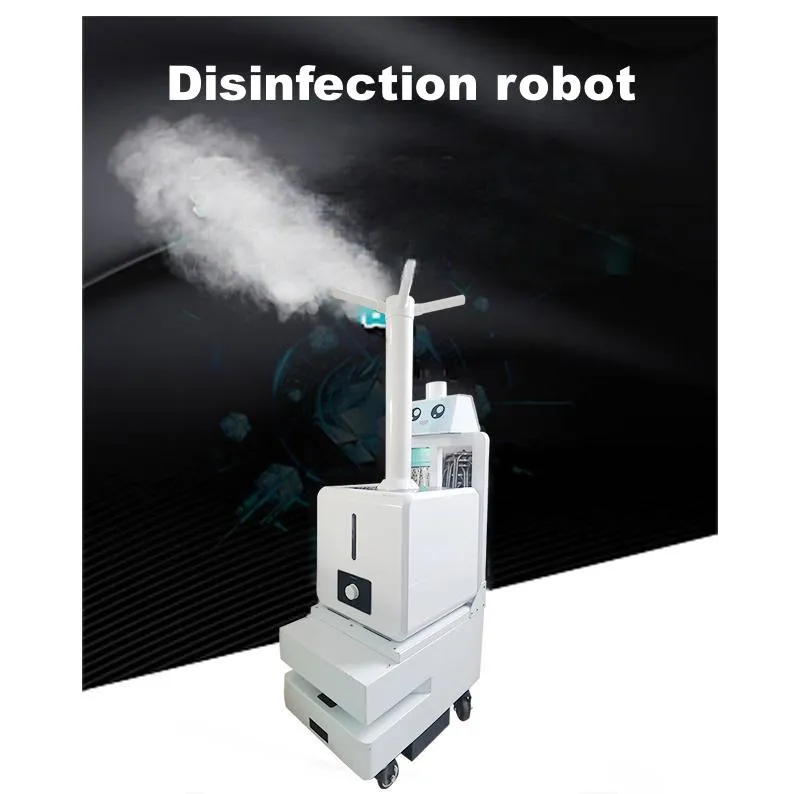

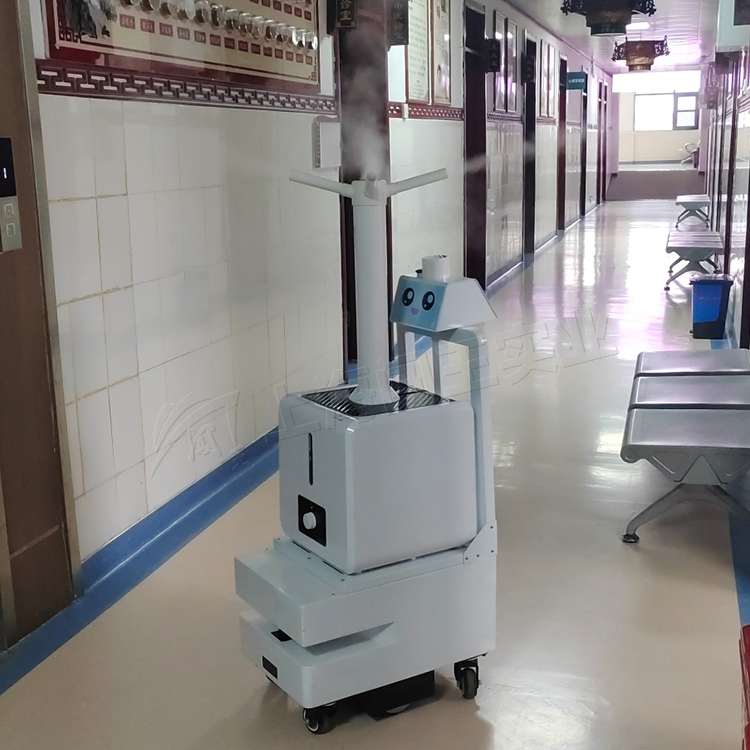

Fogging Disinfection Robot Front View

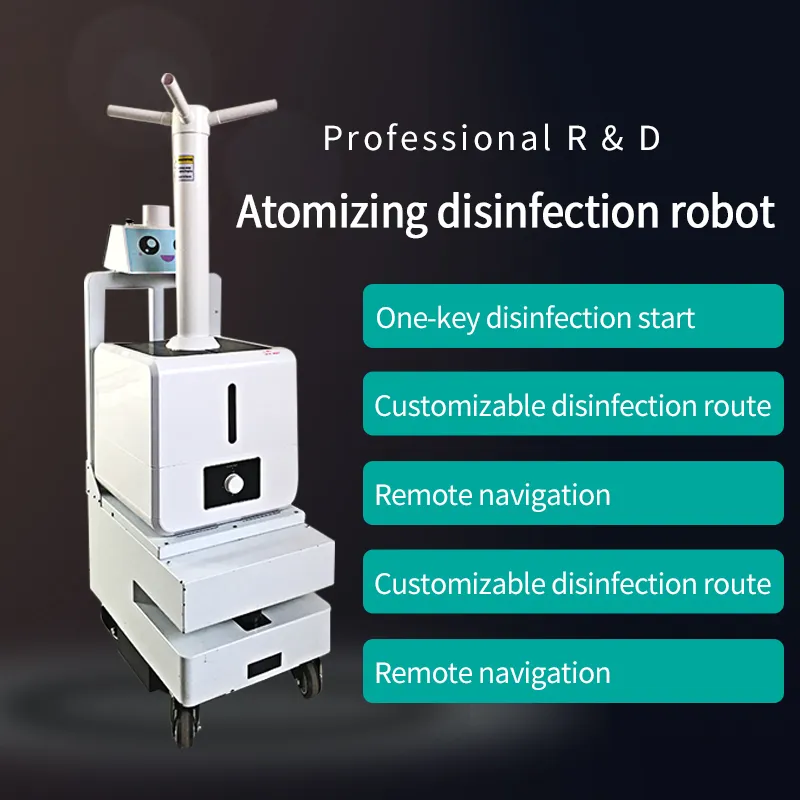

Intelligent Disinfection Features
📊 Technical Data
Parameter Details
ModelCW-XS Robot
Operating SystemAndroid 5.1
ProcessorRK3128 Quad-core Cortex-A7
Memory1GB LPDDR3, 8GB NAND Flash
Display7-inch IPS screen (1024x600)
Battery10400mAh/37V (3-4 hours operation)
Atomization Size2-5um
Atomization Output800-3000ML/H
Weight43KG
Wireless2.4GHz/5GHz WiFi, Bluetooth 4.1

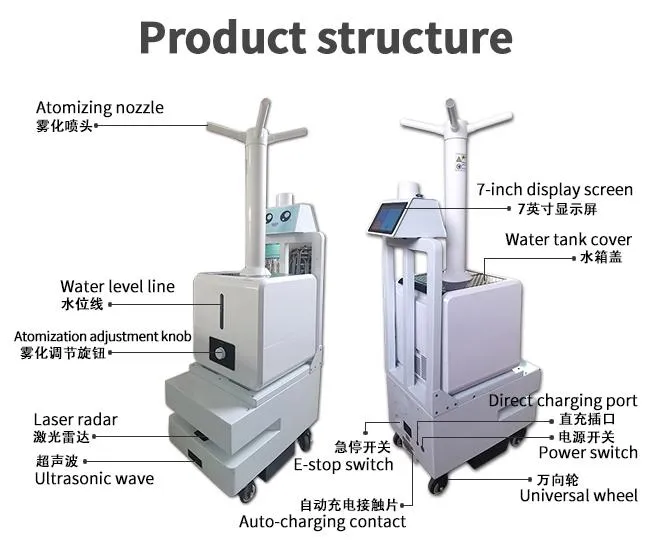

Technical Layout

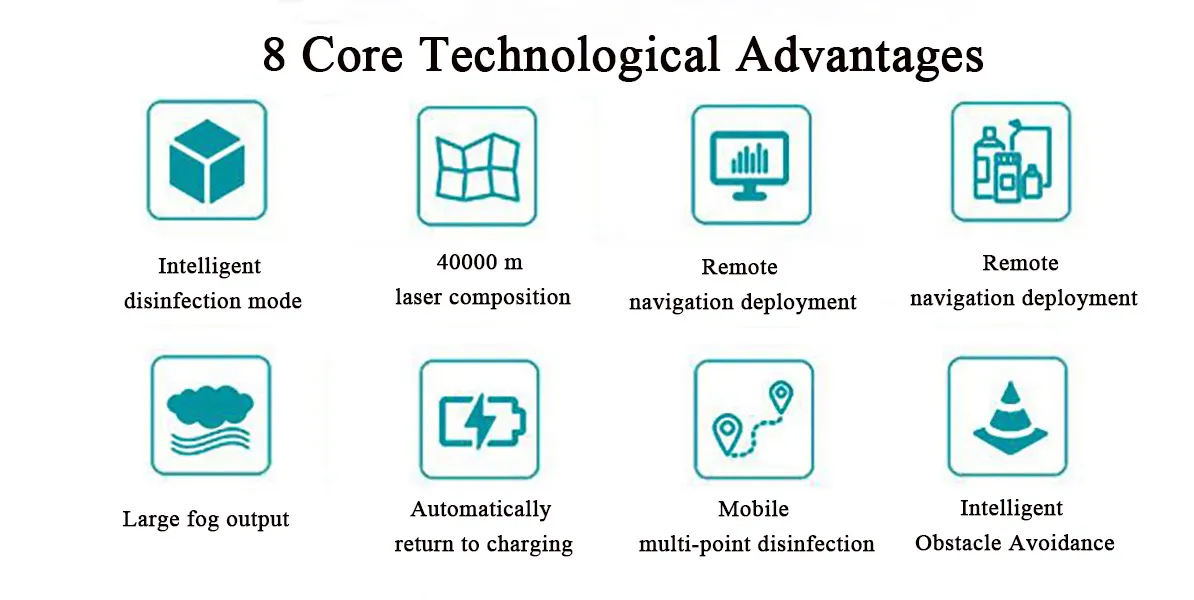

💡 Core Features
✨ Intelligent Disinfection Smart algorithms for optimal routines and high output fogging up to 3000mL/h.
📍 Laser Mapping Utilizes LiDAR for 40,000 sqm of precise navigation and obstacle avoidance.
🧪 Chemical Compatibility Supports hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and more.
🔋 Automatic Recharging Returns to the charging station autonomously when power is low.

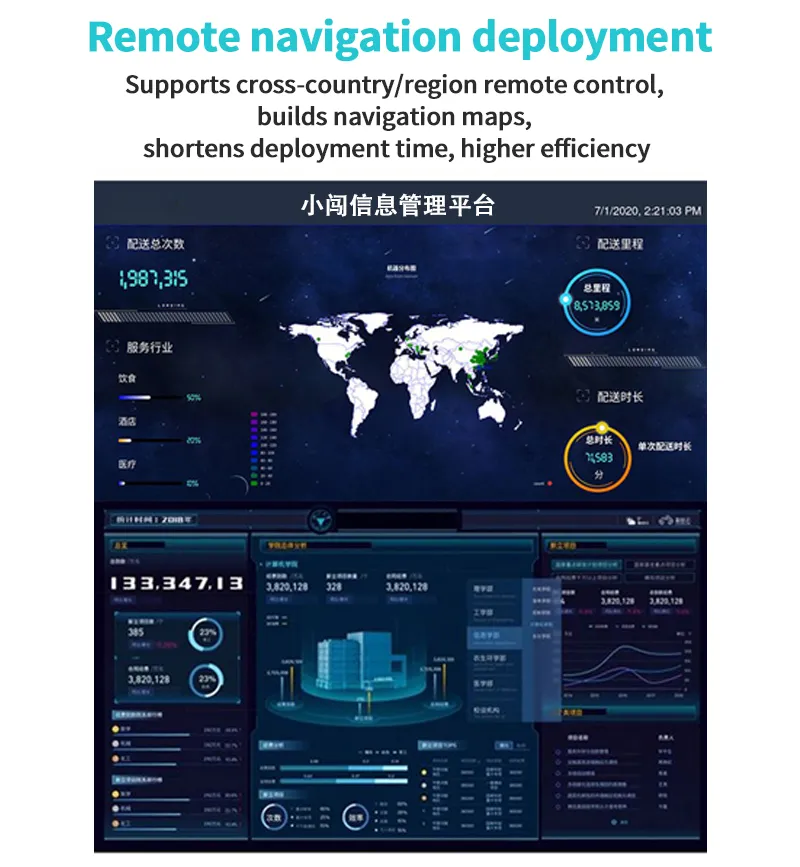

📱 Remote Management Cloud platform support for remote deployment and path customization.
🛡️ Safety First SLAM technology ensures safe navigation in complex, high-traffic environments.
🖼️ Product Gallery

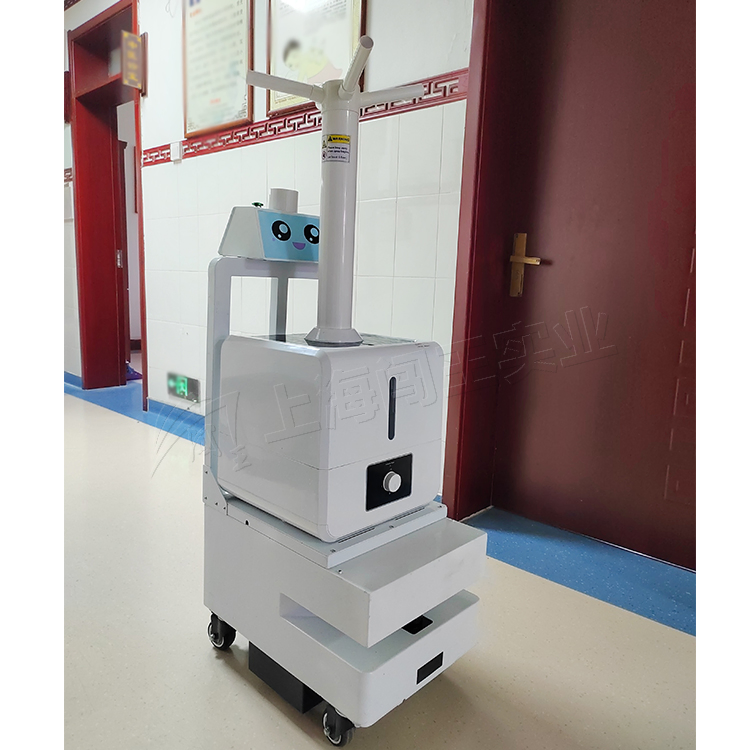

Robot Detail 1

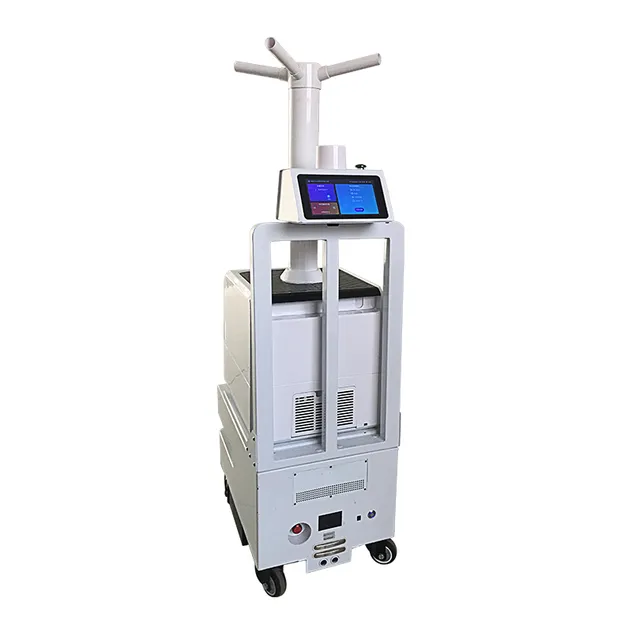

Robot Detail 2
Robot Detail 3

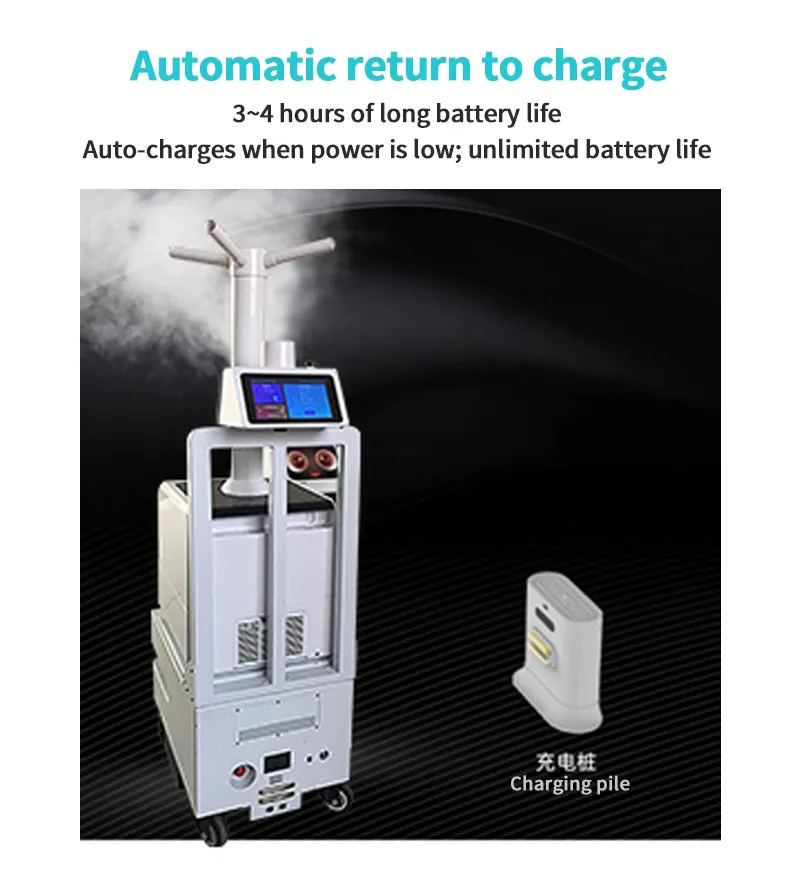

Application 1
Application 2
Wide View
🎬 Operation Video
❓ Frequently Asked Questions
How large an area can this robot cover?
The robot uses advanced LiDAR technology to map and navigate areas up to 40,000 square meters.
What types of disinfectants are compatible?
It is compatible with various disinfectants, including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
How long does the battery last on a single charge?
The 10400mAh battery provides approximately 3 to 4 hours of continuous operation.
What happens when the battery runs low?
The robot is equipped with an automatic return feature, allowing it to navigate back to its charging dock autonomously.
Can the robot avoid obstacles in crowded areas?
Yes, it utilizes laser SLAM and V-SLAM technology for intelligent obstacle avoidance, ensuring safe operation in complex environments.
What is the capacity of the disinfectant tank?
The robot features a large 16L water tank, reducing the frequency of refills during extensive disinfection tasks.
