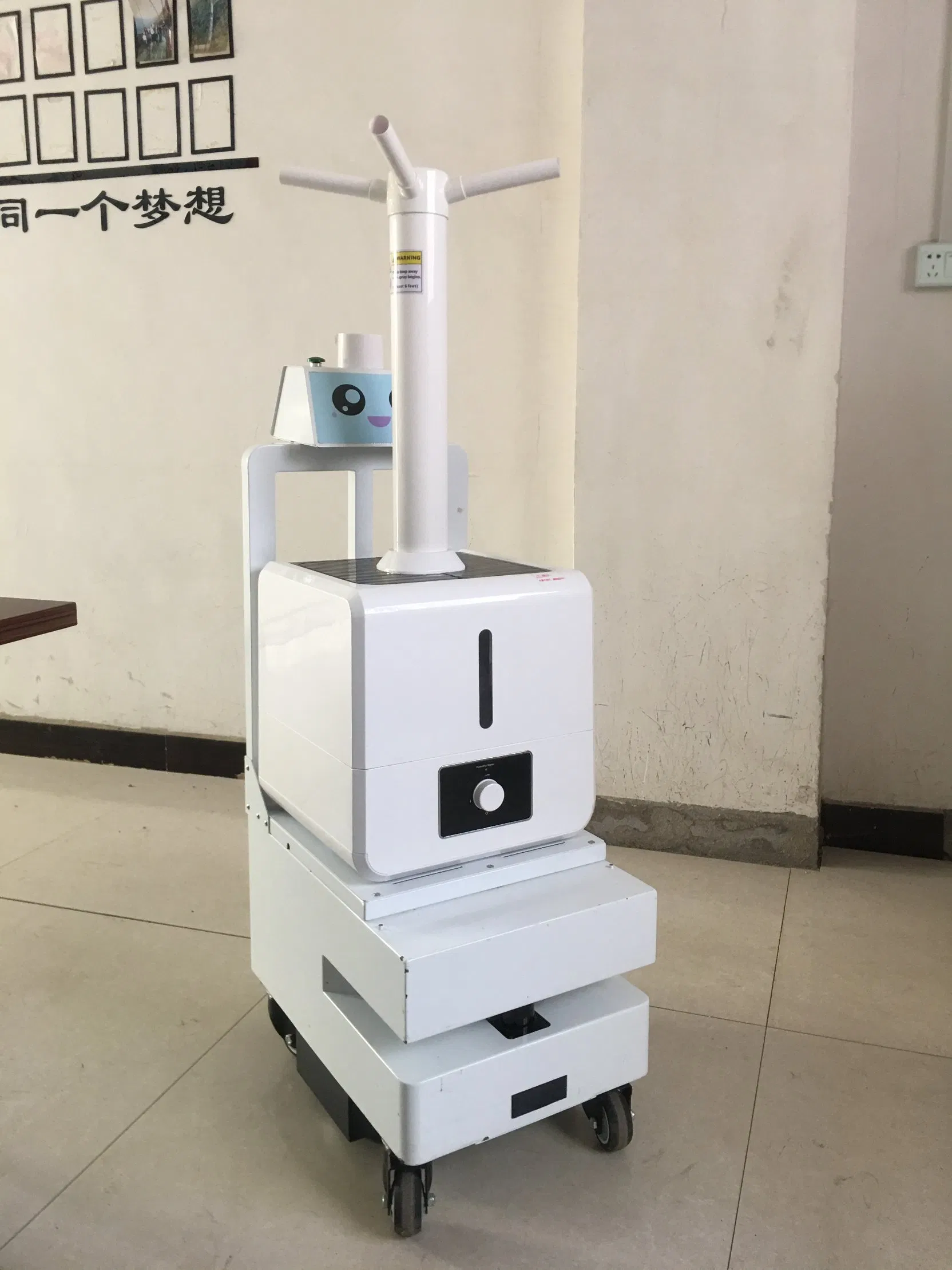

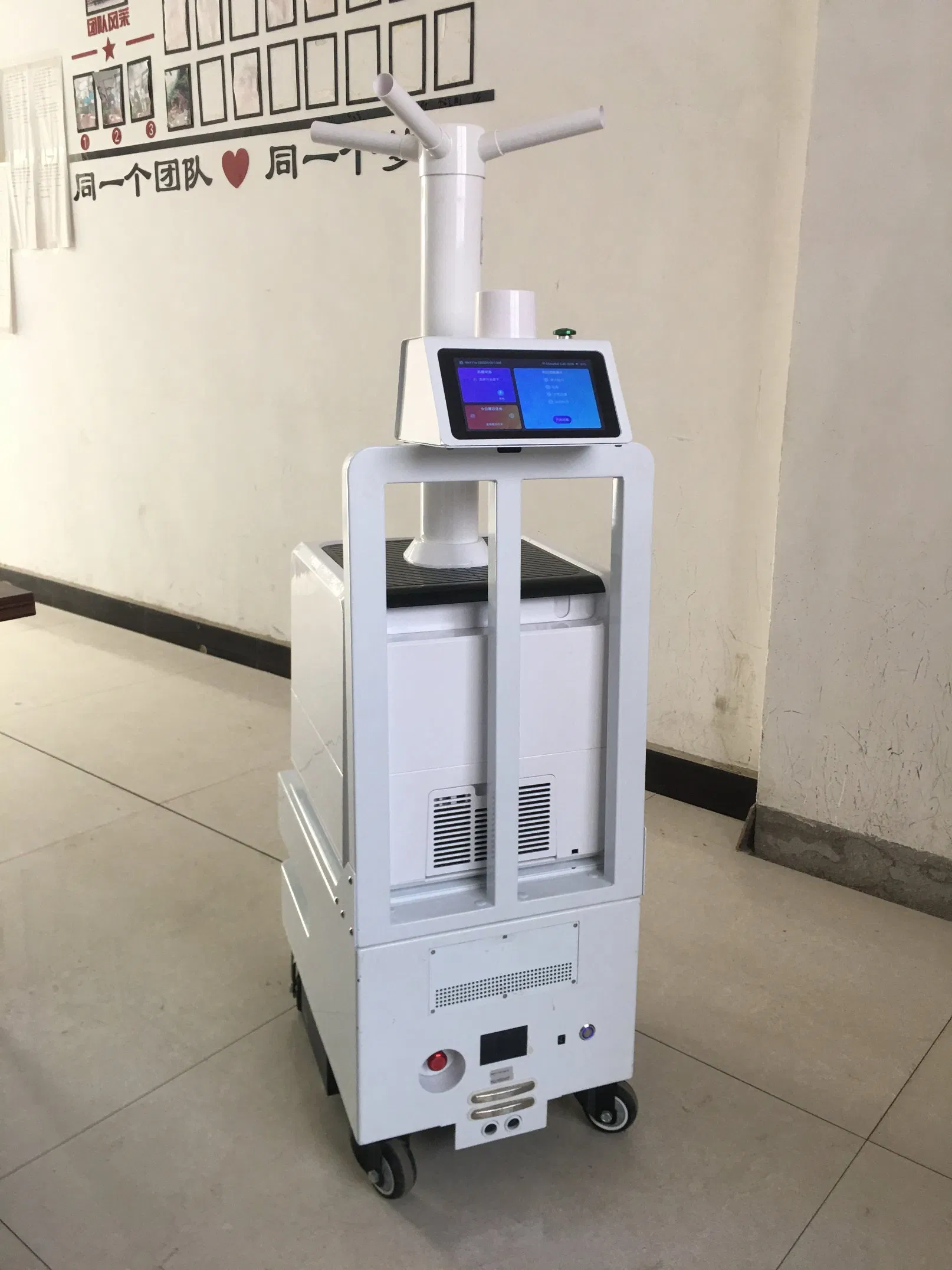

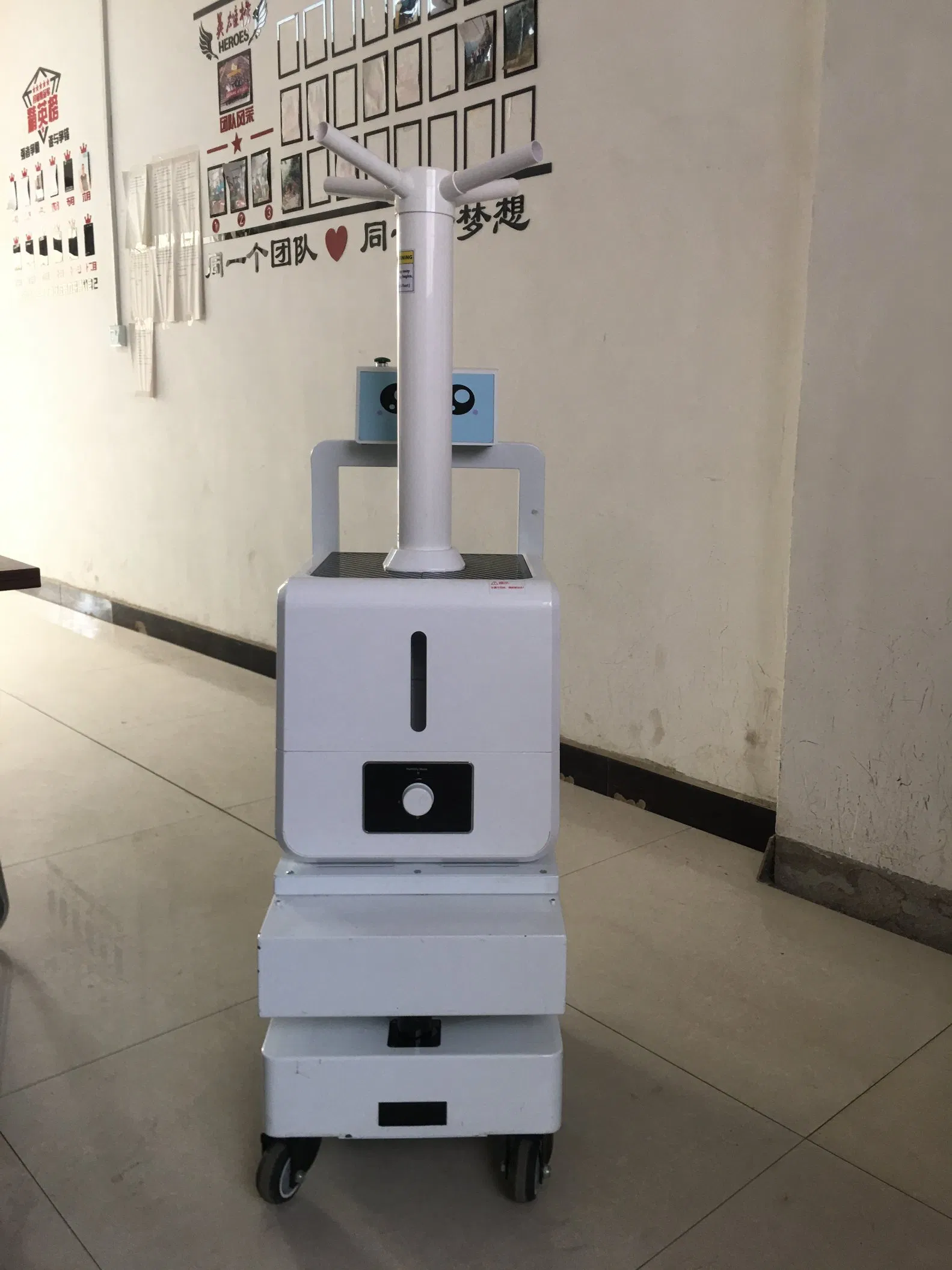

UV Robot Vs Manual Disinfection Efficiency Multi-Functional Robots for School Hospital Airport Station

Still deciding? Get samples of $ !
Request Sample

Product Description

⚙️ Basic Information
Model NO.
CW-XS
Interaction Mode
Touch Screen
Navigation System
Lidar
Operating System
Android
Type
Food Delivery & Disinfection Robot
Water tank capacity
16L
Origin
China
HS Code
8479899990
🤖 Product Description

The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

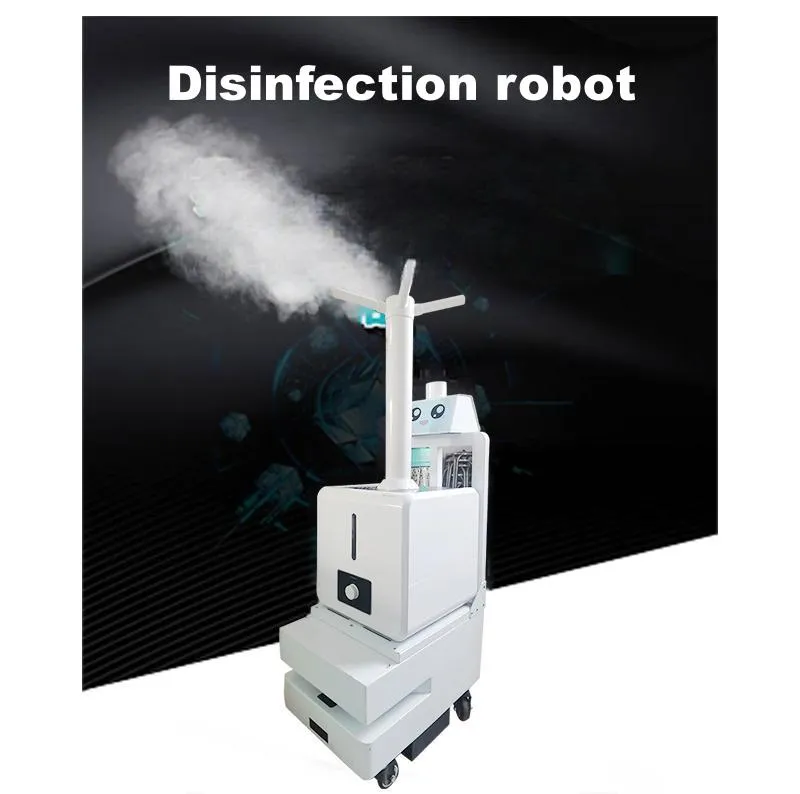

Fogging Disinfection Robot

Key advantages include intelligent obstacle avoidance for safe operation in complex environments, versatile disinfectant compatibility to accommodate various sanitization protocols, and high-volume mist output for rapid, thorough coverage. Upon task completion or when battery levels are low, the unit automatically returns to its charging station, ensuring continuous operational readiness.

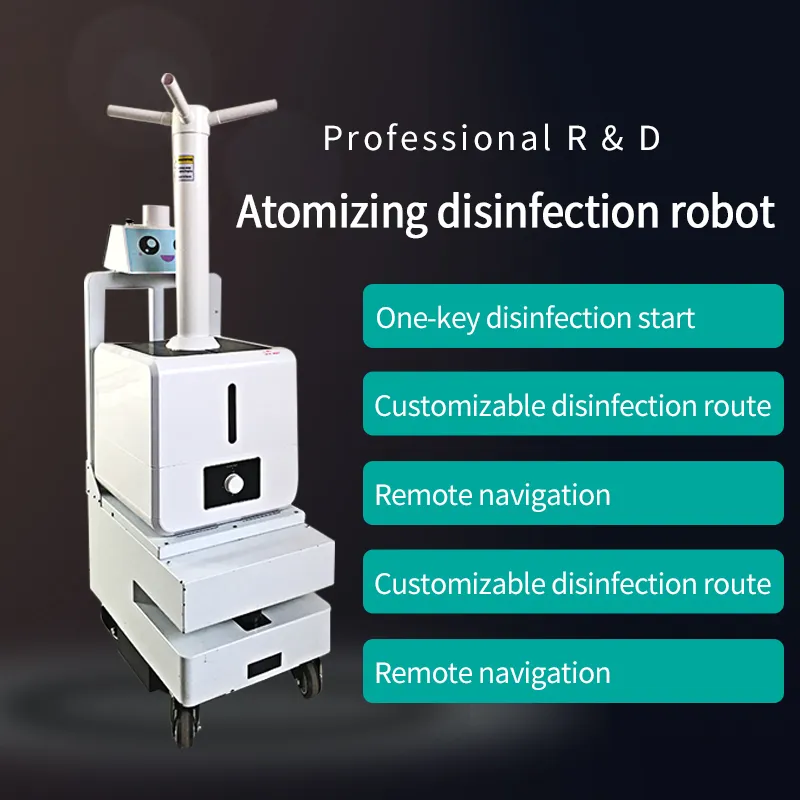

Efficiency Comparison
📊 Technical Specifications

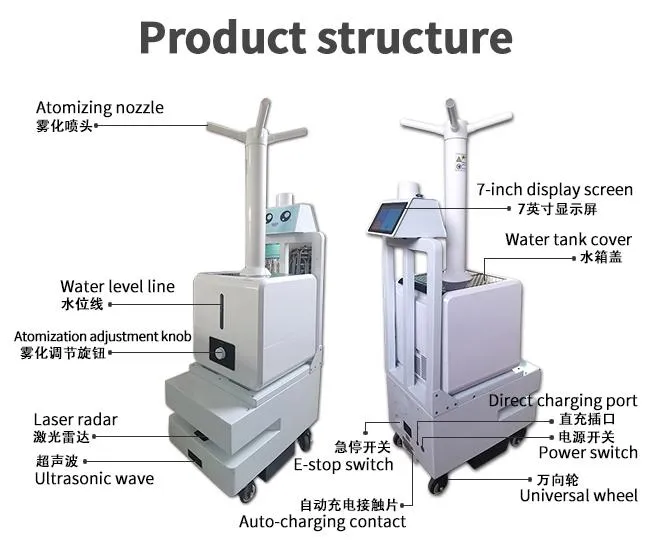

Specifications Diagram
ModelCW-XS Robot
Operating SystemAndroid 5.1
Supported LanguagesChinese, English and others
ProcessorRK3128 (Quad-core Cortex-A7)
Memory1GB LPDDR3, 8GB NAND Flash
Display7-inch IPS screen (1024x600)
Battery10400mAh/37V (3-4 hours operation)
Atomization Particle Size2-5um
Atomization Output800-3000ML/H
Water Tank Capacity16L
Weight43KG
Dimensions540mm x 360mm x 1400mm
Wireless Technology2.4GHz/5GHz WiFi, Bluetooth 4.1
🌟 Core Features
Intelligent DisinfectionSmart algorithms for optimal routines and path planning.

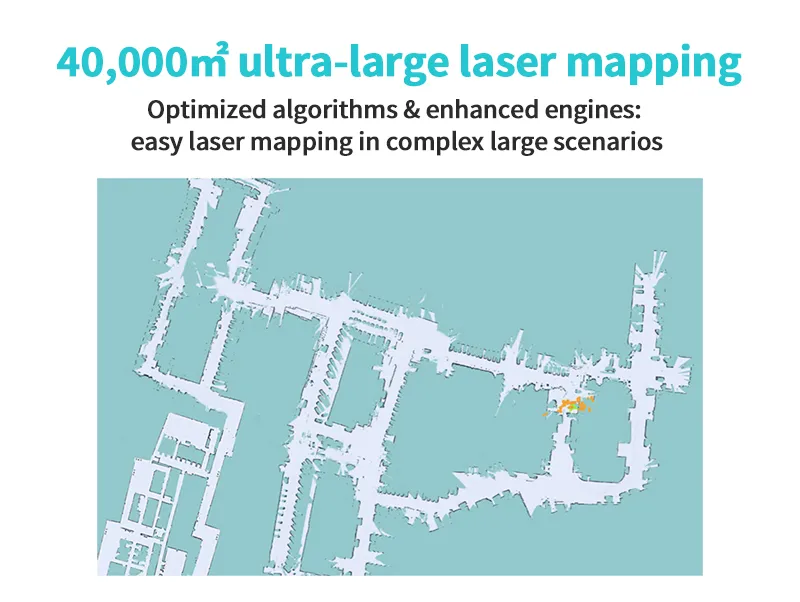

Laser MappingCovers up to 40,000 square meters for precise navigation.
High Output FoggingProduces up to 3000mL/h of fog for total coverage.

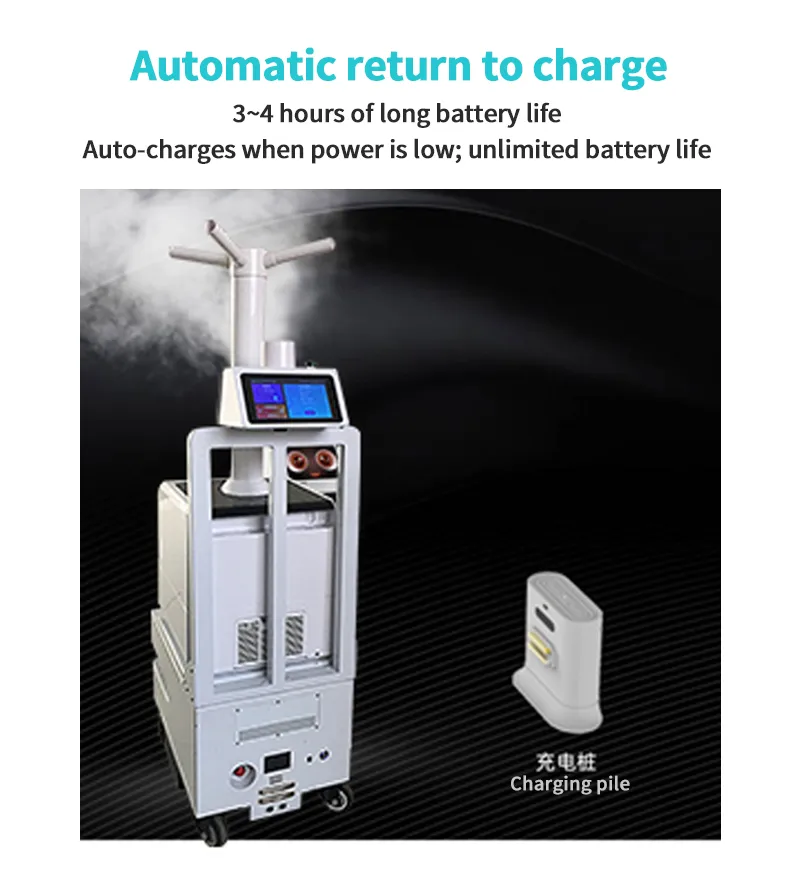

Automatic ChargingSelf-returns to dock when battery is low.

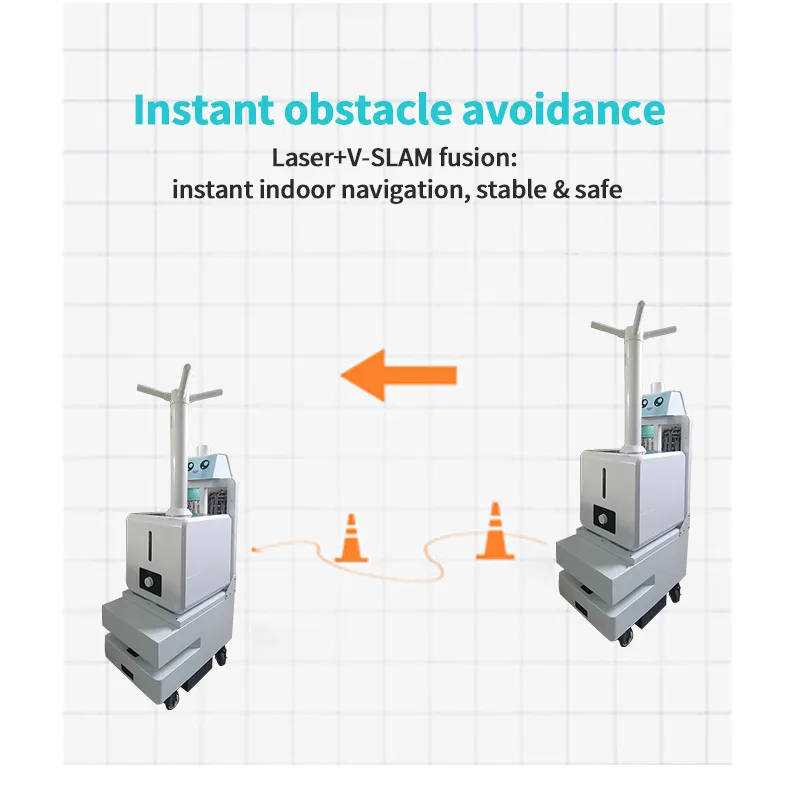

Obstacle AvoidanceUses Laser SLAM and V-SLAM for safe maneuvering.

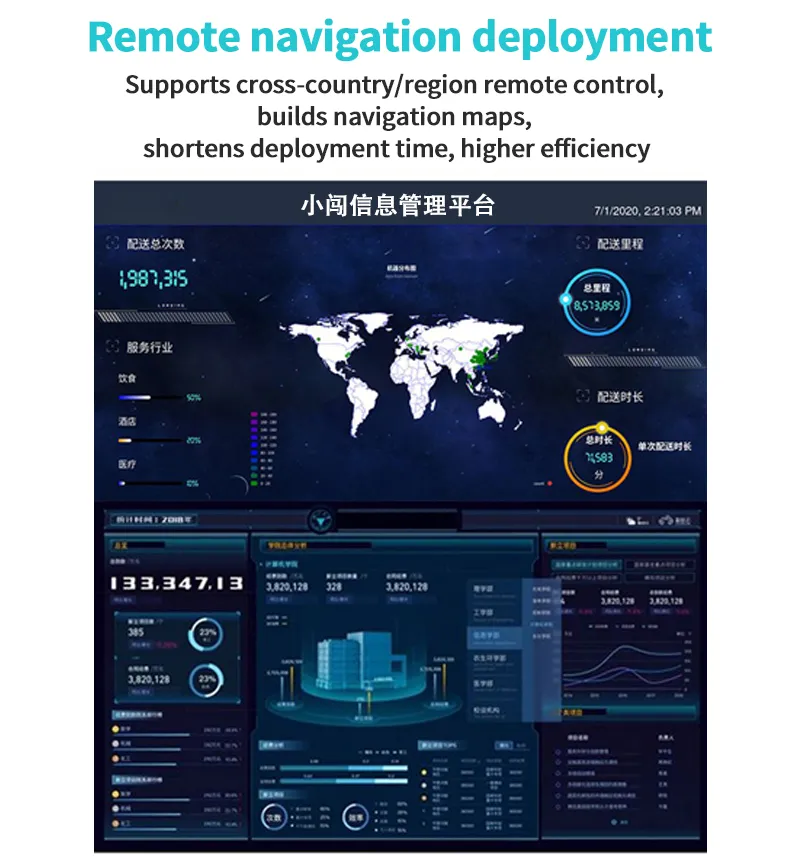

Remote MonitoringCloud-based management for control and updates.

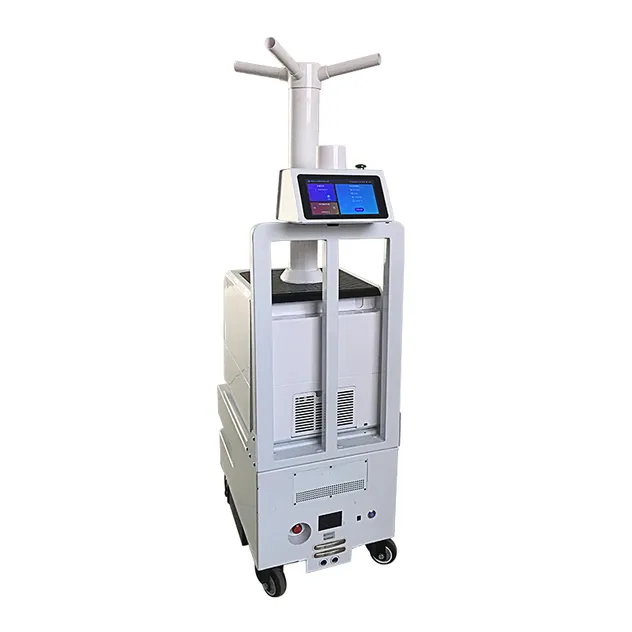

Feature 1 Feature 2 Feature 3
🏢 Application Scenarios

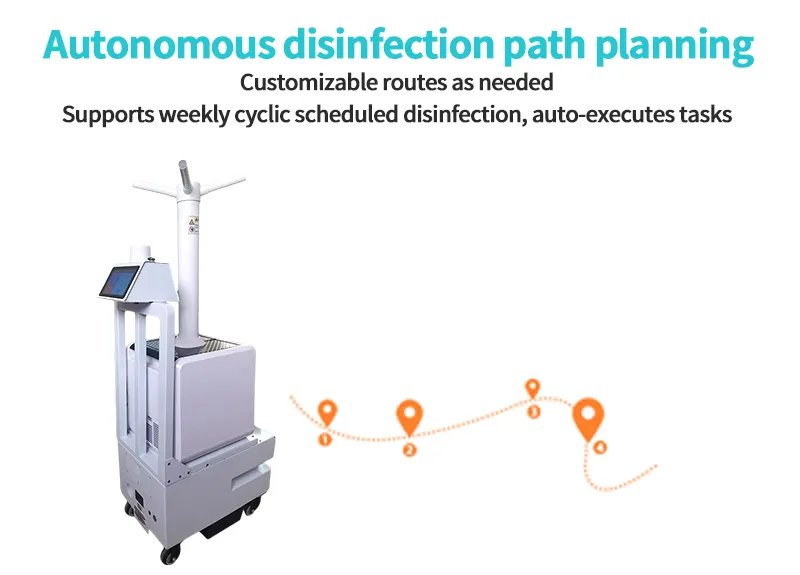

Scene 1 Scene 2
Scene 3 Scene 4
Scene 5 Scene 6
🎥 Operation Video
❓ Frequently Asked Questions
What is the maximum coverage area of the robot?
The robot utilizes advanced LiDAR mapping that can cover and navigate up to 40,000 square meters.

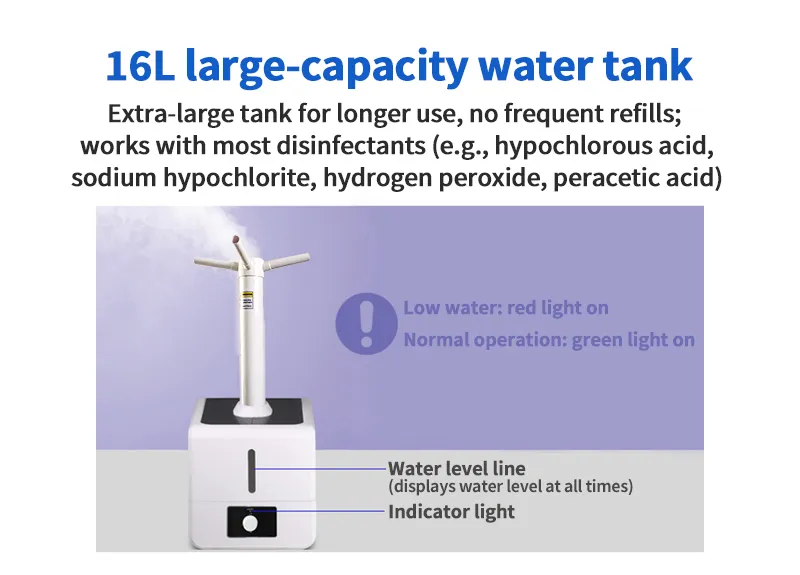

Which disinfectants are compatible with this system?
It is compatible with multiple disinfectants including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
How long does the battery last on a single charge?
The 10400mAh battery provides approximately 3 to 4 hours of continuous operation depending on the mode used.
Does the robot require manual charging?
No, the robot is equipped with an automatic return feature that guides it back to the charging station when battery levels are low.
What is the fogging output capacity?
The system features high-output fogging, producing between 800mL/h and 3000mL/h for thorough air and surface treatment.
How does the robot handle obstacles in public spaces?
It uses Laser SLAM and V-SLAM technology for intelligent obstacle avoidance, ensuring safe navigation even in complex, high-traffic environments.
