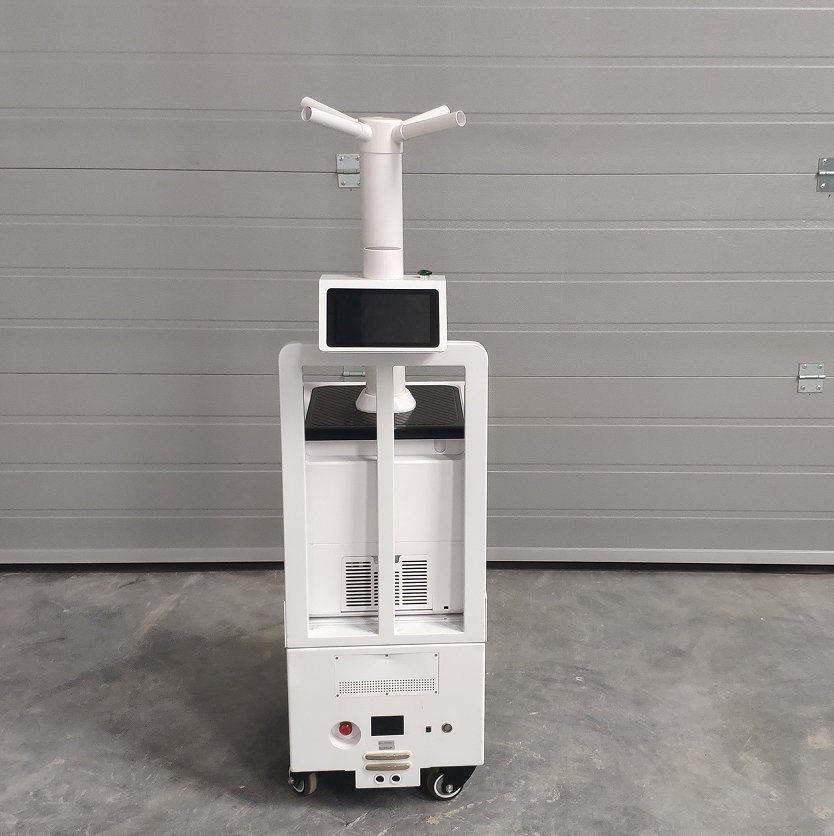

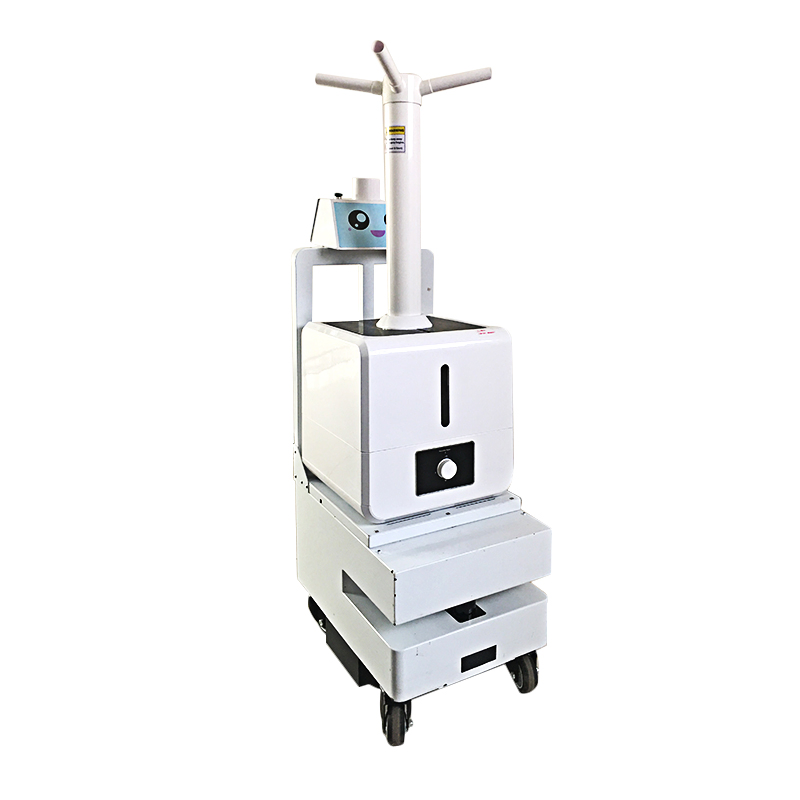

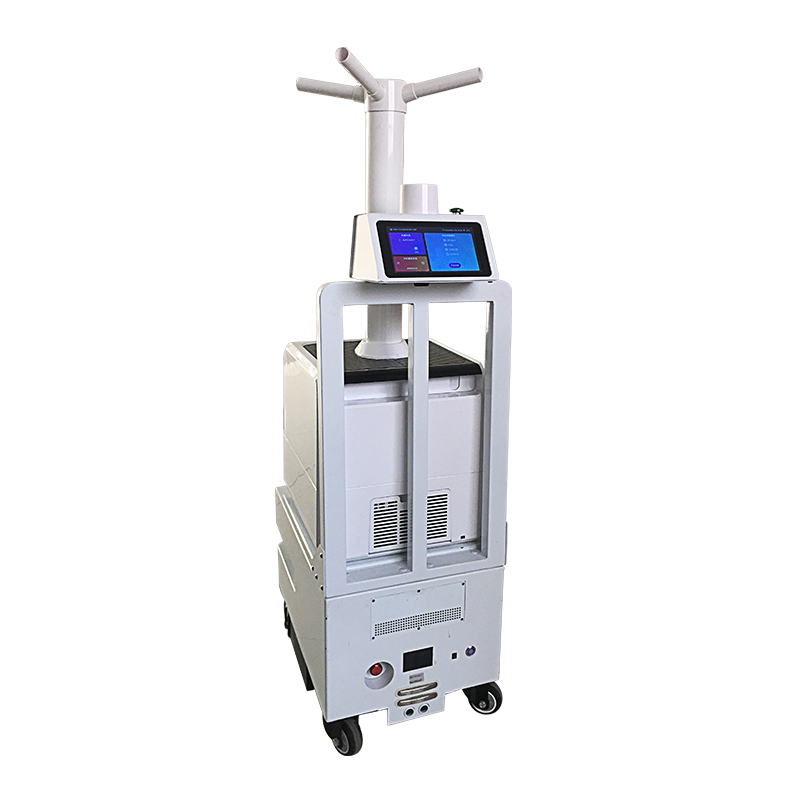

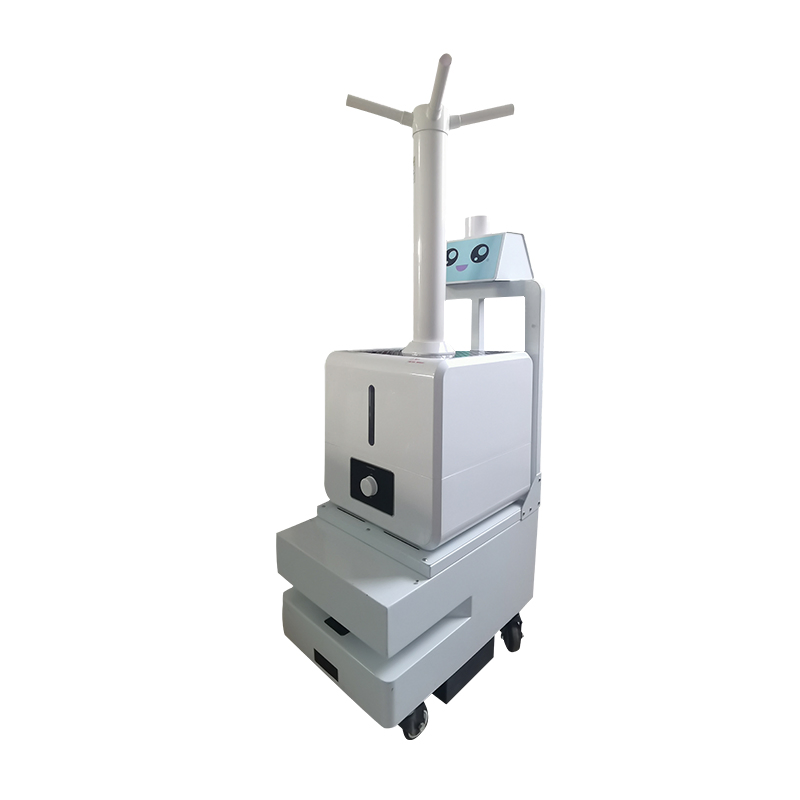

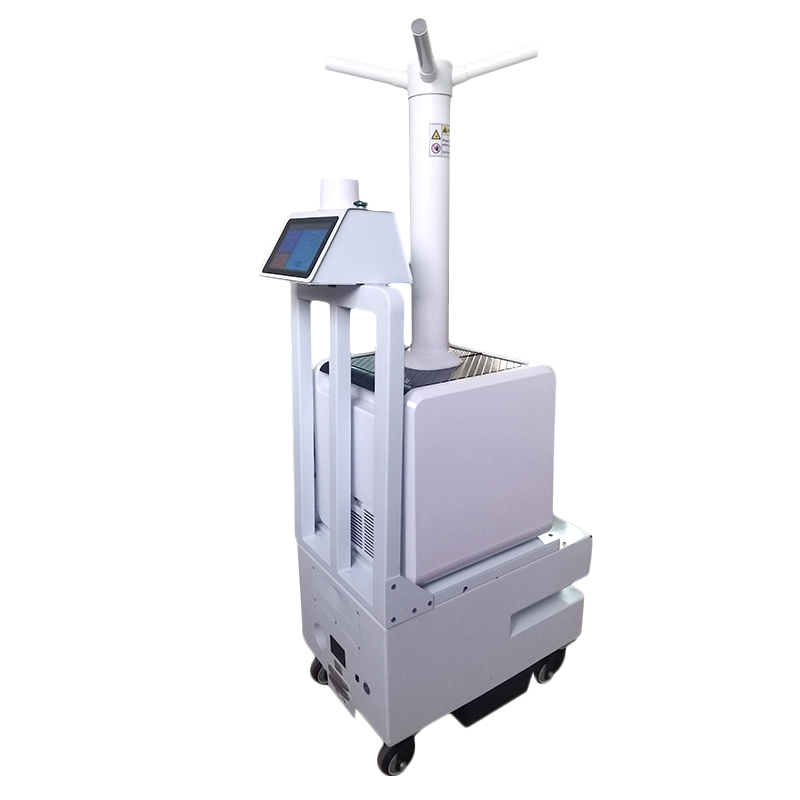

Mobile Dual-Disinfectant Disinfection Robot: Hydrogen Peroxide + Hypochlorous Acid Atomization Sterilization, Intelligent & Flexible, Multi-Scenario Adaptation

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
CW-XS
Interaction Mode
Touch Screen
Navigation System
Lidar
Operating System
Android
Service Scenarios
Home Cleaning, Hotel Room Service, Office Receptionist, Supermarket Delivery
Type
Food Delivery Robot
Delivery Time
15 Working Days
Transport Package
Wooden Box
Specification
540X500X1300
Origin
China

Product Description

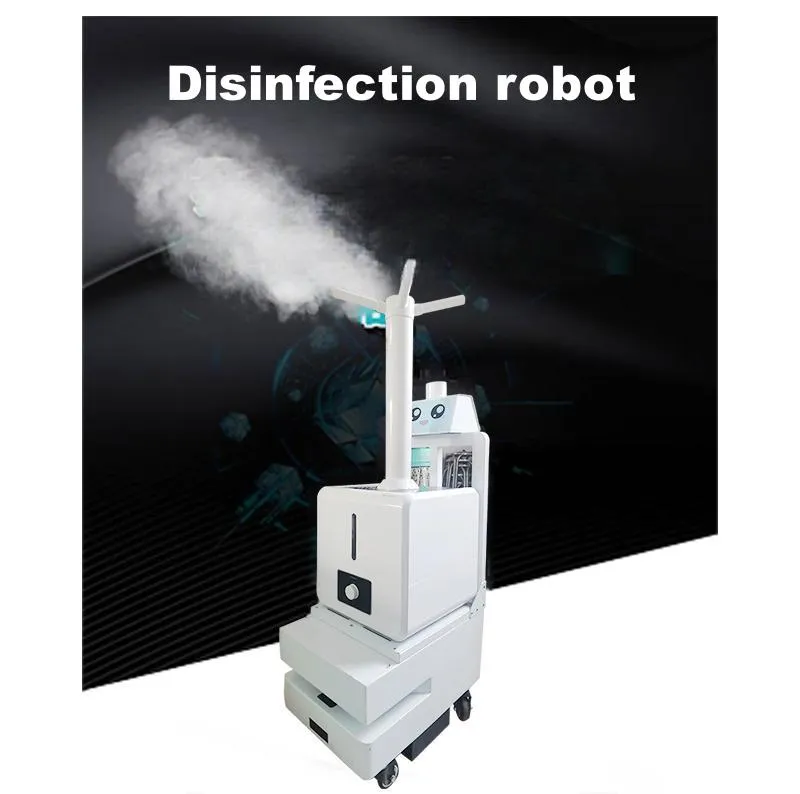

Fogging Disinfection Robot

The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

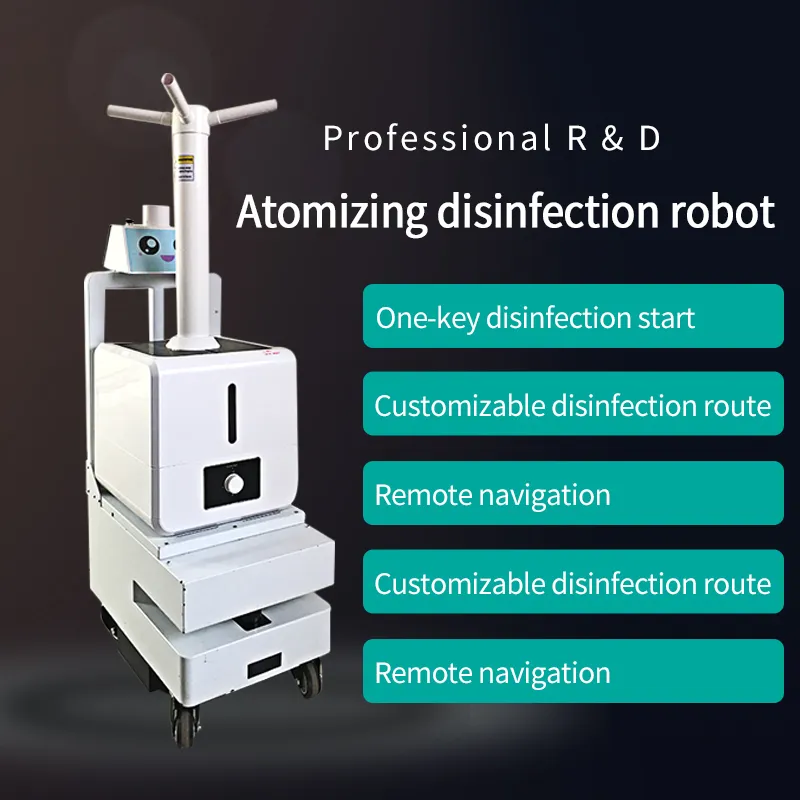

Multi-Scenario Adaptation

Technical Specifications

FeatureDetails
ModelCW-XS Robot
Operating SystemAndroid 5.1
ProcessorRK3128 (Quad-core Cortex-A7, up to 1.2GHz)
Memory1GB LPDDR3, 8GB NAND Flash
Display7-inch IPS screen (1024x600)
Battery10S8P 10400mAh/37V (3-4 hours operation)
Atomization particle size2-5um
Atomization output800-3000ML/H
Water tank capacity16L
Dimensions540mm x 360mm x 1400mm
Wireless Technology2.4GHz/5GHz WiFi, Bluetooth 4.1

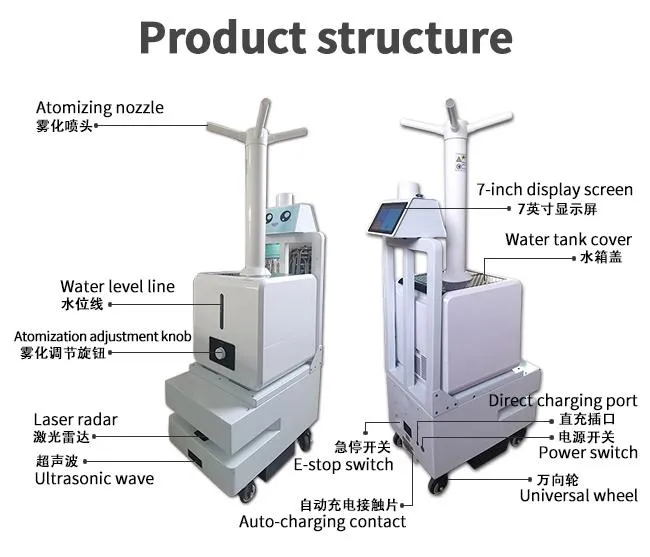

Specifications Diagram

Core Features & Functions

Intelligent DisinfectionSmart algorithms for optimal sanitization routines.
LiDAR MappingPrecise navigation covering up to 40,000 square meters.
Multi-Disinfectant SupportCompatible with hypochlorous acid, sodium hypochlorite, hydrogen peroxide, etc.
High Output FoggingUp to 3000mL/h for rapid and thorough air/surface coverage.
Auto-ChargingAutomatically returns to station when battery is low.

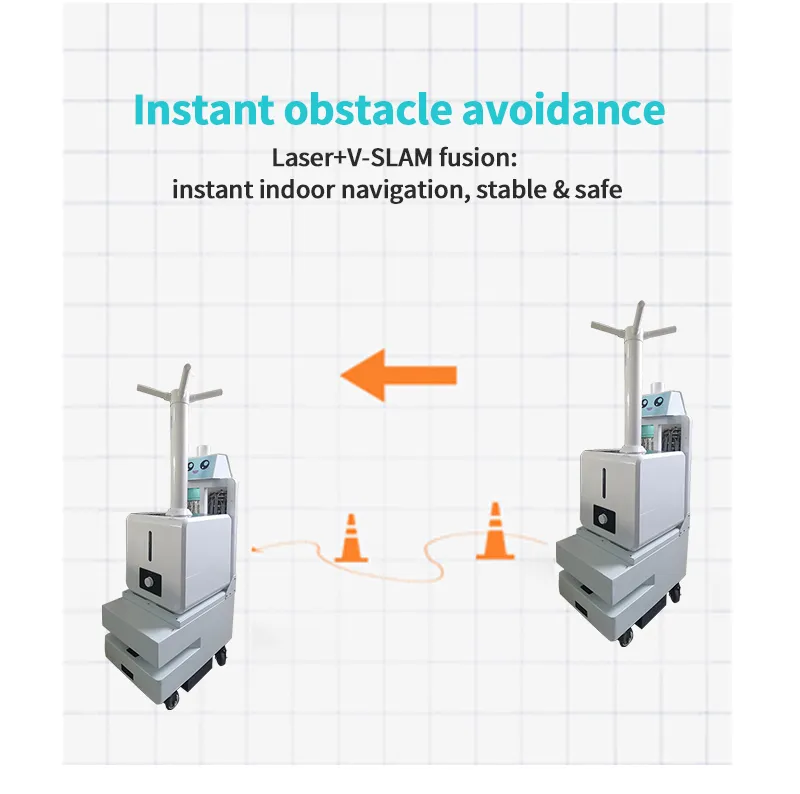

Obstacle AvoidanceLaser SLAM and V-SLAM technology for safe passage in busy areas.

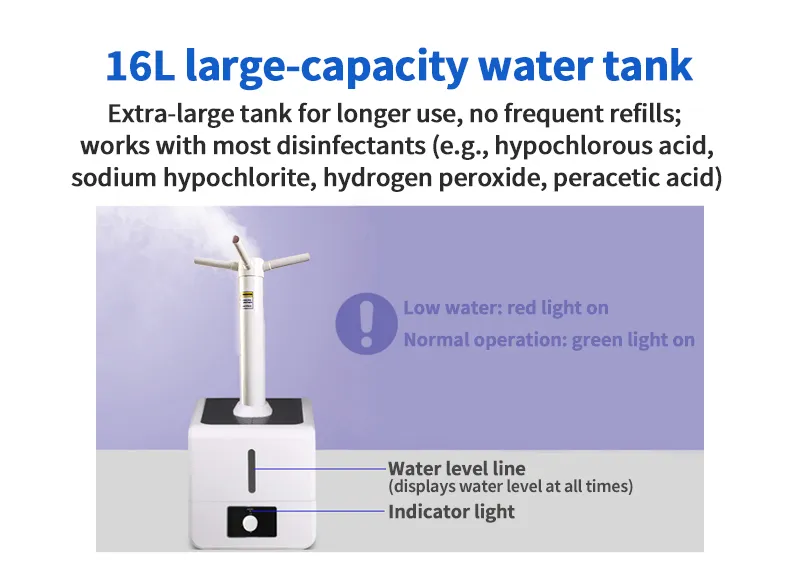

16L Large CapacityExtended operation without frequent chemical refills.
Remote MonitoringManagement via cloud service platforms.

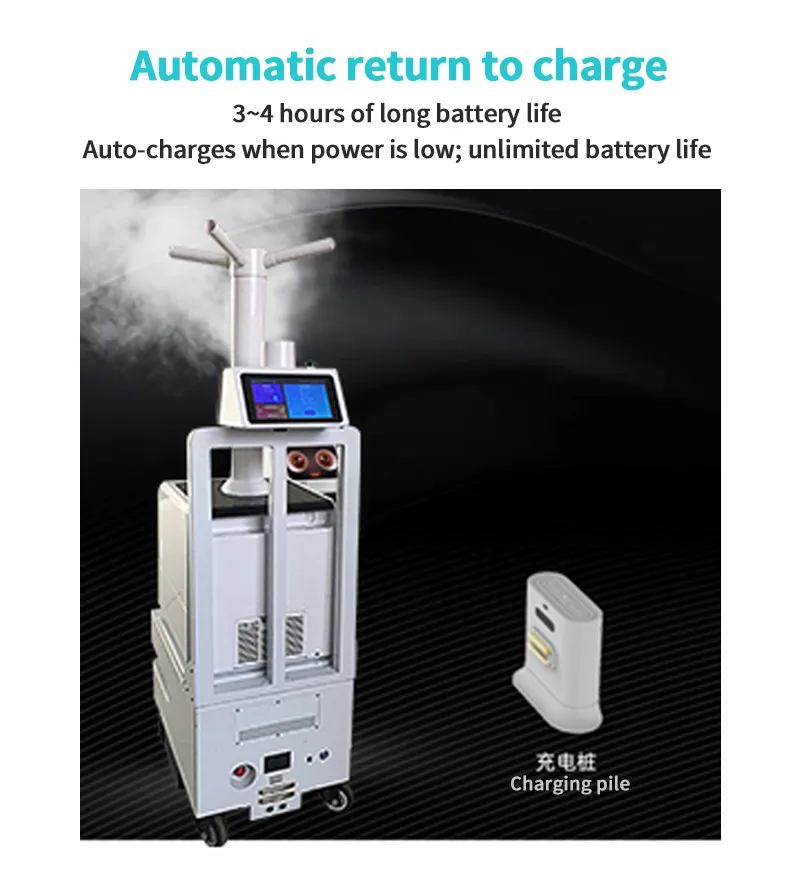

Scene 1

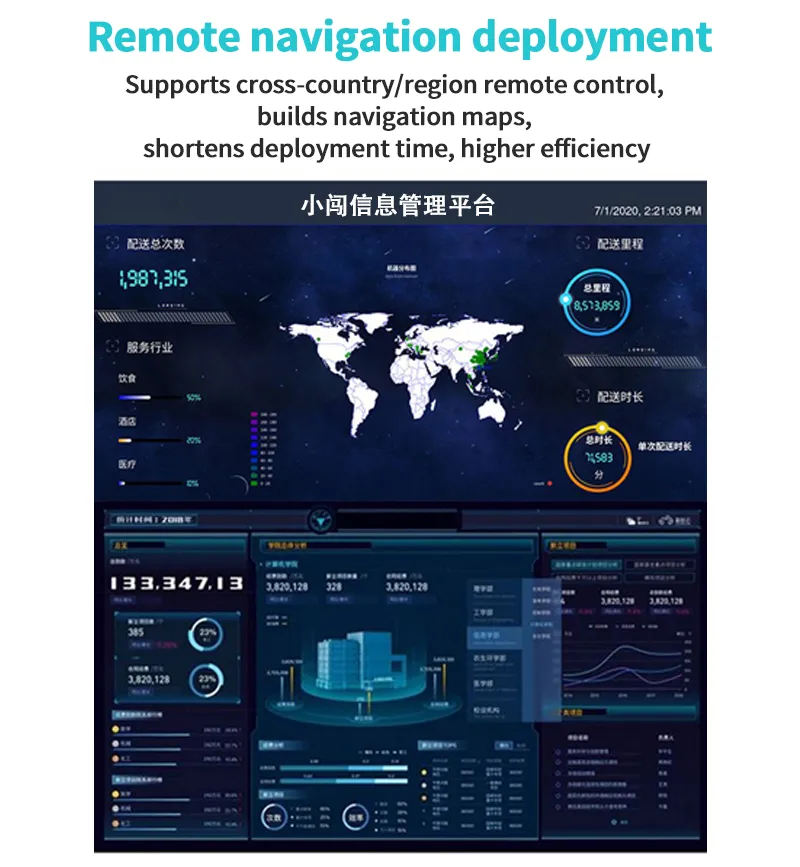

Scene 2

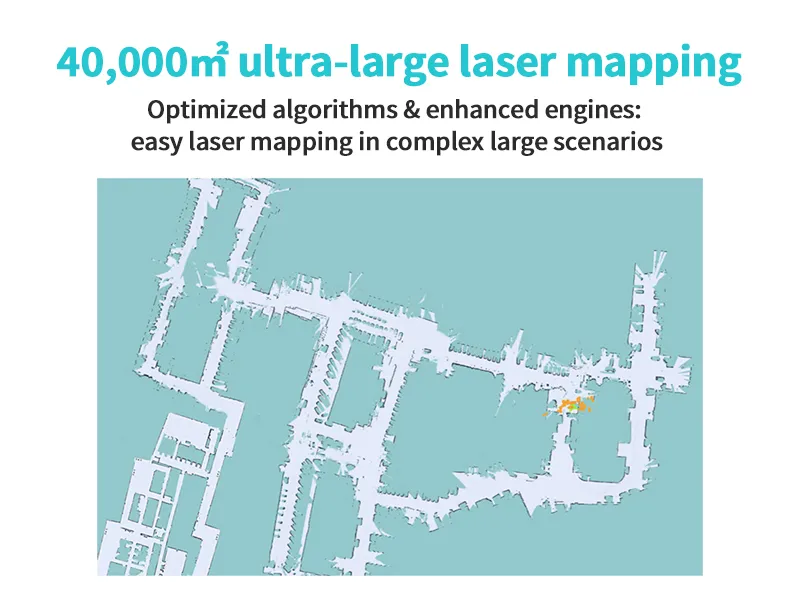

Scene 3

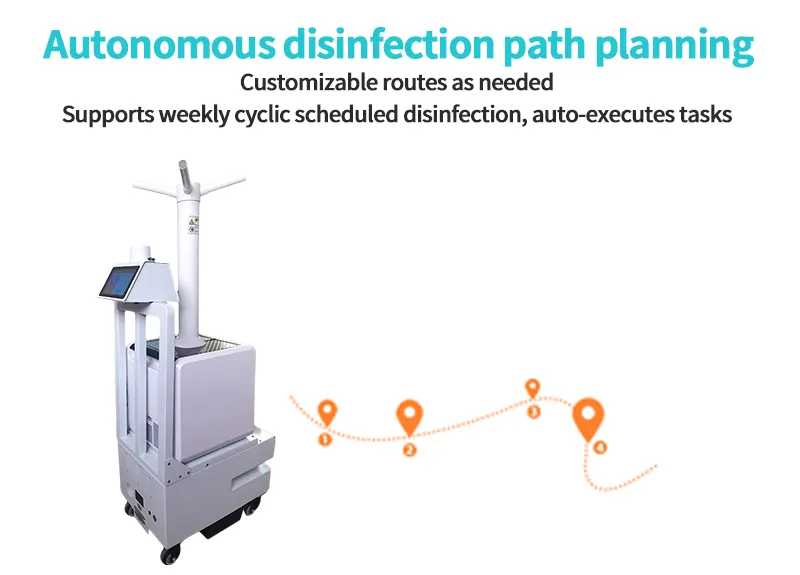

Scene 4
Scene 5
Scene 6

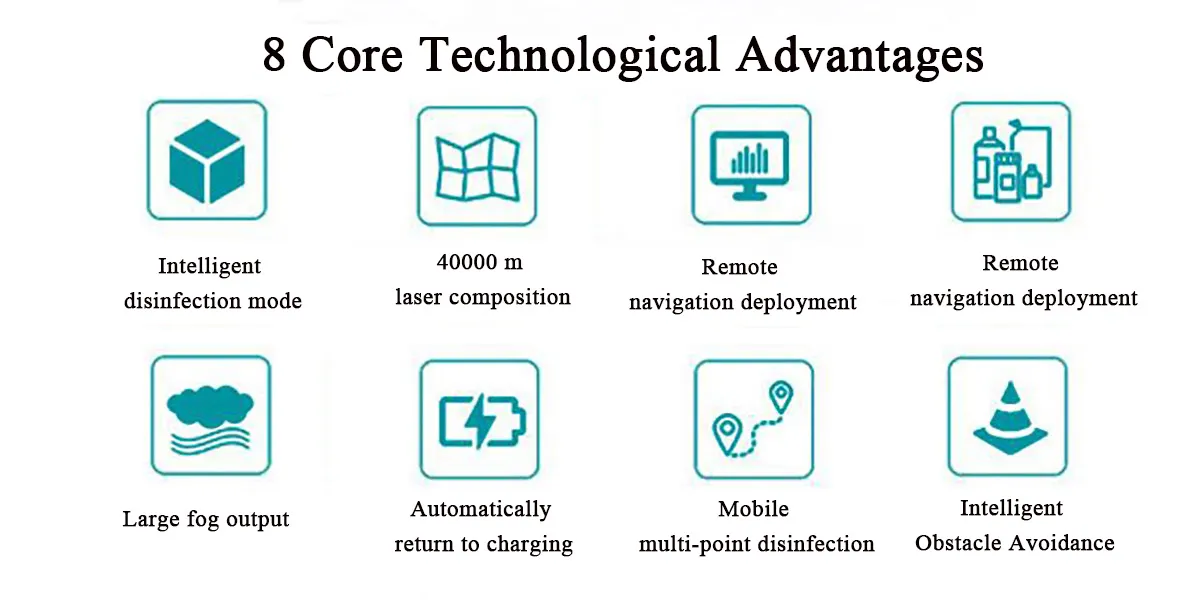

Robot Design
End Banner

Frequently Asked Questions

What types of disinfectants can be used with this robot?
The robot is compatible with various liquid disinfectants, including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
How large an area can the robot map and navigate?
The system utilizes advanced LiDAR mapping that supports up to 40,000 square meters of environment mapping for precise autonomous navigation.
What happens when the battery runs low during a task?
The robot features an automatic charging function. When the battery level drops below a certain threshold, it will automatically return to its charging station and resume tasks once charged.
How long can the robot operate on a single charge?
Equipped with a 10400mAh battery, the robot typically provides between 3 to 4 hours of continuous operational time depending on the intensity of fogging.
What is the capacity of the disinfectant tank?
The robot is equipped with a large 16-liter water tank, allowing for extended disinfection cycles without the need for frequent refills.
Does the robot require manual steering in complex environments?
No, it uses Laser SLAM and V-SLAM technology for intelligent obstacle avoidance, allowing it to safely and autonomously navigate around obstacles and people.
