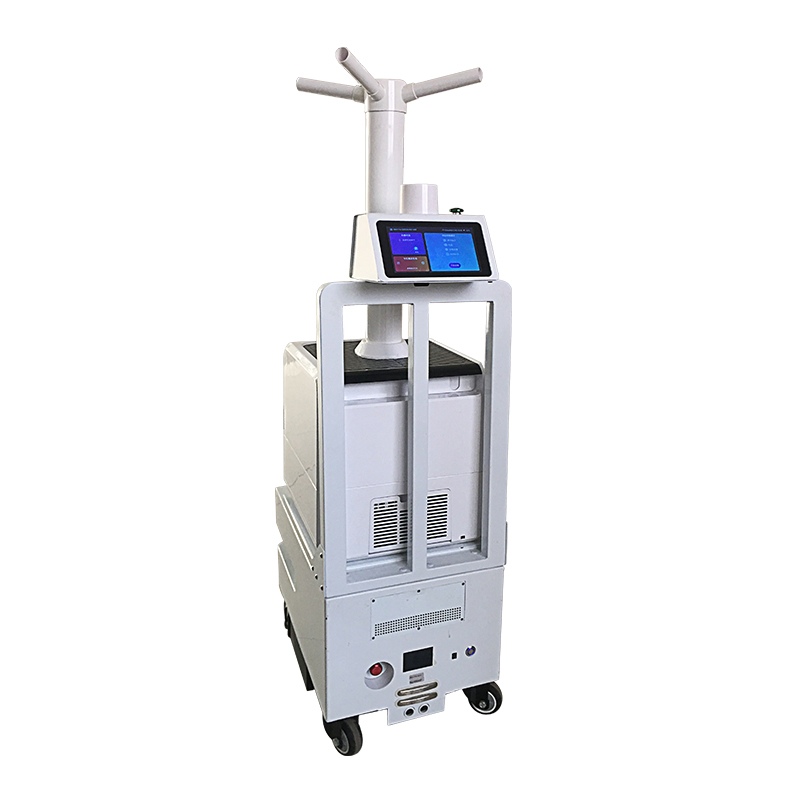

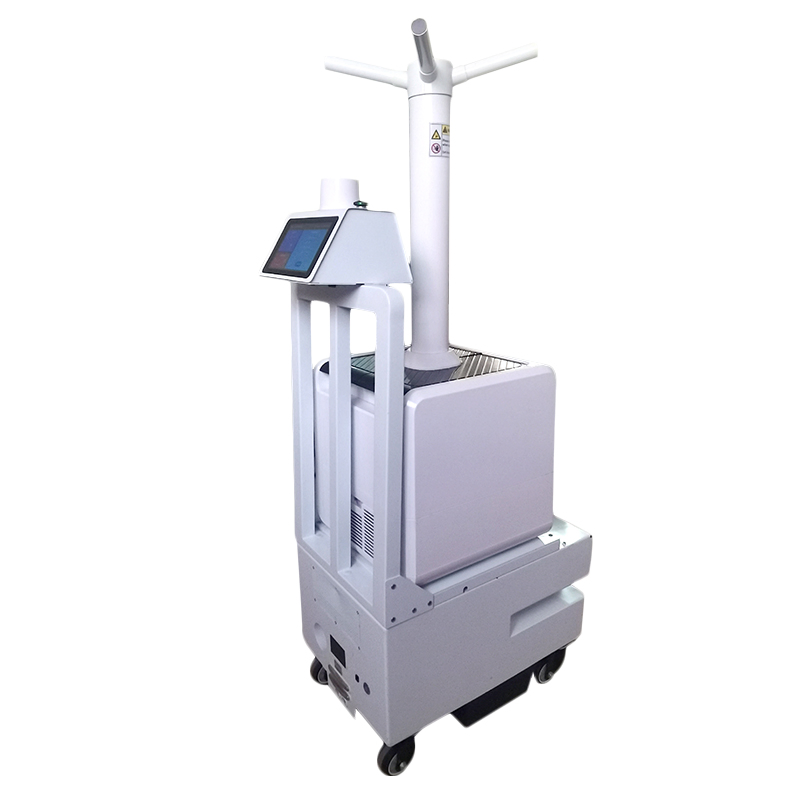

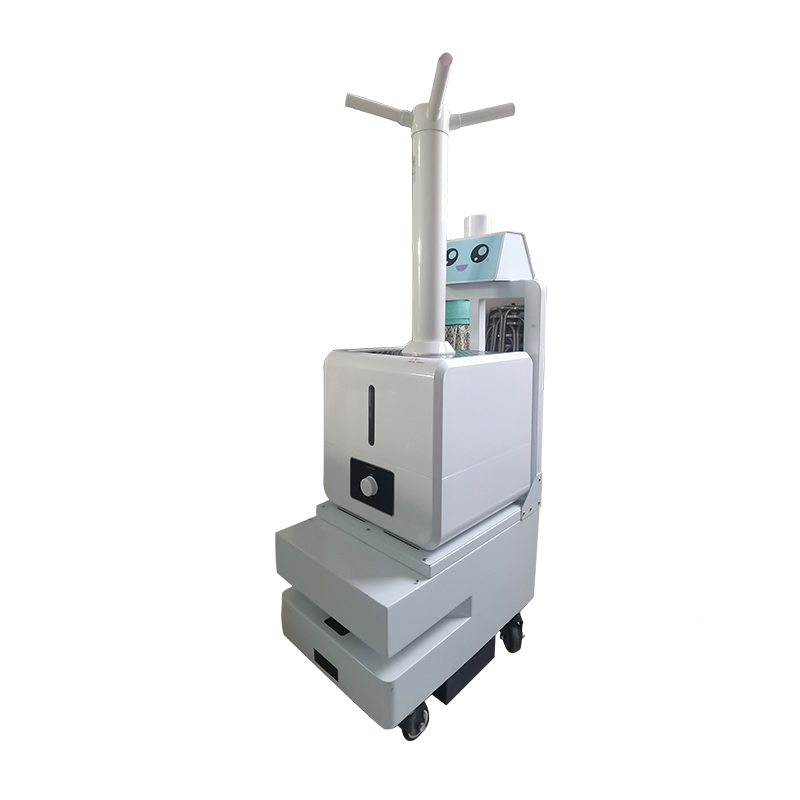

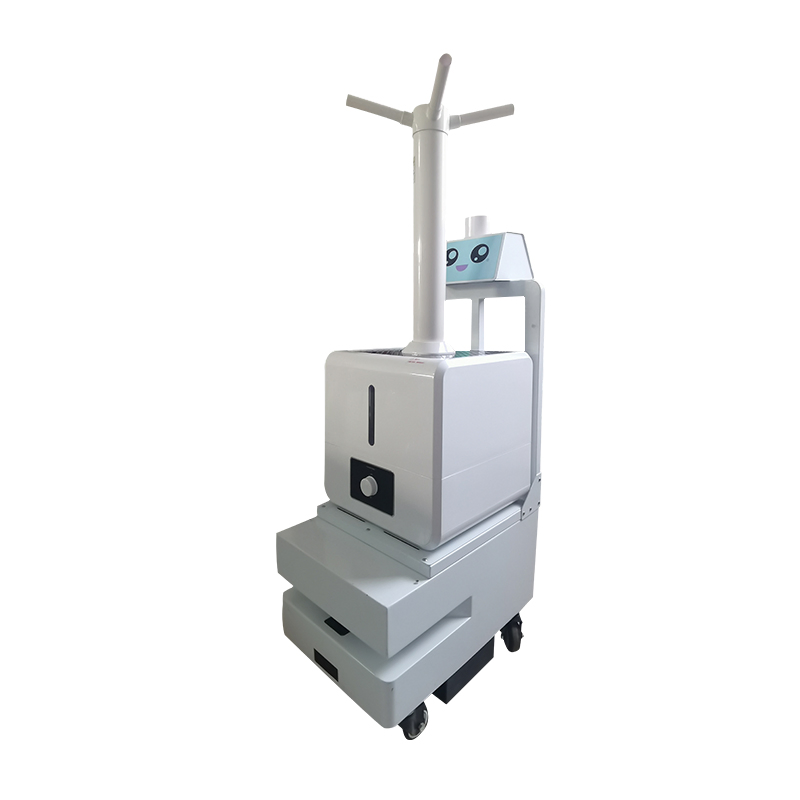

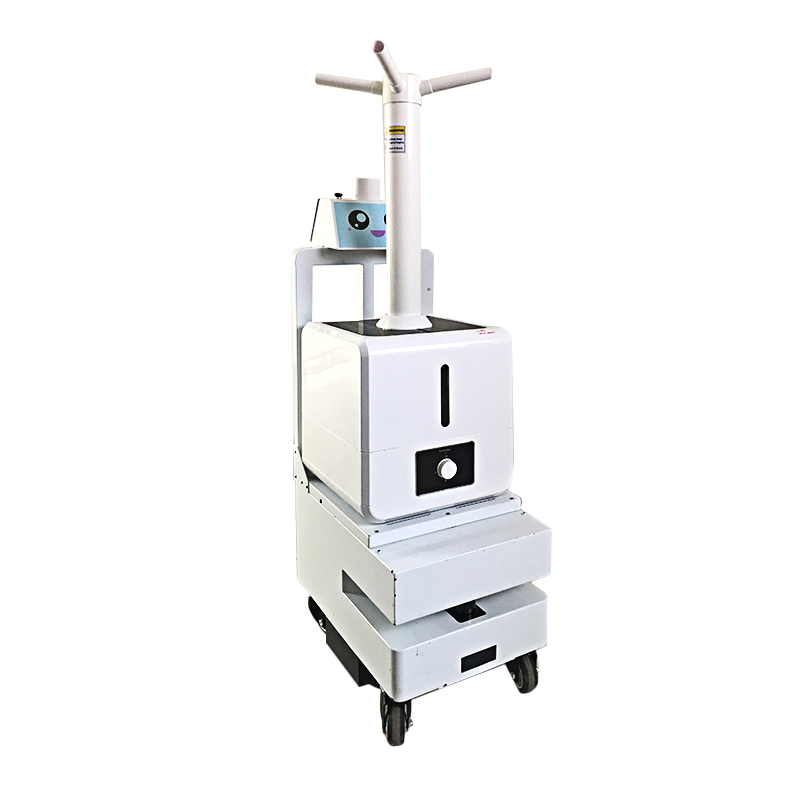

Disinfection Robot Sanitizing Robot Sterilizing Robot Hospital Disinfection Robot Airport Warehouse

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO. CW-XS
Interaction Mode Touch Screen
Navigation System Lidar
Operating System Android
Service Scenarios Home Cleaning, Hotel Room Service, Office Receptionist, Supermarket Delivery
Type Food Delivery Robot
Transport Package Wooden Box

Product Description

The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

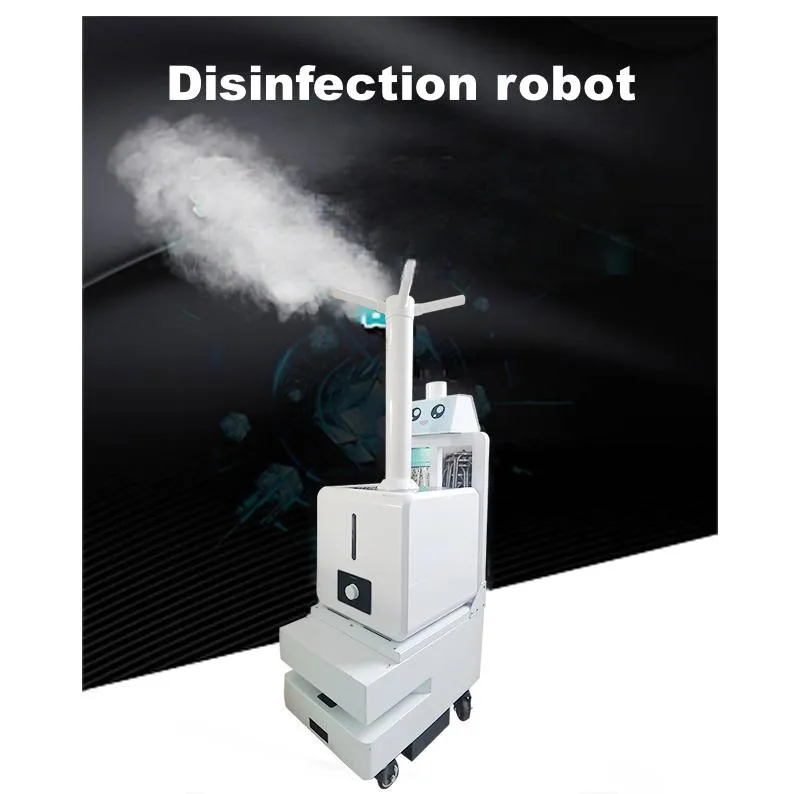

Fogging Disinfection Robot

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

Key Advantages: Includes intelligent obstacle avoidance for safe operation in complex environments, versatile disinfectant compatibility to accommodate various sanitization protocols, and high-volume mist output for rapid, thorough coverage. Upon task completion or when battery levels are low, the unit automatically returns to its charging station, ensuring continuous operational readiness.

Sanitizing Robot Front View
Sanitizing Robot Side View
Sanitizing Robot Detail

Technical Specification

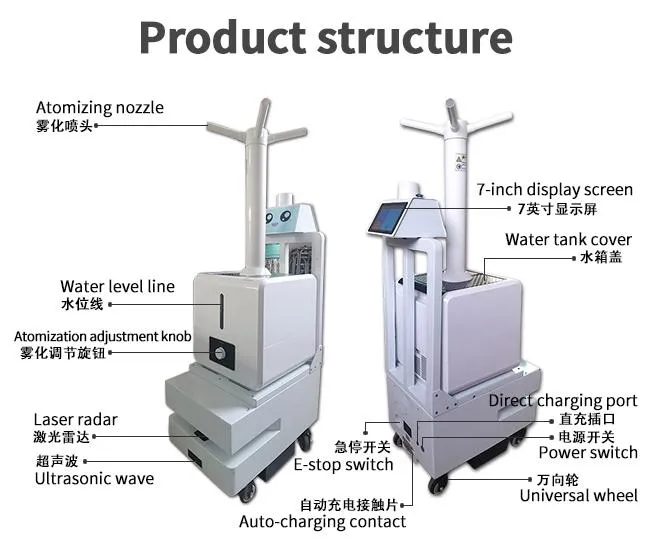

Technical Specifications Overview
ModelCW-XS Robot
Operating SystemAndroid 5.1
ProcessorRK3128 (Quad-core Cortex-A7, up to 1.2GHz)
Display7-inch IPS screen (1024x600)
Battery10S8P 10400mAh/37V (3-4 hours operation)
Atomization Particle Size2-5um
Atomization Output800-3000ML/H
Water Tank Capacity16L
Dimensions540mm x 360mm x 1400mm
Wireless Technology2.4GHz/5GHz WiFi, Bluetooth 4.1

Core Features

01
Laser Mapping: 40,000 square meters of laser mapping for precise navigation.
02
High Output: Capable of producing up to 3000mL/h of fog for comprehensive treatment.
03
Auto-Charging: Automatically returns to station when battery is low.
04
Obstacle Avoidance: Uses Laser SLAM and V-SLAM technology for safe transit.
05
Versatile Compatibility: Works with Hypochlorous acid, Sodium hypochlorite, and Hydrogen peroxide.
06
Large Capacity: 16L water tank for extended operational cycles.

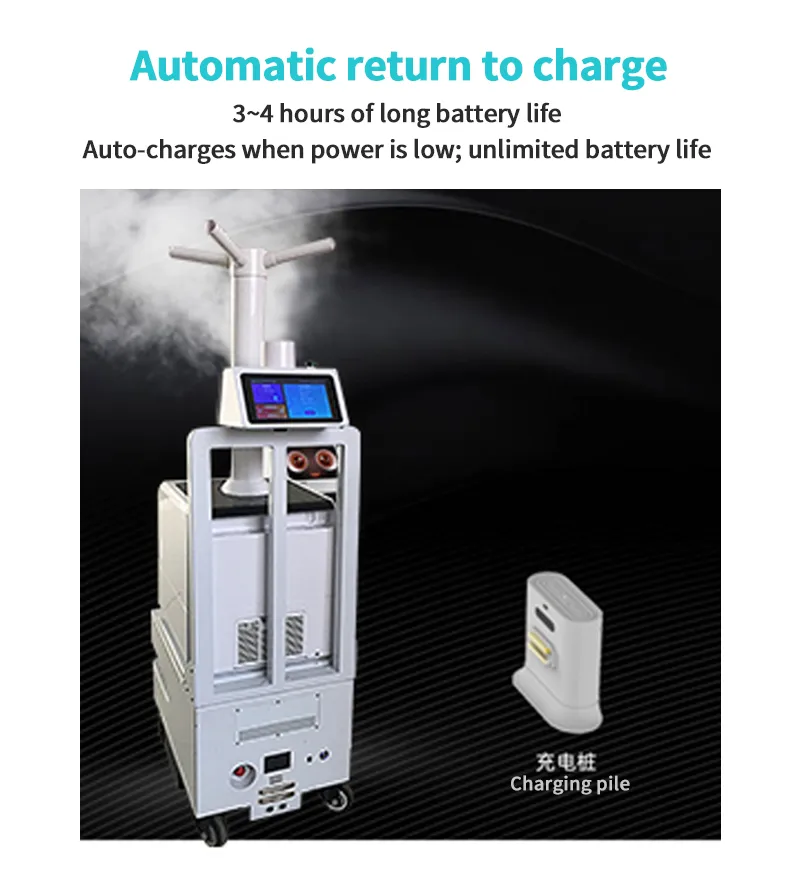

Application Scenario 1

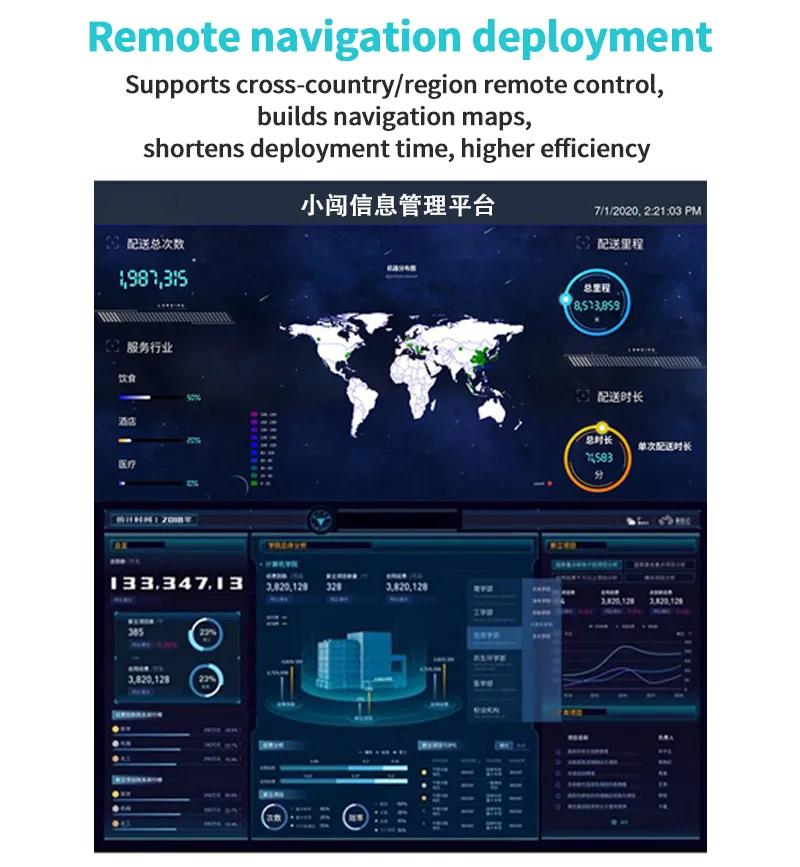

Application Scenario 2

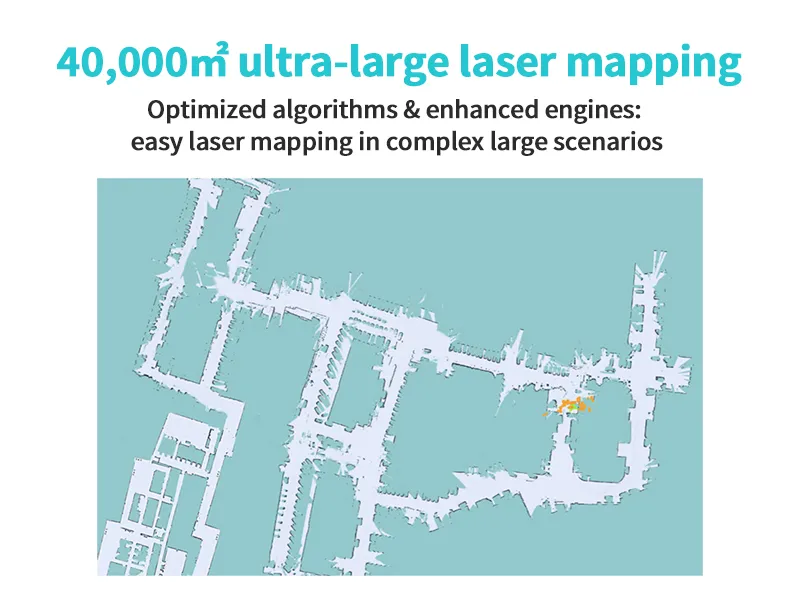

Application Scenario 3

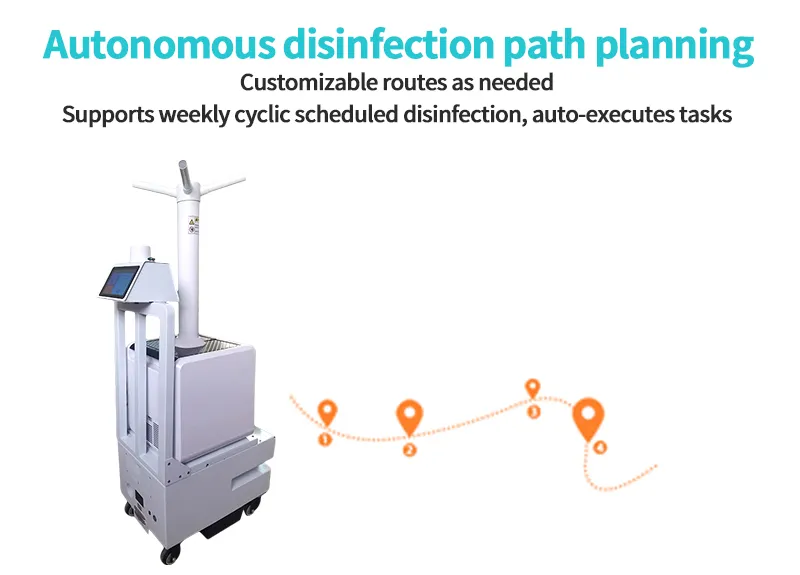

Application Scenario 4

Video Demonstration

?

Frequently Asked Questions

What is the maximum coverage area of the robot?
The robot features advanced LiDAR-based mapping that supports autonomous coverage of up to 40,000 square meters.
What types of disinfectants can be used with this system?
It is compatible with multiple disinfectants, including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
How does the robot handle low battery situations?
The unit is equipped with an automatic return charging feature. It will navigate back to its charging station when the battery level is low.
What is the capacity of the disinfectant tank?
The robot is equipped with a large 16L water tank, allowing for extended operation without frequent refills.
Can the robot avoid obstacles in crowded areas?
Yes, it utilizes Laser SLAM and V-SLAM technology for intelligent obstacle avoidance, ensuring safe navigation in complex environments.
What is the atomization output speed?
The robot provides a high output fogging capability ranging from 800 to 3000mL/h for thorough coverage.
