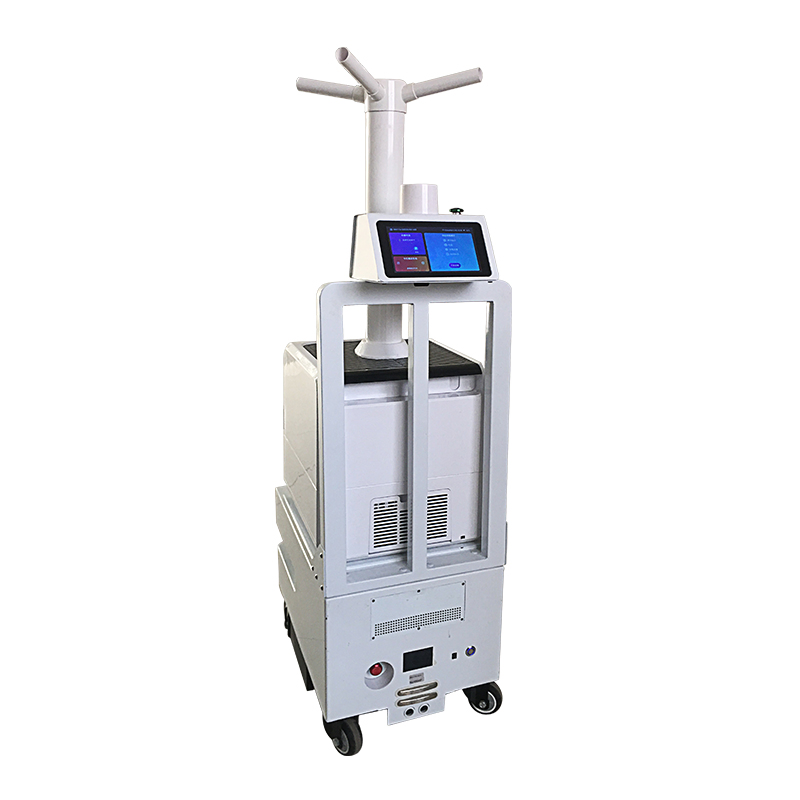

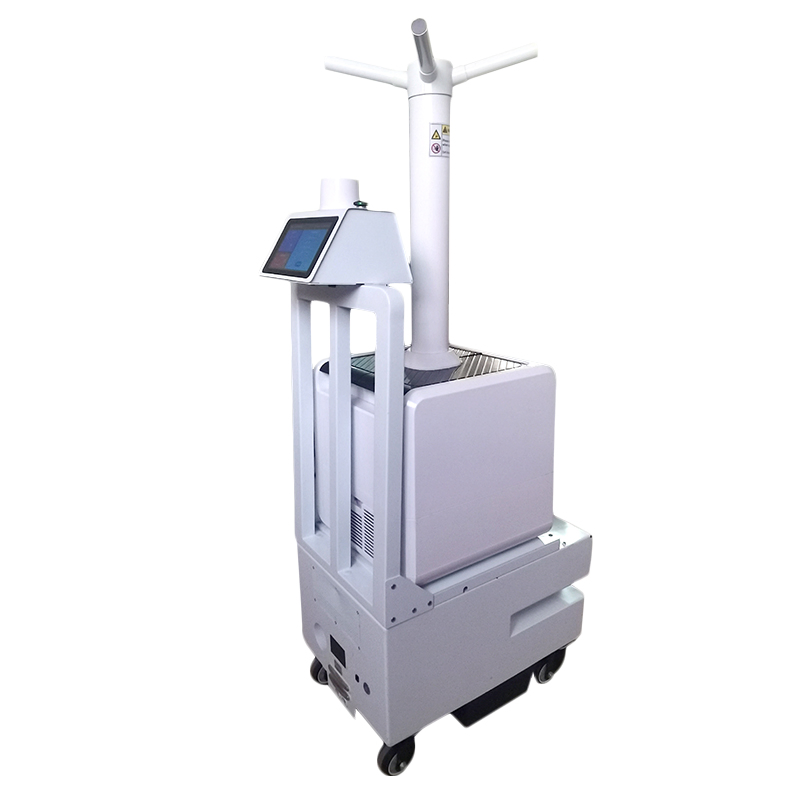

Mobile Intelligent Disinfection Robot: Dual Modes of Atomization & Spray, Comprehensive Sterilization

Still deciding? Get samples of $ !
Request Sample

Product Description

Product Overview

Model NO.CW-XS
Interaction ModeTouch Screen
Navigation SystemLidar
Operating SystemAndroid
Service ScenariosHome Cleaning, Hotel Room Service, Office Receptionist, Supermarket Delivery
TypeFood Delivery Robot
Transport PackageWooden Box
Specification540X500X1300

Professional Fogging Disinfection Robot

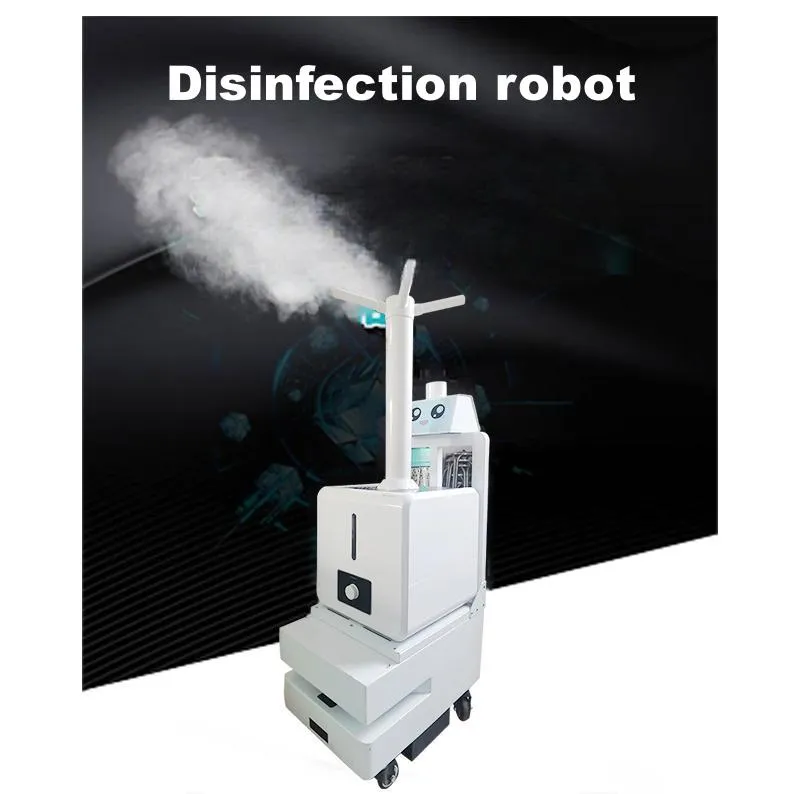

Fogging Disinfection Robot
The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

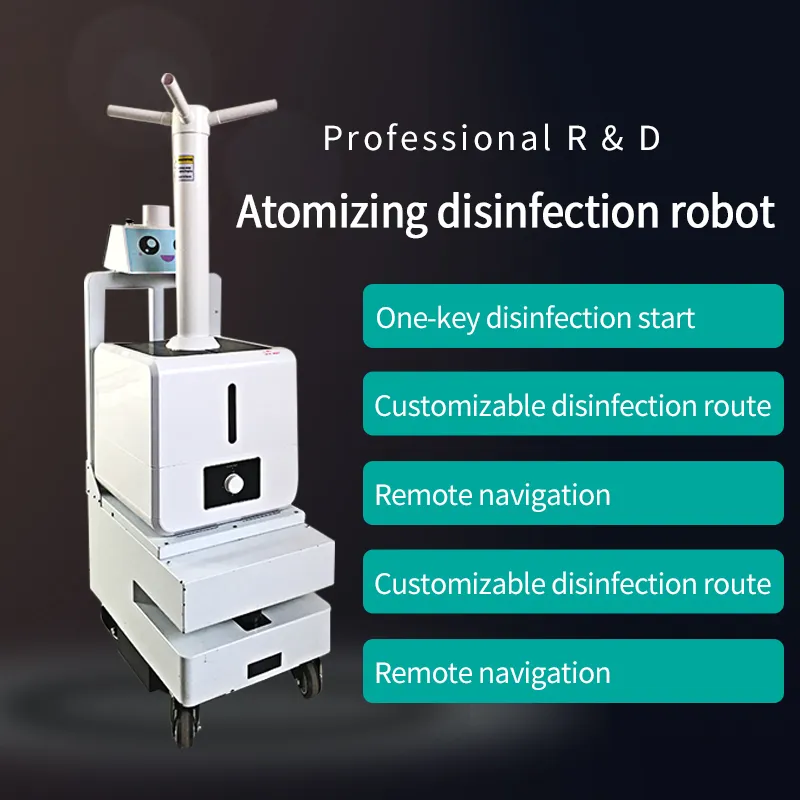

Mobile Intelligent Disinfection Robot

Technical Specifications

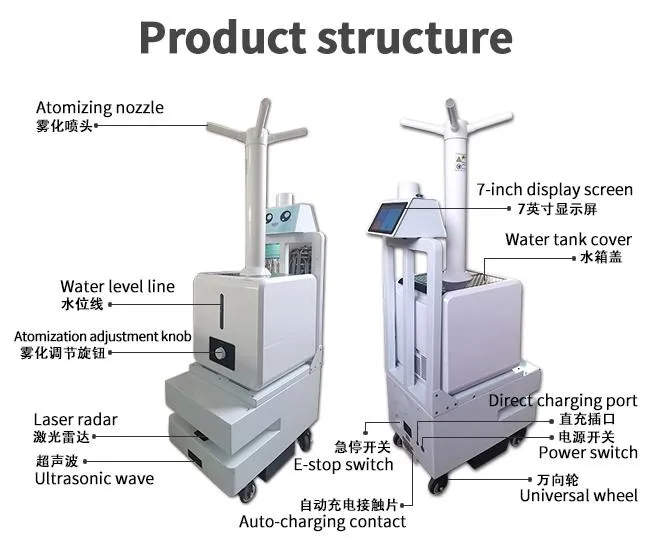

Specifications Diagram
ModelCW-XS Robot
Operating SystemAndroid 5.1
Supported LanguagesChinese, English and others
ProcessorRK3128 (Quad-core Cortex-A7)
Memory1GB LPDDR3, 8GB NAND Flash
Display7-inch IPS screen (1024x600)
Battery10S8P 10400mAh/37V (3-4 hours operation)
Atomization Particle Size2-5um
Atomization Output800-3000ML/H
Water Tank Capacity16L
Weight43KG
Dimensions540mm x 360mm x 1400mm
WirelessWiFi 2.4GHz/5GHz, Bluetooth 4.1

Core Features & Capabilities

Intelligent Navigation: Utilizes 40,000 square meters of LiDAR laser mapping and SLAM technology for precise obstacle avoidance.
High Output Fogging: Capable of producing up to 3000mL/h of ultra-fine mist (2-5um) for thorough air and surface sterilization.
Multiple Disinfectants: Compatible with hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
Automatic Readiness: Features automatic return to charging station when battery is low, ensuring 24/7 operational capability.
Robot Detail 1
Robot Detail 2
Robot Detail 3

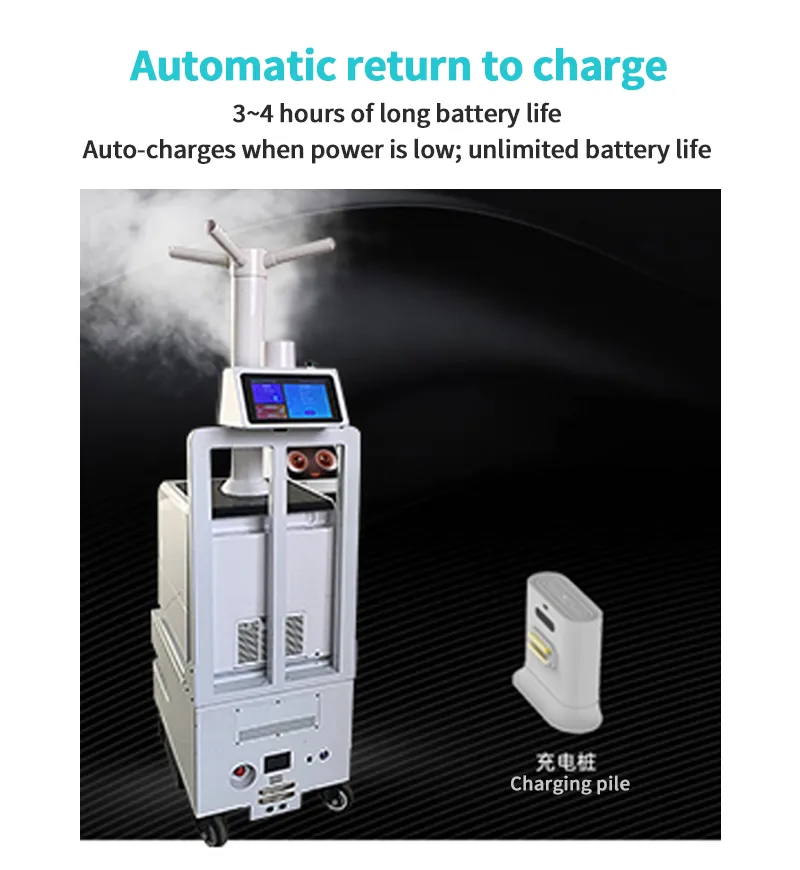

Application 1

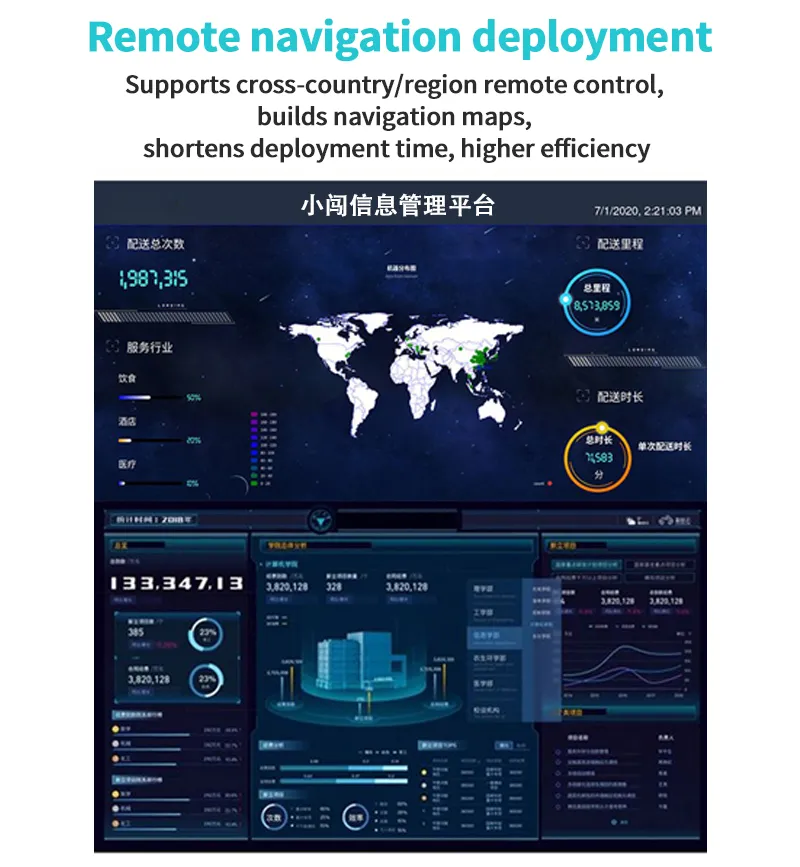

Application 2

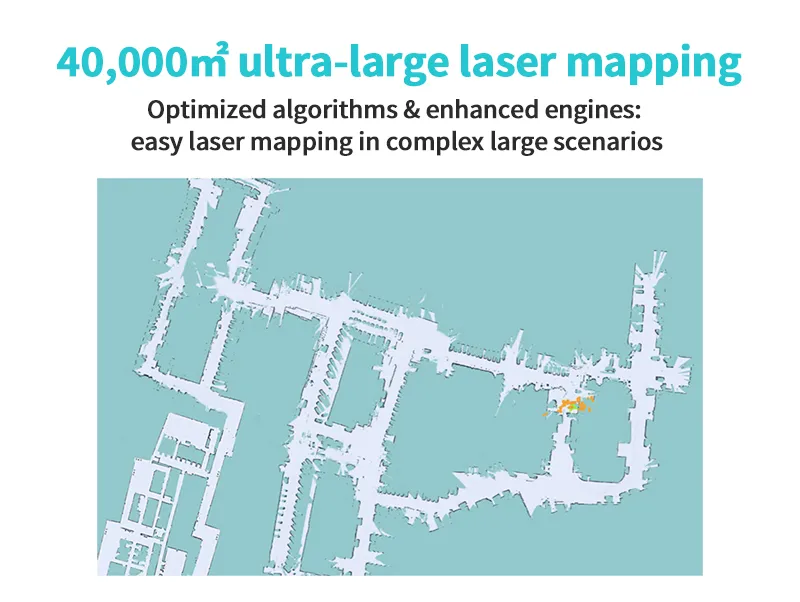

Application 3

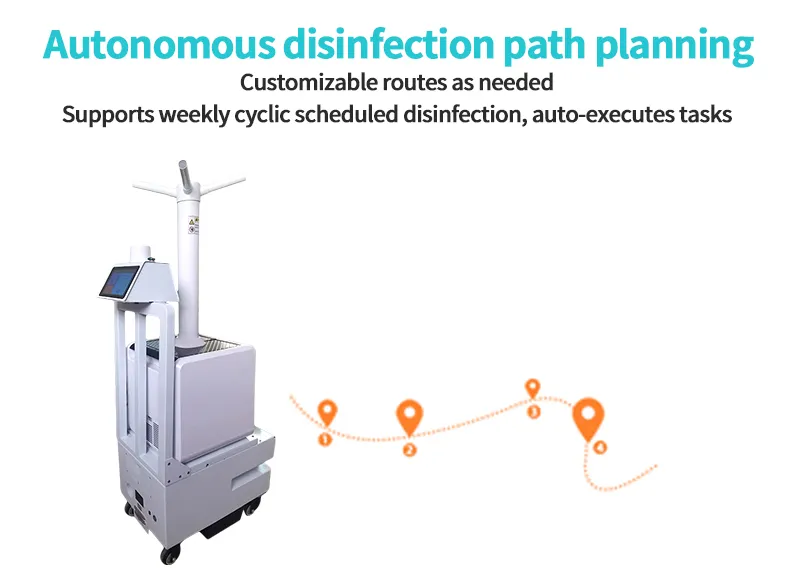

Application 4

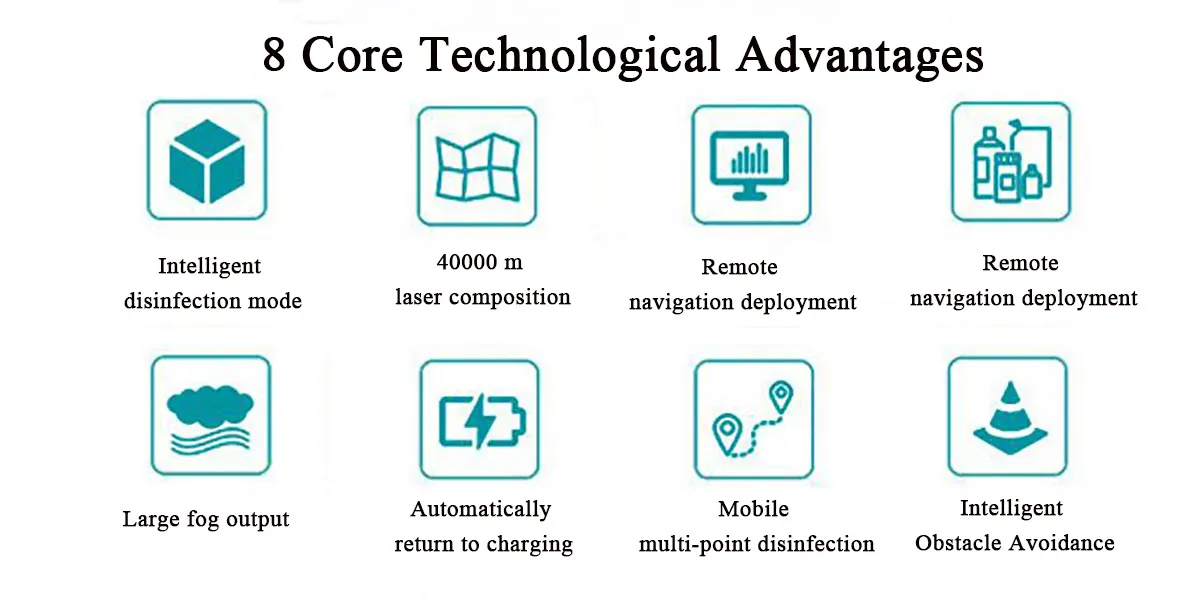

Deployment Scenarios
Efficient Sterilization

Frequently Asked Questions

Q1: What is the maximum area the robot can map? The CW-XS robot is equipped with high-precision Lidar mapping that can cover an area of up to 40,000 square meters.
Q2: Which disinfectants can be used with this system? The system is highly compatible and can use various disinfectants including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
Q3: How long does the battery last on a single charge? The robot is equipped with a 10400mAh battery providing approximately 3-4 hours of continuous operation. It also features automatic return-to-charge functionality.
Q4: What is the particle size of the atomization? The robot produces an ultra-fine dry mist with a particle size of 2-5um, ensuring comprehensive coverage without leaving wet residues.
Q5: Can the robot avoid obstacles in crowded areas? Yes, it utilizes advanced laser SLAM and V-SLAM technology for intelligent obstacle avoidance, making it safe for use in high-traffic public spaces.
Q6: What is the capacity of the water tank? It features a large 16L capacity water tank, which allows for extended disinfection tasks without the need for frequent refills.
