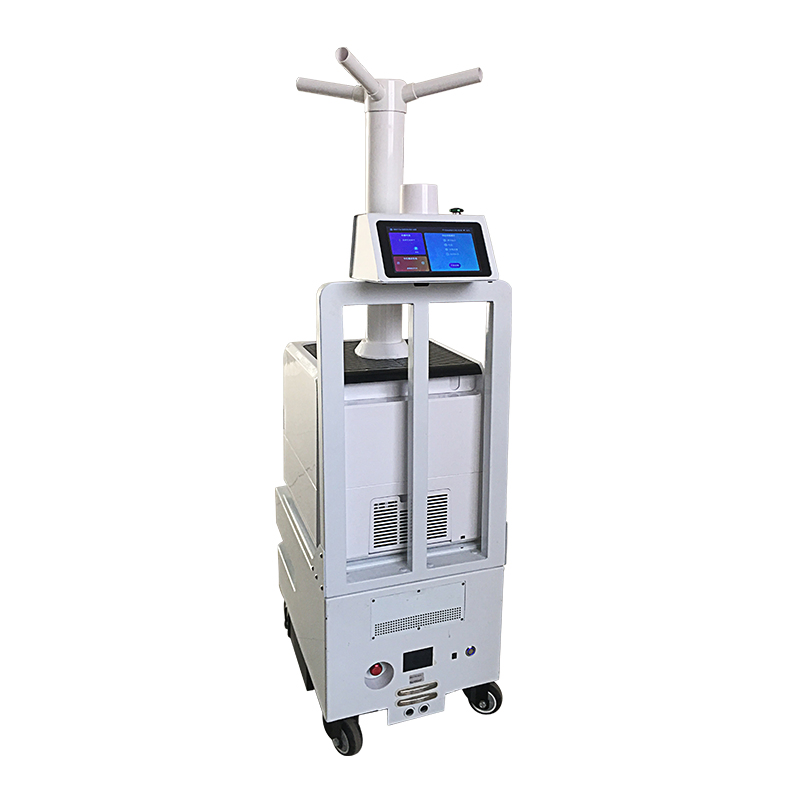

Intelligent Disinfection Robot: High-Tech Fully Automatic Design, Anti-Epidemic Spraying Disinfection & Sterilization, Suitable for Exhibition Halls/Schools/Air

Product Description

Product Description

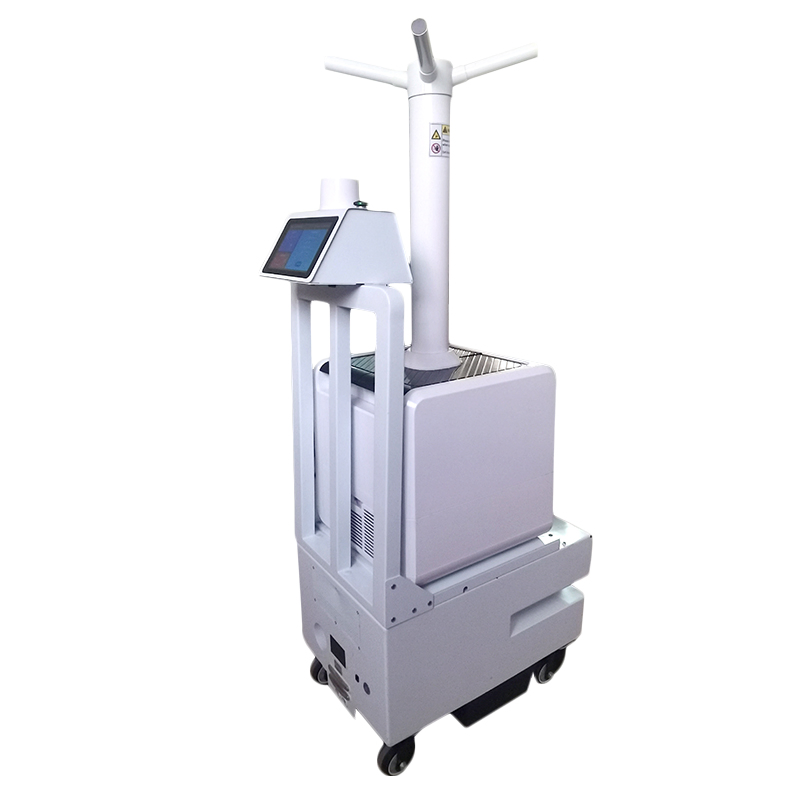

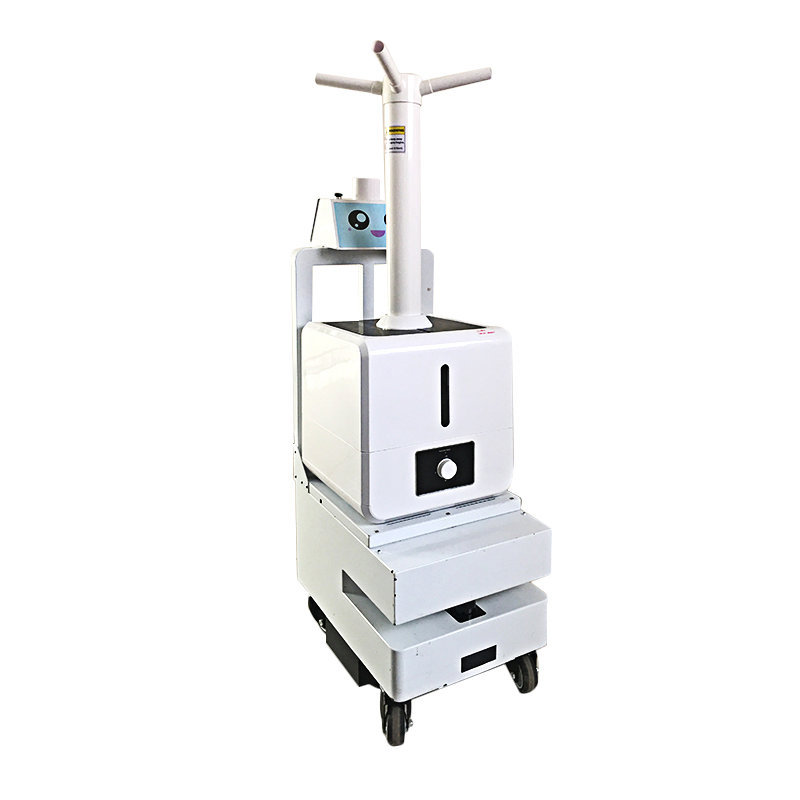

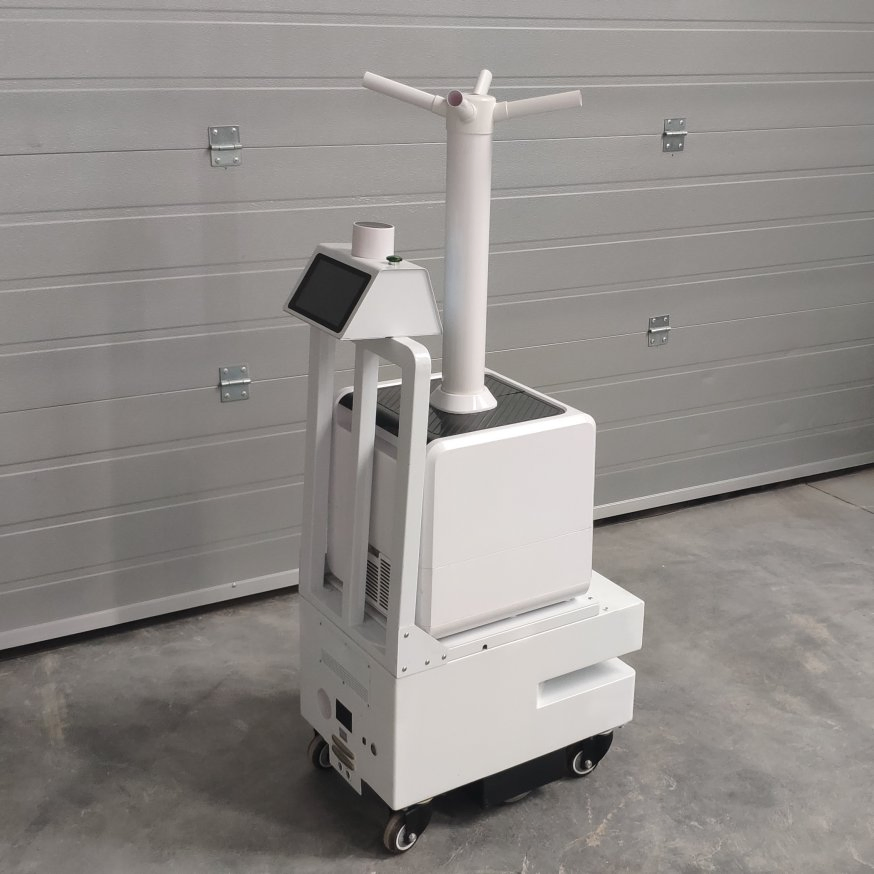

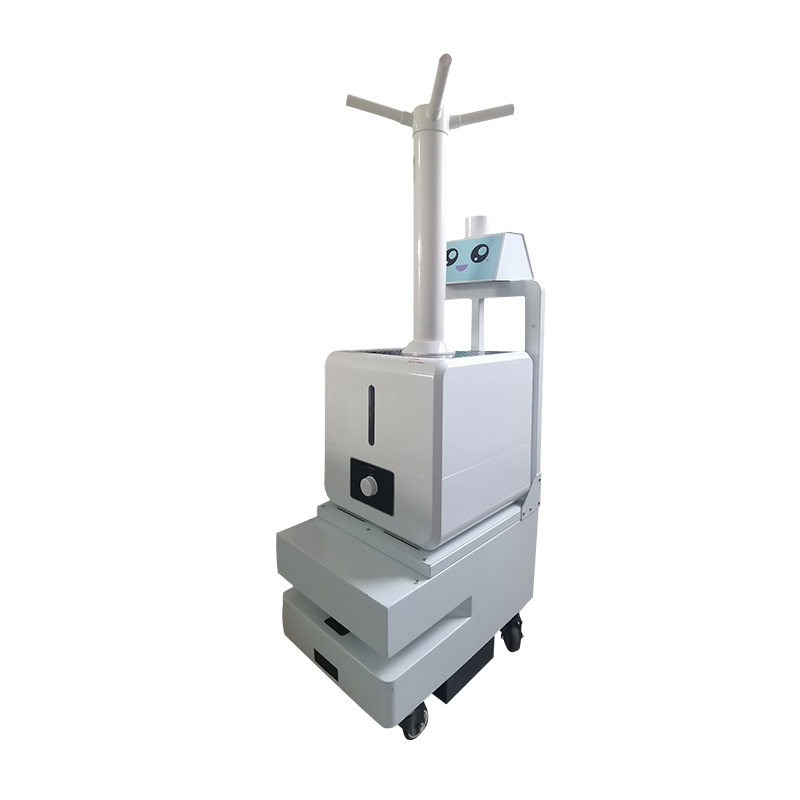

Fogging Disinfection Robot

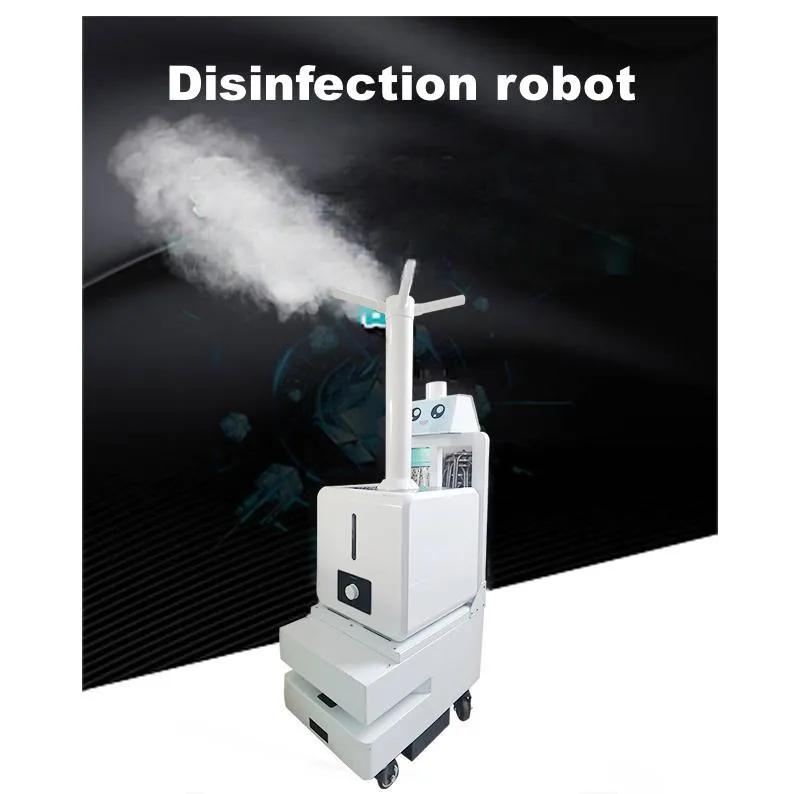

Fogging Disinfection Robot Overview

The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

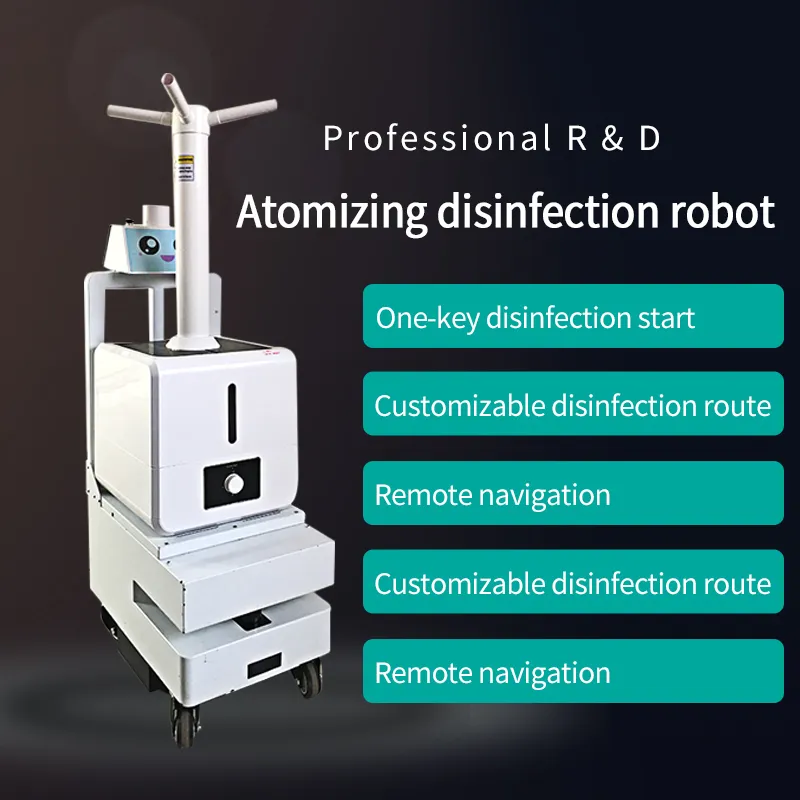

Intelligent Disinfection Process

Key advantages include intelligent obstacle avoidance for safe operation in complex environments, versatile disinfectant compatibility to accommodate various sanitization protocols, and high-volume mist output for rapid, thorough coverage. Upon task completion or when battery levels are low, the unit automatically returns to its charging station, ensuring continuous operational readiness.

Technical Specification

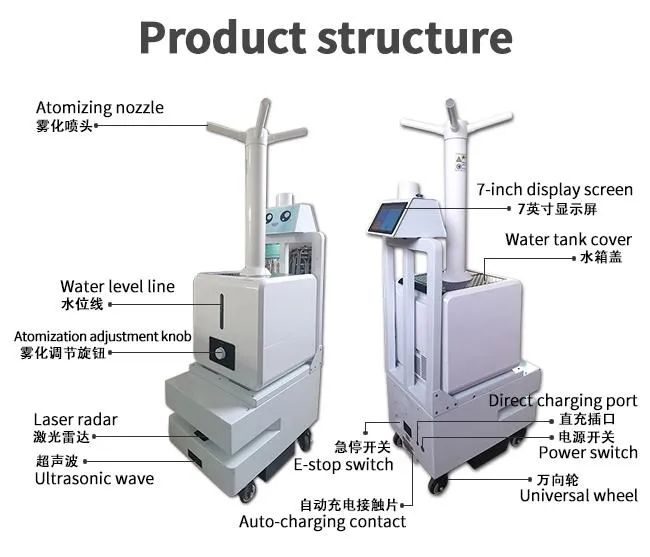

Product Specification Diagram
ModelCW-XS Robot
Operating SystemAndroid 5.1
Supported LanguagesChinese, English and others
ProcessorRK3128 (Quad-core Cortex-A7, up to 1.2GHz)
Memory1GB LPDDR3, 8GB NAND Flash
Display7-inch IPS screen (1024x600)
Battery10400mAh/37V (3-4 hours operation)
Atomization Particle Size2-5um
Atomization Output800-3000ML/H
Water Tank Capacity16L
Weight43KG
Dimensions540mm x 360mm x 1400mm
Wireless Technology2.4GHz/5GHz WiFi, Bluetooth 4.1

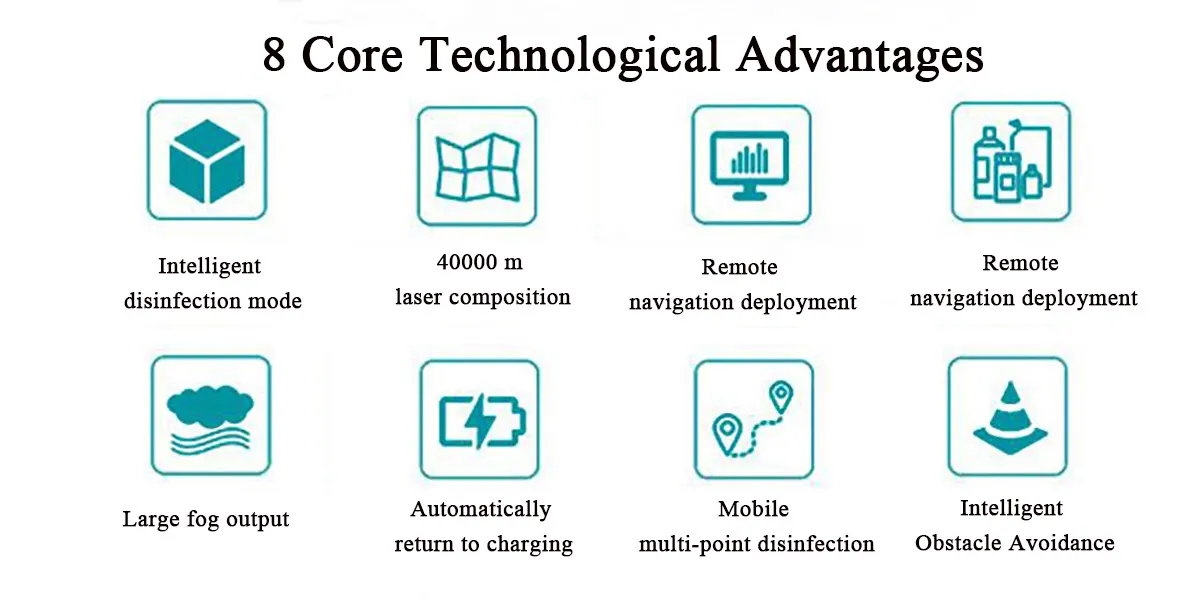

Core Features & Advantages
Feature View 1 Feature View 2 Feature View 3
Intelligent Disinfection Mode Equipped with smart algorithms for optimal disinfection routines and autonomous path planning.

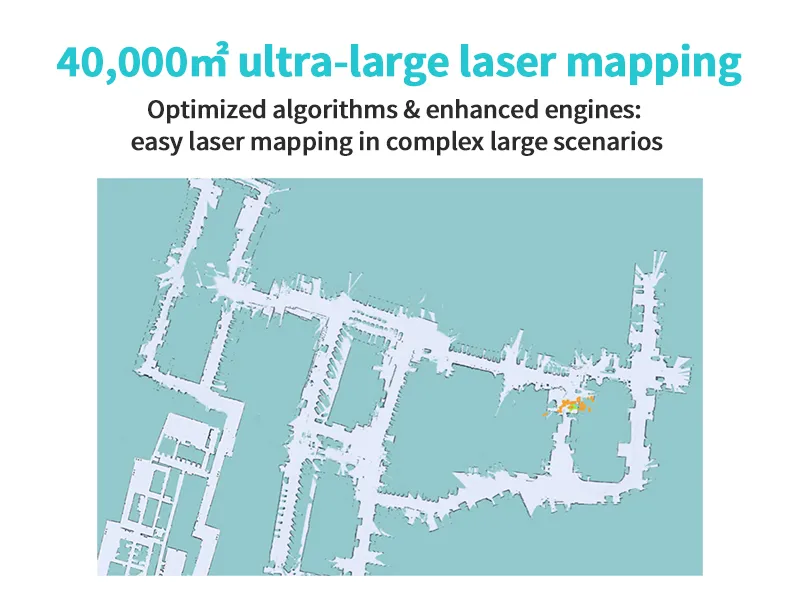

Large-Scale Laser Mapping Utilizes 40,000 square meters of laser mapping for precise navigation and complete coverage.
Disinfectant Compatibility Compatible with hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
High Output Fogging Produces up to 3000mL/h of ultra-fine mist, ensuring deep air and surface sterilization.

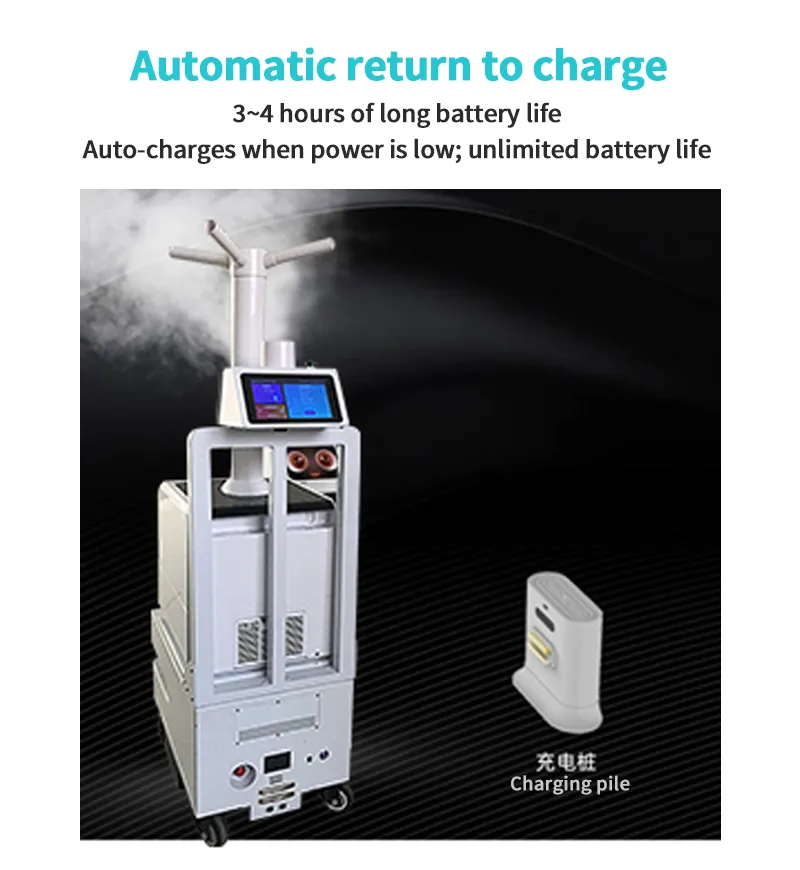

Automatic Recharging Automatically returns to its dock when battery is low, ensuring 24/7 readiness.

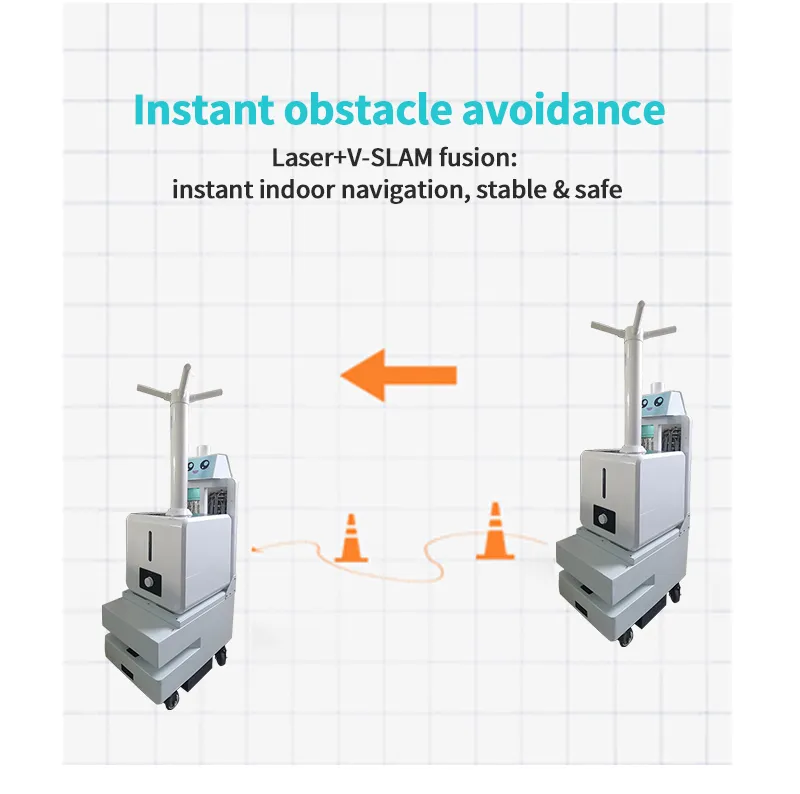

Advanced Obstacle Avoidance Uses Dual-SLAM (Laser & V-SLAM) technology to navigate safely around people and objects.
Additional Features:

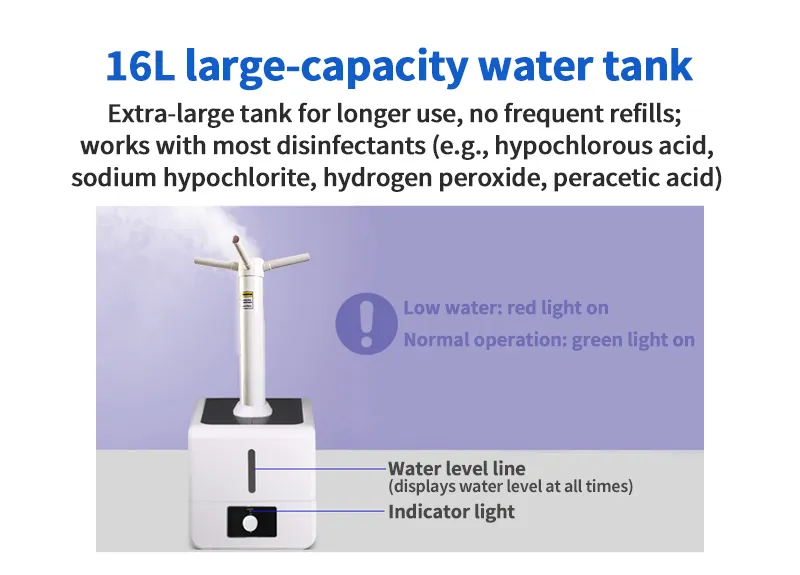

  • 16L Large Capacity Water Tank for extended operation.

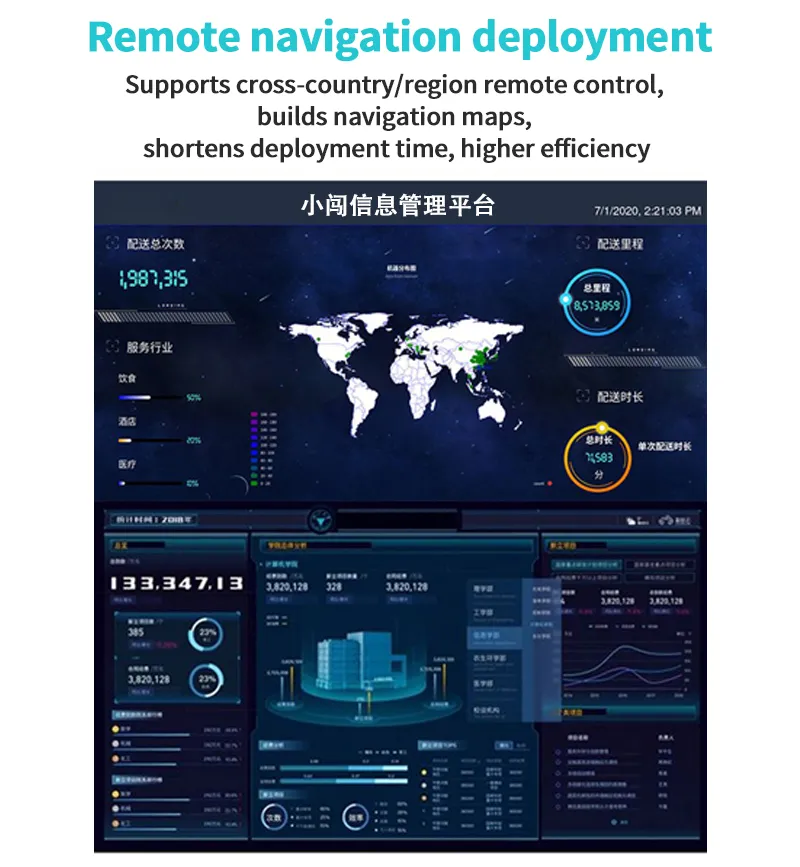

  • Remote monitoring and control through a cloud service management platform.

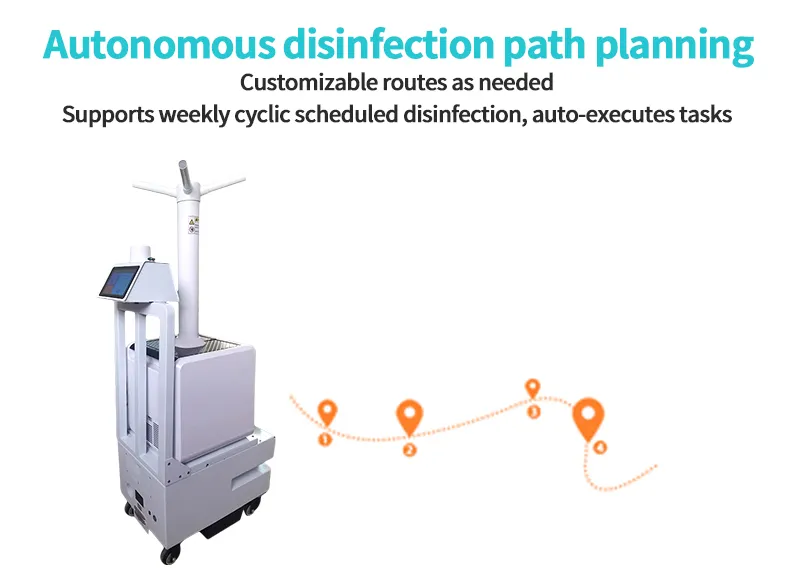

  • Customizable Disinfection Paths based on specific facility needs.
  • Reduces risk of cross-infection by minimizing human intervention.
Product Applications & Visuals
Application 1 Application 2 Application 3
Application 4 Application 5 Application 6
System Workflow
Bottom Banner
Frequently Asked Questions
What types of disinfectants can the robot use?
The robot is highly versatile and compatible with various common disinfectants, including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
How does the robot navigate around obstacles?
It utilizes advanced Laser SLAM and V-SLAM technology for intelligent obstacle avoidance, allowing it to navigate safely and efficiently in complex indoor environments.
What is the maximum coverage area of the mapping system?
The system supports LiDAR-based laser mapping for areas up to 40,000 square meters, making it suitable for large exhibition halls, airports, and schools.
Does the robot require manual charging?
No, the robot features an automatic return-to-charge function. When the battery level is low, it will autonomously return to its charging station.
How long can the robot operate on a single charge?
The unit is equipped with a high-capacity 10400mAh battery that typically provides between 3 to 4 hours of continuous disinfection operation.
Can I monitor the disinfection progress remotely?
Yes, the platform supports remote monitoring and management through a cloud-based service, allowing users to oversee tasks and deployment from a distance.
