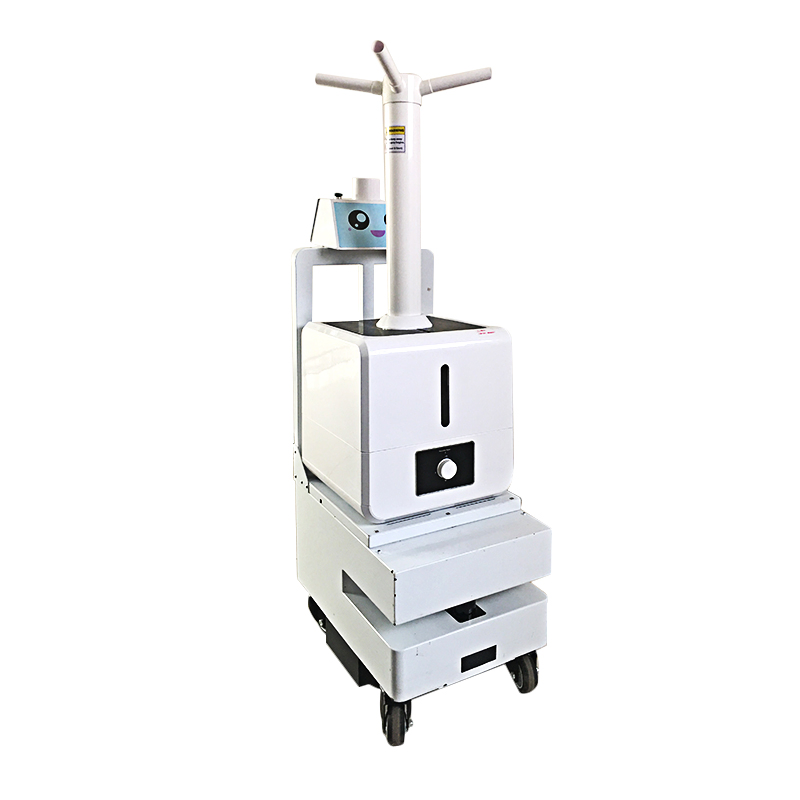

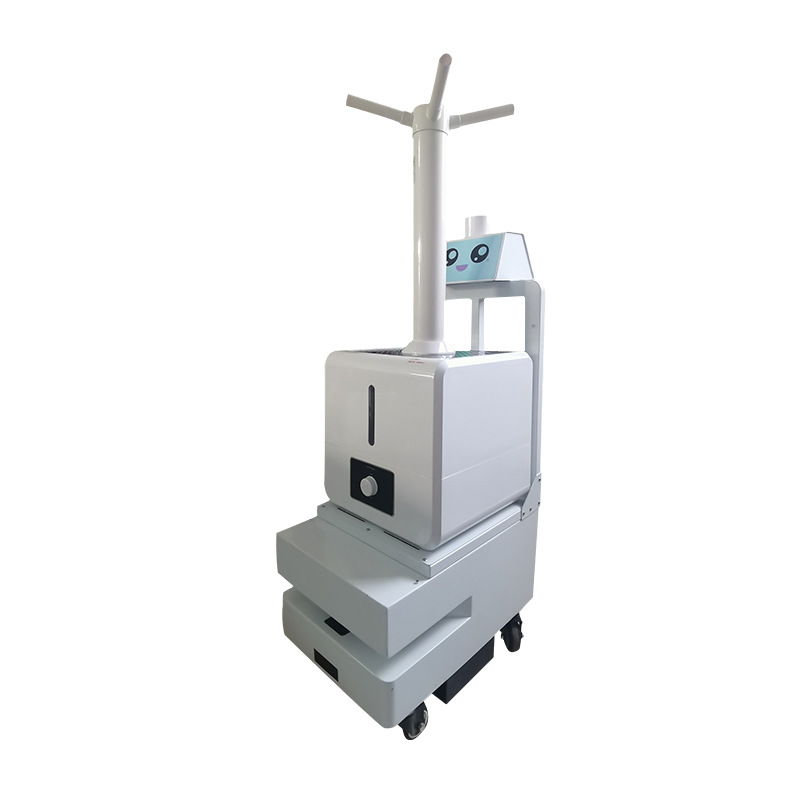

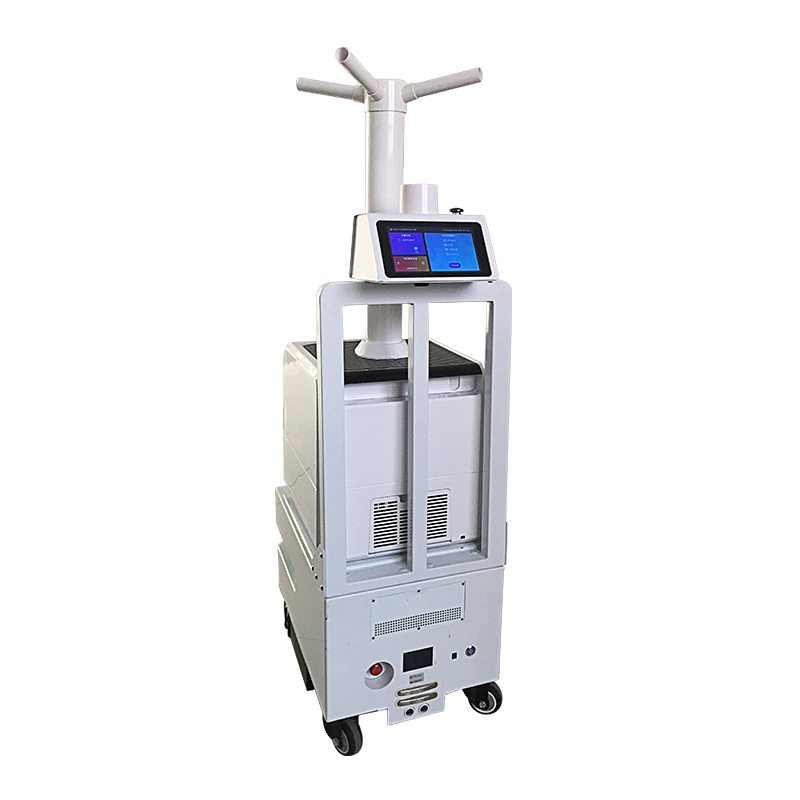

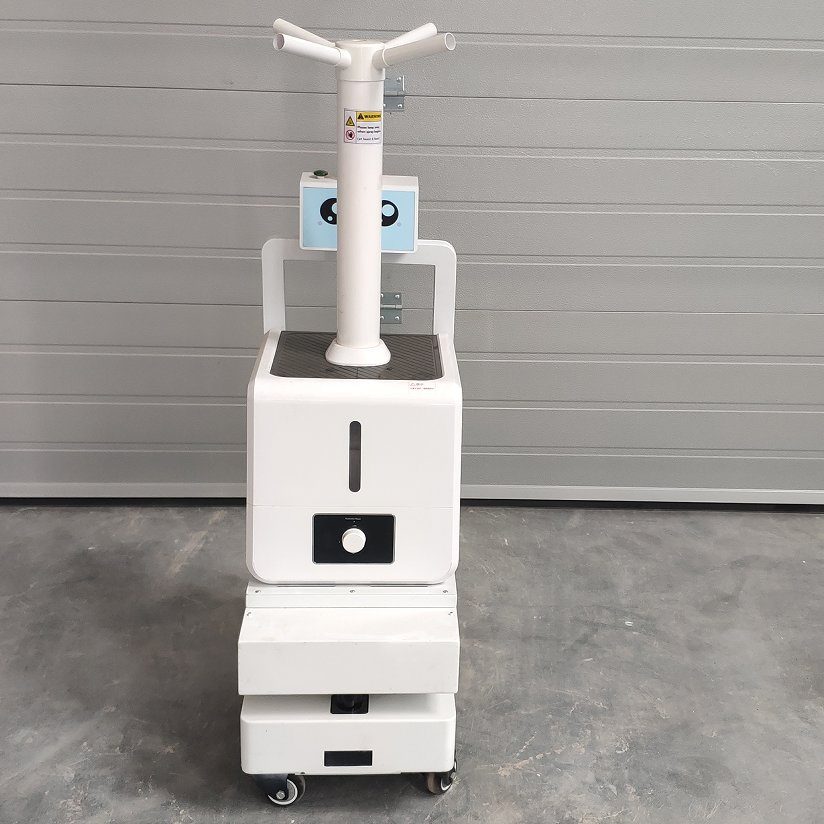

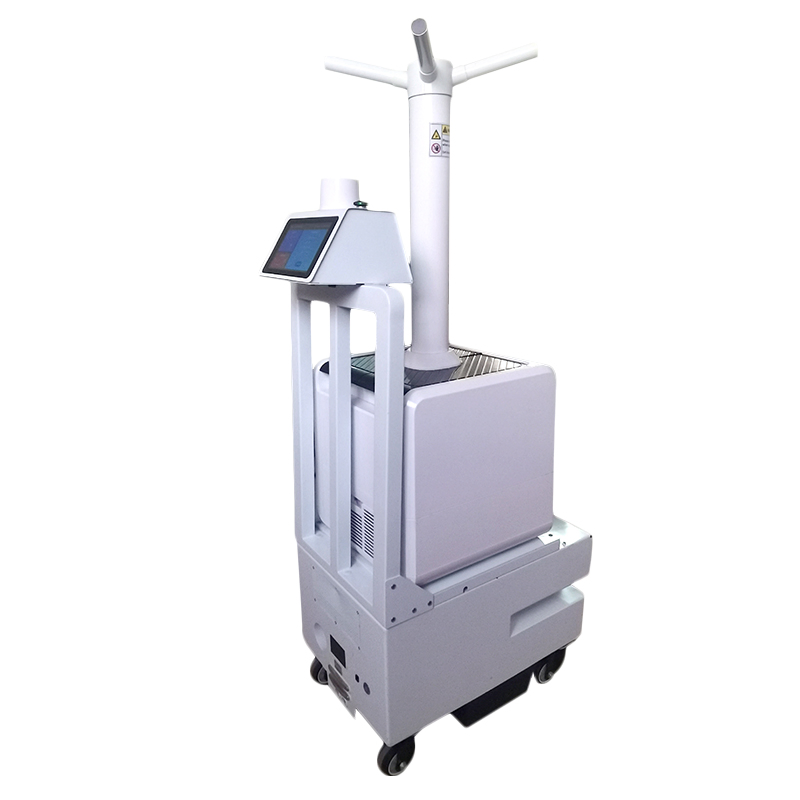

Mobile Atomizing Disinfection Robot: Compatible with Hydrogen Peroxide/Hypochlorous Acid, High-Efficiency Atomization Sterilization, Multi-Scenario Coverage

Product Description

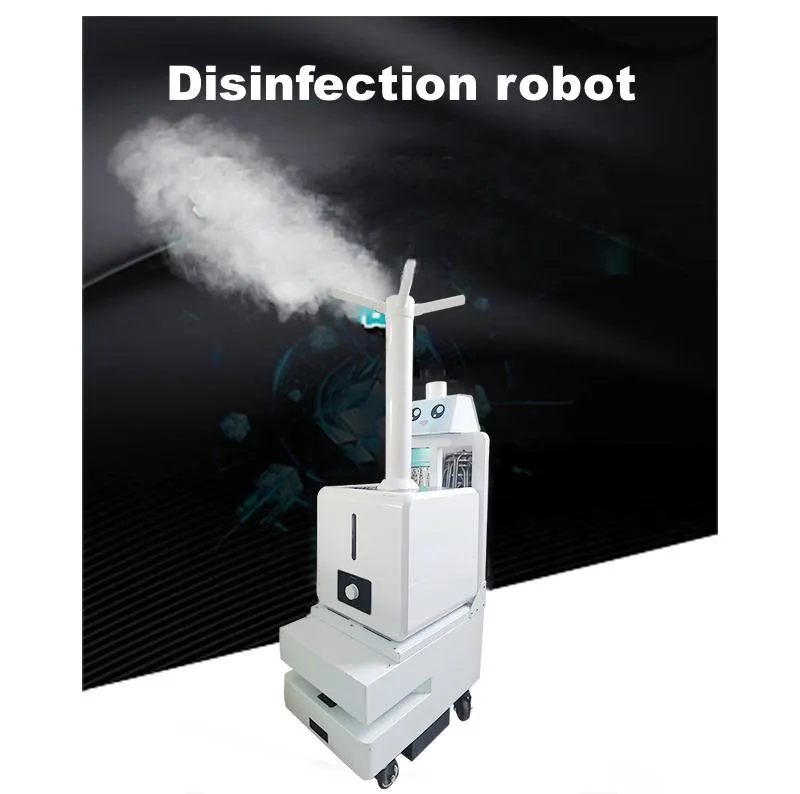

Fogging Disinfection Robot

The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

Fogging Disinfection Robot

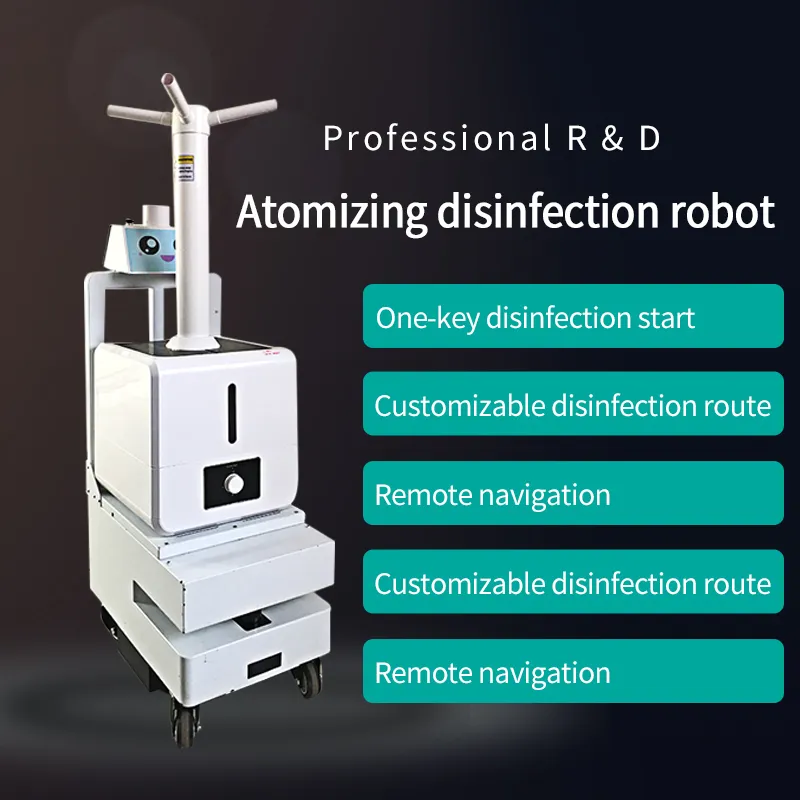

Disinfection Robot Features
📊 Technical Specification
Model CW-XS Robot
Operating System Android 5.1
Supported Languages Chinese, English and others
Processor RK3128 (Quad-core Cortex-A7, up to 1.2GHz)
Memory 1GB LPDDR3, 8GB NAND Flash
Display 7-inch IPS screen (1024x600 resolution)
Battery 10S8P 10400mAh/37V (3-4 hours operation)
Atomization Particle Size 2-5um
Atomization Output 800-3000ML/H
Water Tank Capacity 16L
Dimensions 540mm x 360mm x 1400mm
Weight 43KG
Wireless Tech 2.4GHz/5GHz WiFi, Bluetooth 4.1, 802.11b/g/n

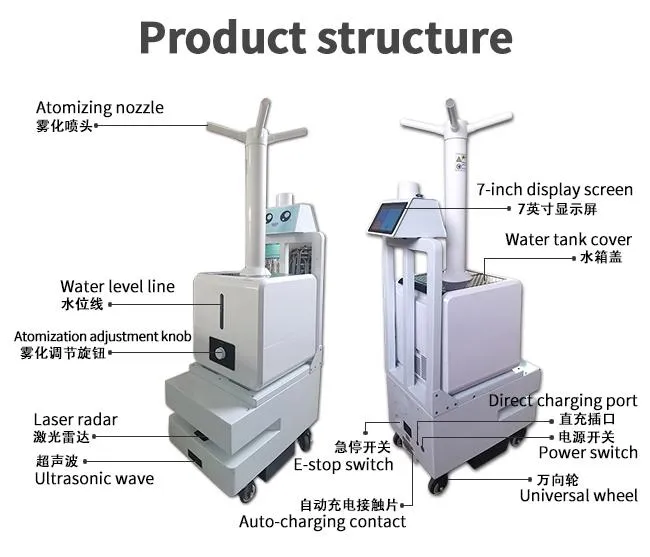

Technical Drawing
Robot View 1
Robot View 2
Robot View 3
🛡️ Core Features
Intelligent Disinfection Mode Equipped with smart algorithms for optimal, efficient disinfection routines.

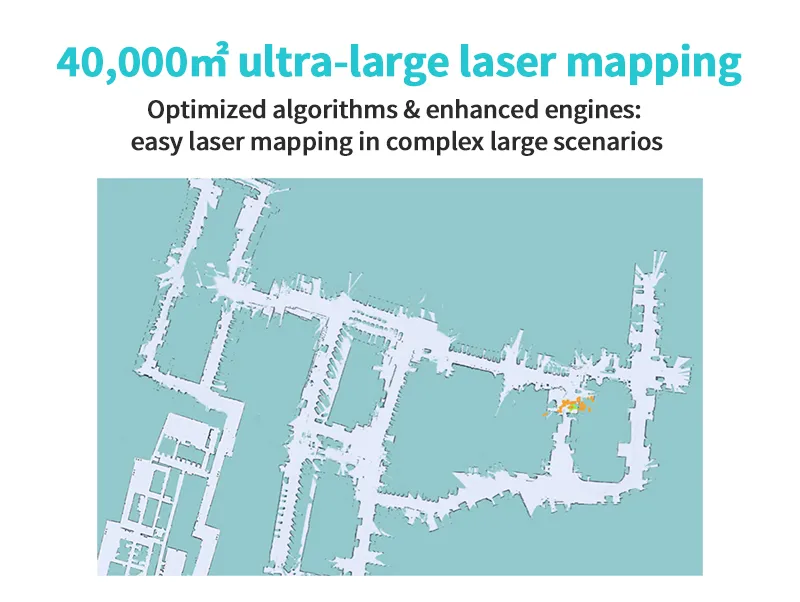

Laser Mapping & Navigation Utilizes 40,000 square meters of laser mapping for precise coverage and SLAM technology.
High Output Fogging Produces up to 3000mL/h of fog with 2-5um particles for comprehensive surface and air treatment.
Versatile Compatibility Compatible with hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
Autonomous Operation Features automatic return to charging stations and intelligent obstacle avoidance.

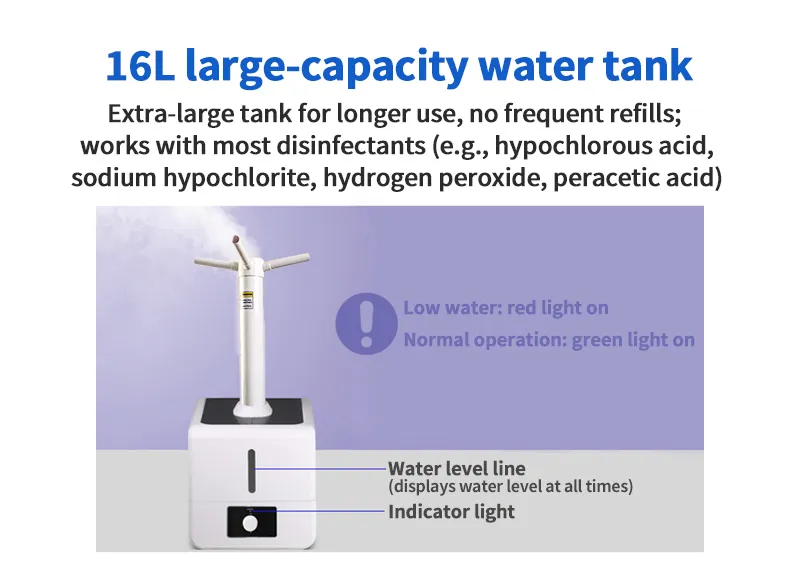

Large Capacity A 16L water tank allows for extended operation periods without frequent manual refills.
📸 Product Gallery & Scenarios

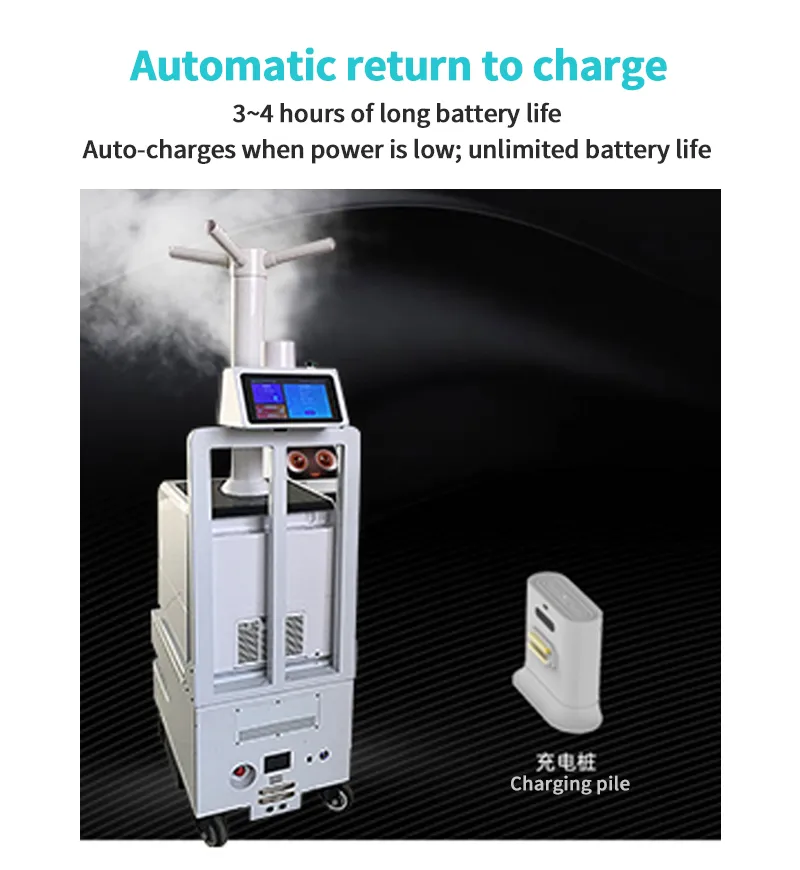

Scenario 1
Scenario 2
Scenario 3
Scenario 4

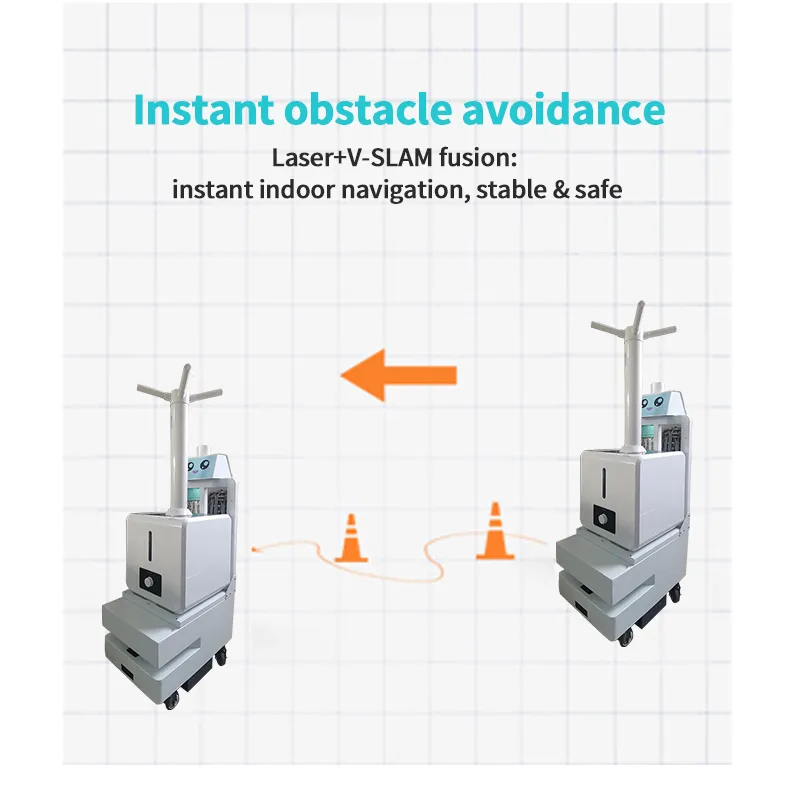

Scenario 5
Scenario 6

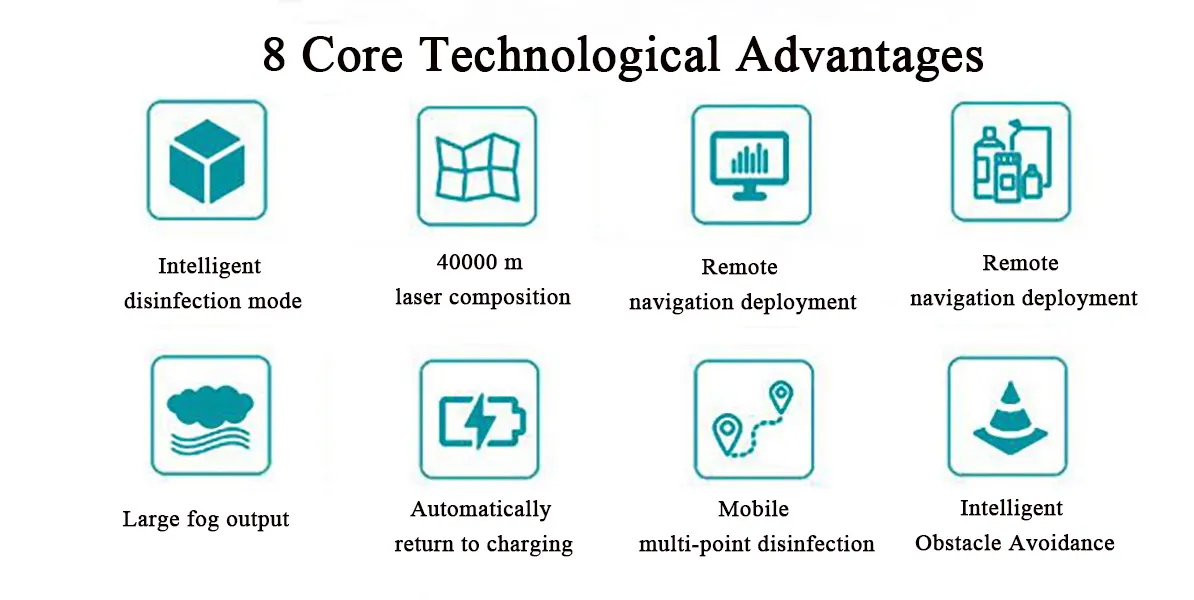

Application Scenarios Overview
🎥 Operation Video
Banner Footer
Frequently Asked Questions
What types of disinfectants can this robot use?
The robot is compatible with various common disinfectants, including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid, allowing you to choose the best option for your hygiene protocols.
How much area can the robot cover autonomously?
Using its advanced LiDAR-based mapping system, the robot can map and navigate areas up to 40,000 square meters, making it suitable for large facilities like hospitals and malls.
What happens when the robot's battery is low?
The system includes an automatic return-to-charge feature. When the battery levels are low or the task is completed, the robot will autonomously navigate back to its charging station.
Is the fogging safe for indoor air?
The robot produces a fine dry mist with a particle size of 2-5um. This allows for high-efficiency sterilization of both surfaces and air while minimizing excessive moisture.
Does the robot require constant human supervision?

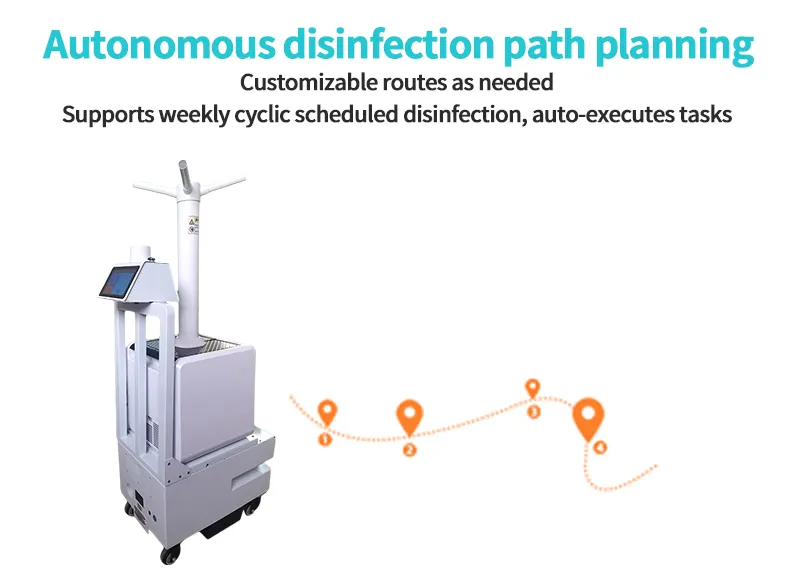

No, once the environment is mapped and the path is set, the robot operates autonomously using Laser SLAM and V-SLAM technology for intelligent obstacle avoidance.
Can I monitor the robot remotely?

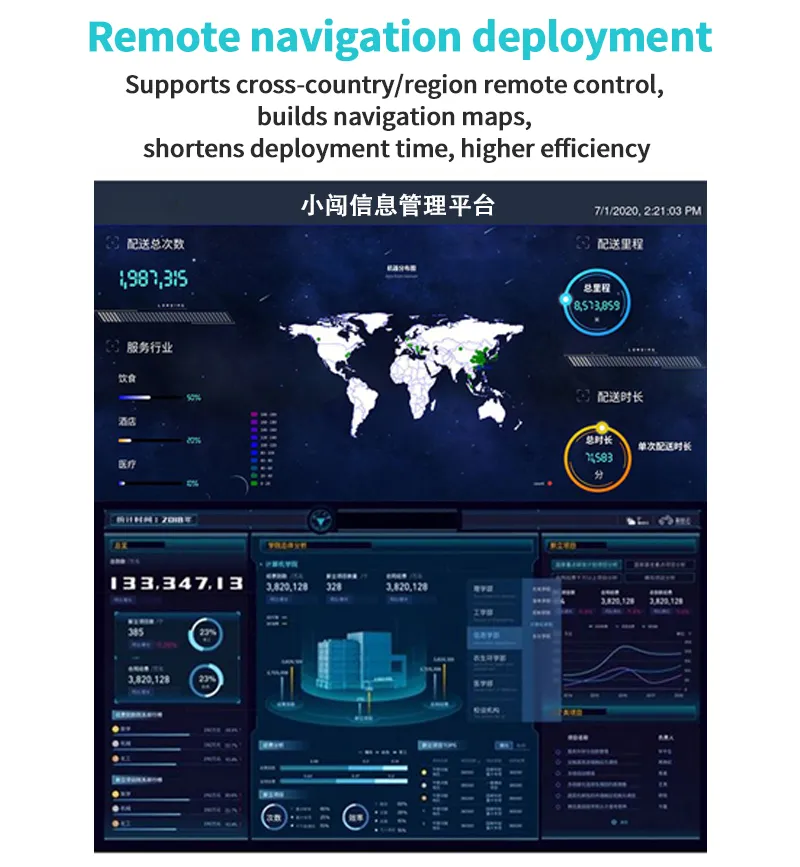

Yes, the system supports remote monitoring and deployment through a cloud service management platform, allowing users to control tasks and check status from a distance.
