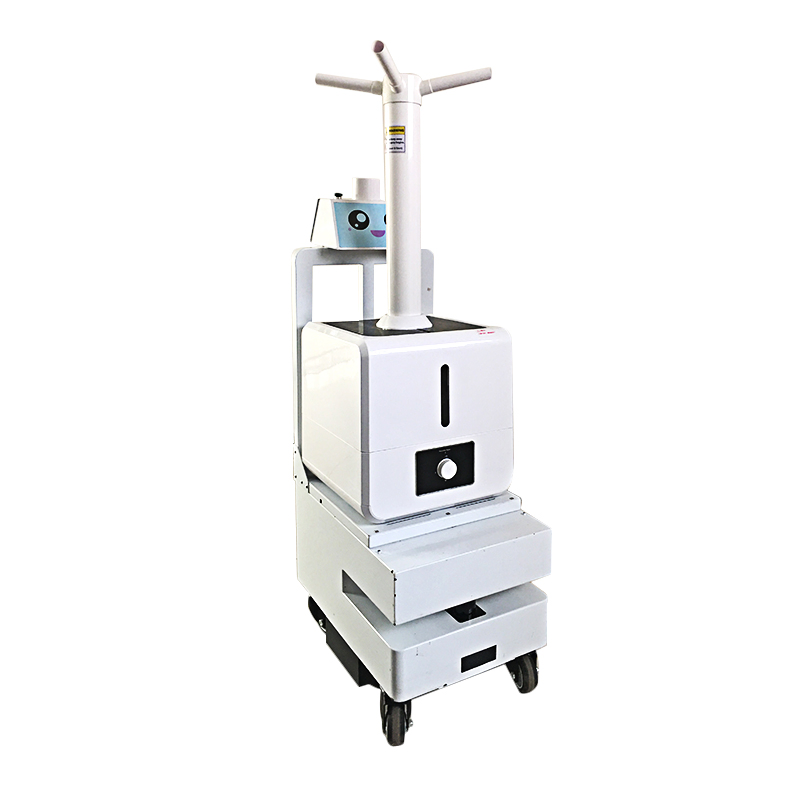

Mobile Automatic Spray Disinfection Robot: Intelligent Atomization Design, Comprehensive Sterilization & Disinfection

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
CW-XS
Interaction Mode
Touch Screen
Navigation System
Lidar
Operating System
Android
Service Scenarios
Home Cleaning, Hotel Room Service, Office Receptionist, Supermarket Delivery
Type
Food Delivery Robot / Disinfection Robot
Origin
China
HS Code
8479899990
Fogging Disinfection Robot Overview

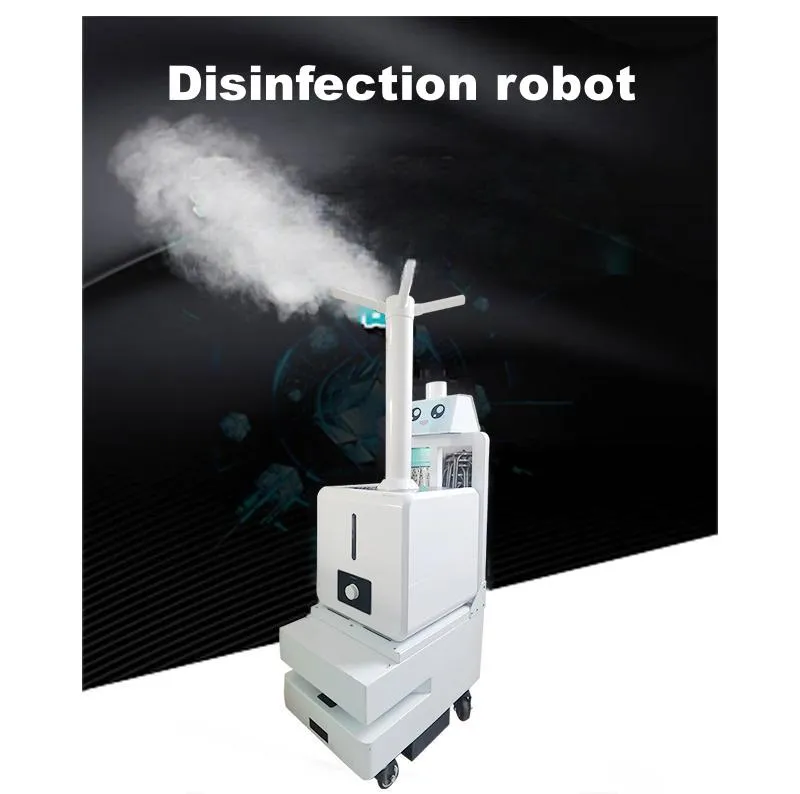

Fogging Disinfection Robot

The Fogging Disinfection Robot represents a cutting-edge autonomous disinfection platform engineered for comprehensive, high-efficiency sanitization across diverse indoor environments. This intelligent system delivers a fully automated, end-to-end disinfection solution that combines precision navigation with powerful fogging technology.

Designed to meet stringent hygiene demands, it serves as an ideal solution for healthcare facilities, hospitality venues, transportation hubs, educational institutions, and other high-traffic public spaces where effective pathogen control is paramount. The robot's advanced LiDAR-based mapping capabilities enable autonomous coverage of up to 40,000 square meters, ensuring meticulous, multi-point disinfection with minimal human intervention.

Core Features & Advantages

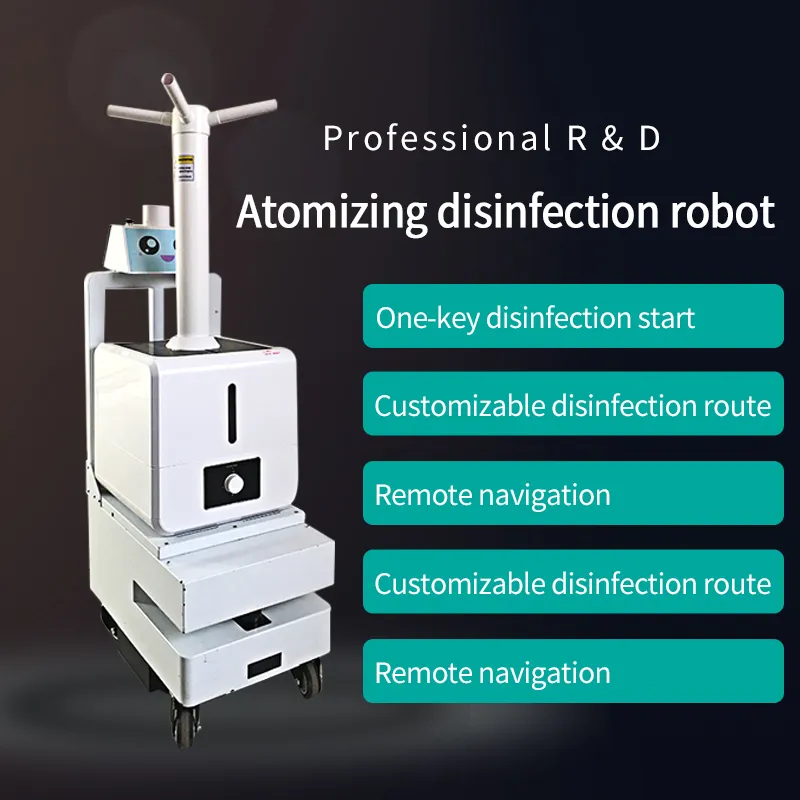

Robot Features
  • Intelligent Disinfection Mode: Equipped with smart algorithms for optimal disinfection routines.

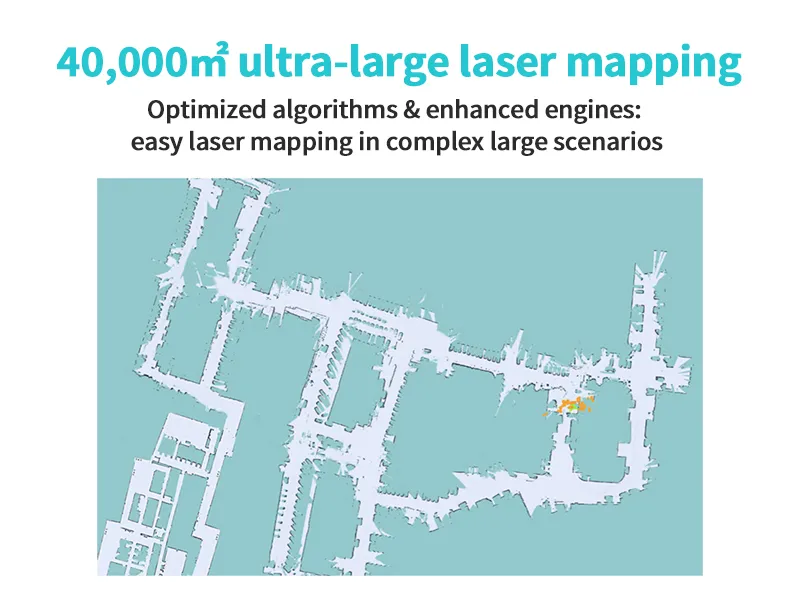

  • Large Scale Laser Mapping: Utilizes 40,000 square meters of laser mapping for precise navigation and coverage.

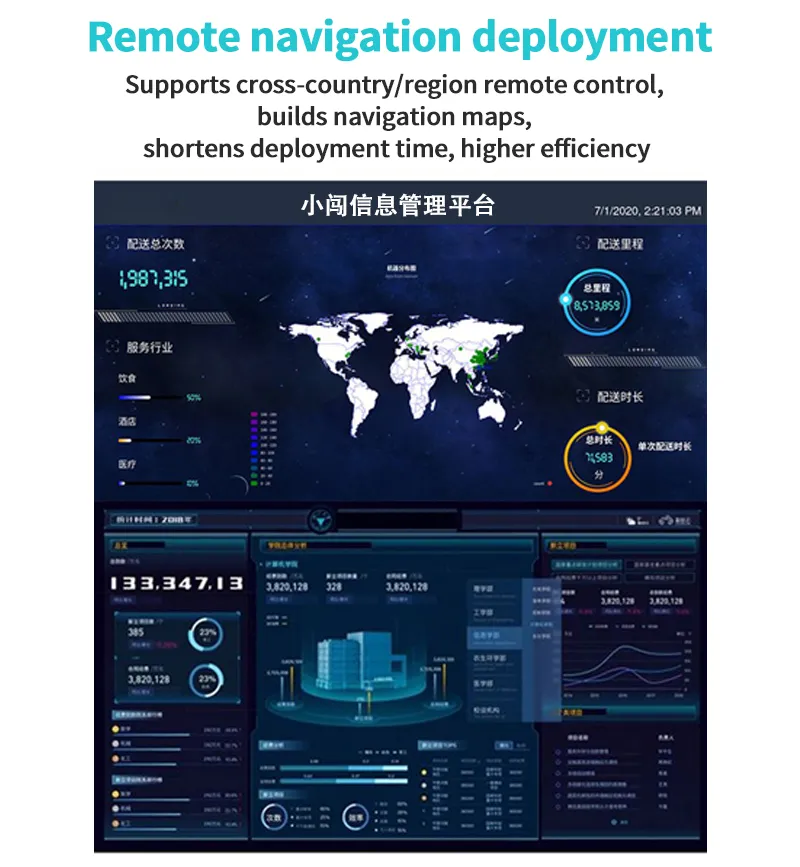

  • Remote Navigation Deployment: Capable of remote control and navigation setup for efficient operation.
  • Multiple Disinfectant Compatibility: Works with hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
  • High Output Fogging: Produces up to 3000mL/h of fog, ensuring comprehensive surface and air treatment.

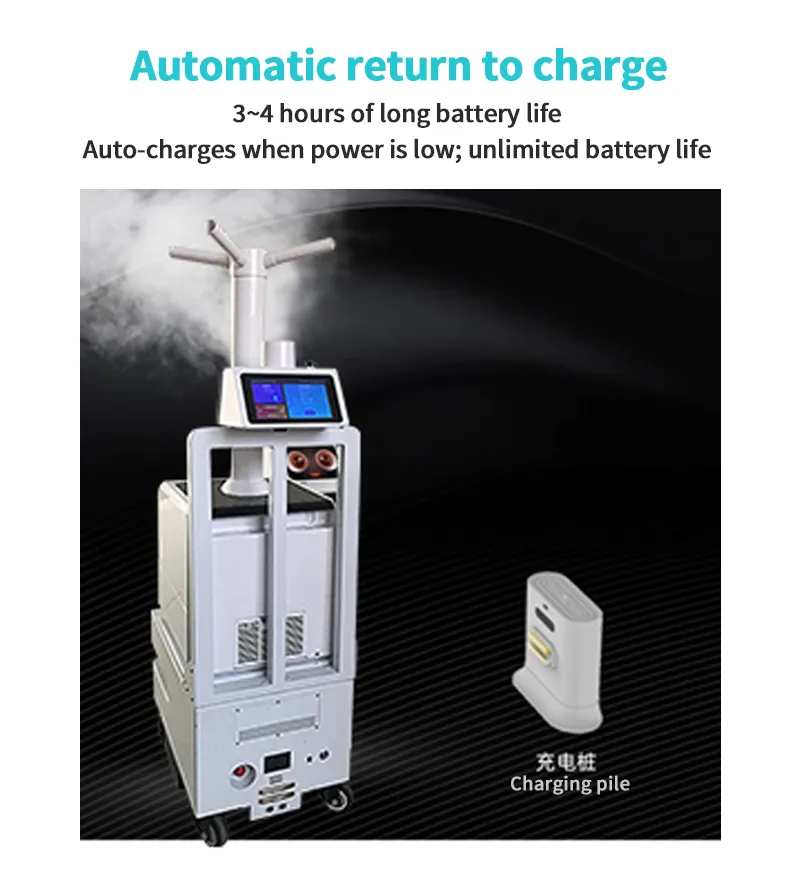

  • Automatic Return Charging: Automatically returns to its dock when battery is low for uninterrupted readiness.

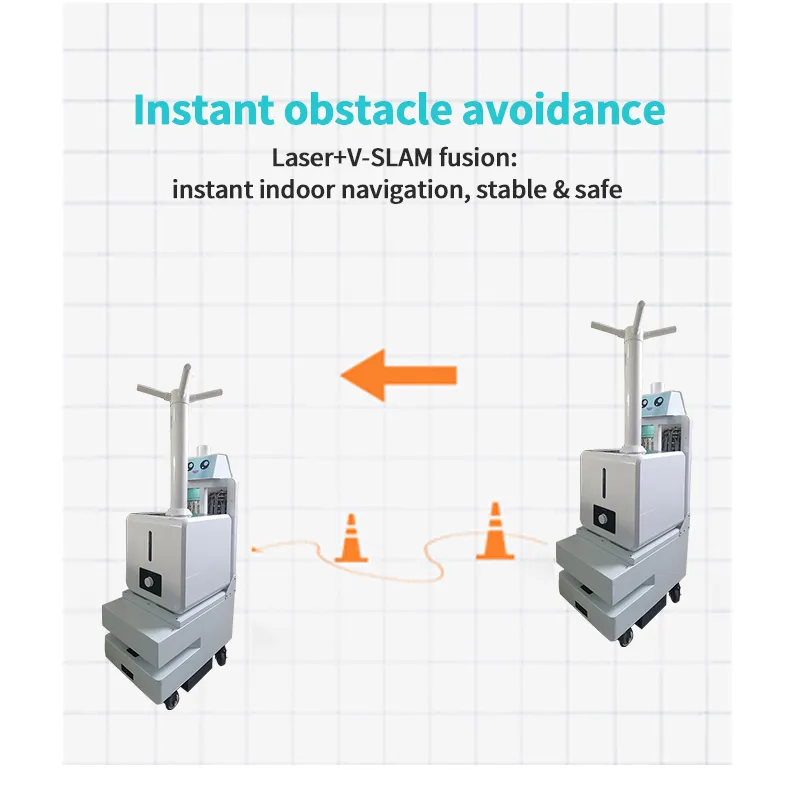

  • Intelligent Obstacle Avoidance: Uses laser SLAM and V-SLAM technology for safe navigation in complex environments.

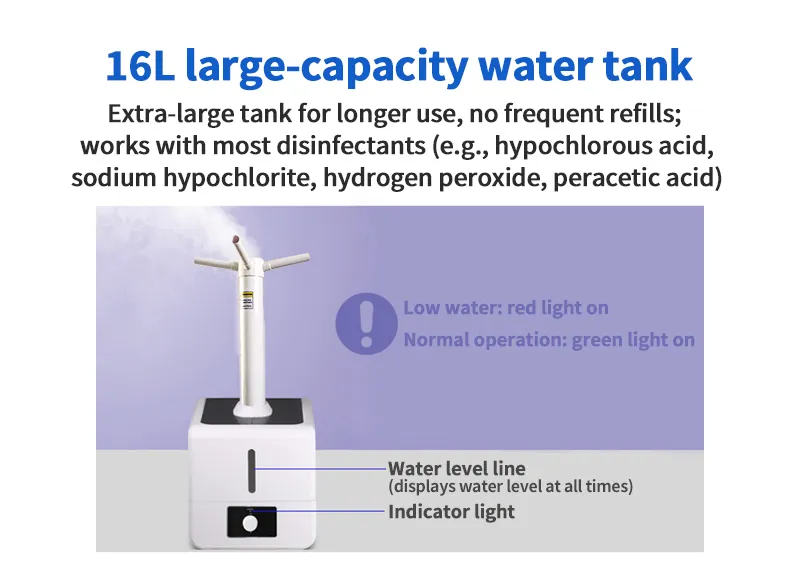

  • 16L Large Capacity: Allows for extended operation without frequent refills.
Technical Specifications

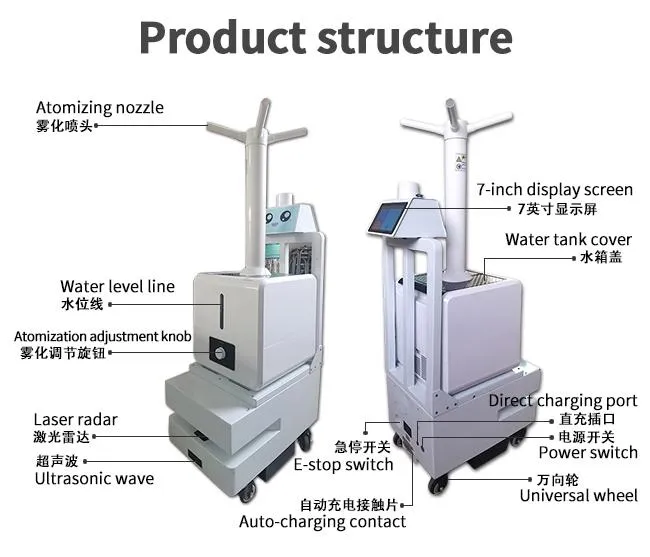

Specifications Diagram
ParameterDetails
ModelCW-XS Robot
Operating SystemAndroid 5.1
ProcessorRK3128 (Quad-core Cortex-A7)
Display7-inch IPS screen (1024x600)
Battery10400mAh/37V (3-4 hours operation)
Atomization Particle Size2-5um
Atomization Output800-3000ML/H
Water Tank Capacity16L
Weight43KG
Dimensions540mm x 360mm x 1400mm
WirelessWiFi 2.4G/5G, Bluetooth 4.1

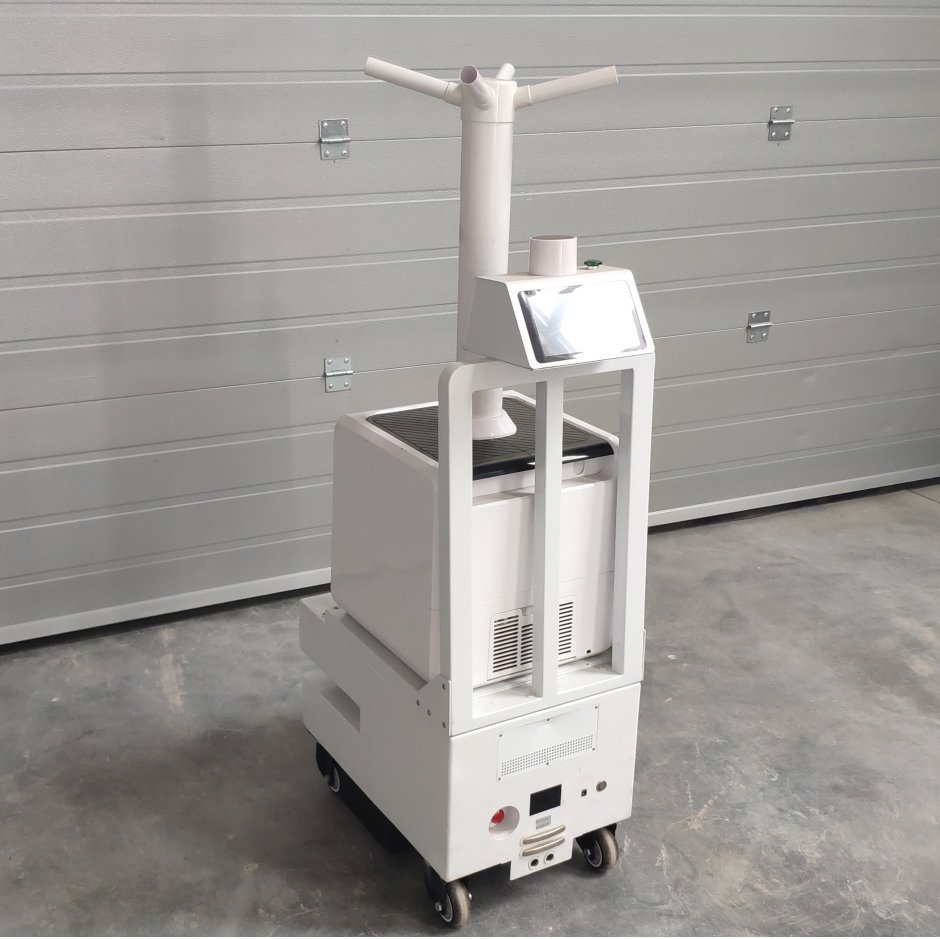

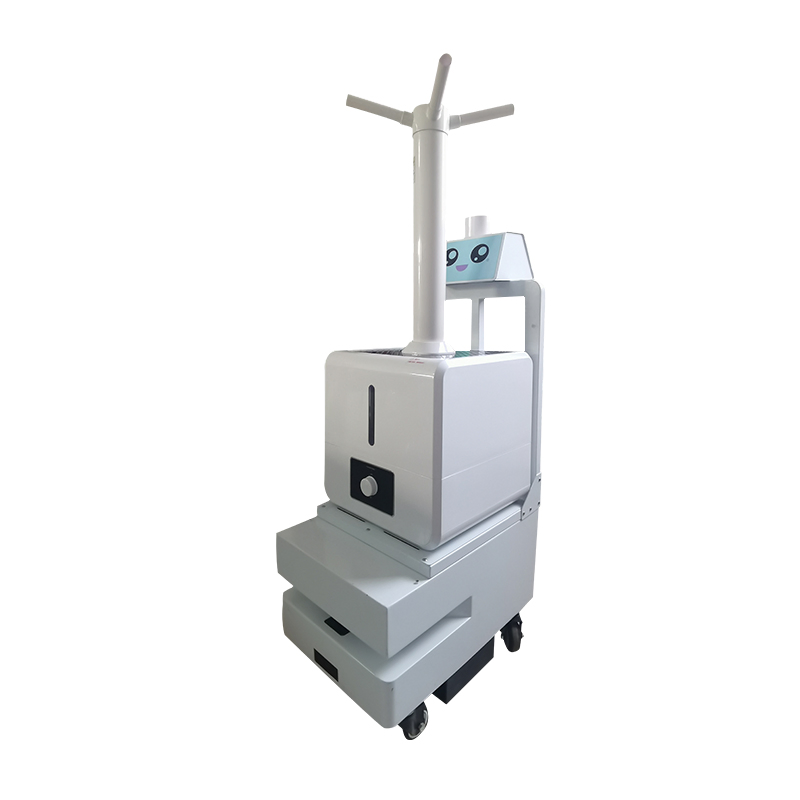

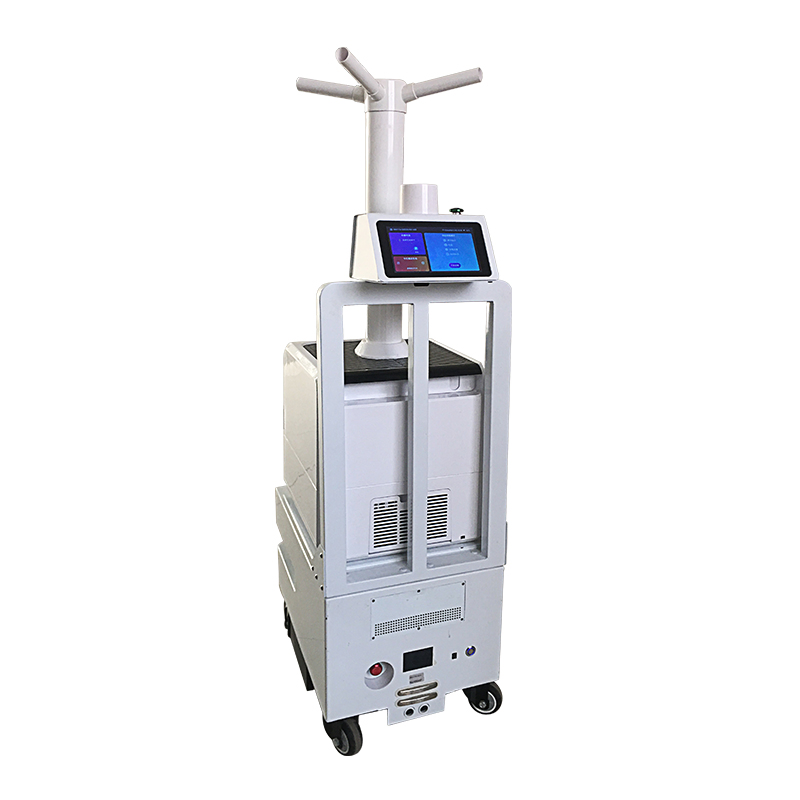

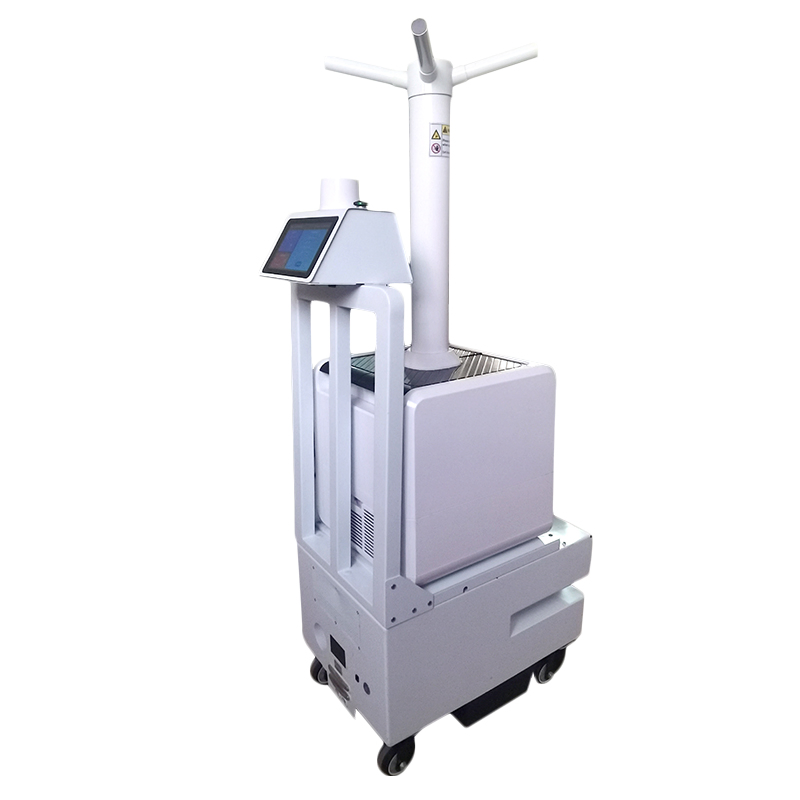

Product Details Gallery
Operational Demonstration
Frequently Asked Questions
What is the maximum area this robot can map and cover?
The robot utilizes advanced LiDAR technology capable of mapping and covering up to 40,000 square meters, making it suitable for large industrial and public spaces.
Which types of disinfectants are compatible with the system?
The system is versatile and compatible with various disinfectants, including hypochlorous acid, sodium hypochlorite, hydrogen peroxide, and peracetic acid.
How long can the robot operate on a single charge?
Equipped with a 10400mAh battery, the robot provides approximately 3 to 4 hours of continuous operation and features an automatic return-to-charge function when the battery is low.
What is the capacity of the disinfectant tank?
The robot features a large 16L water tank, allowing for extended disinfection tasks without the need for frequent manual refills.
How does the robot avoid obstacles in public environments?
It uses a combination of Laser SLAM and V-SLAM technology for intelligent obstacle avoidance, ensuring safe and efficient navigation even in crowded or complex indoor settings.

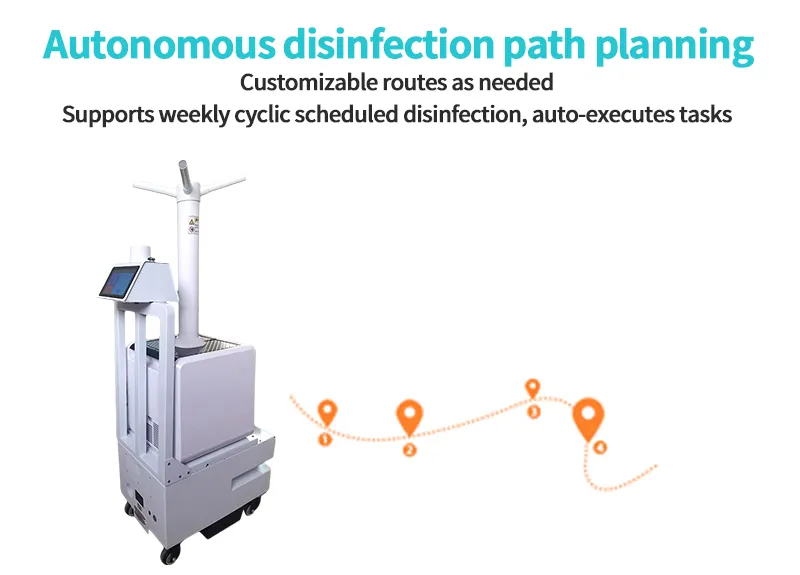

Can the disinfection paths be customized?
Yes, the system allows users to define specific routes and multi-point disinfection paths based on the actual needs of the facility through its cloud management platform.
